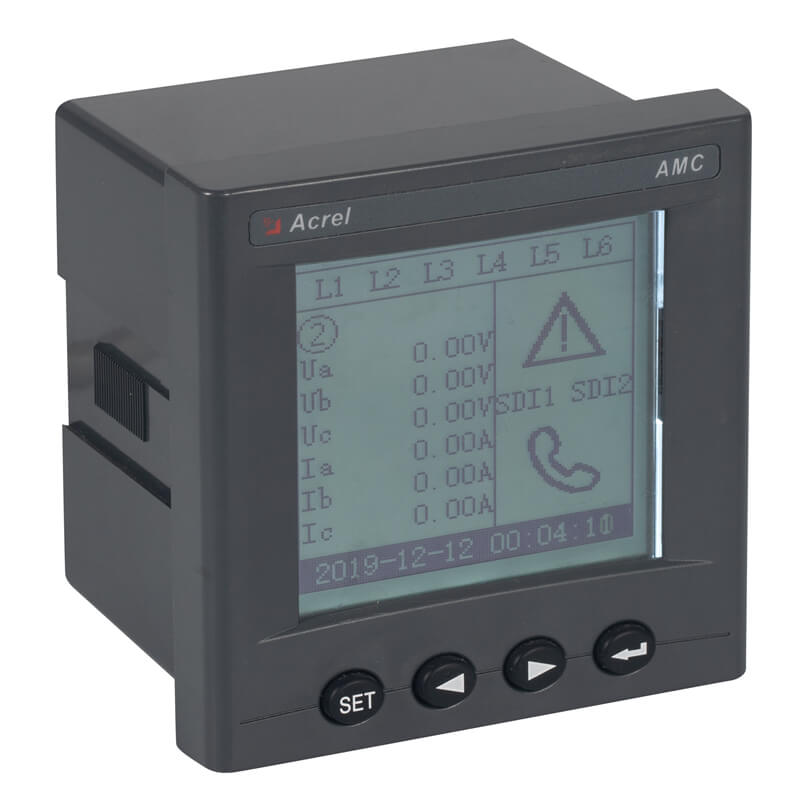

AMC300L-6E
What Do Our Customers Say?
“ During the time I have worked with Acrel on this project, I have found Acrel and its team to be highly knowledgeable and results-driven. Based on preliminary pilot testing and a strong understanding of subsurface. ”
Derek AuCoin
Defence Construction Canada
Acrel is one of the best supplier for me. They are so easy to communicate and very friendly. They even give an online tour of their factory. Looking forward for more business together in the future.
Liezel
Philippines
My first contact with ACREL was through Mrs. Feeling Chang. He was extremely friendly, approachable and very helpful. It will be the beginning of a long partnership between Bikoelectronics and Acrel.
Vanessa
Portugal
“ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "
Arnold
Philippines
Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.
Tuan
Vietnam
What’s the Highlight of Acrel AMC300L Series AC 6 Three-phase or 18 Single-phase Multi Circuit Panle Meter for Cell Site?
What’s the Parameter of Acrel AMC300L Series AC 6 Three-phase or 18 Single-phase Multi Circuit Panle Meter for Cell Site?
Item | Index | |
Input | Voltage | Rated: AC 3*220/380V |
Overload: 1.2 times/Continuous, 2 times/1s | ||
Consumption: ≤0.5VA/Circuit | ||
Current | Rated:AC100A | |
Overload: 1.2 times/Continuous, 10 times/1s | ||
Consumption: ≤0.5VA/Circuit | ||
Frequency | 45-65Hz | |
Function | Communication | Modbus-RTU; Baud Rate:1200~38400 |
Pulse | Output mode: open collector optocoupler pulse | |
DI | 4 dry contact inputs, 2 active (AC 220V input) | |
DO | Relay normally open contact output; contact capacity: AC 250V/3A DC 30V/3A |
|
Temperature | -20℃~100℃, accuracy:±2℃ | |
Accuracy | Frequency:0.05Hz, Voltage&Current:0.5 class, Active Power:1 class | |
Auxi. Power | AC/DC 85~265V;Consumption≤10VA | |
Security | Withstand | >AC 2kV/1min |
Insulation | Input and output terminals to the chassis>100MΩ | |
Working Enviroment | -20℃~+60℃ | |
Electromagnetic Compatibility | better than grade 3 |
How does the Acrel AMC300L Series AC 6 Three-phase or 18 Single-phase Multi Circuit Panle Meter for Cell Site?

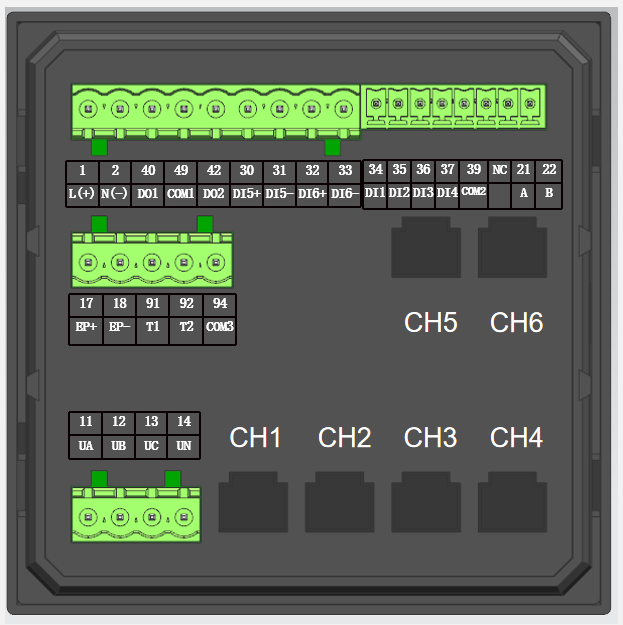

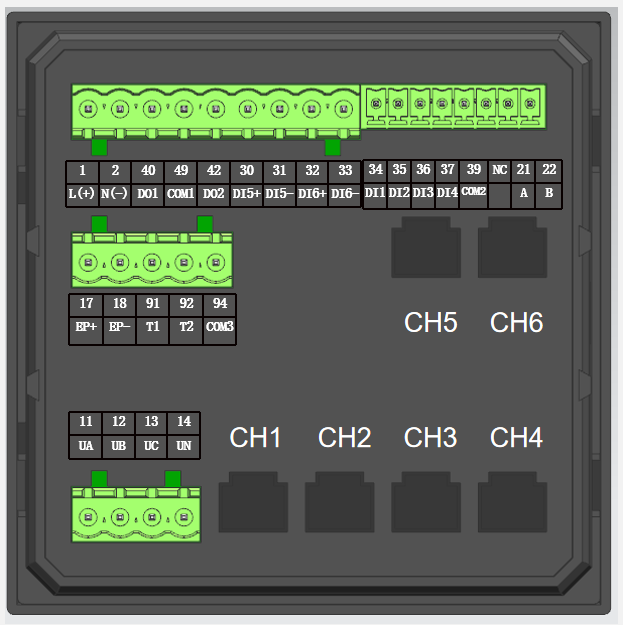

How to Install the Acrel AMC300L Series AC 6 Three-phase or 18 Single-phase Multi Circuit Panle Meter for Cell Site?
