ADW210 Multi Circuits 3 phase Energy Meter

ADW210

Standard Lead Time:
Sample: 2 days
Bulk: 1 month

  • Split-core Current Transformer with RJ12 Interface
  • 4 Channels of Three-phase
  • Communication RS485 Modbus-RTU
  • Optional Function: 12DI/4DO, 12 Temperature, 4 Leakage Current

Feedback

What Do Our Customers Say?

  • “ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

    Arnold 

    Philippines

  • Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

    Tuan 

    Vietnam

Highlight

What’s the Highlight of ADW210 Multi Circuits 3 phase Energy Meter?

Monitor

  •  Electrical Parameters; U I P Q S PF etc.

 Tariff

  • 1~4 kinds of Tariffs
  • Peak
  • Standard
  • Off-peak

 Installation

  • Split-core CT with RJ12 Interface

Extendible

  • DI/DO module
  • Temperature and Leakage Current module

Specification

What’s the Specification of Acrel ADW210 Multi Circuits 3 phase Energy Meter?

Specification ADW200 ADW210 ADW220
Optional Modular
Optional Function MK

12DI / 4DO

MTL

12 channels Temperature
4 channels Leakage Current

AWT100

Wireless Communication

4G WIFI LORA LORAWAN

Parameter

What’s the Parameter of Acrel ADW210 Multi Circuits 3 phase Energy Meter?

Parameters Description
Input



Voltage

AC 3×220V/380V
Overload: 1.2 times of rated value (continuous); 2 times of rated
value / 1s
Power consumption:≤ 0.5VA




Current

AC 5A、100A、400A、600A;(external open-type CT)
Overload: 1.2 times of rated value (continuous); 10 times
of rated value / 1s
Power consumption:≤ 0.5VA
Frequency 45~65Hz
Measuring

Accuracy

Voltage&Current Class 0.5
Active Power Class 1
Reactive Power Class 2
Frequency 0.05Hz
2~31st harmonic ± 1%
Auxiliary Power AC/DC 85~265V; Consumption≤10VA;
EMC Better than grade 3
Safety Withstand Voltage >AC 2000V/1min
Insulation Resistance >100MΩ
Environment Working Temperature -20℃~+60℃
Storage Temperature -40℃~+70℃
Humidity ≤95% (No condensation)
Altitude ≤2500m

Paired Current Transformer

Paired CT Primary Current Secondary Current Aperture(Hole size) Accuracy Class
AKH-0.66/K-φ10N 5A 1.25mA 10mm Class 0.5
AKH-0.66/K-φ16N 100A 20mA 16mm Class 0.5
AKH-0.66/K-φ24N 400A 100mA 24mm Class 0.5
AKH-0.66/K-φ36N 600A 100mA 36mm Class 0.5
AKH-0.66-L-45

(for residual current)

/ / / Class 1

Installation

How to Install the ADW210 Multi Circuits 3 phase Energy Meter?

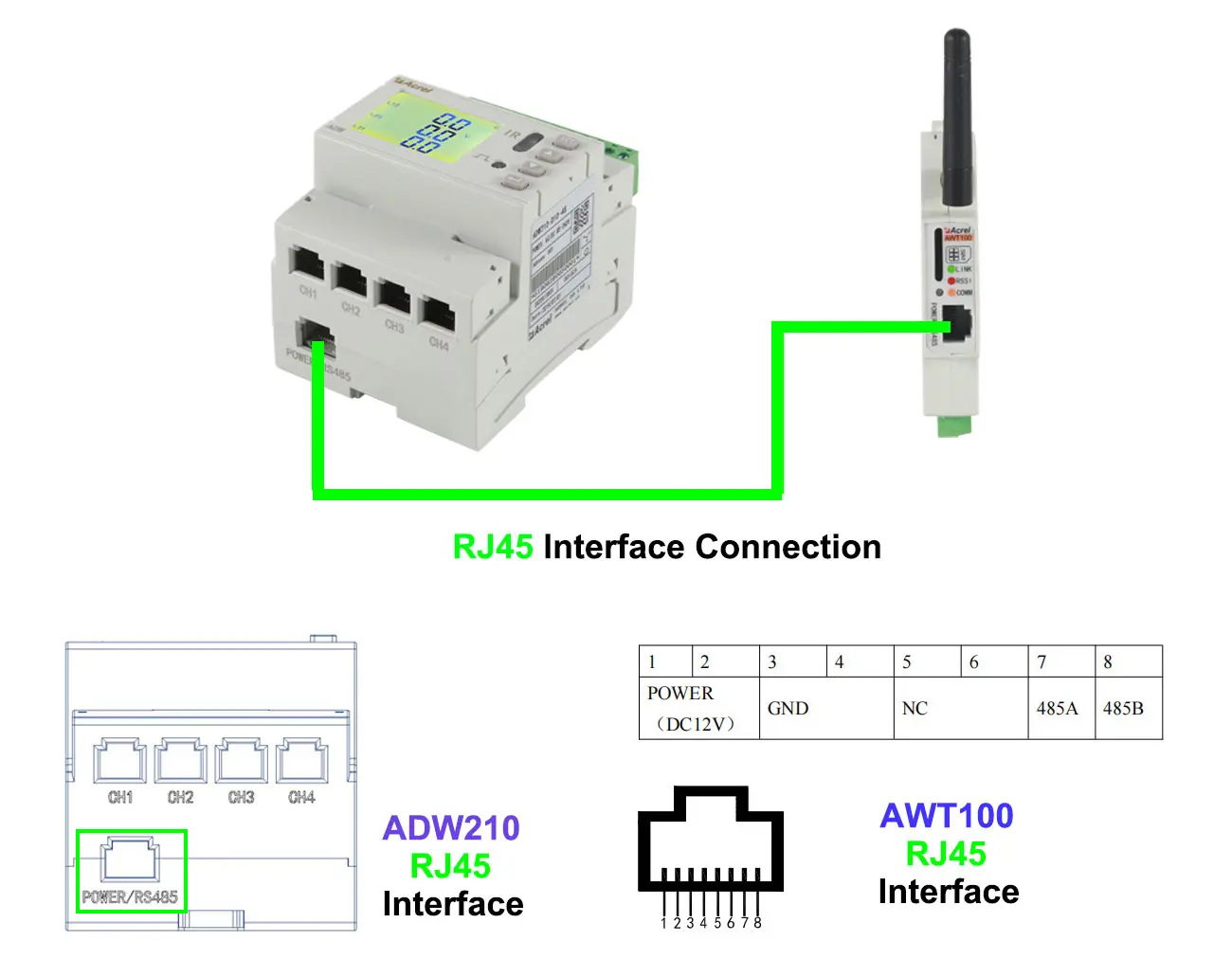

Wiring between ADW210 Main Body and MTL&MK Extra Function Module, AWT100 Wireless Gateway through RJ45 Interface
