ADW300
Standard Lead Time:
Sample: 2 days
Bulk: 1 month
MQTT
Modbus-TCP
Modbus-RTU
WIFI 4G LORA LORAWAN
What Do Our Customers Say?
Acrel is one of the best supplier for me. They are so easy to communicate and very friendly. They even give an online tour of their factory. Looking forward for more business together in the future.
Liezel
Philippines
“ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "
Arnold
Philippines
Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.
Tuan
Vietnam

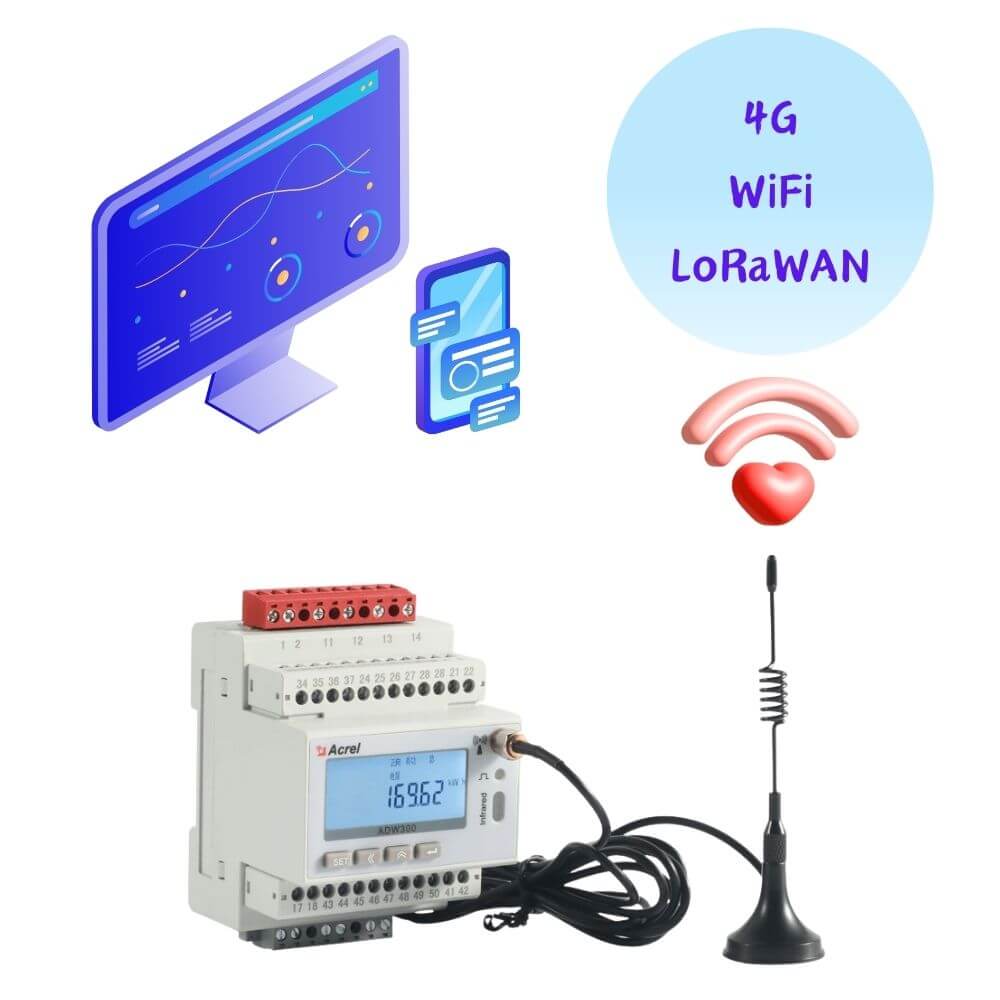

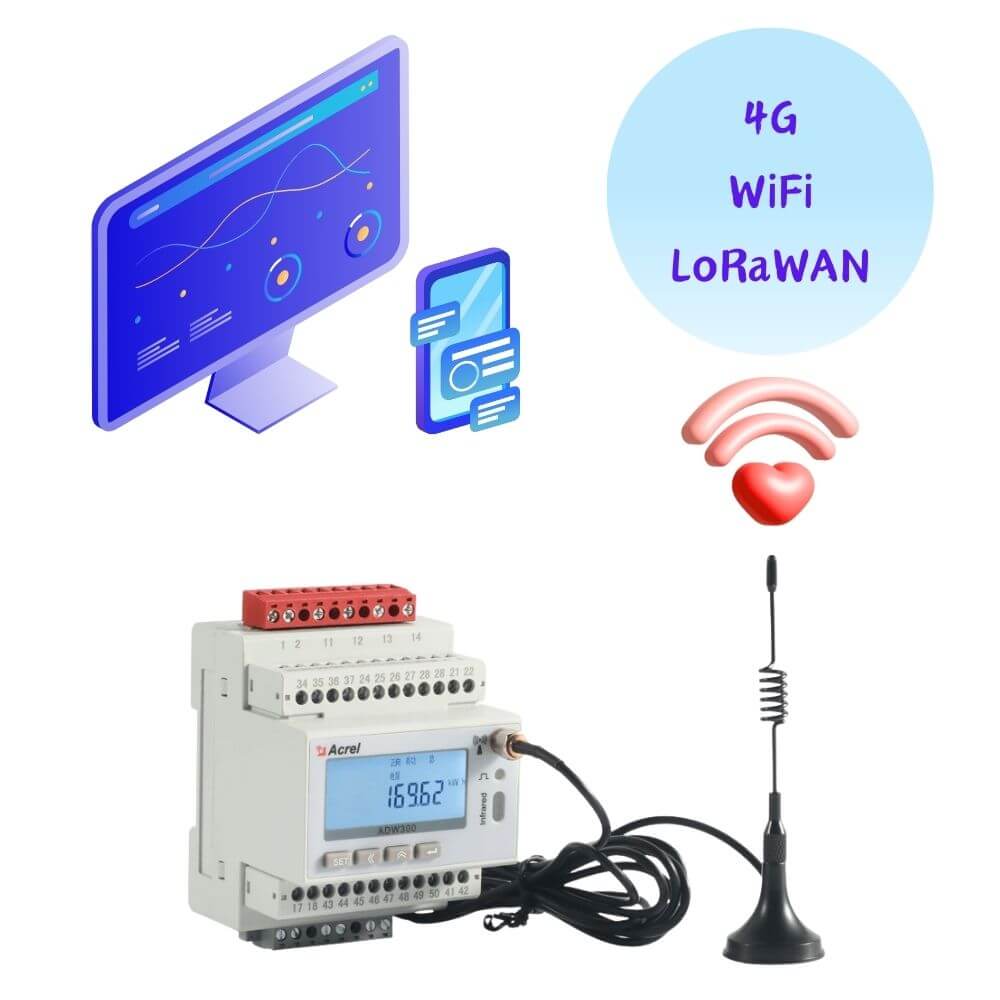

What’s the Highlight of Acrel ADW300 Wireless IoT Smart Energy Meter with WiFi 4G LoRaWAN?
How does the Acrel ADW300 Smart Power Meter works?
ACREL IoT EMS Energy Management System @ Browser & Phone APP
1. Data Acquisition and Transmission
1.1 Real-time acquisition of multiple parameters such as voltage, current, power, power quality, etc.
1.2 Data transmission through wireless methods such as 4G, WiFi, LoRaWAN, etc.
1.3 Support remote automatic meter reading, eliminating manual meter reading errors
2. Cloud Monitoring and Analysis
2.1 Data uploaded to the cloud platform for centralized storage and processing
2.2 Provide visual dashboards to display energy consumption in real-time
2.3 Use big data analytics to identify electricity usage patterns and energy efficiency issues
3. Intelligent Control and Early Warning
3.1 Remote control of circuit on/off
3.2 Set threshold alarms, notify abnormal situations in time
3.3 Predictive maintenance to reduce equipment failure downtime
Send us your detailed Requirements, We will open a 3-months Free trial account for you
Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]
What’s the Advantages of Acrel IoT Energy Management System?
1. Improve Energy Management Efficiency
1.1 Achieve refined management, accurately track energy consumption of departments/equipment
1.2 Identify energy-inefficient links, provide data support for energy-saving renovations
1.3 Optimize electricity usage strategies, reduce peak-valley electricity differences
2. Reduce Operating Costs
2.1 Reduce manual meter reading and inspection costs
2.2 Detect equipment abnormalities in advance, avoid major losses
2.3 Directly reduce electricity expenses through energy efficiency optimization
3. Enhance Safety and Reliability
3.1 Real-time monitoring of electrical parameters to prevent overloads and failures
3.2 Timely alarms for safety hazards such as leakage and temperature abnormalities
3.3 Improve power supply reliability and electricity safety level
4. Support Decision Optimization
4.1 Provide multi-dimensional energy consumption reports and analysis
4.2 Data-driven decision making, scientifically formulate energy-saving plans
4.3 Evaluate the effectiveness of energy-saving measures and continuously improve
5. Flexible Expansion and Integration
5.1 Modular design for easy system expansion
5.2 Open API interfaces for integration with existing management systems
5.3 Support multiple communication protocols to adapt to different scenario requirements
What’s the Applications of Acrel IoT EMS Energy Management System?
Smart Grid
Distribution network monitoring, load management, power quality analysis
Industrial Field
Equipment energy consumption monitoring, production line efficiency optimization, cost allocation
Commercial Buildings
Air conditioning and lighting system energy saving, sub-item metering, green building certification
Infrastructure
School and hospital energy management, municipal street light monitoring, communication base station power management
New Energy
Photovoltaic power generation monitoring, charging pile operation management, energy storage system optimization
How to Install the Acrel ADW300 IoT enabled Energy Meter?
Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]
What’s the Parameter of the Acrel ADW300 Smart Energy Meter IoT based?
| Multiple Communication Methods
● 4G LTE ● NB-IoT ● WiFi (2.4GHz&5GHz) ● LoRa ● RS485 (MODBUS-RTU) ● Paired with IoT Energy Monitoring System |
|
| Power Quality Analysis
● Total Harmonic ● 2nd~31st Harmonic ● Voltage Unbalance ● Current Unbalance |
|
| Expanded Function
● 2-channel DO (Digital Ouput) ● 4-channel DI (Digital Input) ● 4-channel Cable Temperature Monitoring ● 1-channel Residual Current Measurement |
|
| Alarm Function
● Over/Under Current ● Over/Under Voltage ● Over/Under Power ● Phase Loss |
 |
| Parameter | Description & Value | |
| Voltage
Input |
Rated Voltage | 3×380~456Vac L-L or 3×660~792Vac L-L (via direct connection)
3×100~120Vac L-L (via PTs) |
| Reference Frequency | 45~65Hz | |
| Power Consumption | ＜0.5VA (each Phase) | |
| Current
Input |
Rated Current | 3×1(6)A AC (via CTs) |
| Starting Current | 1% Ib (Class 0.5); 4% Ib(Class 1) | |
| Power Consumption | ＜1VA (each Phase) | |
| Phase
Wiring |
3P4W | 3-phase 4-wire |
| 3P3W | 3-phase 3-wire | |
| Auxiliary
Power Supply |
Voltage Range | 85~265Vac |
| Power Consumption | ＜2W | |
| Measurement
Performance |
Standard | IEC 62053-22:2003; IEC 62053-21:2003 |
| kWh Accuracy | Class 0.5S | |
| Pulse | Width of Pulse | 80±20ms |
| Pulse Constant | 6400imp/kWh; 400imp/kWh | |
2003 Established
SZ.300286 Listed Company
1200+ People
25000+㎡ Plant
Factory Direct-saleGot a Question? Get your Answer
We have our own Factory and R&D Center
Rich product series: Cloud Platform, Gateway, Protection Device, Power Meter, Transformer
CNAS, ISO14001, ISO27001, ISO9001
CE, IEC, MID, UL, EAC, ROHS, REACH
Competitive Price with High Quality
2 Years
Purchasing according to your needs, no MOQ limit
Sample takes 3 days; Bulk purchase takes 1 month
