Highlight

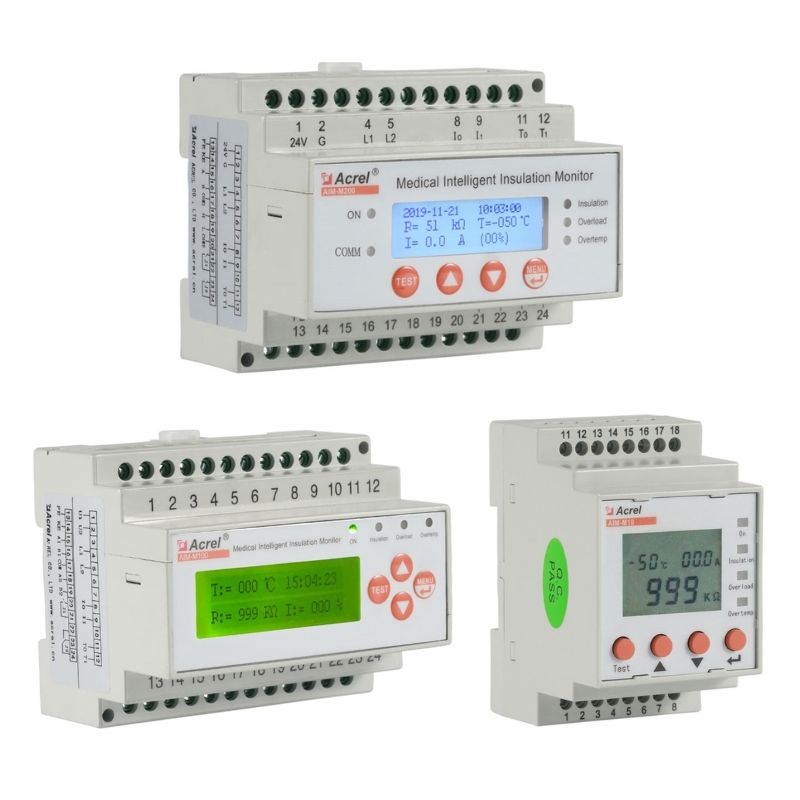

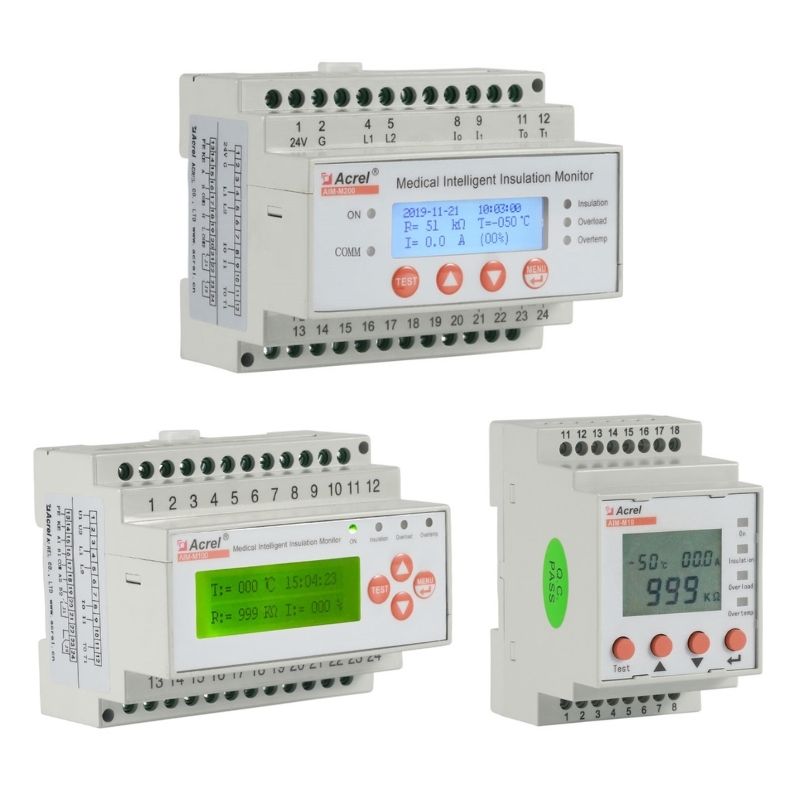

What’s the Function of Acrel AIM Series Line Isolation Monitor?

Main Function

Insulation monitoring
Overload monitoring
over temperature monitoring
Wiring status monitoring
Fault alarm output

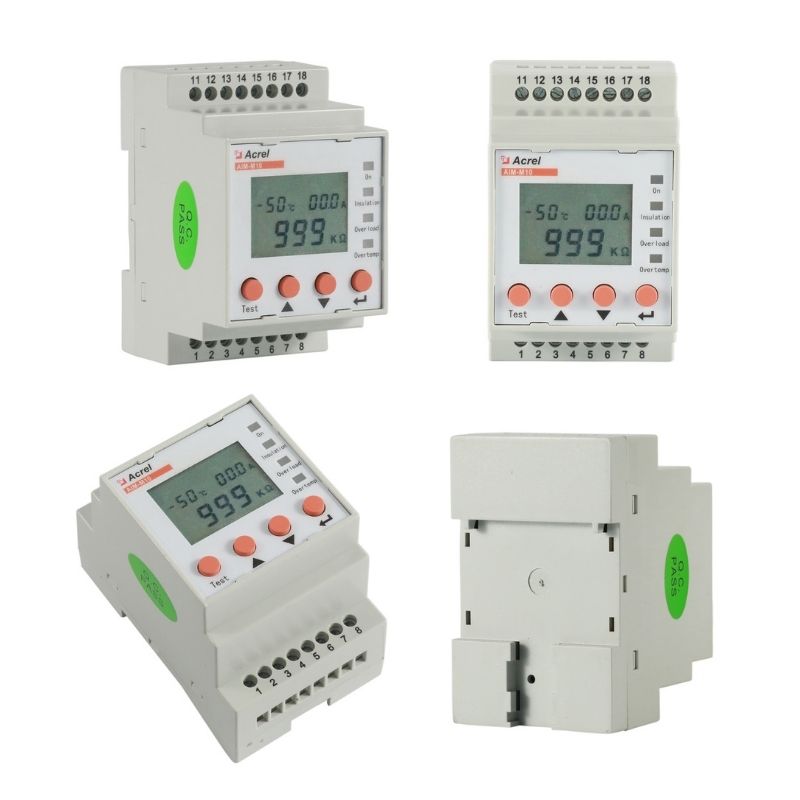

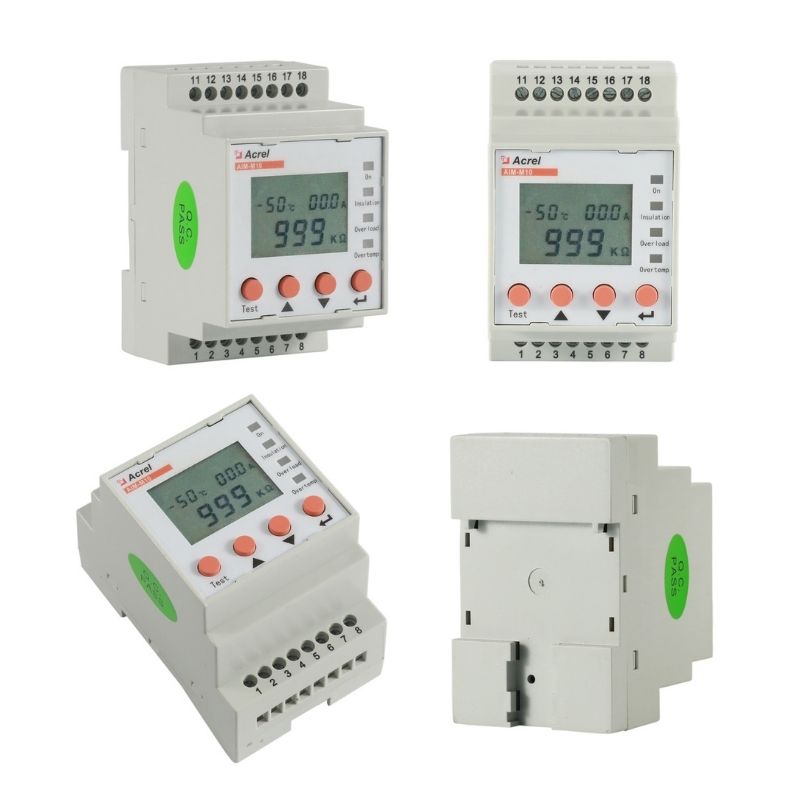

AIM-M10

Auxiliary Power: DC9-36V
Communication: RS485 +CAN
Relay: 2 channels (not programmable)
Certificate: CE, IEC

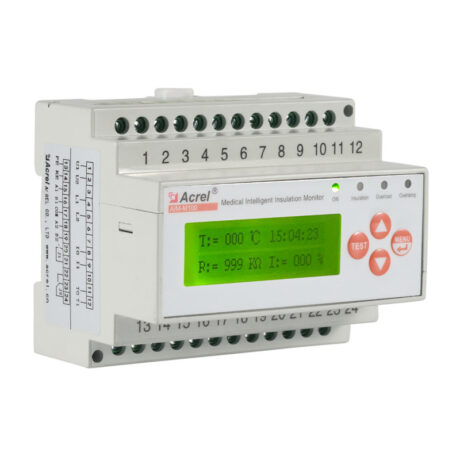

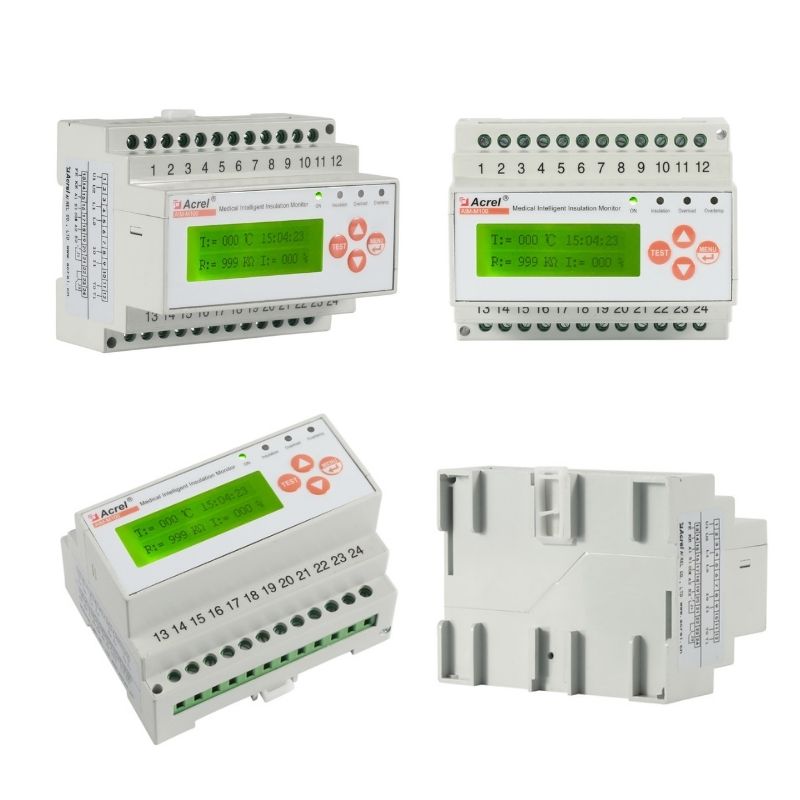

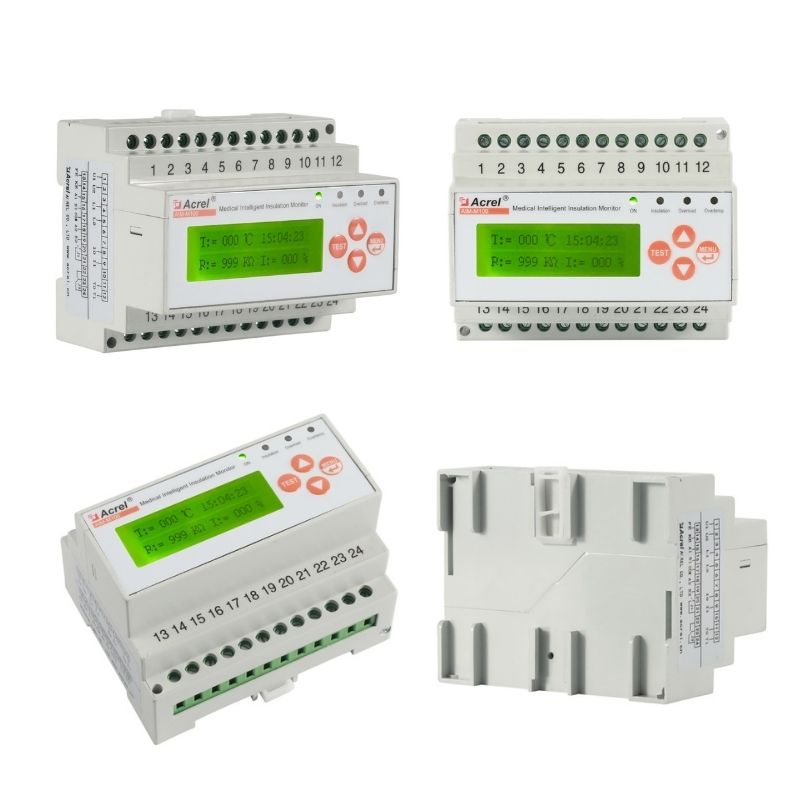

AIM-M100

Auxiliary Power: AC198-242V
Communication: 2 channels RS485
Relay: 2 channels (programmable)
Certificate: CE, IEC

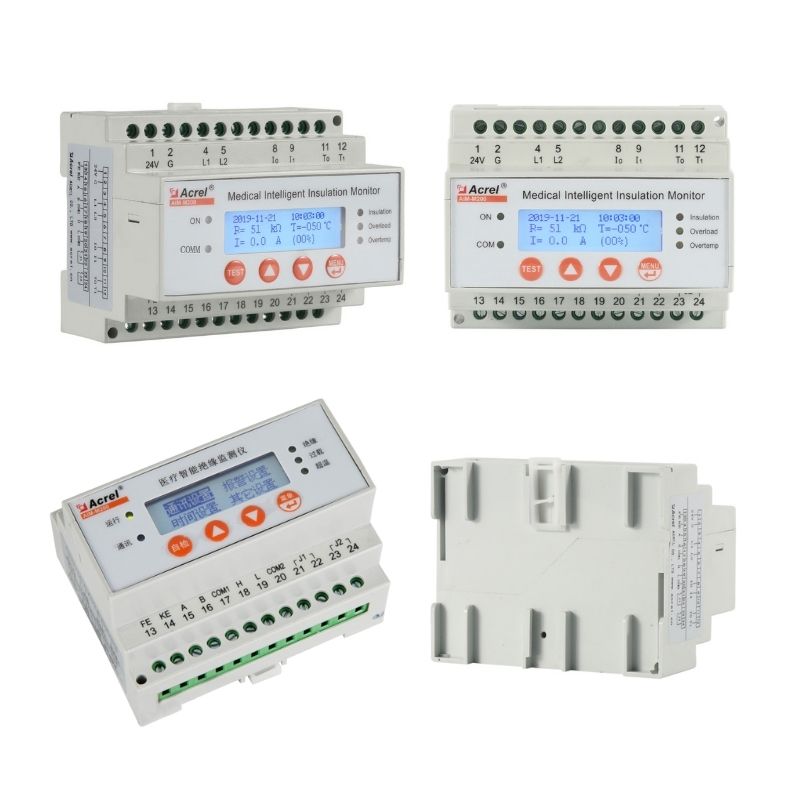

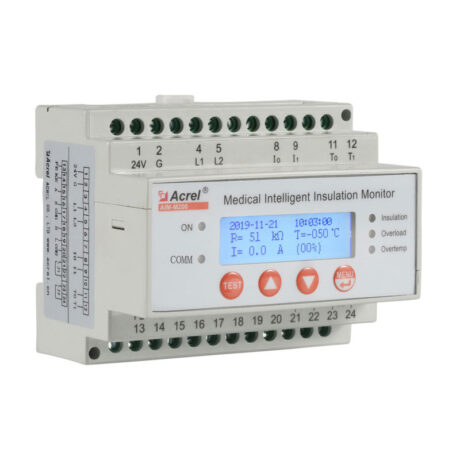

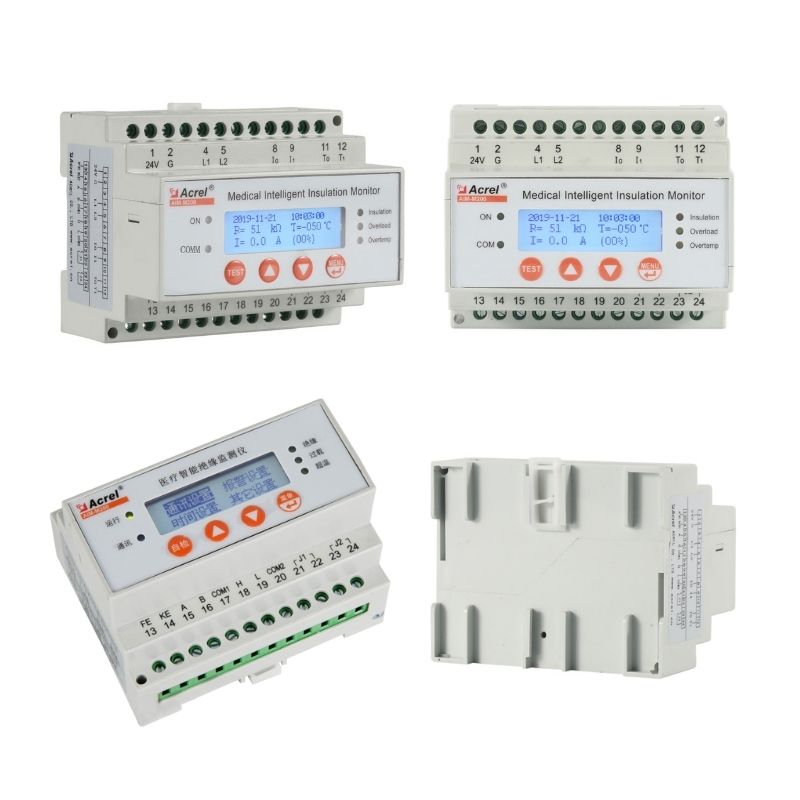

AIM-M200

Auxiliary Power: AC100-240V
Communication: 1 channel RS485
Relay: 1 channel (for fan)
Certificate: CE, IEC

Specification

What’s the Specification of Acrel AIM Series Line Isolation Monitor?

Item
Specification	AIM-M200	AIM-M100	AIM-M10
RS485	1	2	1
CAN	1	0	0
Relay	2	2	1
Auxi. Power	DC24V	AC220V	AC220V
Insulation Fault Location	Yes	No	No
Width	108mm	108mm	54mm

Show More

Parameter

What’s the Parameter of Acrel AIM Series Line Isolation Monitor?

Working

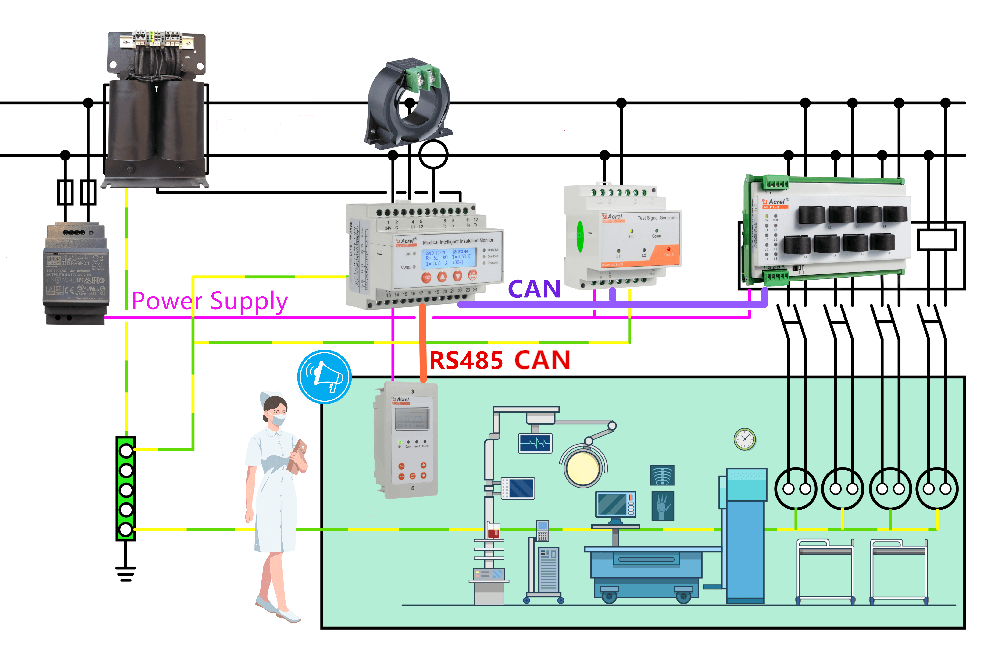

How does the Acrel AIM Series Line Isolation Monitor Work?

Wiring

How to wire Acrel AIM Series Line Isolation Monitor?
