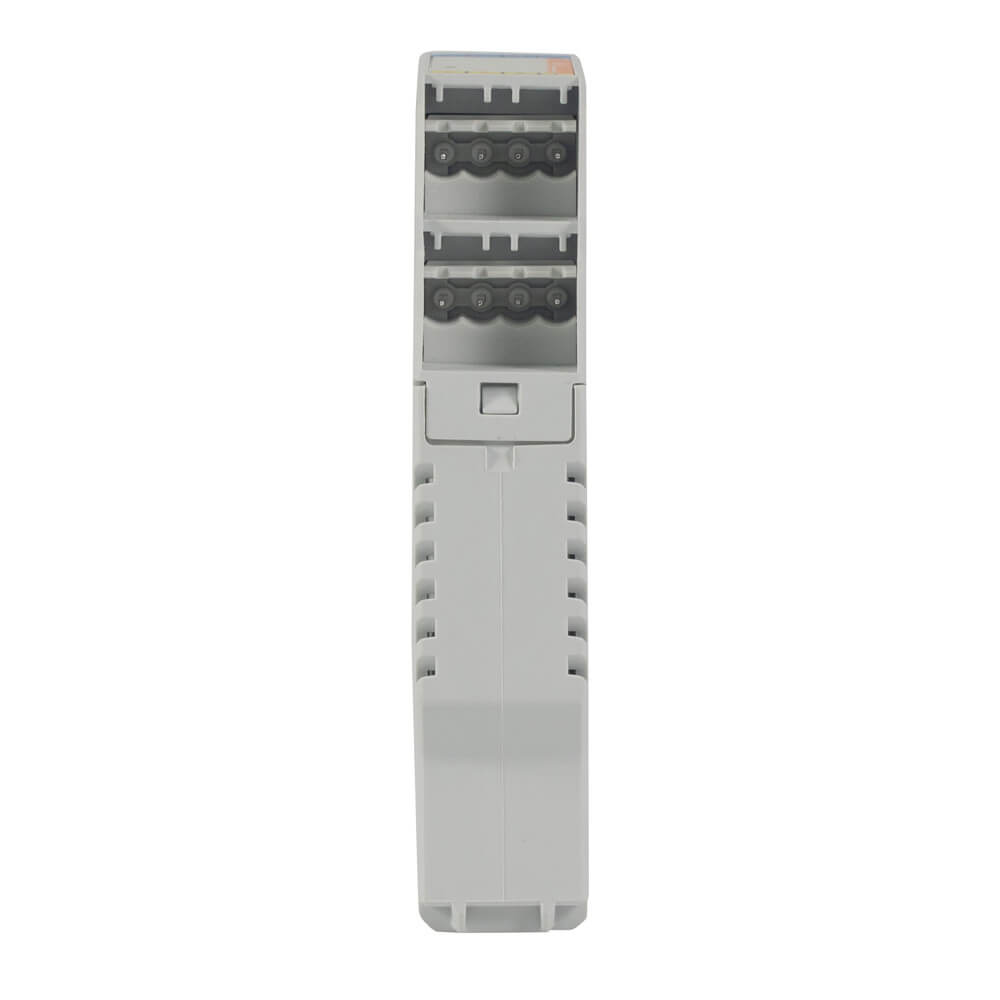

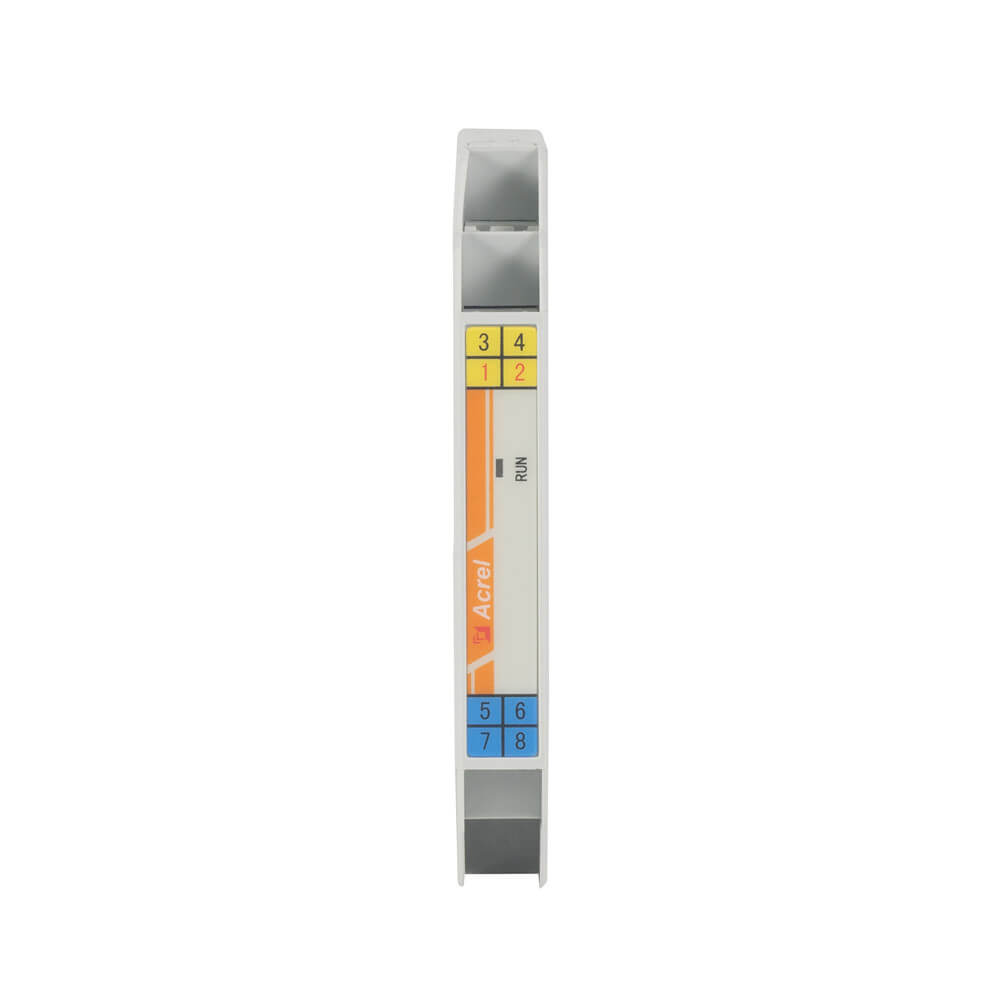

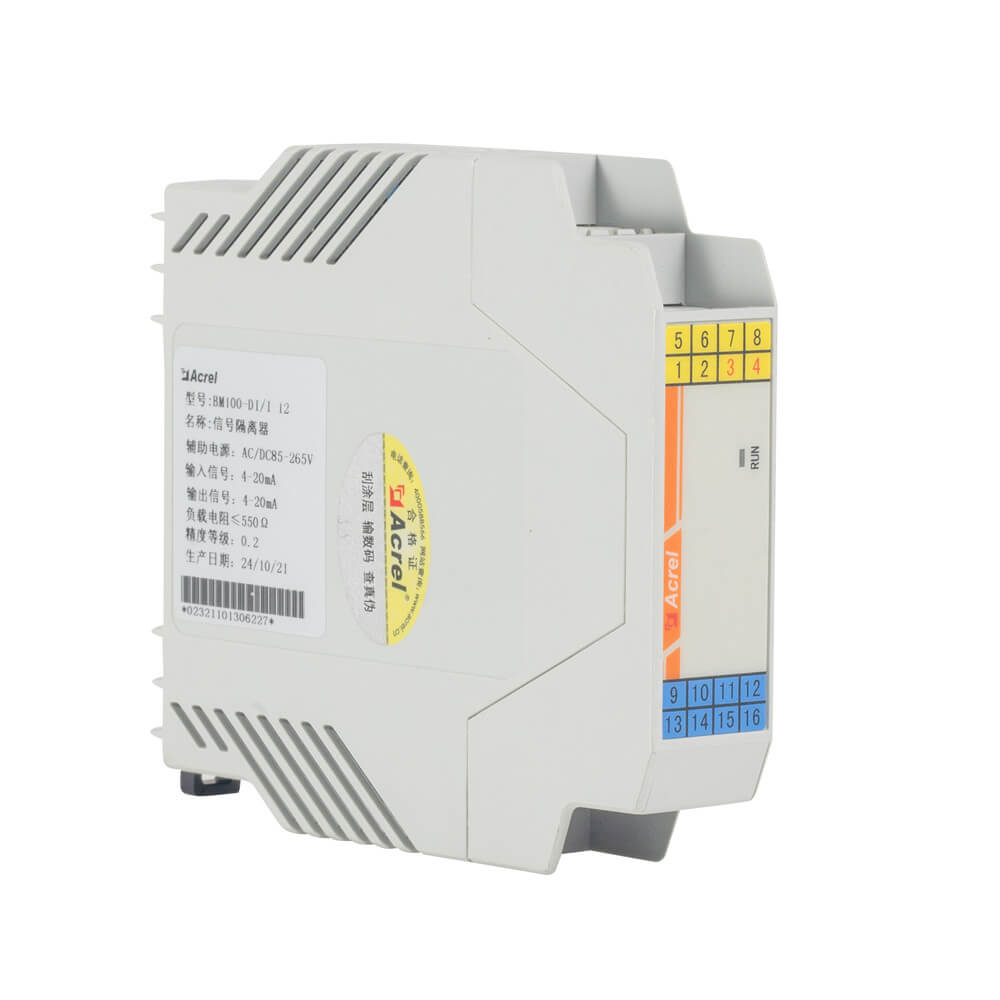

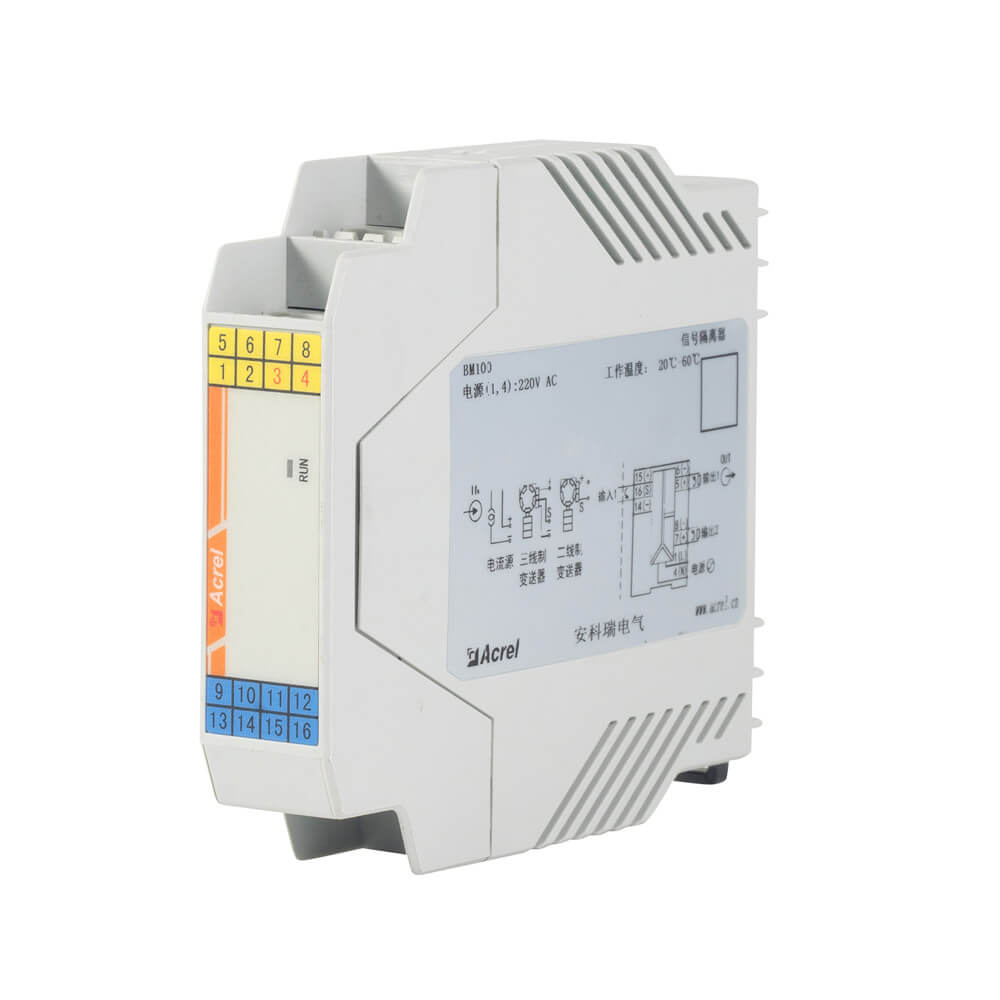

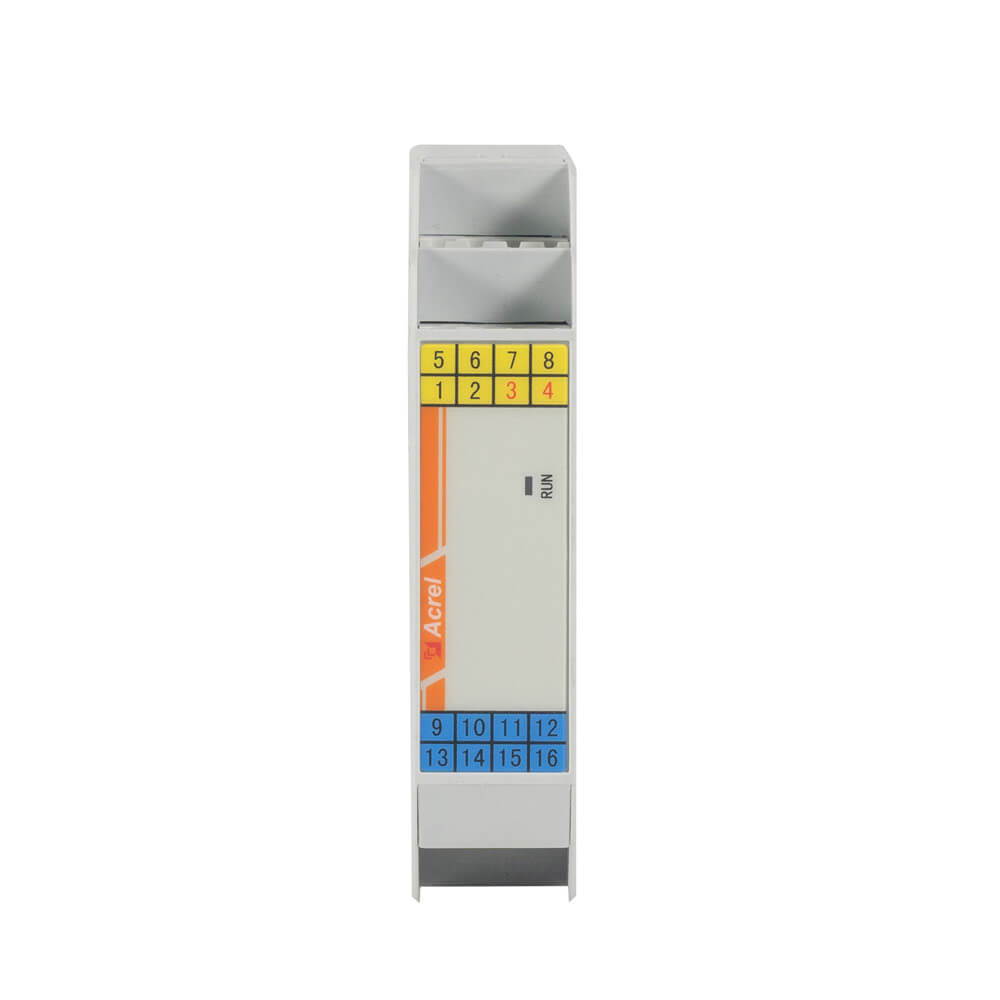

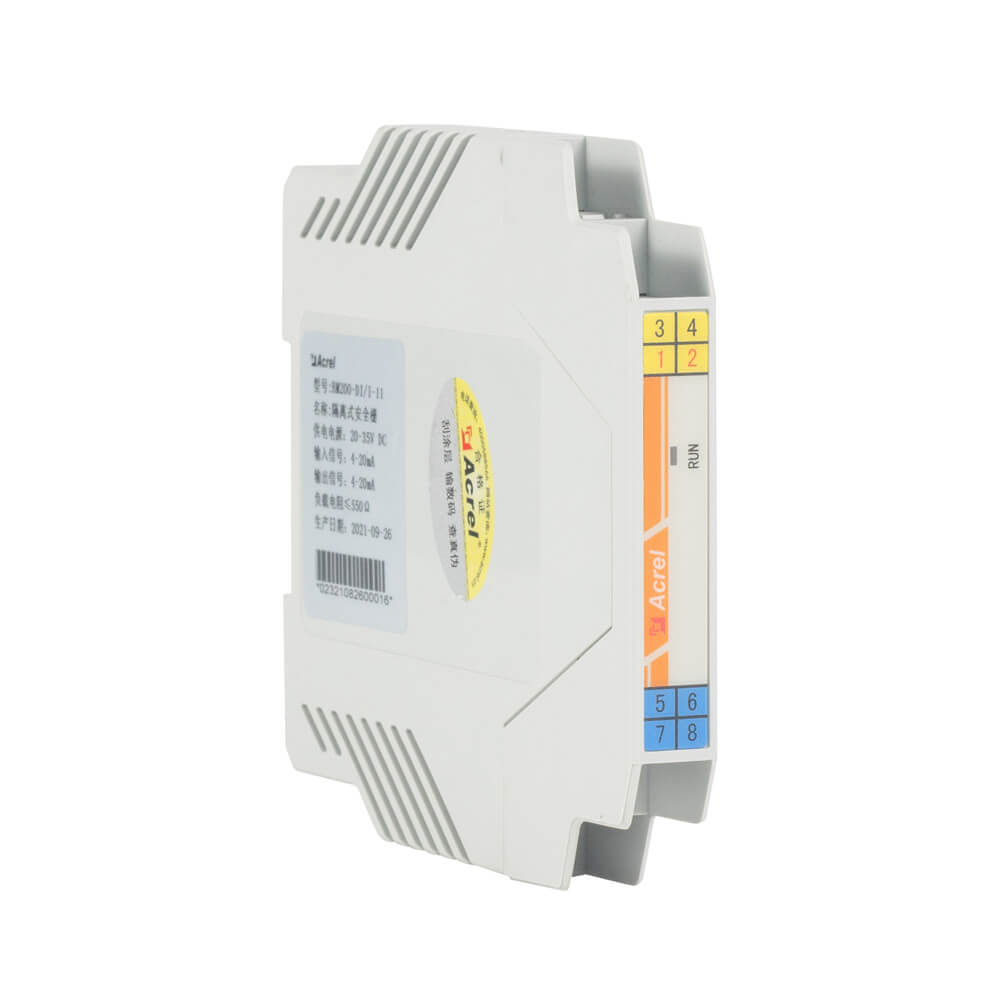

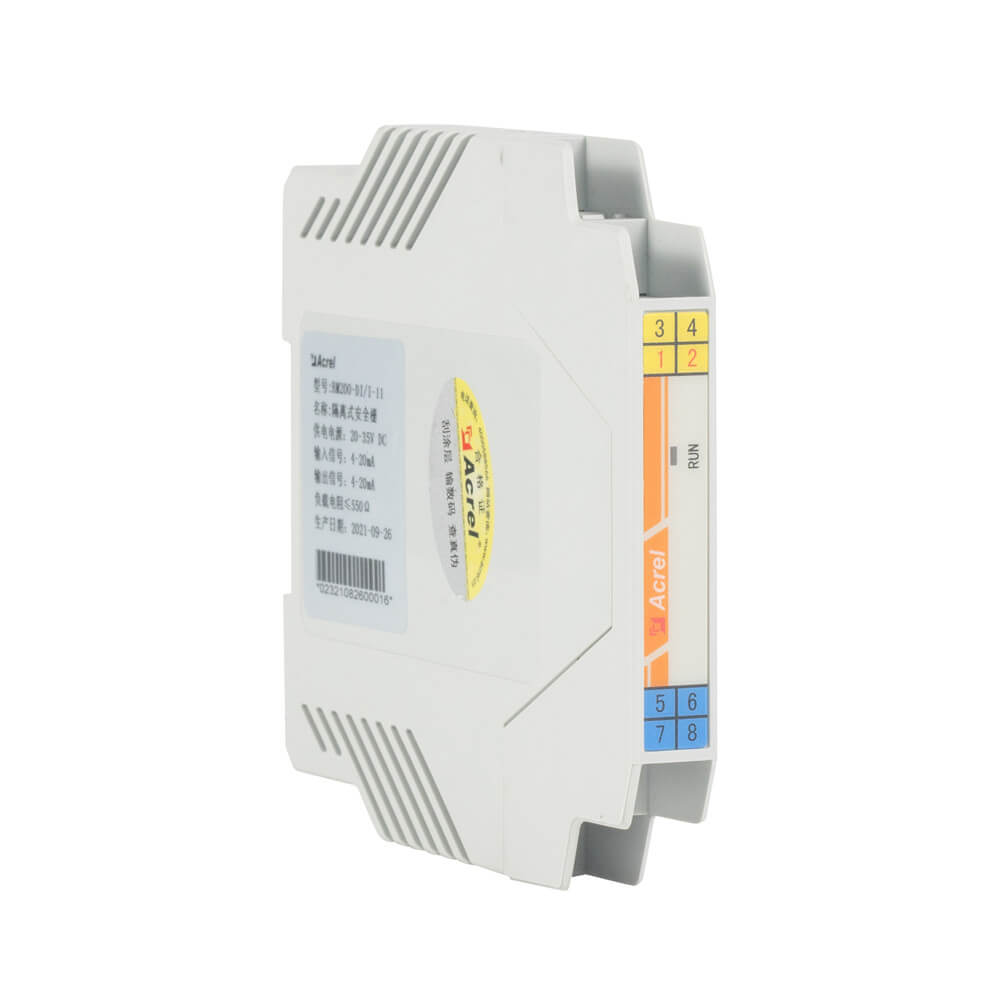

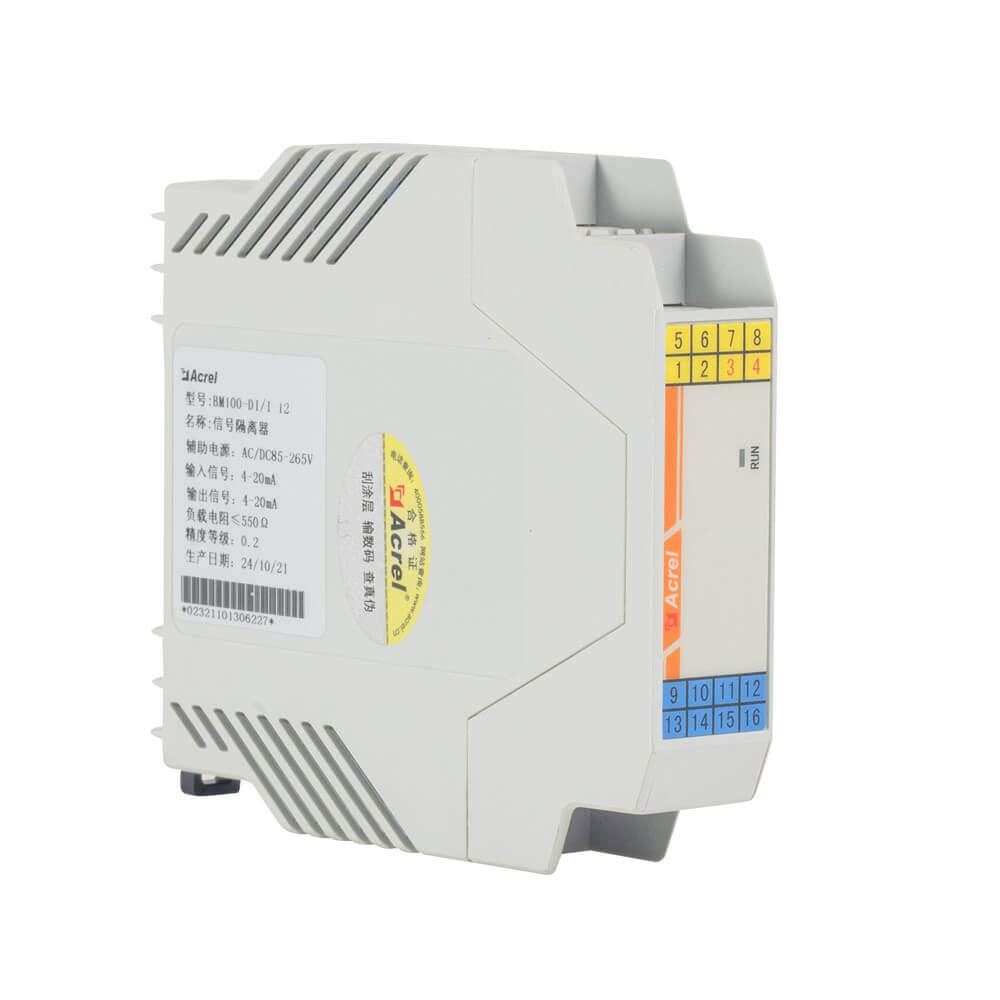

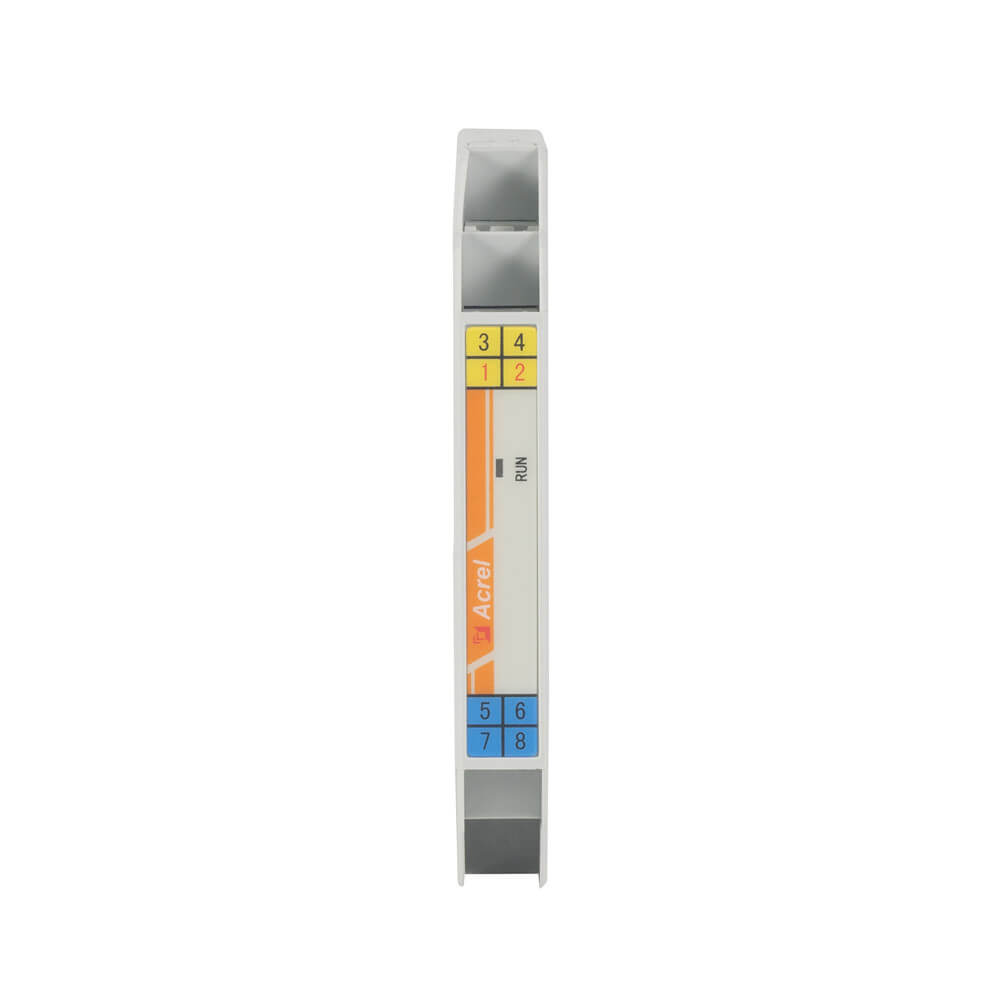

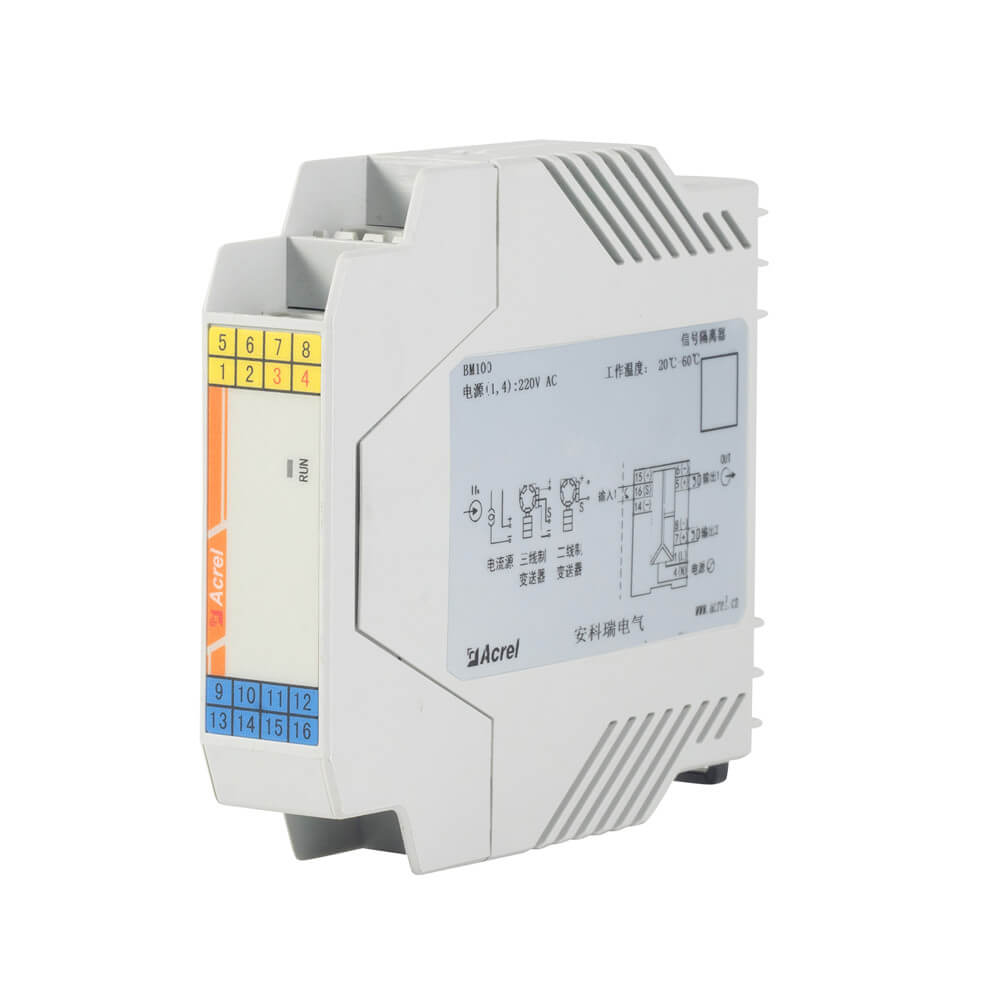

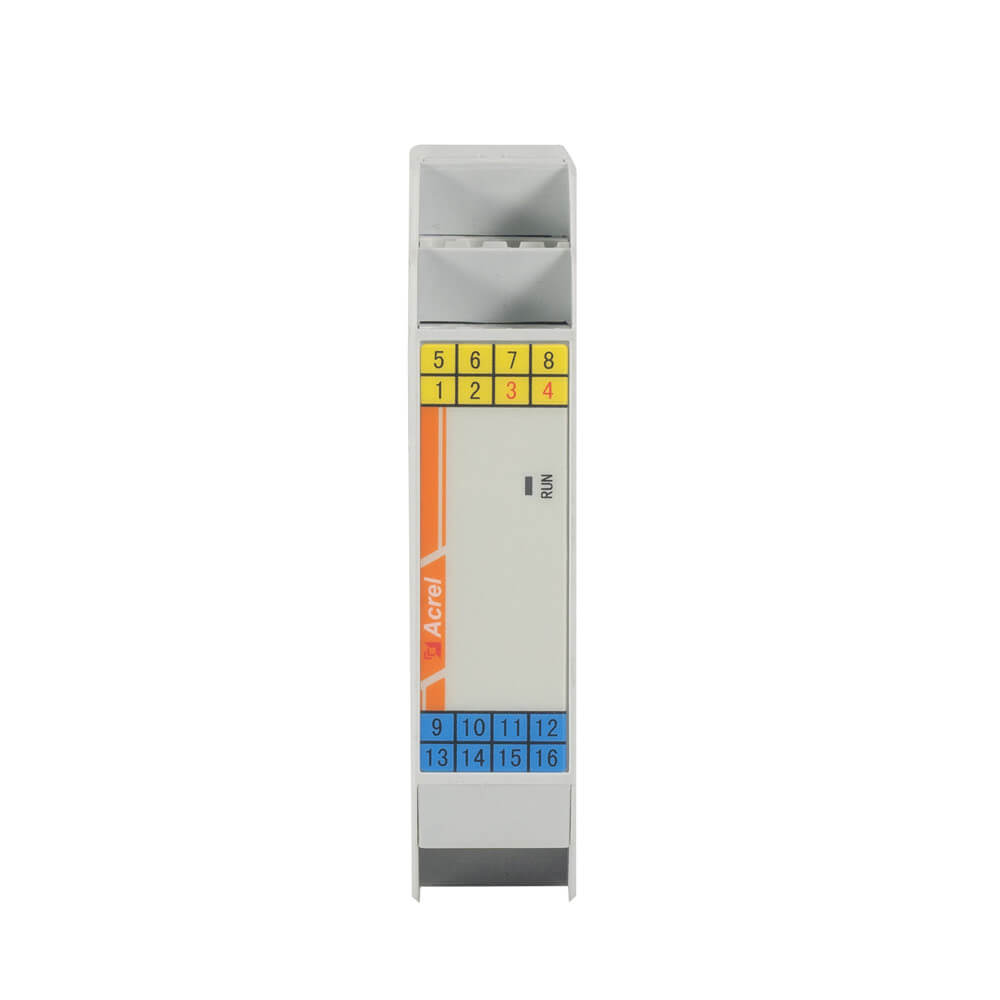

Signal Isolator

BM100

  • Signal:
    Current,
    Voltage,
    Thermal Resistance,
    Potentiometer
  • Input:
    DC 0-20mA,
    DC 4-20mA;
    DC 0-5V, 1-5V,
    DC 0-10V
  • Output:
    DC 0-20mA,
    DC 4-20mA;
    DC 0-5V, 1-5V;
    DC 0-10V, 2-10V
  • Channels:
    1 in 1 out;
    1 in 2 out;
    2 in 2 out
Chat Online Leave Message

Feedback

What Do Our Customers Say?

  • My first contact with ACREL was through Mrs. Feeling Chang. He was extremely friendly, approachable and very helpful. It will be the beginning of a long partnership between Bikoelectronics and Acrel.

    Vanessa 

    Portugal

  • “ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

    Arnold 

    Philippines

  • Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

    Tuan 

    Vietnam

Highlight

What’s the Highlight of Acrel BM100 Series Signal Isolator?

Channel

  • 1 in 1 out
  • 1 in 2 out
  • 2 in 2 out

Signal

  • Current
  • Voltage
  • Thermal resistance
  • Potentiometer

Input

  • DC 0-20mA, 4-20mA
  • DC 0-5V, 1-5V, 0-10V
  • PT100 (Minimum measuring range：50℃)
  • 0-10KΩ (Minimum measuring range：1KΩ)

 Output

  • DC 0-20mA, 4-20mA
  • DC 0-5V, 1-5V
  • DC 0-10V, 2-10V

General

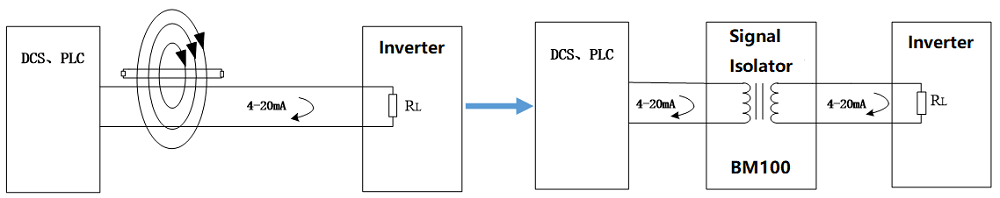

The BM100 series signal isolator can quickly and accurately measure electrical parameters such as current and voltage or non-electrical parameters such as temperature and resistance.
After isolation, it is converted into a standard analog signal output.
It can be directly connected with pointer meters and digital display meters, and can also be connected with automatic control instruments (such as PLC), various A/D converters and computer systems.
It is widely used in the automation system of electric power, railway, petrochemical, metallurgy, chemical industry, food, storage and other industries.

Application

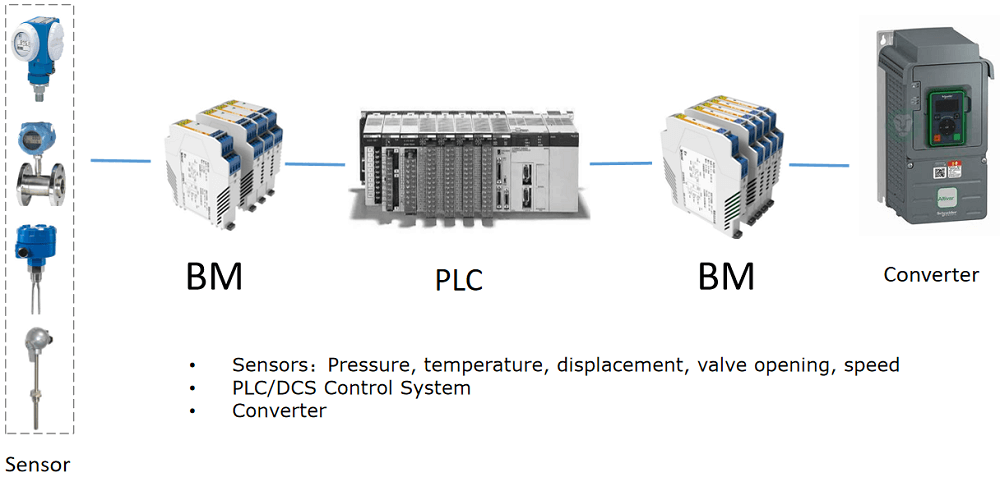

What’s the Application of Acrel BM100 Series Signal Isolator?

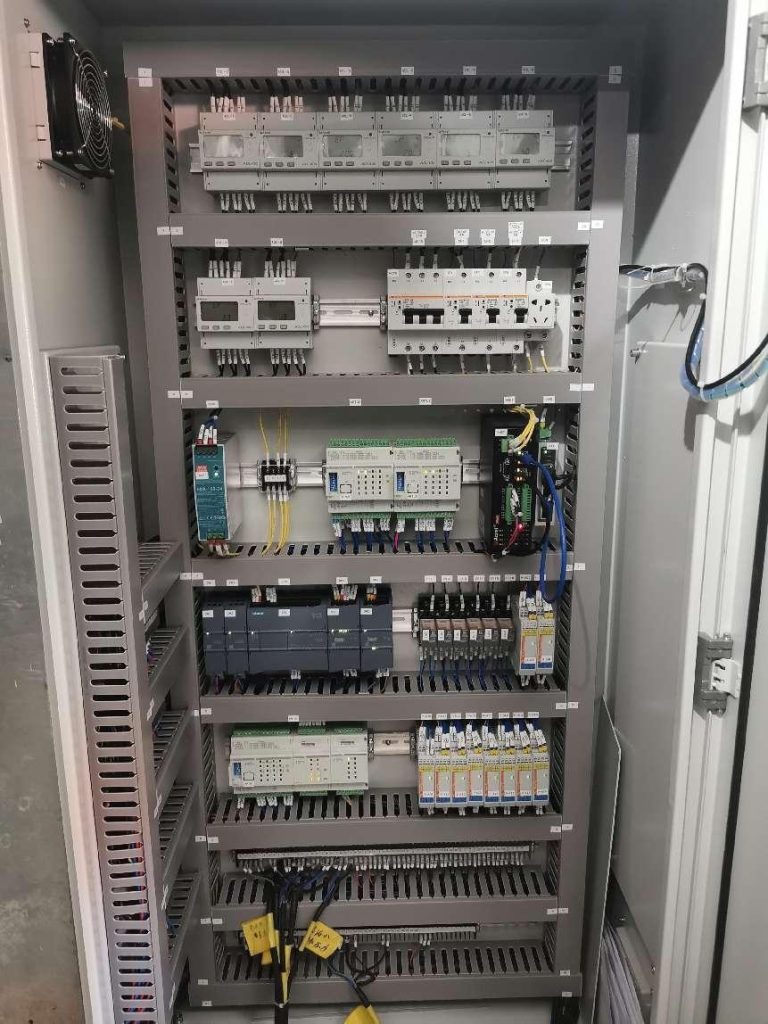

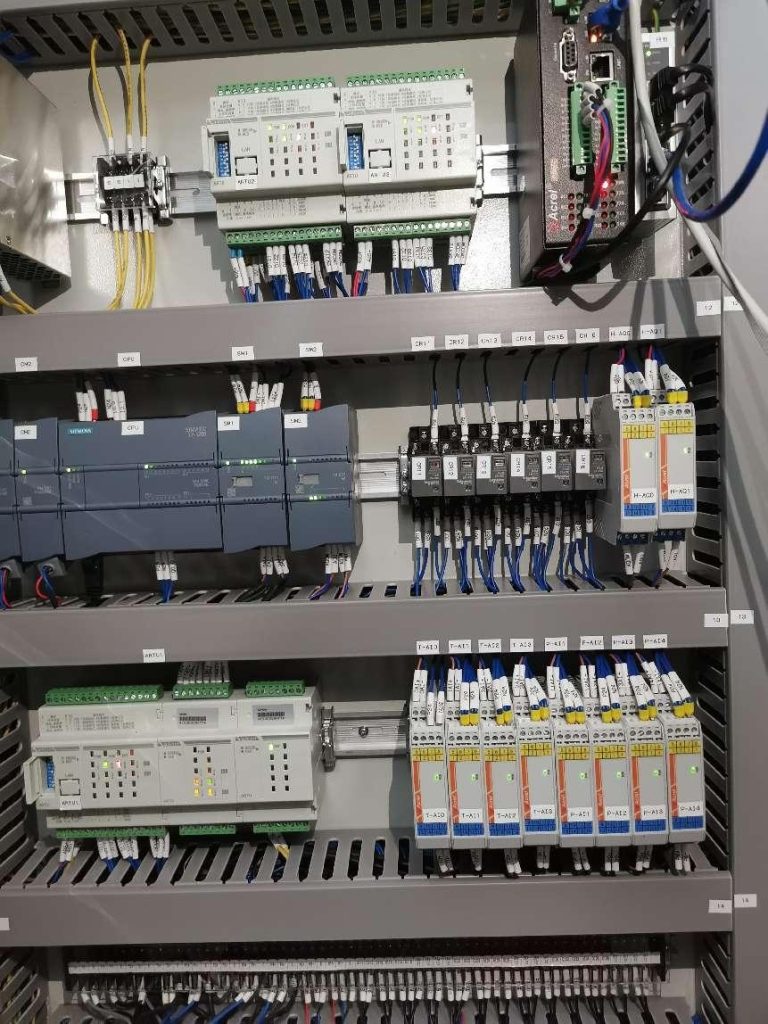

Onsite Photo

Request Information & Quotation

Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, feeling.chang@email.acrel.cn

If you have more detailed requirements, Please go to the relevant product page to submit the form.

Specification

What’s the Specification of Acrel BM100 Series Signal Isolator?

Current Analog Signal Input

Type Channels Wire Input Signal Power Supply Output Signal Auxiliary Power
1 in 1 out 1 in 2 out 2 in 2 out 2 wire 3 wire Current Source DC0-20mA DC4-20mA None inlet loop outlet loop DC0-20mA DC4-20mA DC0/1-5V DC0/2-10V DC20-35V AC/DC85-265V None
BM100-DI/I-B11 Y Y Y Y * Y Y * Y Y
BM100-DI/I-B11 Y Y Y Y Y Y
BM100-DI/I-C11 Y Y Y Y Y Y Y Y
BM100-DIS/I-B11 Y Y Y Y Y Y Y Y
BM100-DI/IS-B11 Y Y Y Y Y Y Y Y
BM100-DI/I-C12 Y Y Y Y * Y Y * Y Y Y
BM100-DI/I-C12
Current Source		 Y Y Y Y Y Y Y
BM100-DI/I-C22 Y Y Y Y * Y Y * Y Y Y
BM100-DI/I-C22
Current Source		 Y Y Y Y Y Y Y
BM100-DIS/I-C22 Y Y Y Y Y Y Y Y
BM100-DI/IS-C22 Y Y Y Y Y Y Y Y
BM100-DI/V-B11 Y Y Y Y Y Y Y
BM100-DI/V-C11 Y Y Y Y Y Y Y
BM100-DI/V-C12 Y Y Y Y Y Y Y Y
BM100-DI/V-C22 Y Y Y Y Y Y Y Y

Show More

Voltage Analog Signal Input

Type Channels Input Signal Output Signal Auxiliary Power
1 in 1 out 1 in 2 out 2 in 2 out DC0-5V DC1-5V DC0-10V DC2-10V DC0-20mA DC4-20mA DC0-5V DC0/1-5V DC0-10V DC2-10V DC20-35V AC/DC85-265V
BM100-DV/I-B11 y y y y y y
BM100-DV/I-C11 y y y y y y y y
BM100-DV/I-C12 y y y y y Y
BM100-DV/I-C22 y y y y y Y
BM100-DV/V-B11 y y y y y y y y y Y
BM100-DV/V-C11 y y y y y y y y y y
BM100-DV/V-C12 y y y y y y y Y
BM100-DV/V-C22 y y y y y y y Y

PT100 RTD Signal Input

Type Channels Input Signal Range Output Signal Auxiliary Power
1 in 1 out 1 in 2 out 2 in 2 out PT100 -200~850℃ DC0-20mA DC4-20mA DC0-5V DC0/1-5V DC0-10V DC2-10V DC20-35V
BM100-TR/I-B1 Y Y Y Y Y Y
BM100-TR/I-C12 Y Y Y Y Y Y
BM100-TR/I-C22 Y Y Y Y Y Y
BM100-TR/V-B1 Y Y Y Y Y Y Y Y
BM100-TR/V-C12 Y Y Y Y Y Y Y Y
BM100-TR/V-C22 Y Y Y Y Y Y Y Y

Potentiometer Signal Input

Type Channels Input Signal Range Output Signal Auxiliary Power
1 in 1 out 1 in 2 out 2 in 2 out Potentiometer 0-5KΩ 0-10KΩ DC0-20mA DC4-20mA DC0-5V DC0/1-5V DC0-10V DC2-10V DC20-35V
BM100-VR/I-B11 Y Y Y Y Y Y Y
BM100-VR/I-C12 Y Y Y Y Y Y Y
BM100-VR/I-C22 Y Y Y Y Y Y Y
BM100-VR/V-B11 Y Y Y Y Y Y Y Y Y
BM100-VR/V-C12 Y Y Y Y Y Y Y Y Y
BM100-VR/V-C22 Y Y Y Y Y Y Y Y Y

Parameter

What’s the Parameter of Acrel BM100 Series Signal Isolator?

Channel type Single-way input and single-way output,
single-way input and double-way output,
double-way input and double-way output
Input type Current/Voltage/RTD/Potentiometer
Input signal DC0~20mA/4~20mA
DC0~5V/1~5V/0~10V
Pt100(Minimumrange:50℃)
0~10KΩ(Minimumrange:1KΩ)
Output signal DC0~20mA/4~20mA;Load resistance:≤550Ω
DC0~5V/1~5V;Load resistance:≥330KΩ
Load resistance:≥30KΩ(Pt100/Resistanceinput)
DC0~10V/2~10V;Load resistance:≥500KΩ
Load resistance:≥30KΩ(Pt100/Resistanceinput
Transmission accuracy 0.20%
Temperature modulus 50ppm/℃(Voltage output:100ppm/℃)
Response time 5ms to reach 90% of final value
(RTD Pt100/ resistance input:1st or each90% of final value）
Power supply 20~35V DC or 85~265V AC/DC
Work temperature -20℃~+60℃
Fix mode Rail installation
Dielectric strength ≥1500VAC/1min(Among input//output//power supply)

Show More

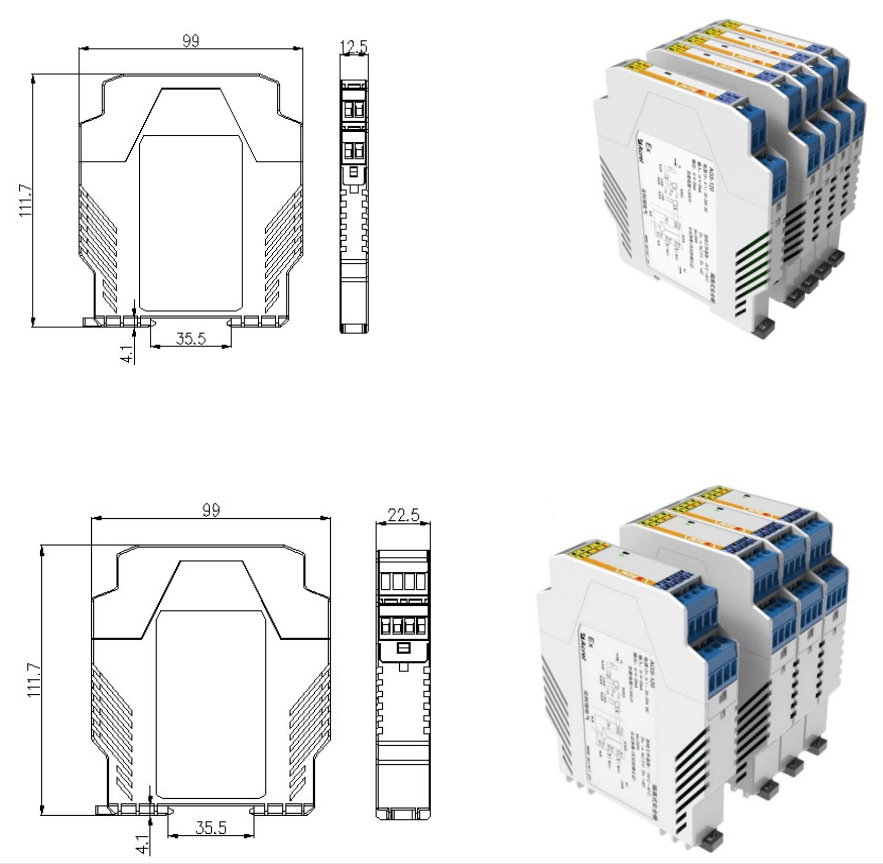

Dimension

What’s the Dimension of Acrel BM100 Series Signal Isolator?

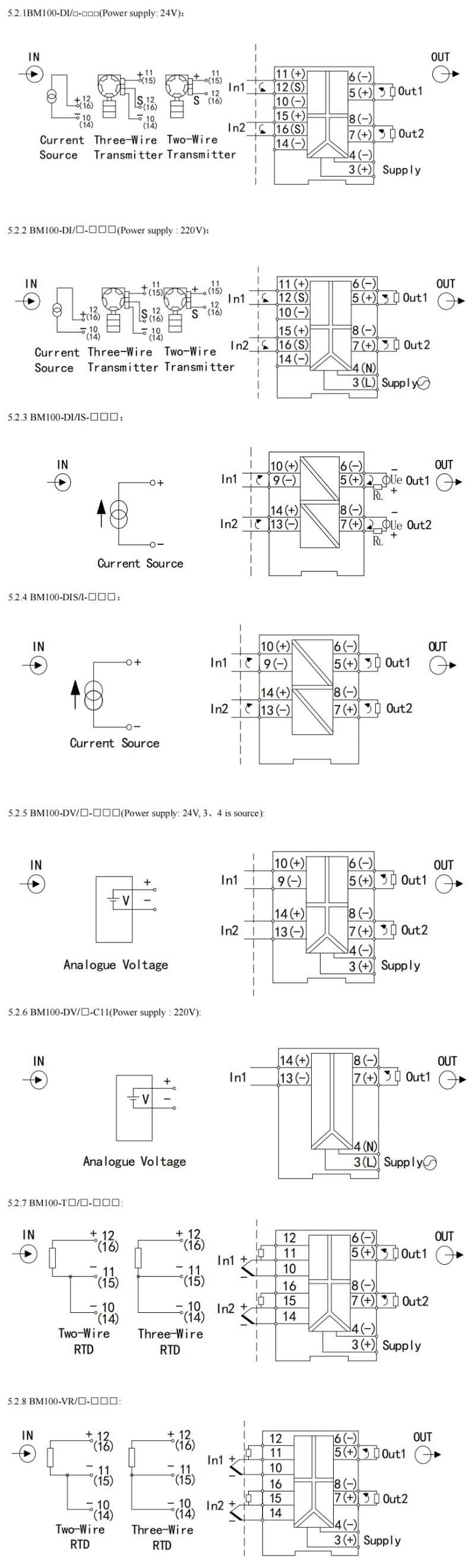

Wiring

How to Wire Acrel BM100 Series Signal Isolator?
