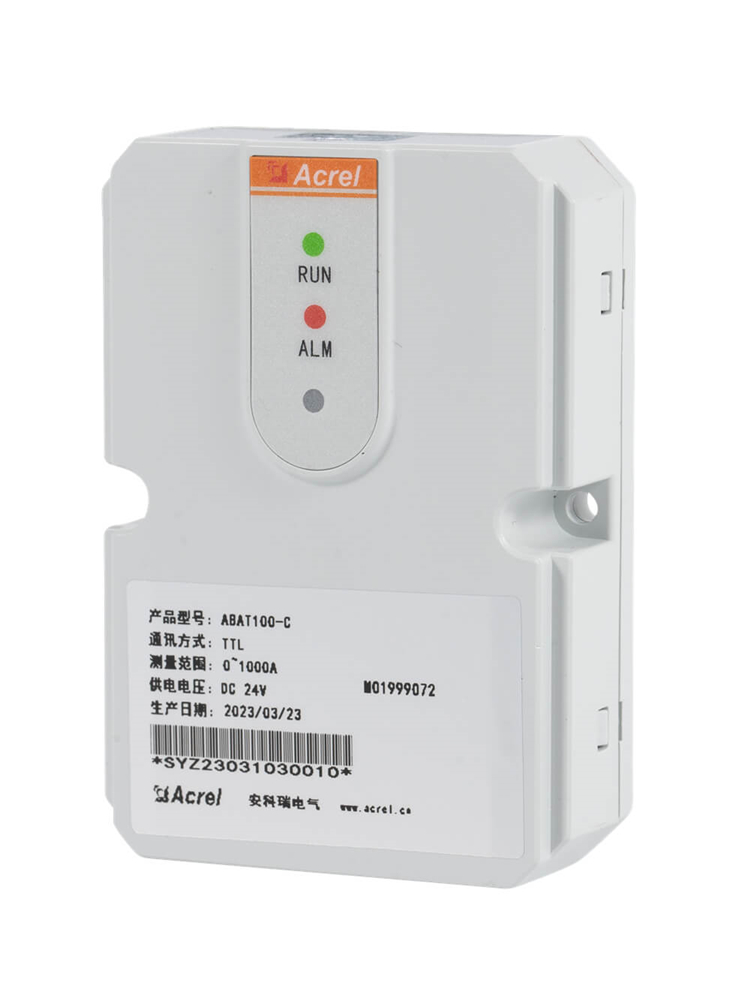

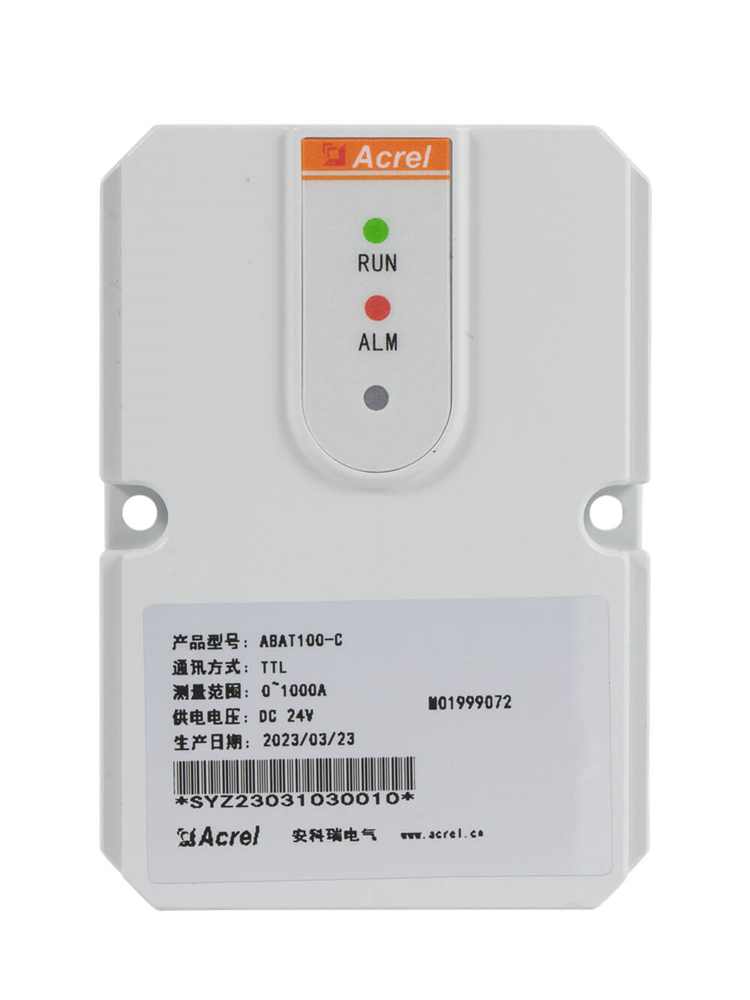

ABAT100-C Battery String Monitor

ABAT100-HS Data Collector

  • 1 string = ABAT100-C *1
  • Monitoring Current, Ambient Temperature
  • Auxiliary Power: DC24V
  • Current ≤1000A

Components

What are the main components of BMS?

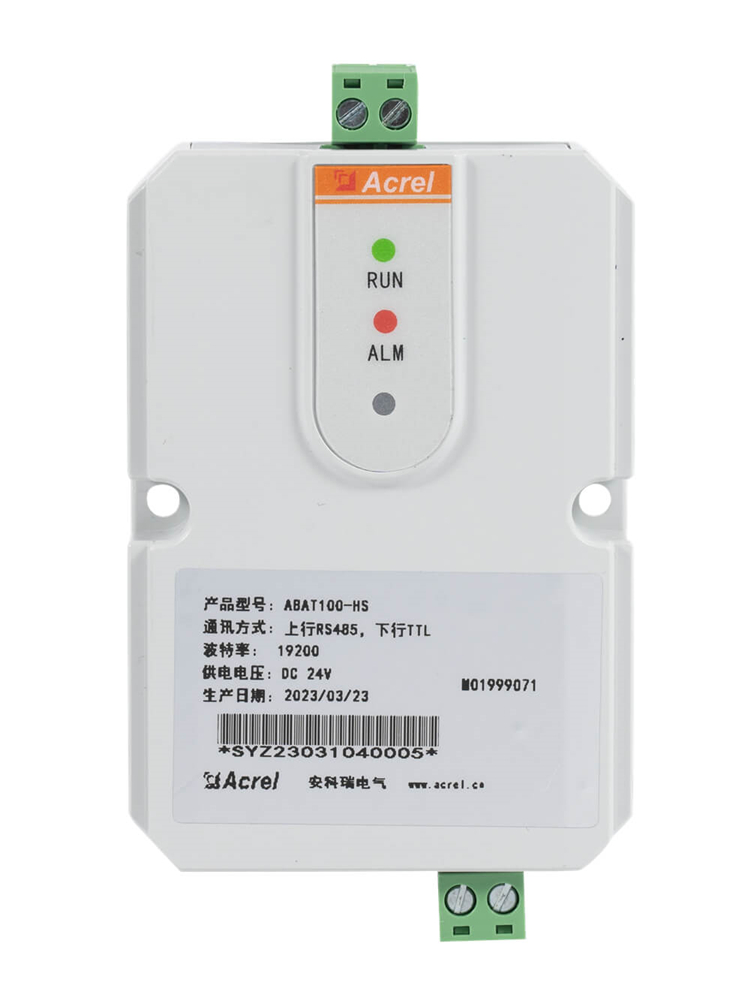

ABAT100-HS

  • 1 string = ABAT100-HS * 1
  • 1 HS = 120 cells
  • Auxiliary Power: DC24V

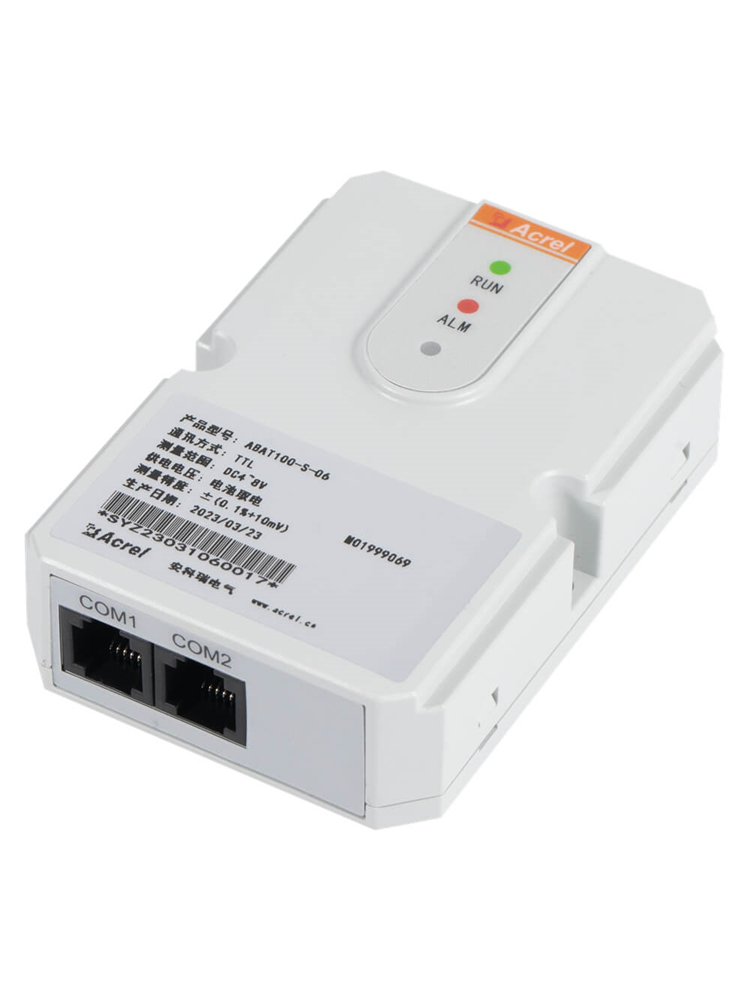

ABAT100-S

  • 1 cell = ABAT100-S * 1
  • 2V, 6V, 12V cell
  • Monitoring Voltage, Negative Temperature, Internal Resistance

ABAT100-C

  • 1 string = ABAT100-C * 1
  • Monitoring Current, Ambient Temperature
  • Current ≤1000A
  • Auxiliary Power: DC24V

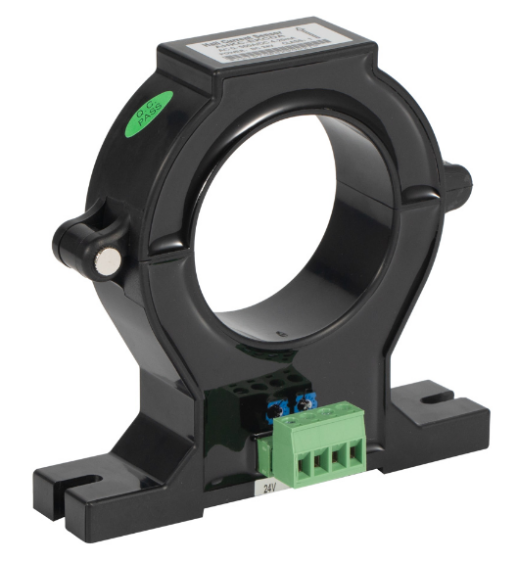

AHKC-EKC

  • 1 cell = AHKC-EKC * 1
  • Input: 0~(500-1500)A
  • Output: ±5V
  • Auxiliary Power: DC±12V (±20%)
  • Response time ≤5us

ABAT100-C Current & Ambient Temperature module 24-hour online monitoring of charge and discharge current and ambient temperature
With photoelectric isolation, supports MODBUS protocol, and is easy to connect to third-party monitoring systems
High performance, reliable and stable

Function

What’s the Function of Acrel ABAT100-C Battery String Monitor?

Function Description
High stability Reliable and stable long-term operation
Anti-jamming design High anti-interference design, can block the ripple interference of high power high frequency UPS
Communication protocol MODBUS-RTU Protocol
Installation method Tie-down mounting or adhesive mounting
Indicator light Red and green LED lights, green light as the power light, red light as the indicator light.

Parameter

What’s the Parameter of Acrel ABAT100-C Battery String Monitor?

Technical parameters Description
Working Environment Operating temperature: -10℃~50℃

Relative humidity: 5%~95%

Atmospheric pressure intensity: 80~110kPa

Monitoring Capability One C-module monitors the charge and discharge current of a group of batteries against the ambient temperature
Monitoring Scope 2V, 6V, 12V battery pack
Measurement range and accuracy Measurement content Scope Accuracy
Charging and discharging current 0~1000A ±1%
Ambient temperature -5℃~+105℃ ±1°C
Power requirements DC24V, 1W
Protection Measurement circuit and power circuit with two levels of protection
Communication Interface UART port, support MODBUS protocol
Insulation withstand voltage 2000VAC
Weight 90g

Wiring

How to Wire the Acrel ABAT100 components?

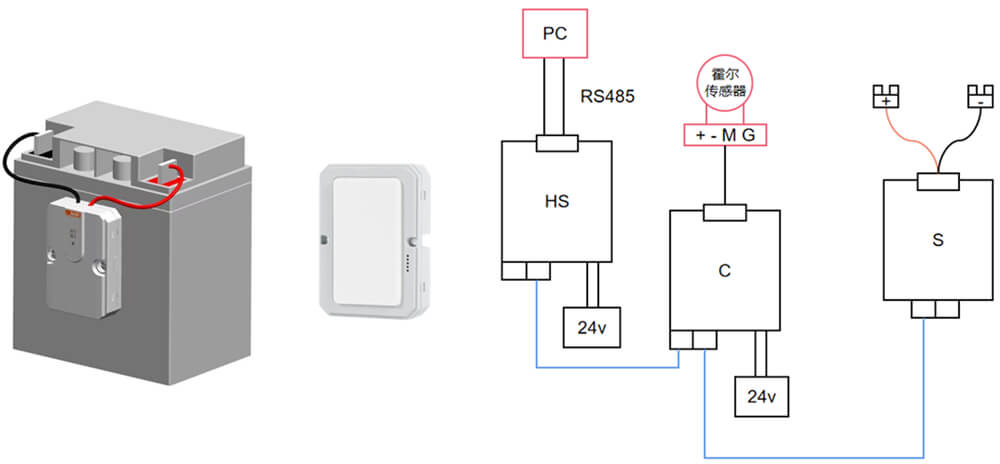

Cable tie installation or adhesive installation

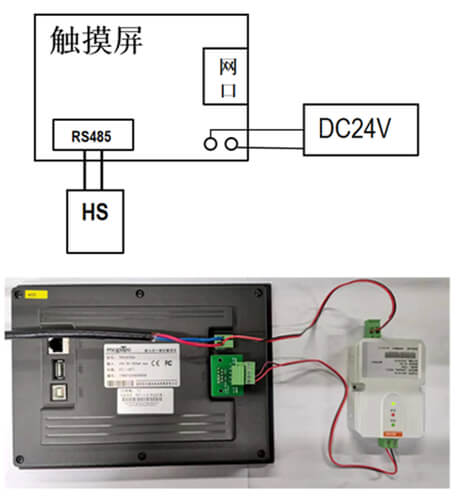

1 touch screen can connect up to 6 HS modules.
6 HS modules are connected hand in hand to the same COM port

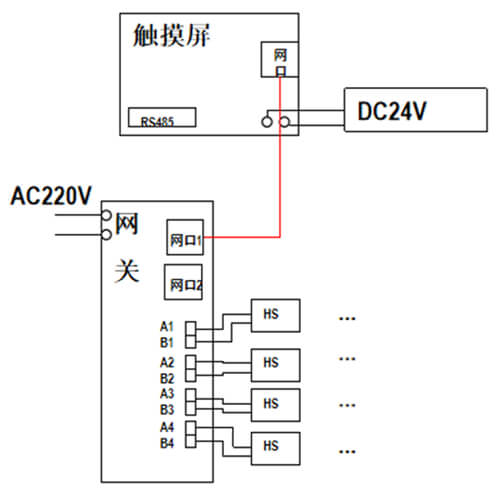

1 gateway can connect up to 6 HS modules.
Each 485 port of the gateway corresponds to 1 HS module.

Size

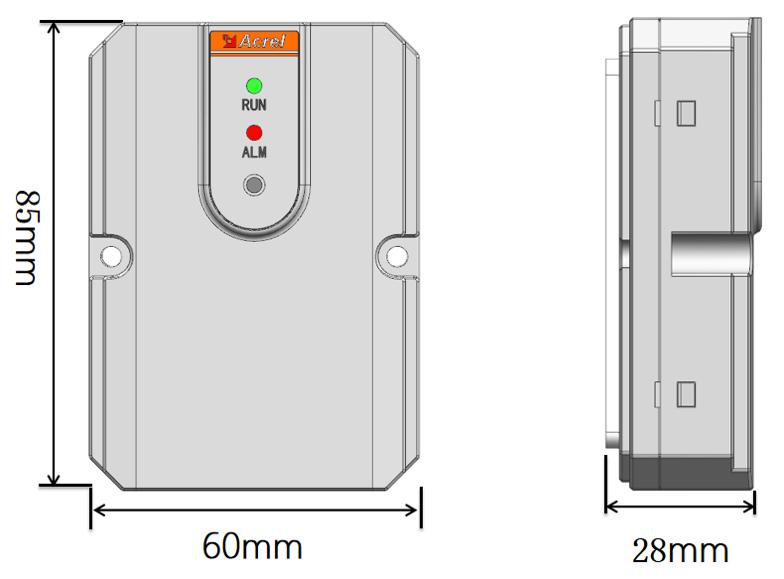

What's the Size of Acrel ABAT100-C Battery String Monitor?

Terminal name Terminal description
top J1 port Connect Current Hall Sensor and Ambient Temperature Sensor
bottom COM1/COM2 port These two ports are internally connected in parallel and are UART ports, used for communication between S modules.
bottom Power input port input DC24V

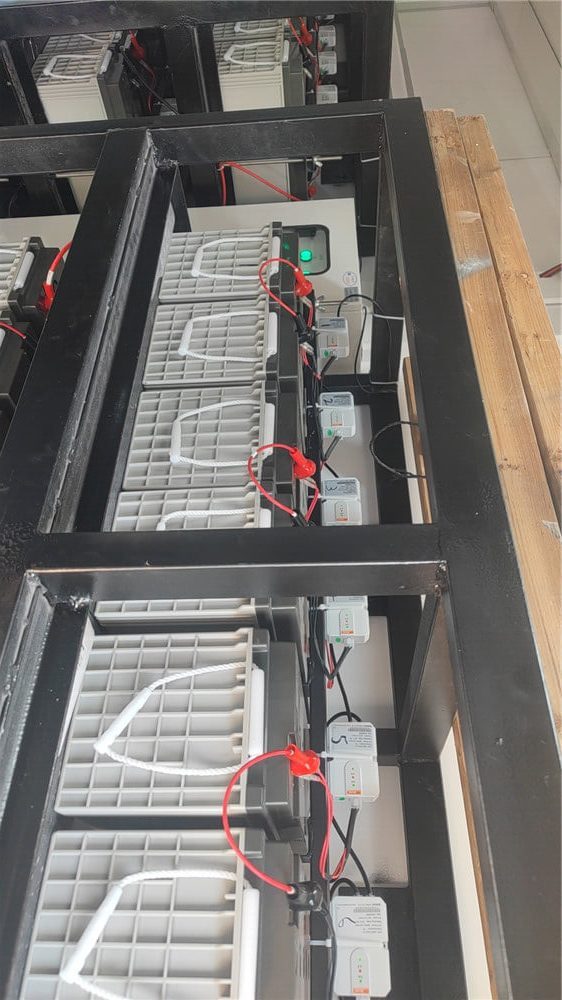

On-site photo
