Lead Acid Battery Management System for IDC UPS

BMS

Standard Lead Time:
Sample: 2 days
Bulk: 1 month

  • Monitoring
  • Analysis
  • Alarm
  • 2V 6V 12V

Feedback

What Do Our Customers Say?

  • Acrel is one of the best supplier for me. They are so easy to communicate and very friendly. They even give an online tour of their factory. Looking forward for more business together in the future.

    Liezel 

    Philippines

  • My first contact with ACREL was through Mrs. Feeling Chang. He was extremely friendly, approachable and very helpful. It will be the beginning of a long partnership between Bikoelectronics and Acrel.

    Vanessa 

    Portugal

  • “ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

    Arnold 

    Philippines

  • Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

    Tuan 

    Vietnam

Highlight

What’s the Highlight of Lead Acid Battery Management System for IDC UPS?

Application

  • Cell Tower
  • Data Center
  • UPS Room

Monitoring

  • Battery Voltage
  • Battery Internal Resistance
  • Battery Temperature
  • Charge and Discharge current
  • Ambient Temperature

Analysis

  • Estimate the remaining capacity of each section and the whole battery

Alarm

  • P: Green, Power
  • A: Yellow, Fault
  • E1: Red, Communication failure
  • E2: Red, Battery Alarm (settable)

Lead Acid Battery Management System

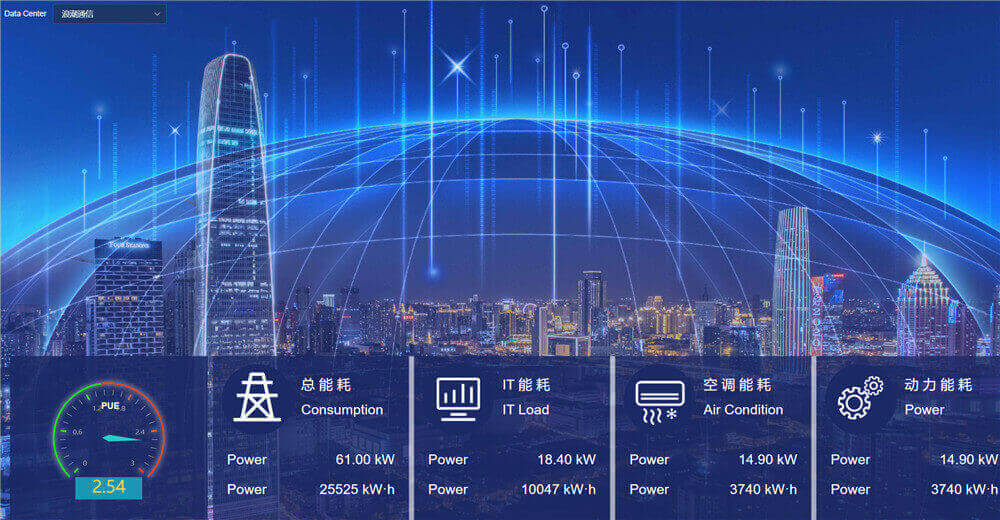

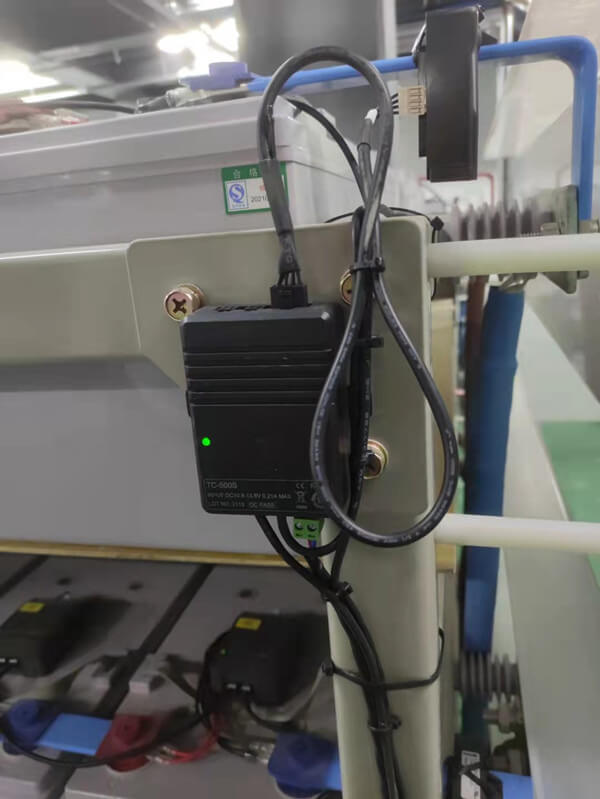

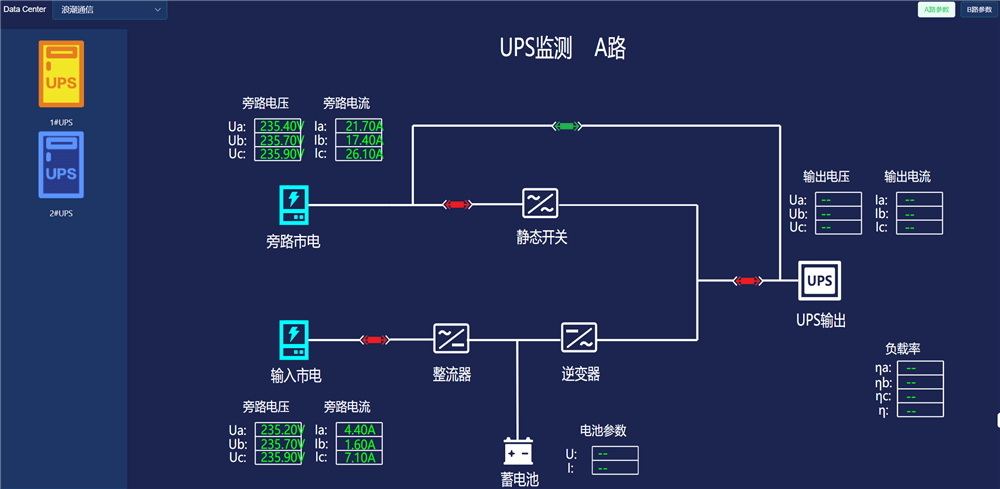

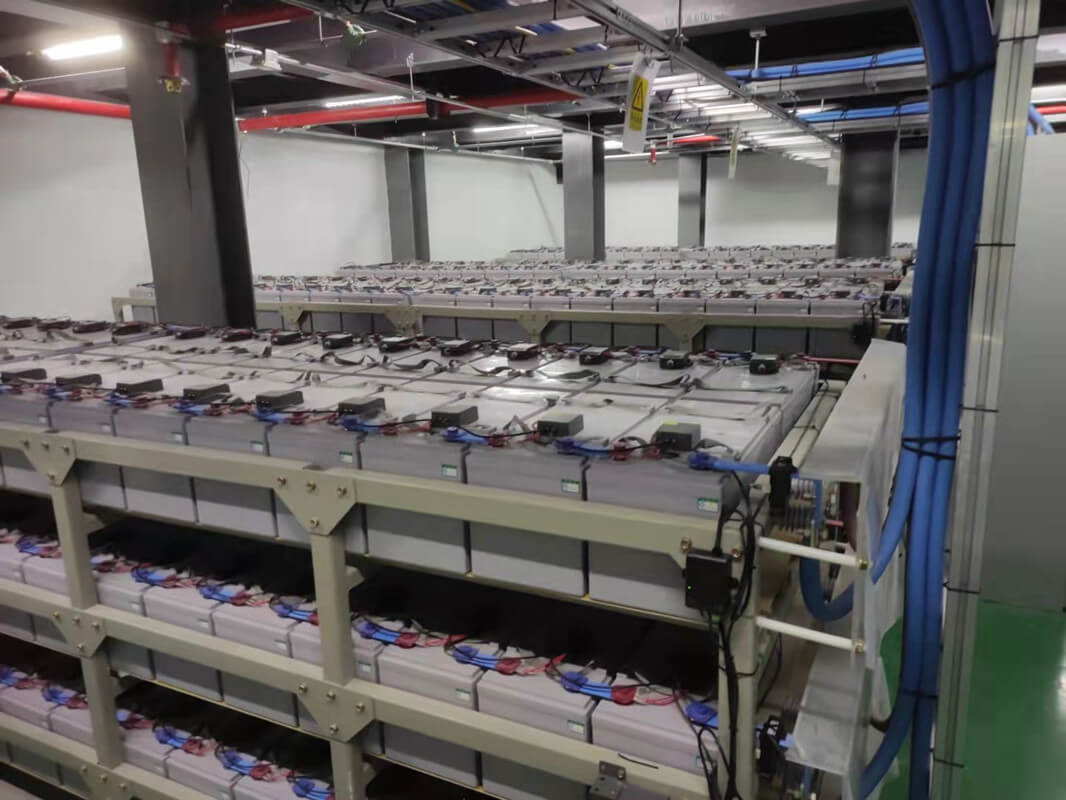

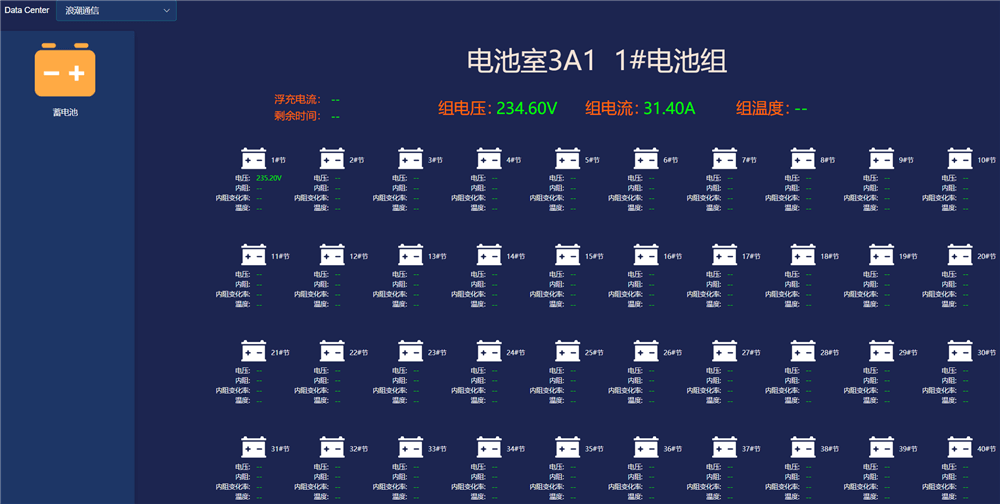

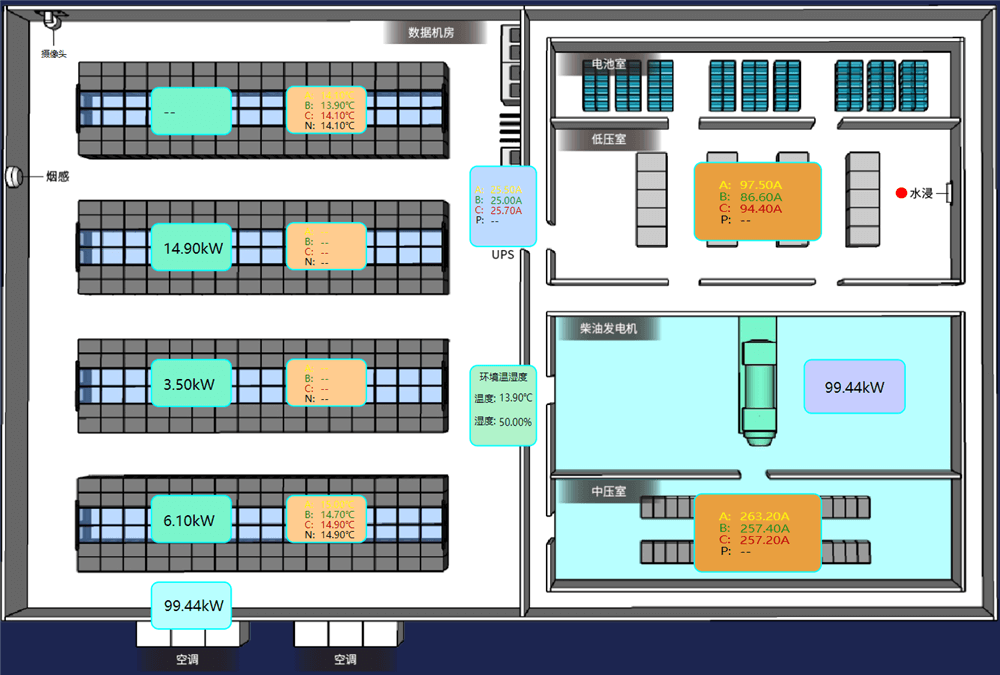

Onsite Photo

Structure

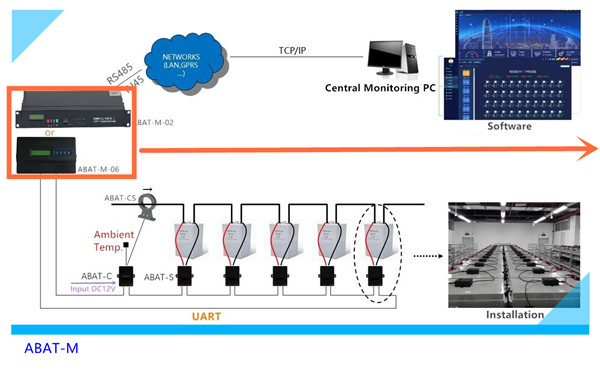

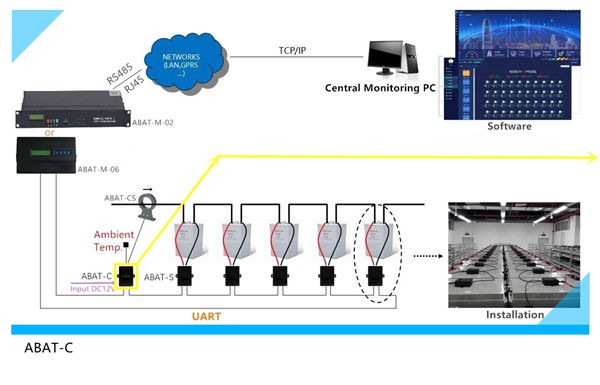

What's the Structure of Lead Acid Battery Management System for IDC UPS?

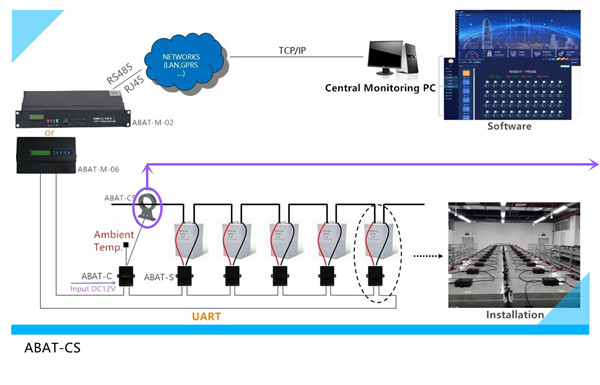

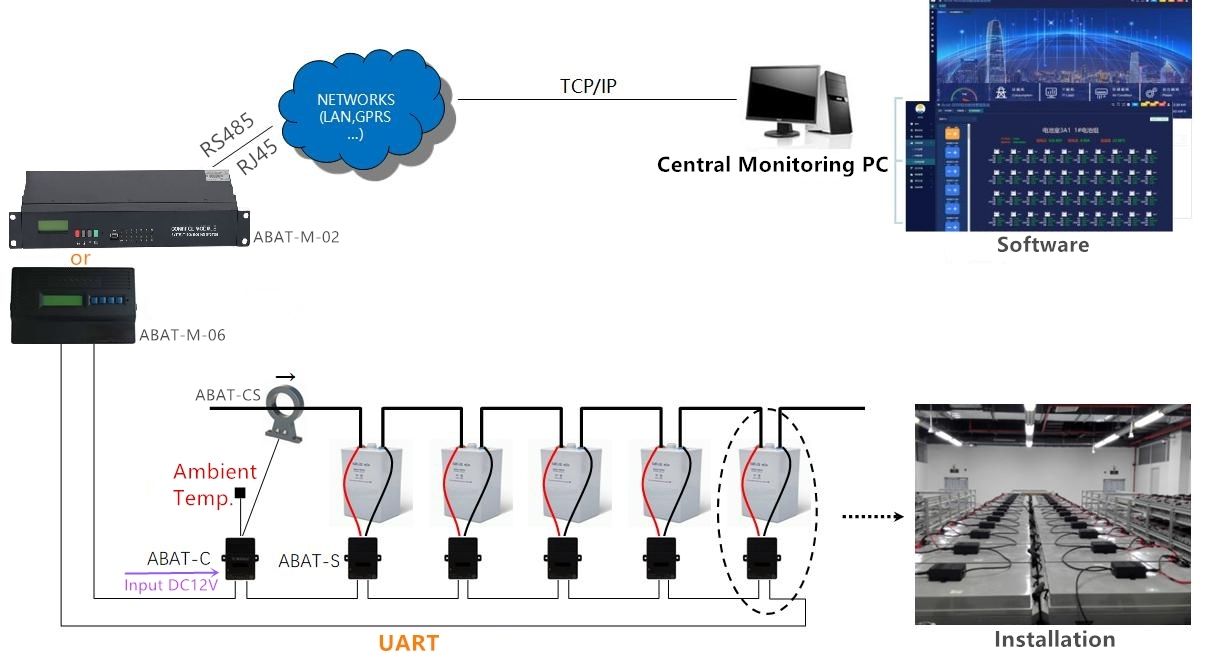

The ABAT Lead Acid Battery Monitoring Solution is designed specifically for single battery monitoring.

The S module collects the voltage, internal resistance and temperature of each battery,

The C module collects the charging and discharging current and ambient temperature of the battery pack.
Connected to the collector through the UART bus interconnection, and the collector is connected to the background monitoring platform through the serial port or the network port to realize remote centralized management.

Request Information & Quotation

Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]

If you have more detailed requirements, Please go to the relevant product page to submit the form.

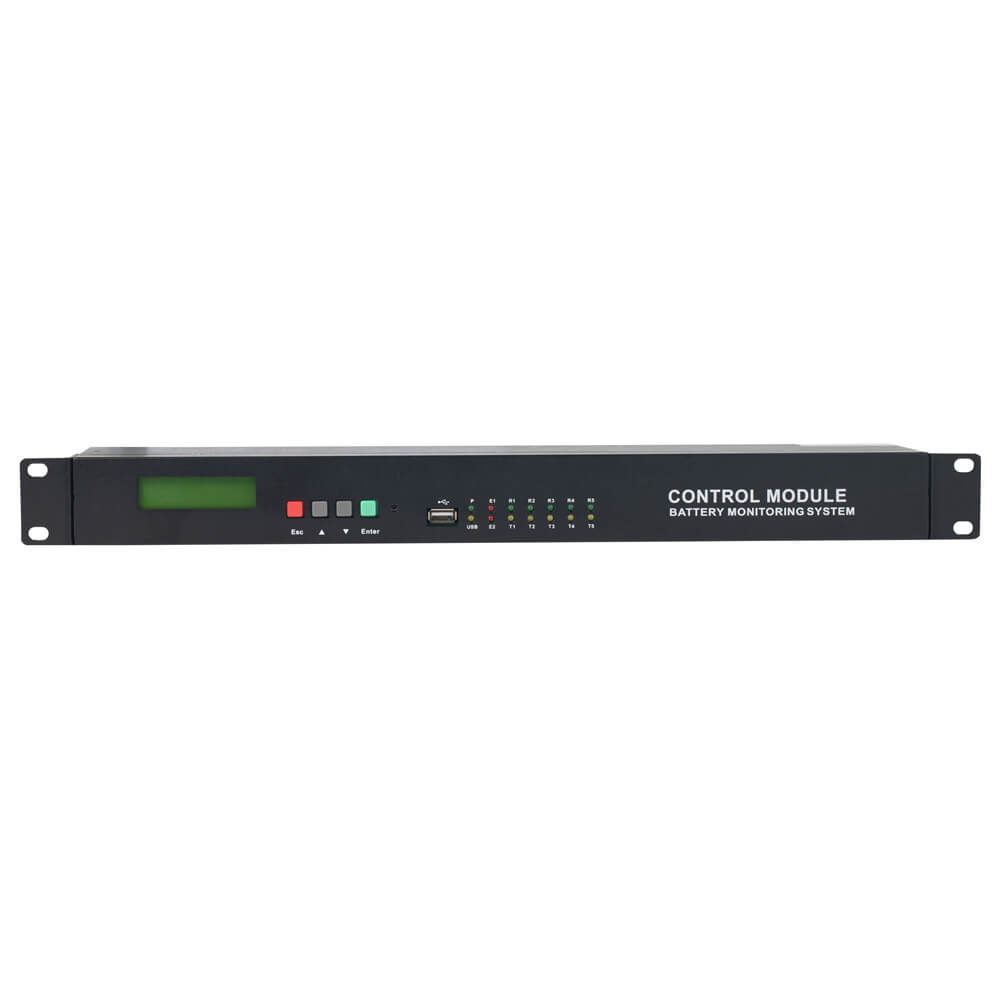

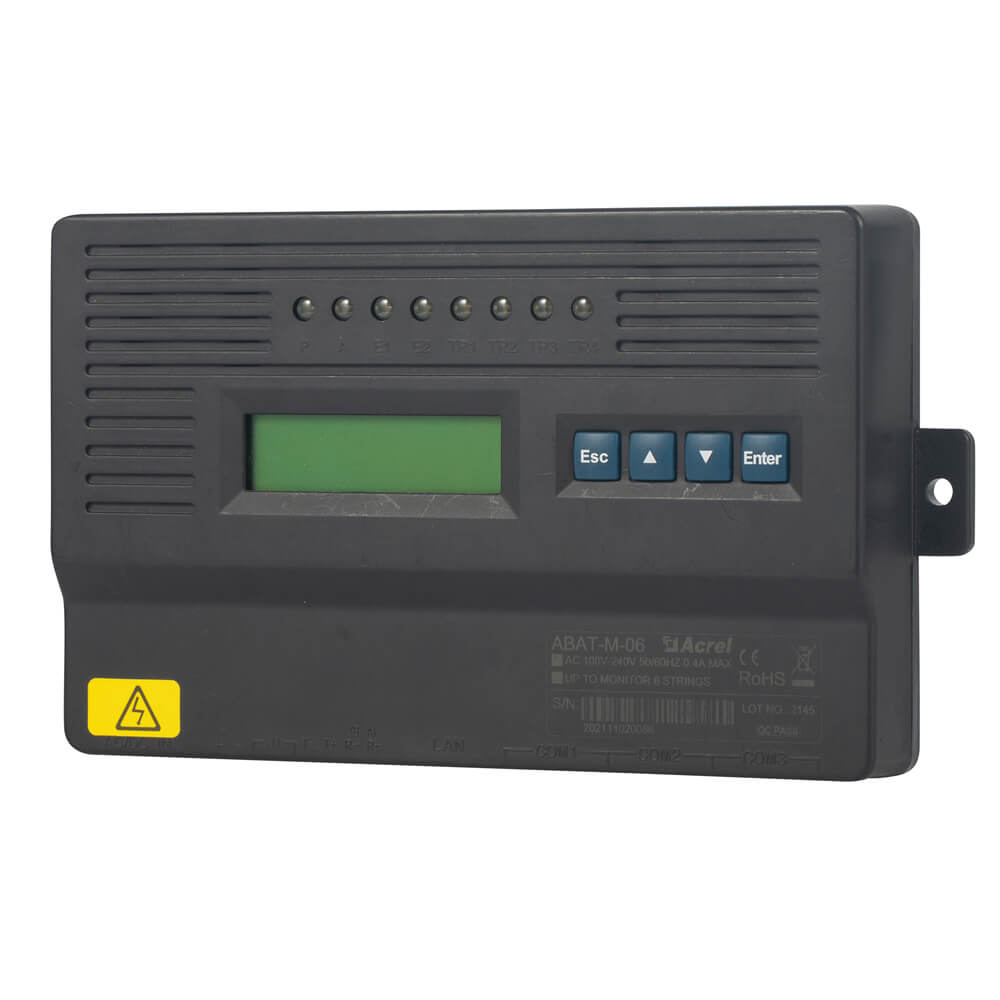

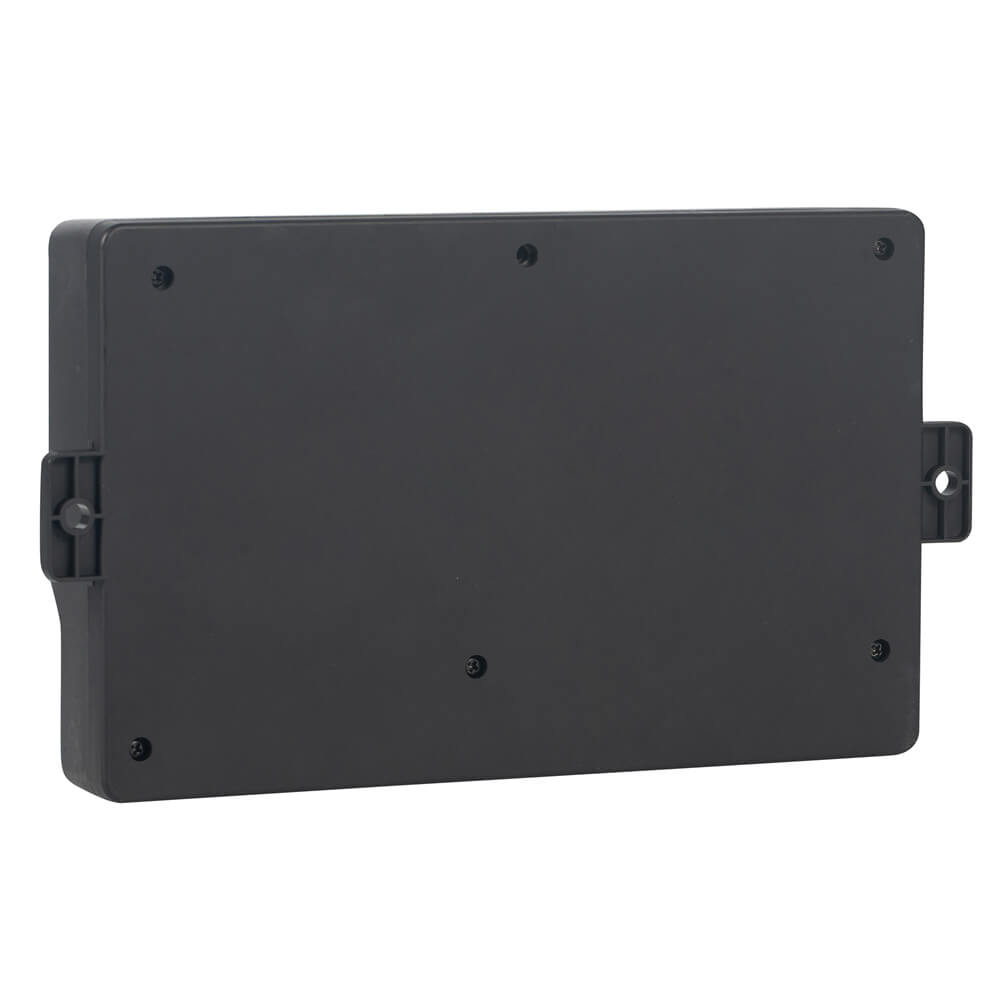

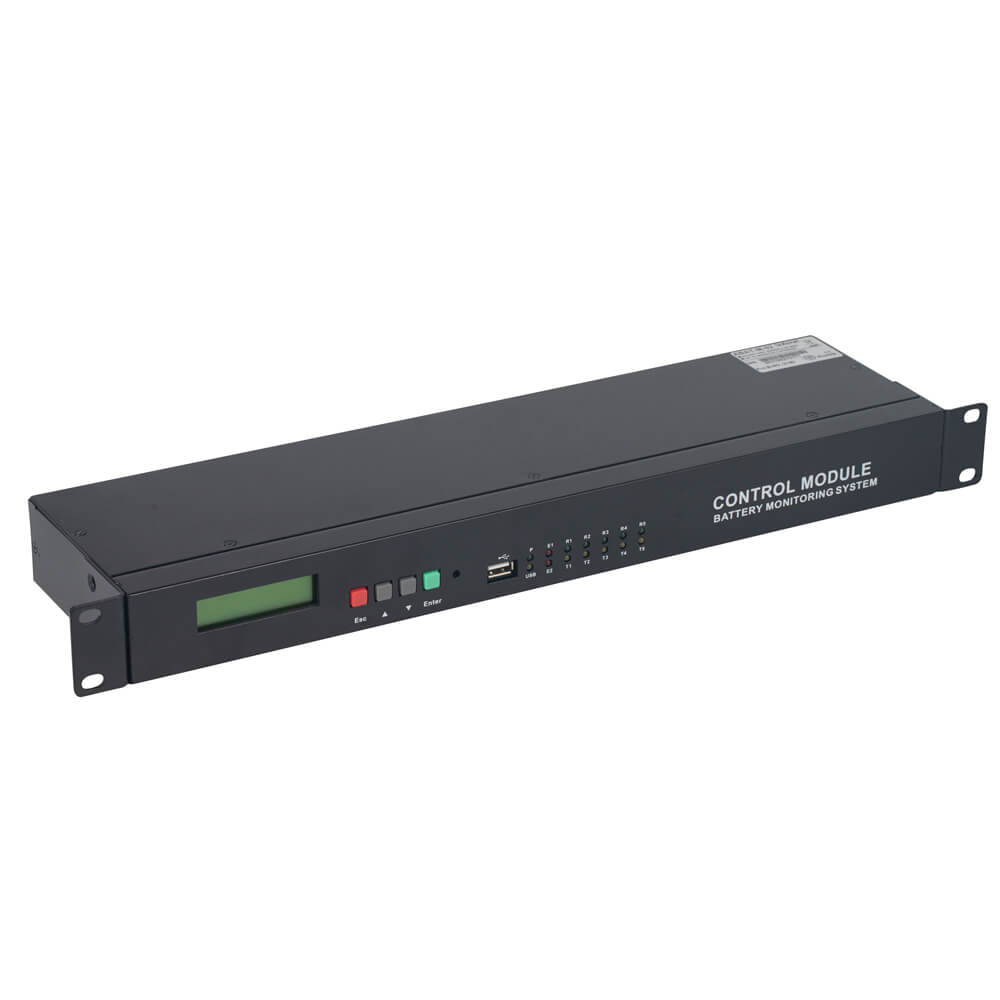

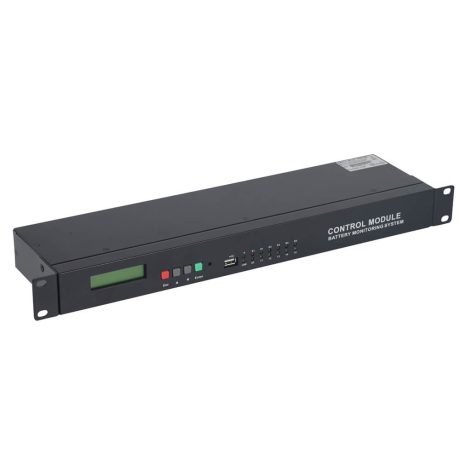

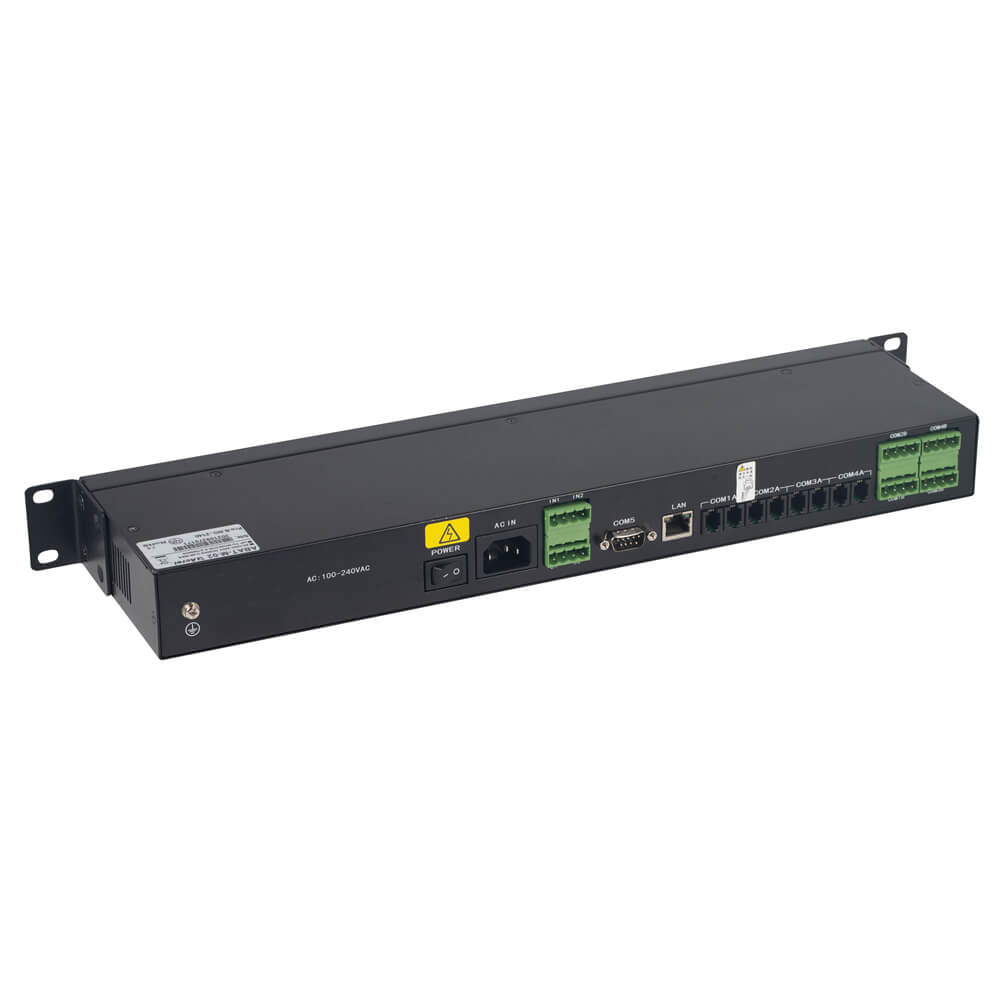

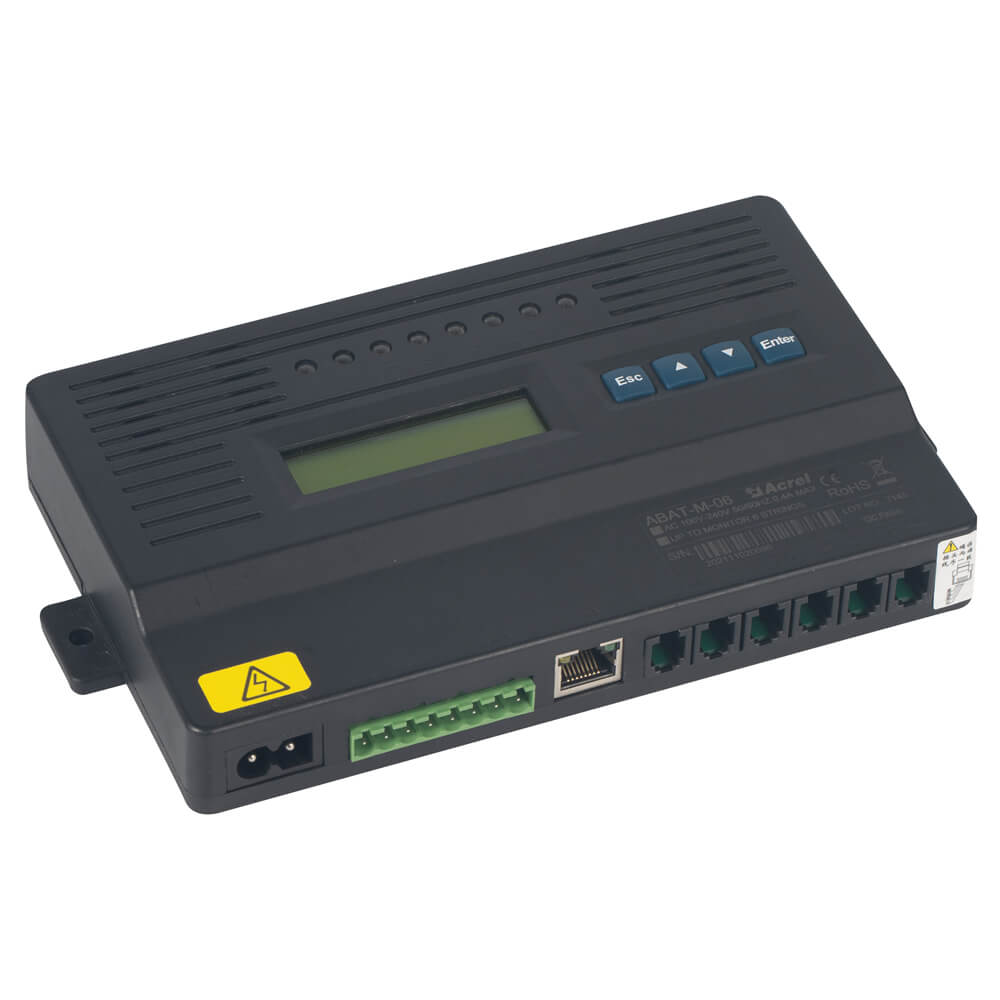

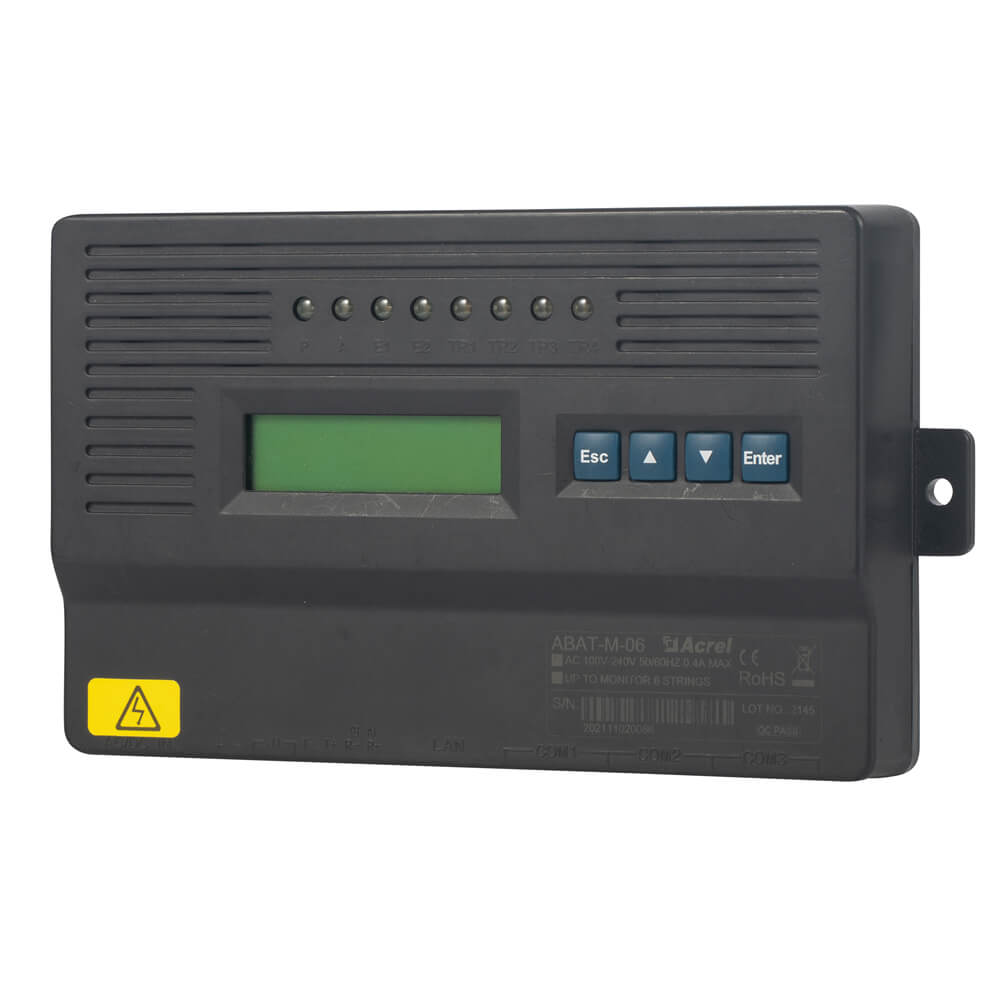

. ABAT-M Lead Acid Battery Room

BMSABAT-M-02ABAT-M-06
ABAT-M-02
6 Strings
960 Cells
ABAT-M-06
6 Strings
360 Cells

Manage and collect the data of the battery monitoring module, and process, analyze, alarm, and upload

MODBUS/RTU MODBUS-TCP SNMP protocol access to third-party monitoring system

The Battery Room plays the role of a management host, which is used to read the battery monitoring data of the front-end single battery monitoring sub-module through its own four sets of UART ports,

Read data such as battery voltage, internal resistance, temperature, charge and discharge current, and enviroment temperature.

Analyze and process the data, and estimate the remaining capacity of each cell and the entire battery group.

All operating parameters can be set directly through the module panel, and the collected data can be viewed directly.

The Host will automatically and regularly save key battery data, and can upload it to a third-party monitoring system through the RS485 port or network port.

Alarm function:

AlarmPAE1E2
ColourGreenYellowRedRed
IndicatorPower SupplyFaultCommunicationBattery

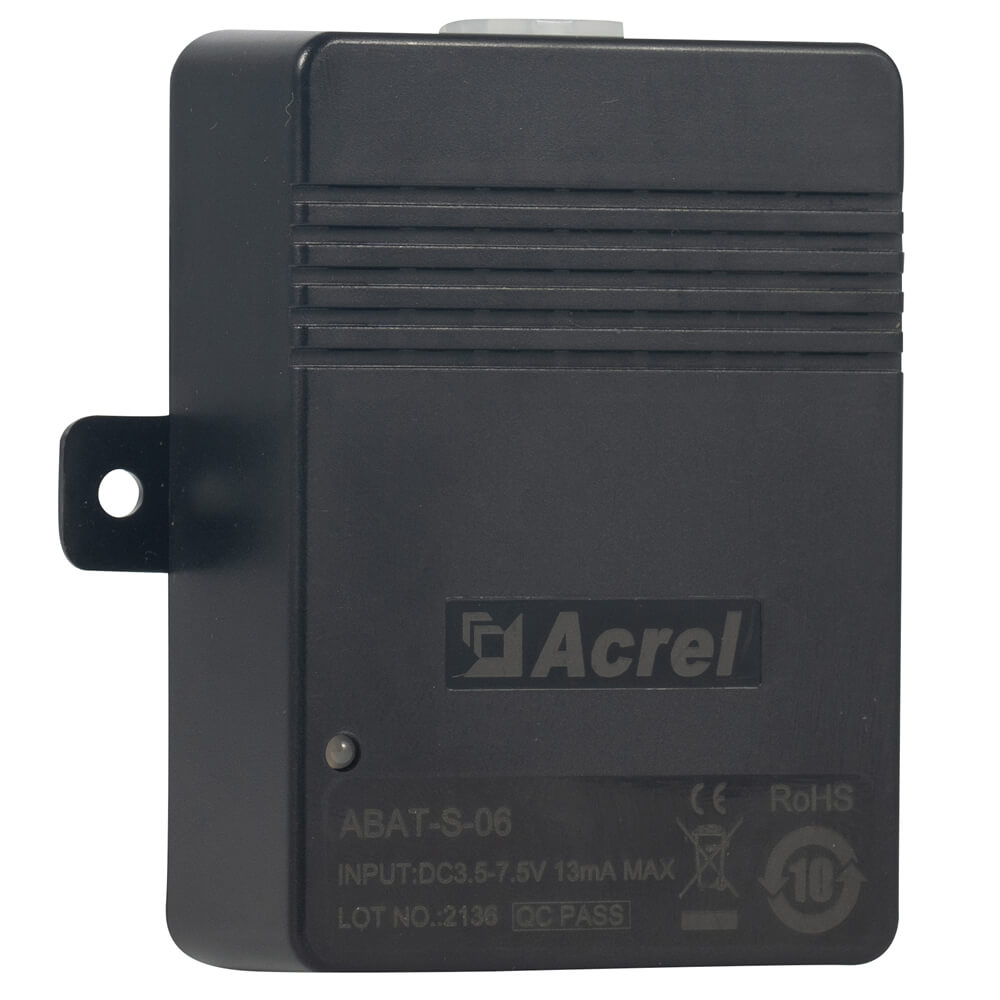

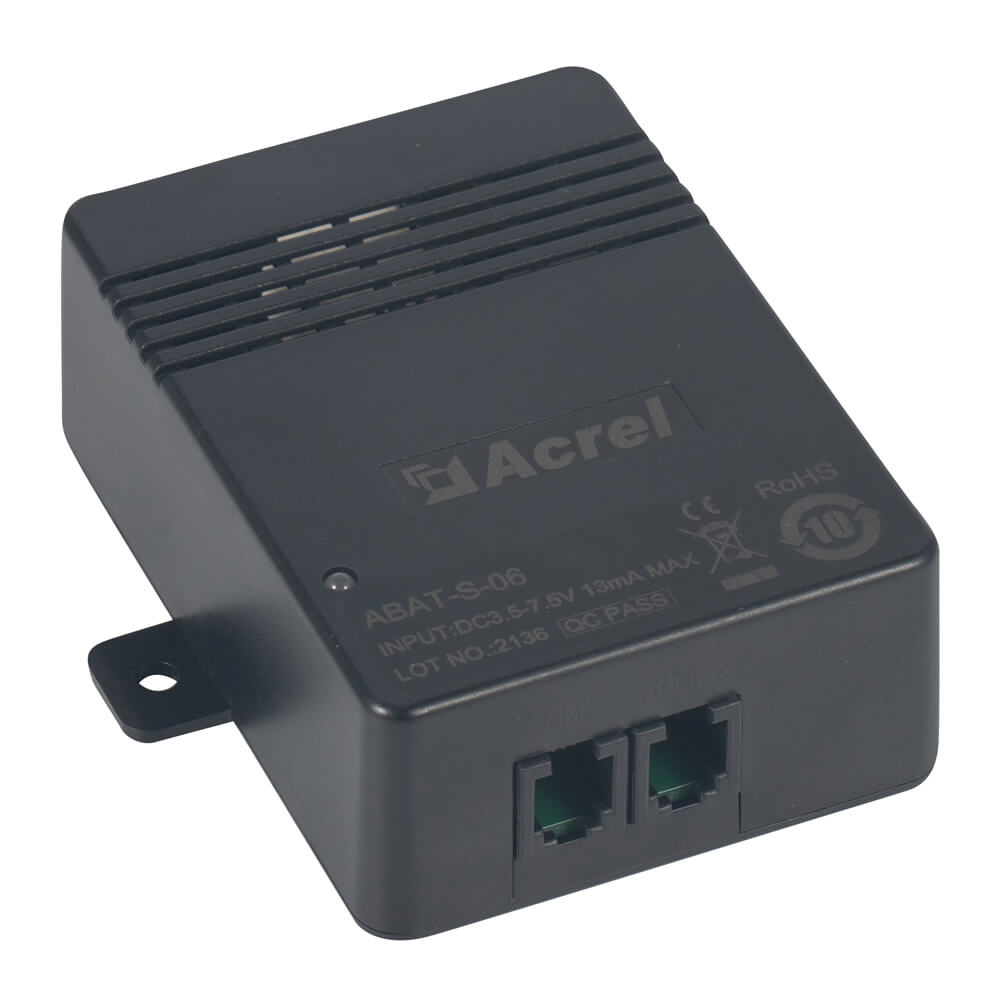

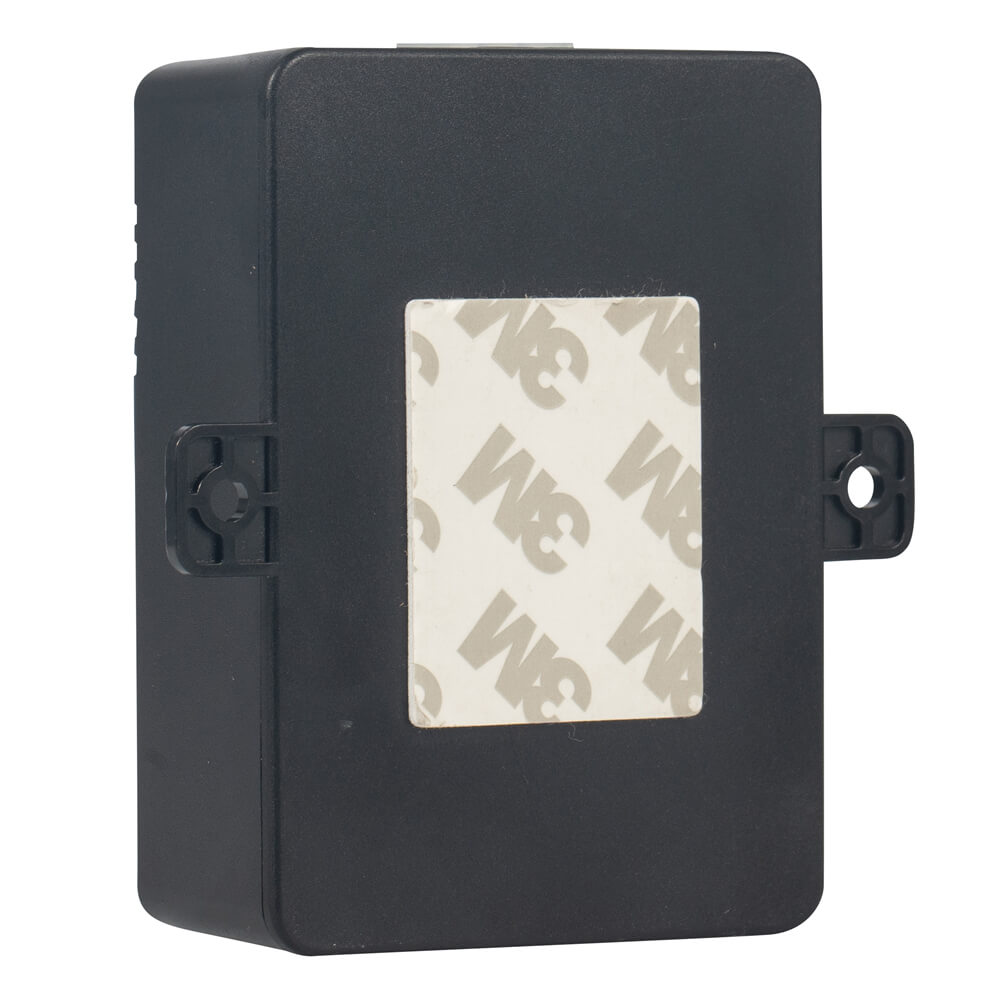

. ABAT-S Single Lead Acid Battery Voltage Sensor

Battery Cell2V6V12V

ABAT-S

Battery Voltage, Internal Resistance, Temperature

Monitoring capability

One S module monitors One cell battery

Monitoring range

2V, 6V, 12V battery capacity less than 3000AH

 Online monitoring 24 hours a day to find batteries with deteriorated performance at any time

 Each module monitors a battery, monitors voltage, internal resistance and negative temperature, in line with ANSI/TIA-942 standard requirements

 With photoelectric isolation, support MODBUS protocol, easy access to third-party monitoring system

 Using advanced power consumption reduction technology, the operating current is as low as 3mA

 The installation is extremely simple, only need to connect one wire to the positive and negative poles, and it can be installed without special training

 High performance, reliable and stable

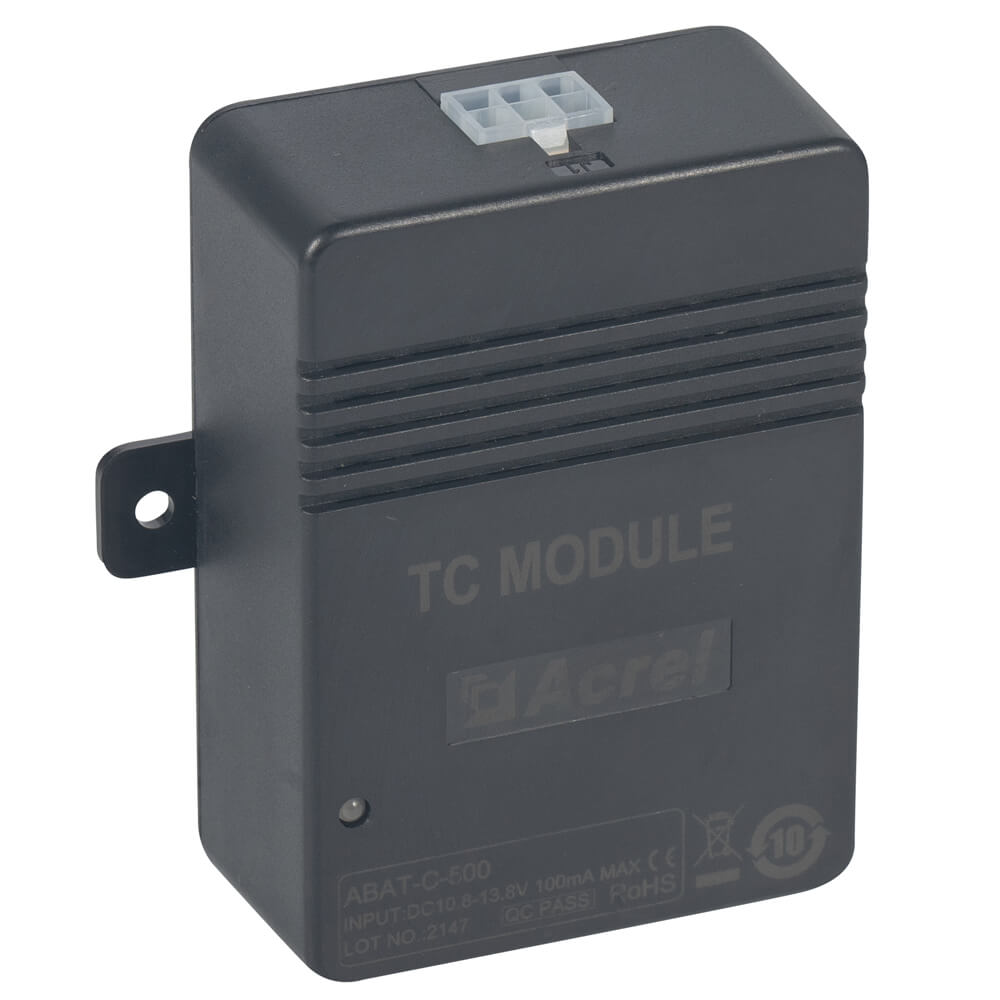

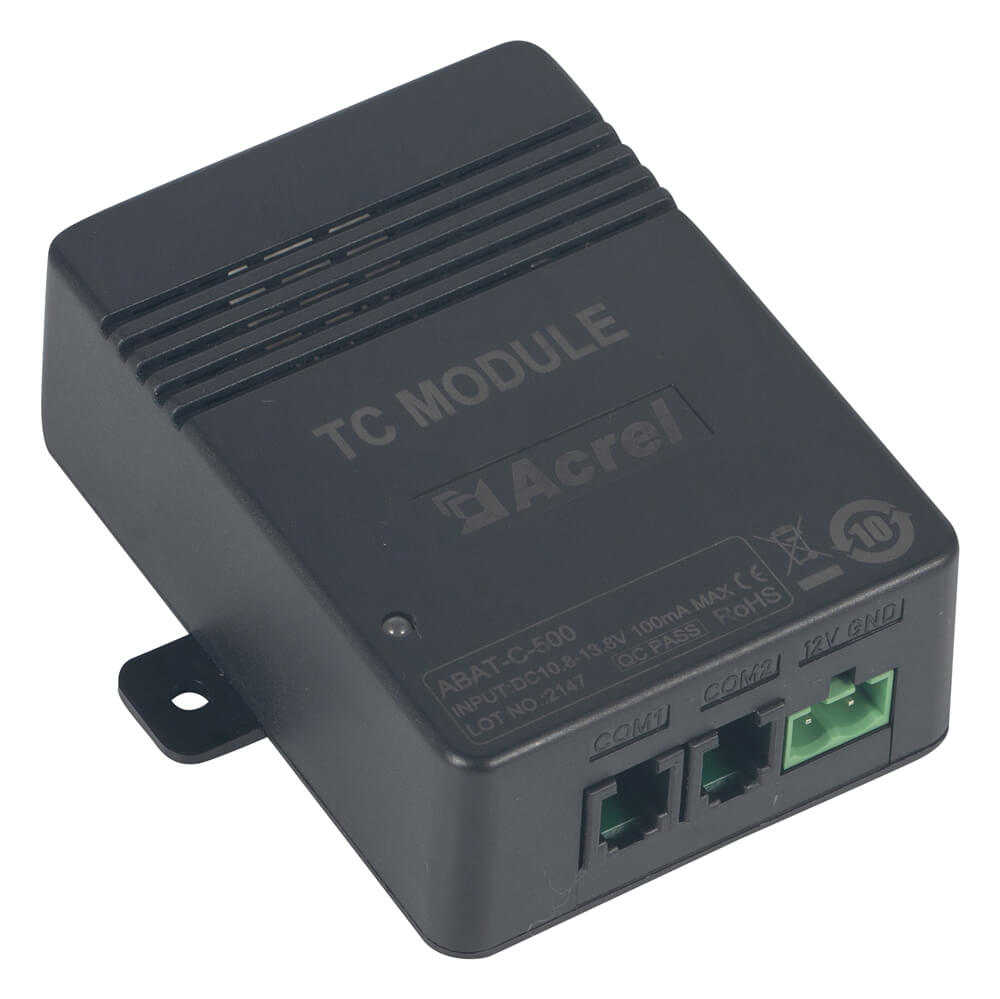

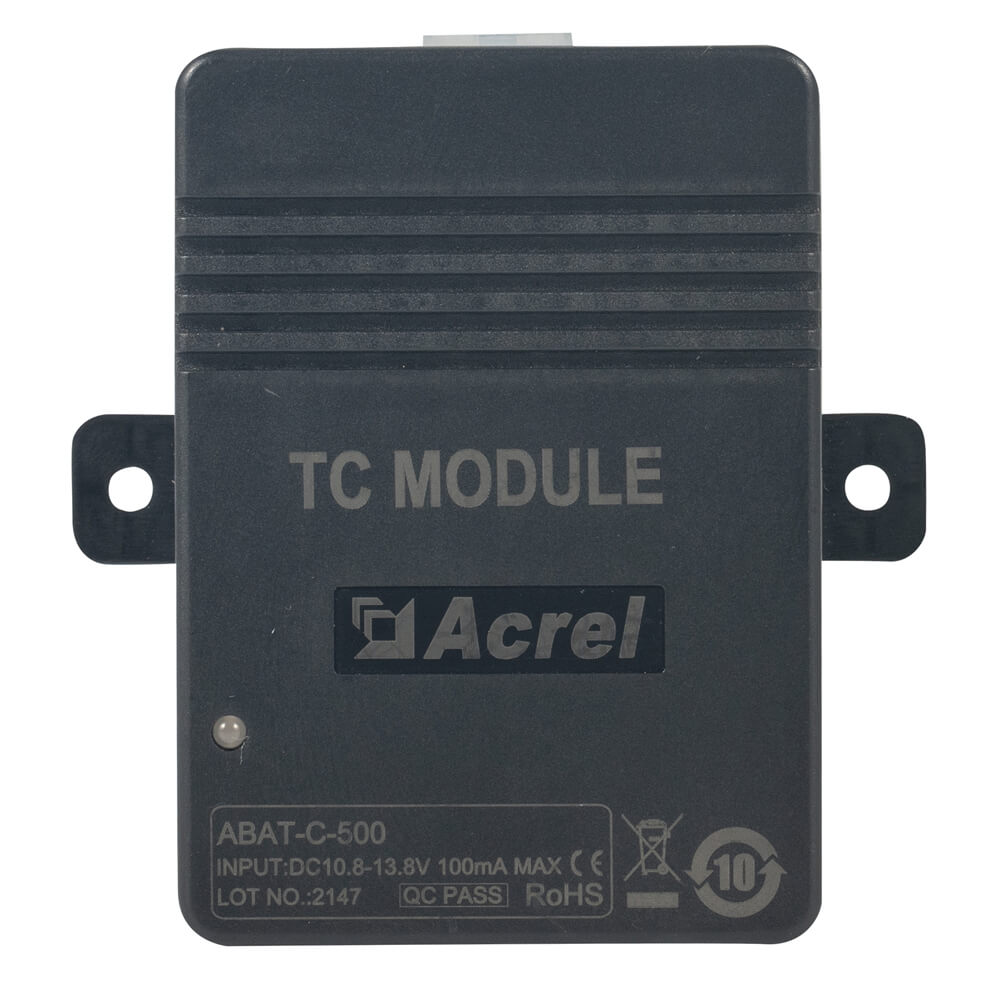

. ABAT-C Current & Temperature Sensor for Lead Acid Battery

ABAT-C

Charge and Discharge Current and Enviromental Monitoring

Monitoring capability

A C module monitors the charge and discharge current and environment temperature of a group of batteries

 Online monitoring of charge and discharge current and environment temperature 24 hours a day

 With photoelectric isolation, support MODBUS protocol, easy access to third-party monitoring system

 High performance, reliable and stable

The current temperature monitoring module (C module for short) is an online battery monitoring sensor, which can be embedded into the existing monitoring system to realize online monitoring of the charging and discharging current and ambient temperature of the battery pack.

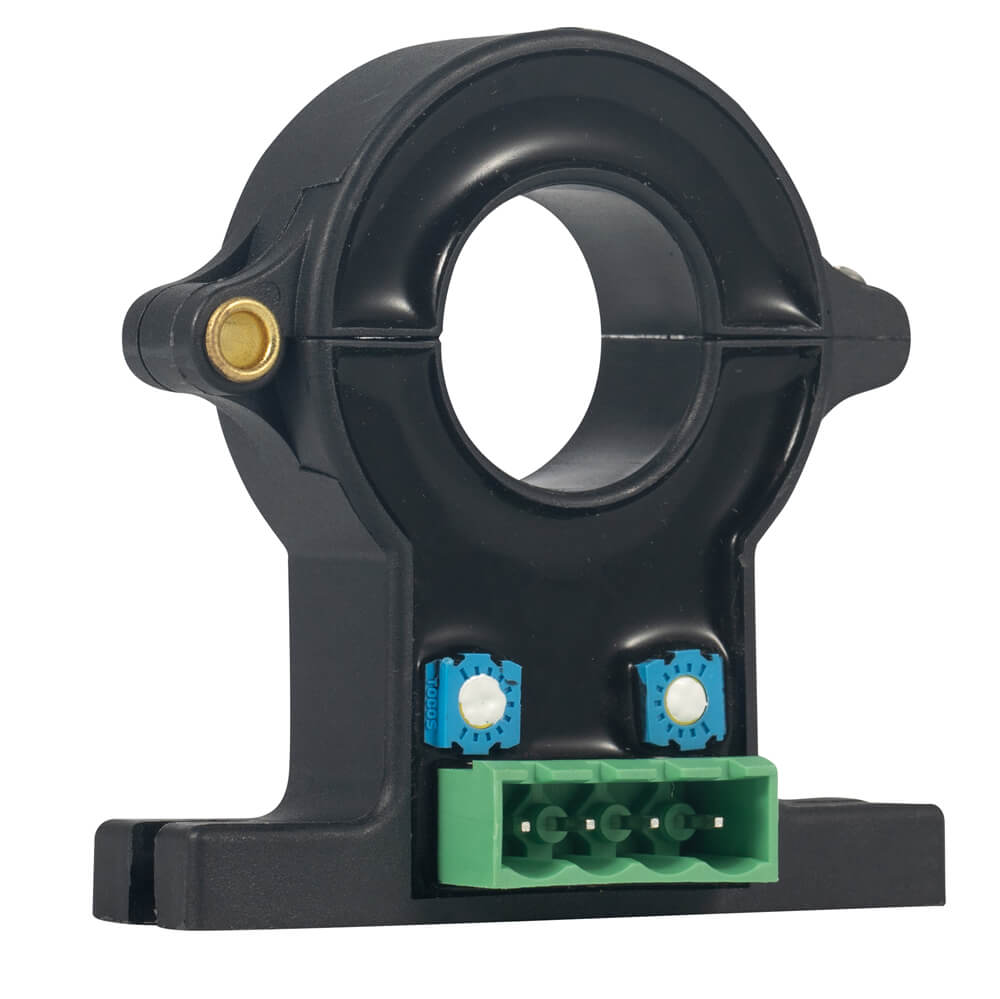

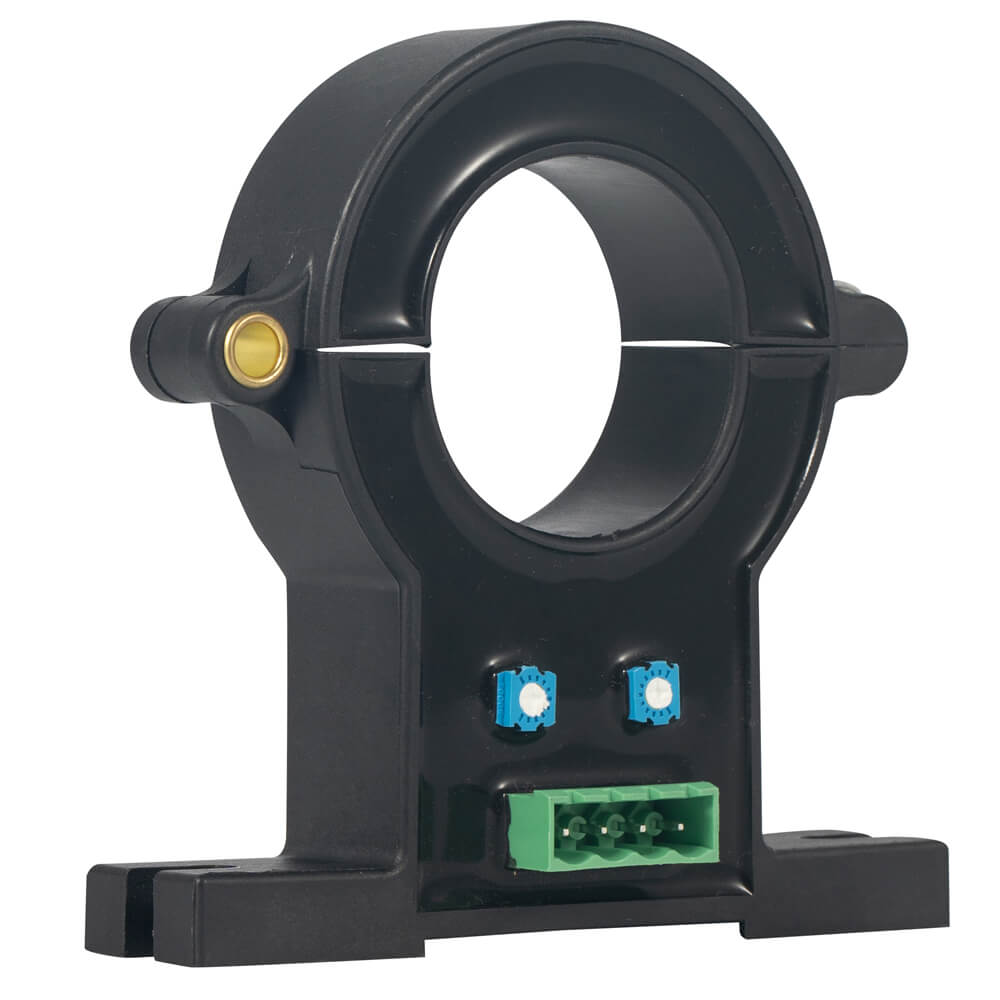

. ABAT-CS Hall Sensor for Lead Acid Battery

Open Loop Hall Current Sensor

ABAT-CS-210ABAT-CS-405
diameter 21mmdiameter 40.5mm
Specification ABAT-CS
IP(Rated input) ±500A
IPM(Measure range) ±1000A
VOUT(Rated output voltage) ±4V
VO(Offset voltage) ±20mV
VC(Supply voltage) ±12VDC±15VDC±5%
VD(Galvanic isolation) 50Hz1min3KV
RM(Load resistance) ≥10KΩ
εL(Linearity) ≤1%FS
X(Overall accuracy) ±1%
VOUT(Offset voltage drift) ±0.5mV/
VOUT(Amplitude voltage temperature drift) ≤0.1%/
IC(Current consumption) ≤15mA
TR(Response time) <7μs
BW(Frequency bandwidth-3db) DC25KHz
di/dt accurately followed >50A/μS
TA(Ambient operating temperature) -40+85
TS(Ambient storage temperature) -40+125
M(Mass) ≈65g
Standards SJ20790-2000JB/T7490-2007

Why choose us?

  • 2003 Established
  • SZ.300286 Listed Company
  • 1200+ People
  • 25000+㎡ Plant
  • Factory Direct-sale
