Closed-loop Hall Sensor

AHBC

  • Wide Measuring Range
  • High Overload
  • Good Linearity
  • Anti-interface

Highlight

What’s the Function of Closed-loop Hall Sensor?

Theory

  • Hall Effect

 Input

  • AC or DC 100-2000A

Output

  • 50mA
  • 100mA
  • 200mA
  • 400mA

Application

  • Measuring end for Solar and Wind energy

Specification

What’s the Specification of Acrel AHBC series Closed-loop Hall Sensor?

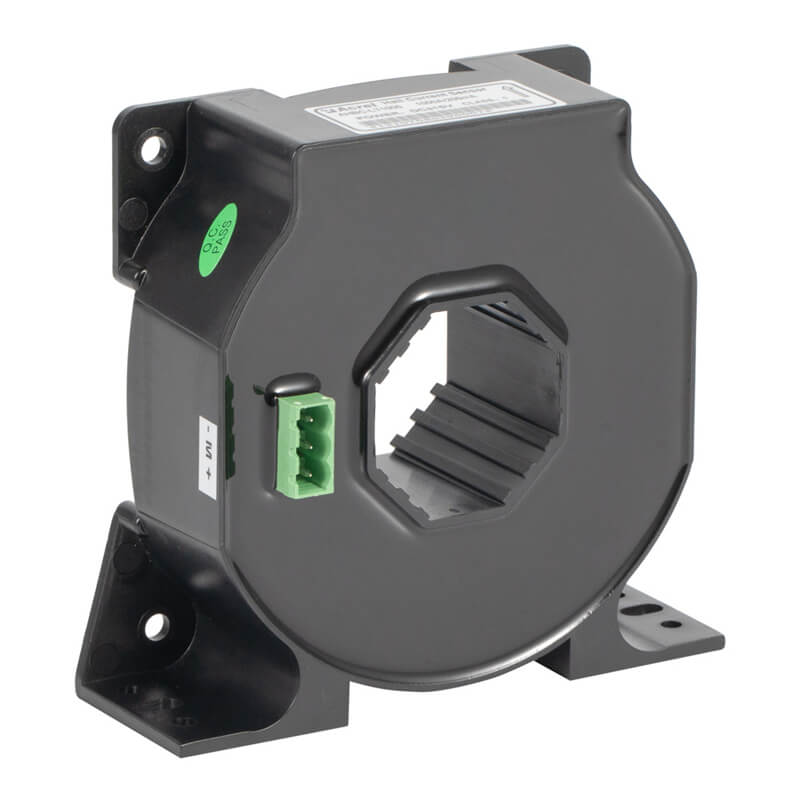

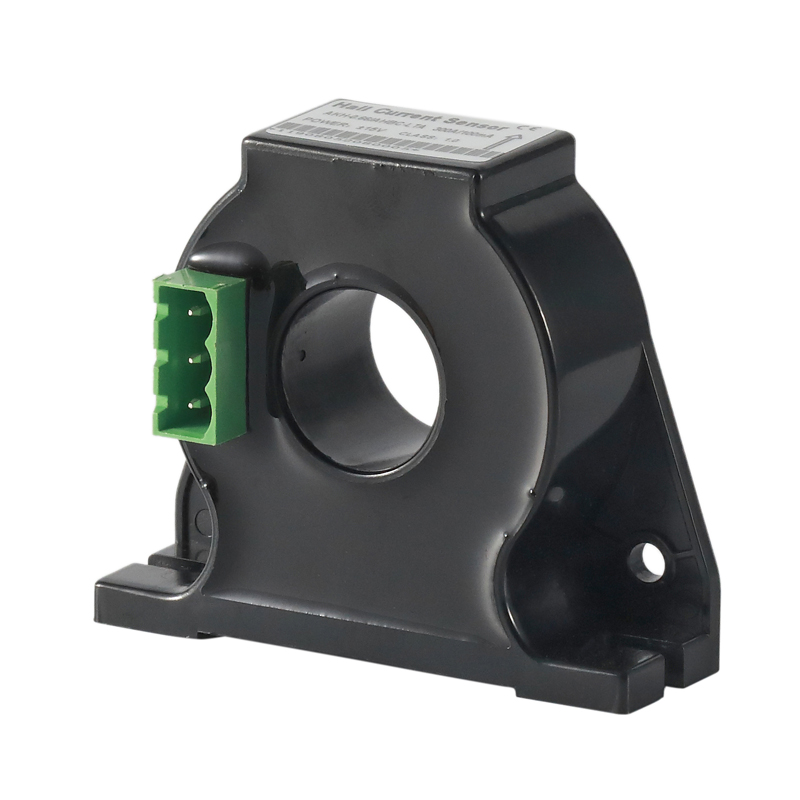

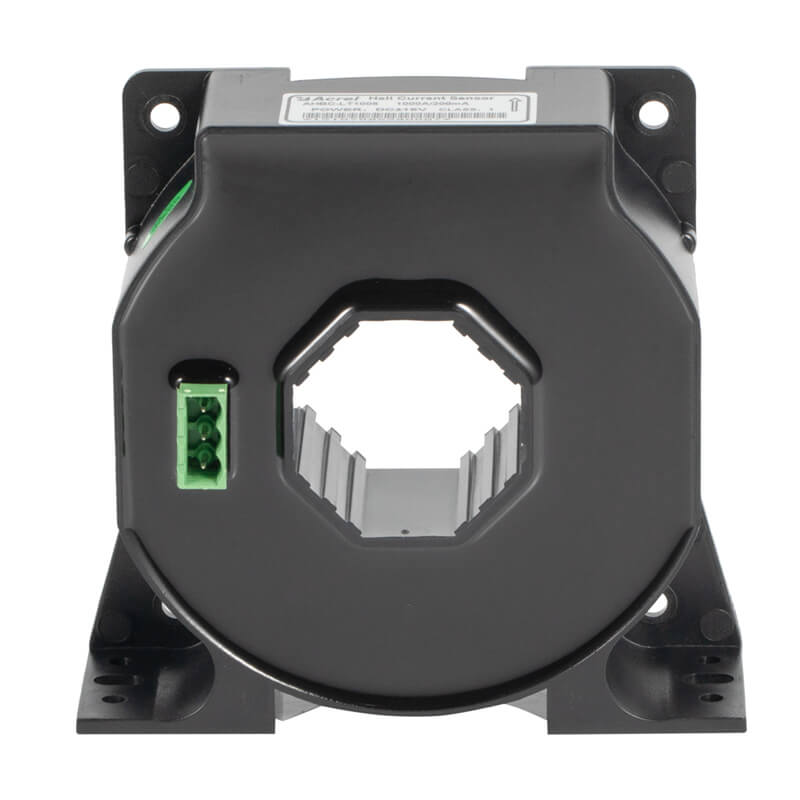

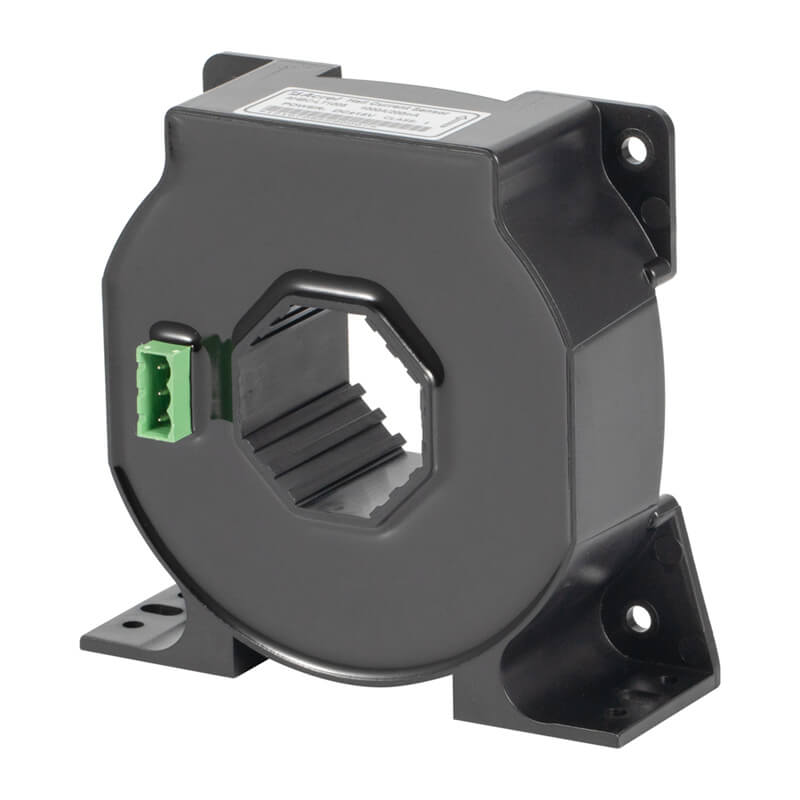

Specification AHBC-LTA AHBC-LT1005 AHBC-LF
Inner Size Φ20 mm Φ40 mm Φ60 mm
Input Current 100-300 A ±1000A ±2000A
Output Signal 50mA / 100 mA 200mA 400mA
Auxiliary Power ±15V ±15V ~±24V ±15V ~±24V

Parameter

What’s the Parameter of Closed-loop Hall Sensor?

Accuracy 0.5 class
Linearity ≤0.2% FS
Bandwidth 0-100 KHz
Response Time ≤5 μs
Withstand AC3500V
Temperature -40℃~85℃
Altitude ≤2000 m
Humidity ≤95%
