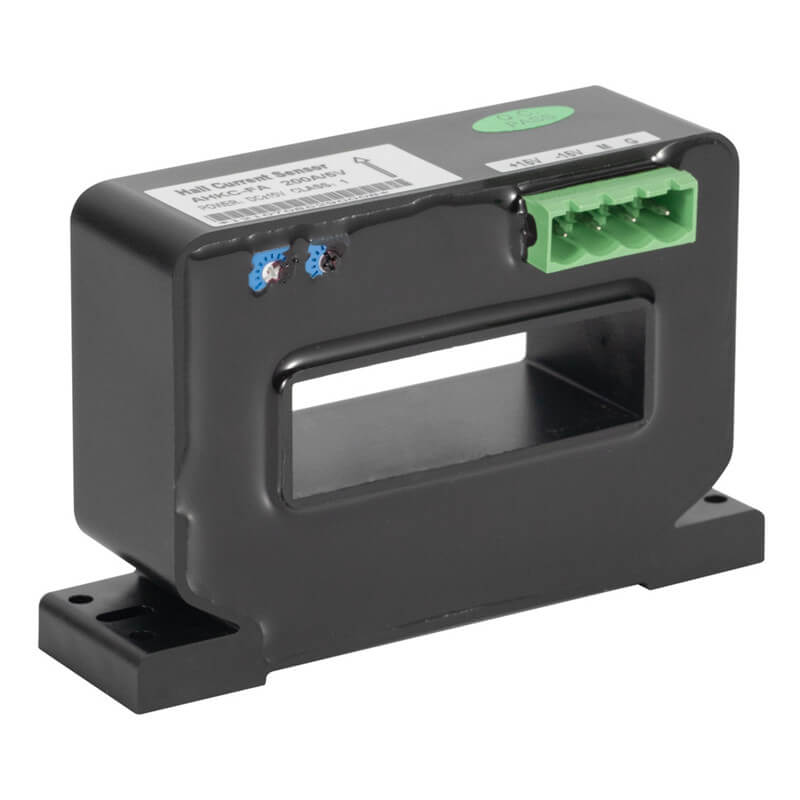

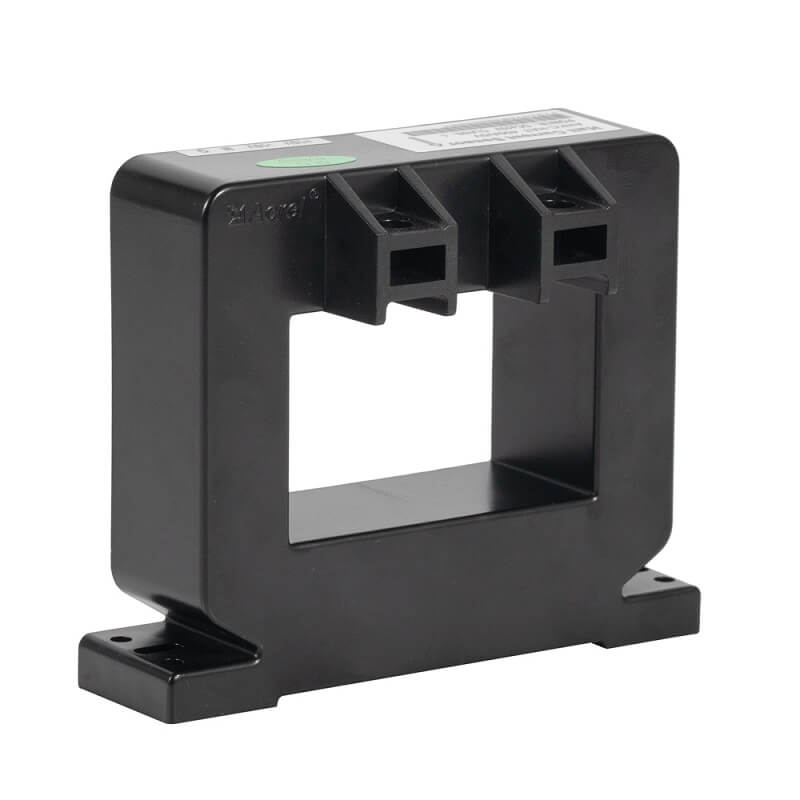

Closed type Open-loop Hall Sensor for Busbar

AHKC-CB

  • Wide Measuring Range
  • High Overload
  • Good Linearity
  • Anti-interface

Highlight

What’s the Function of Closed type Open-loop Hall Sensor?

Theory

  • Hall Effect

 Primary

  • AC or DC 0-2000A

Secondary

  • 5V/4V

Application

  • Measuring end for Solar and Wind energy

Specification

What’s the Specification of Acrel AHKC series Closed type Open-loop Hall Sensor for Busbar?

Specification AHKC-BS AHKC-C AHKC-F AHKC-FA AHKC-HAT
Inner Size 20.5*10.5 mm 31*13 mm 43*13 mm 52*15 mm 52*32 mm
Input Current AC/DC 0-(50-500) A AC/DC 0-(100-800) A AC/DC 0-(200-1000) A AC/DC 0-(200-1500) A AC/DC 0-(400-2000) A
Output Signal DC 0-4V, 0-5V DC 0-4V, 0-5V DC 0-4V, 0-5V DC 0-4V, 0-5V DC 0-4V, 0-5V
Auxiliary Power DC ±12V /±15V

Parameter

What’s the Parameter of the Closed type Open-loop Hall Sensor?

Accuracy 1.0 class
Linearity ≤0.2% FS
Bandwidth 0-20 KHz
Response Time ≤5 μs
Withstand AC2500V
Temperature -40℃~85℃
Altitude ≤2000 m
Humidity ≤95%

Installation

How to Install the Closed type Open-loop Hall Sensor?
