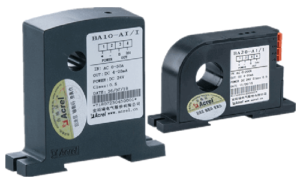

DC4-20mA Current Transmitter

BA4-20mA

  • Consumption≤1W
  • Overload≤135%
  • Precision 0.5 class
  • Safety IEC688:1992

Highlight

What’s the Function of Current Transmitter?

Theory

  • Electromagnetic Induction

 Input

  • AC 0-600A

Output

  •  4-20mA
  • 0-20mA

Application

  • Automation field

Specification

What’s the Specification of Acrel BA series DC4-20mA Current Transmitter?

Specification BA05-AI/I BA10-AI/I BA20-AI/I BA50-AI/I
Inner Size Φ5 mm Φ10 mm Φ20 mm Φ50 mm
Input Current AC 0-(0.5~10)A AC 0-(8~50)A AC 0-(40~200)A AC 0-(60~600)A
Output Signal DC4-20mA, 0-20mA

Parameter

What’s the Parameter of the Current Transmitter?

Accuracy 0.5%
Response time Average Value ≤ 350ms,  True RMS ≤ 100ms
Auxiliary Power DC12V(10-15V); DC24V(18-30V);AC220V
Load Resistance Current Output ≤ 500Ω,Voltage Output ≥ 1KΩ
Withstand AC2000V
Operation Temperature -10℃ ~ +55℃
Temperature Drift Coefficient ≤ 200ppm/℃
Altitude ≤ 2500m
Humidity ≤ 90% RH
Installation Din-rail 35mm

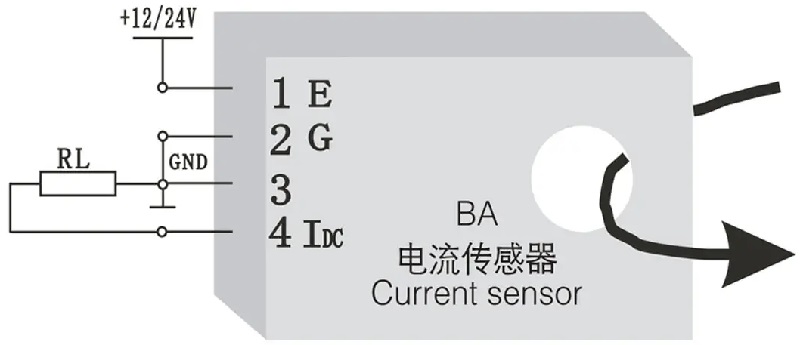

Installation

How to Install the Current Transmitter?
