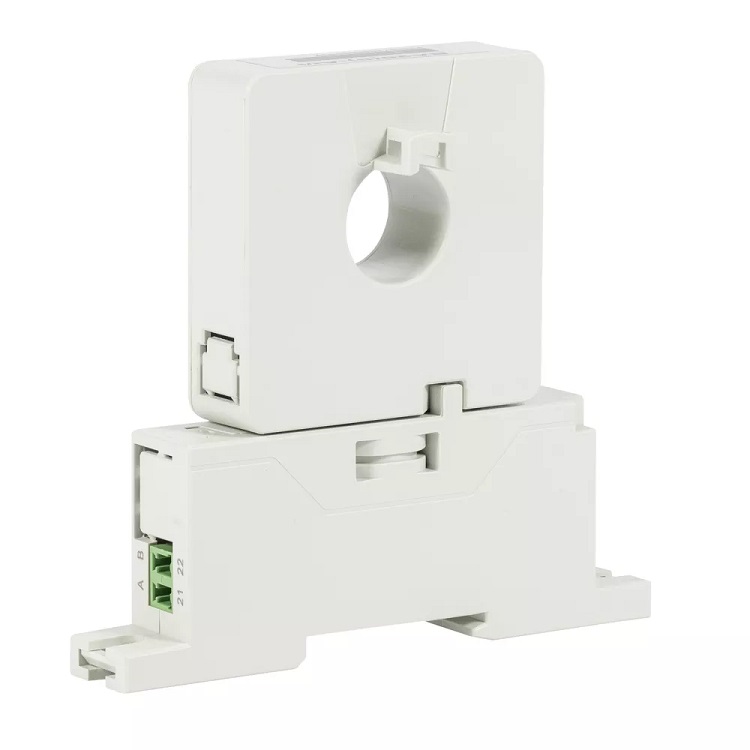

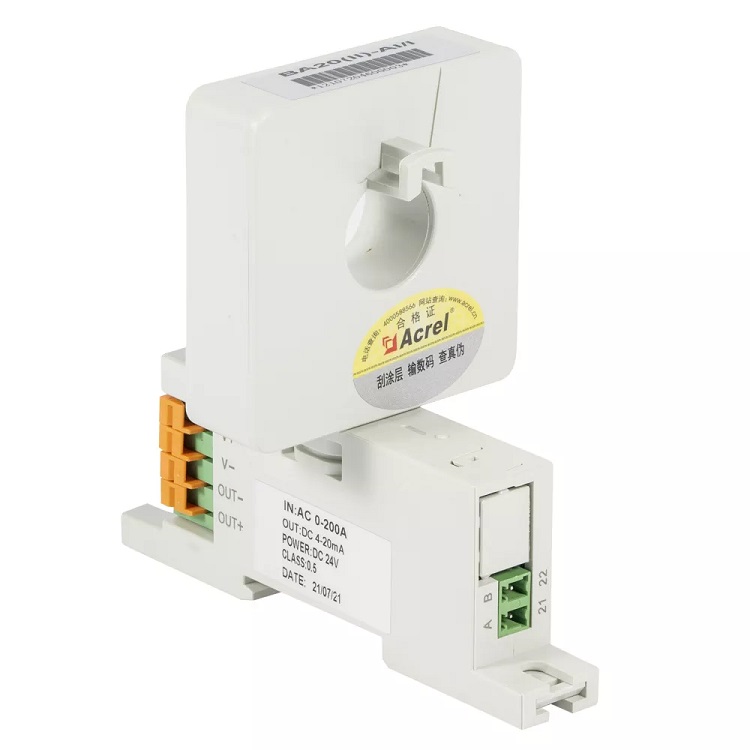

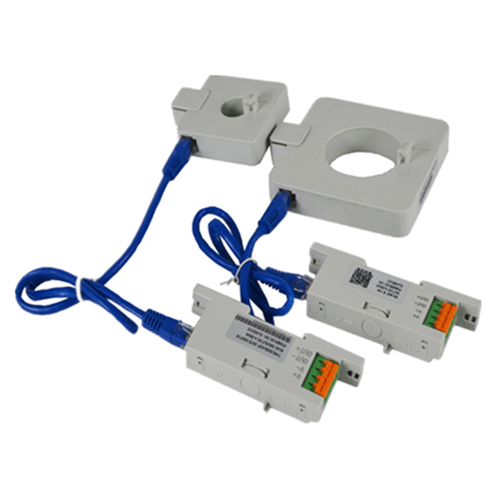

Split type Leakage Current Sensor

BA(II)-L

  • Communication RS485 Modbus-RTU
  • Overload≤120%
  • Precision 0.5 class
  • Frequency 25-800Hz

Highlight

What’s the Function of the Leakage Current Sensor?

Theory

  • Electromagnetic Induction

 Input

  • AC 0-1A

Output

  • 4-20mA
  • 0-20mA
  • 1-5V
  • 0-5V

Application

  • Automation field

Specification

What’s the Specification of Acrel BA(II) series Split type Leakage Current Sensor?

Specification BA(II)50L-AI/I(V)
Inner Size Φ50 mm
Input Current AC 0-(0.1-1)A
Output Signal 4-20mA, 0-20mA; 1-5V, 0-5V

Parameter

What’s the Parameter of the Leakage Current Sensor?

Accuracy 0.5%
Response time Average Value ≤ 400ms,  True RMS ≤ 100ms
Auxiliary Power DC12V(10-15V); DC24V(18-30V)
Load Resistance Current Output ≤ 500Ω,Voltage Output ≥ 1KΩ
Insulation Resistance >100MΩ
Withstand AC2000V/1 min, 50Hz
Operation Temperature -10℃ ~ +55℃
Temperature Drift Coefficient ≤ 400ppm/℃
Altitude ≤ 2000m
Humidity ≤ 93% RH
Installation Din-rail 35mm

Installation

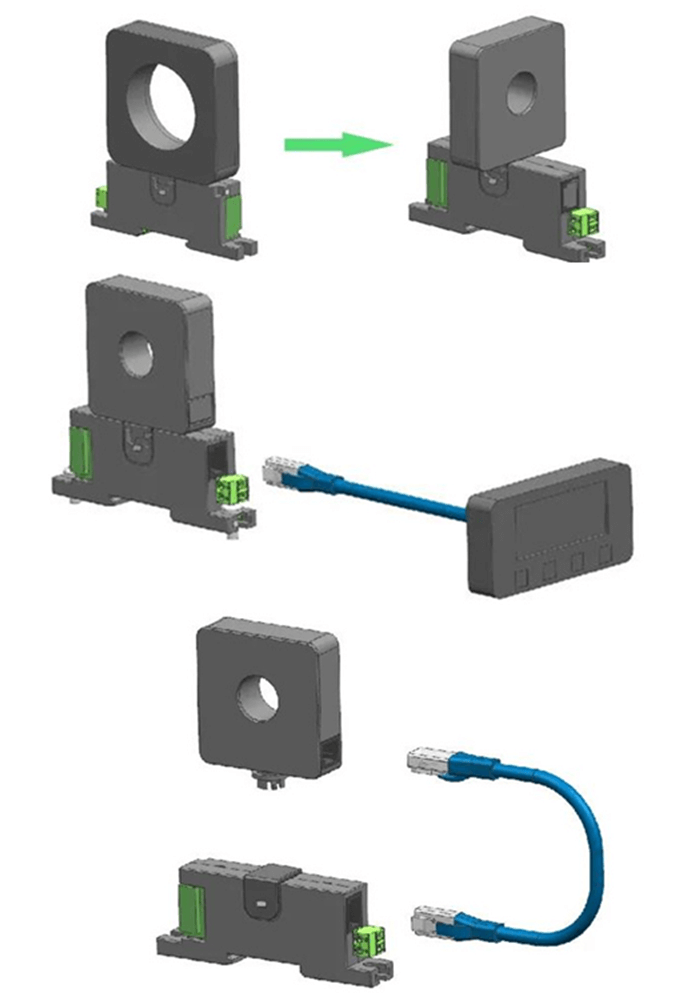

How to install the Leakage Current Sensor?
