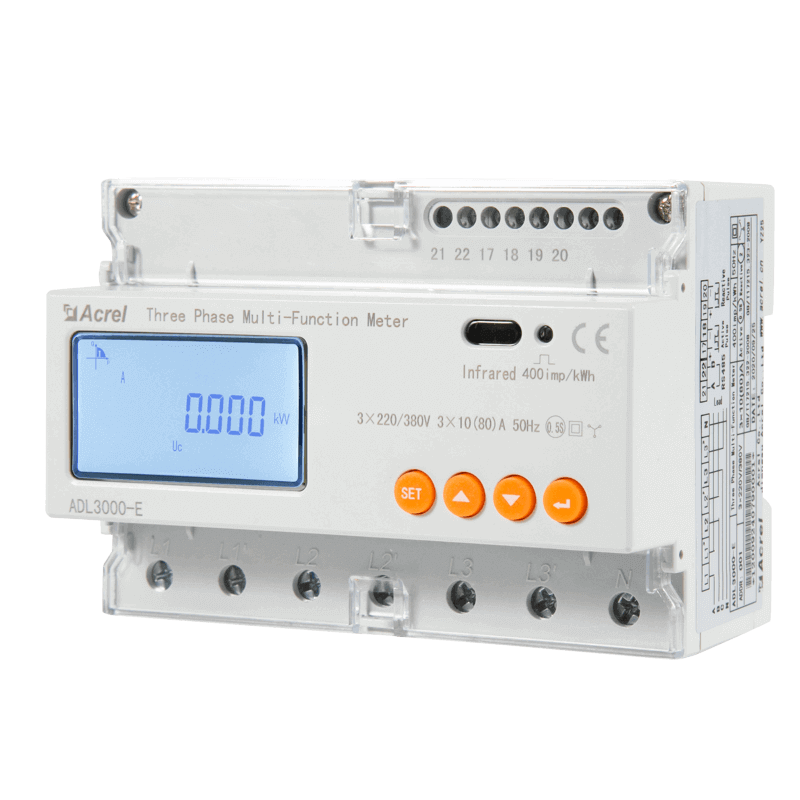

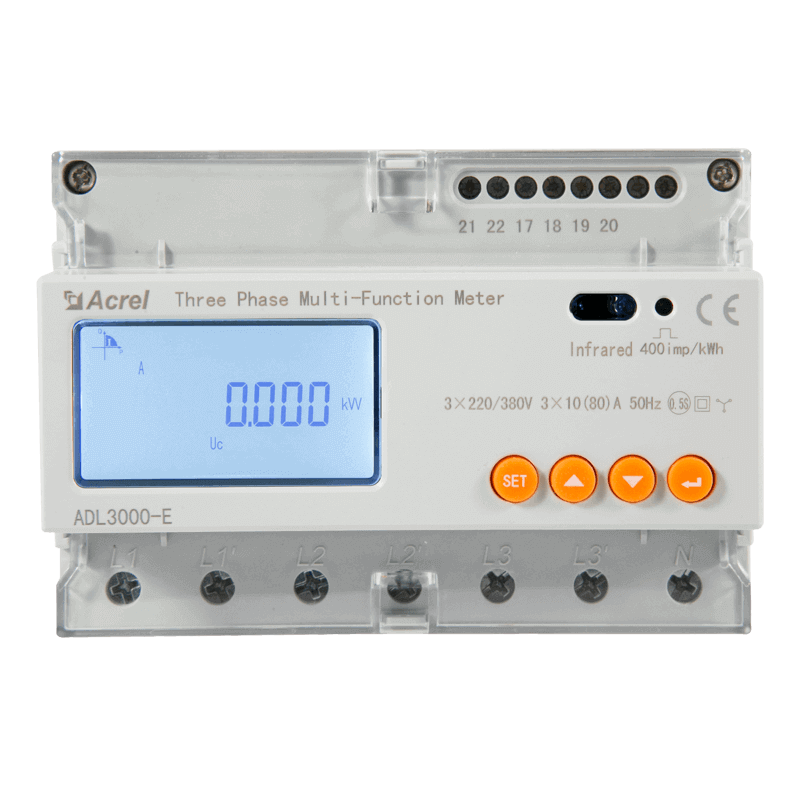

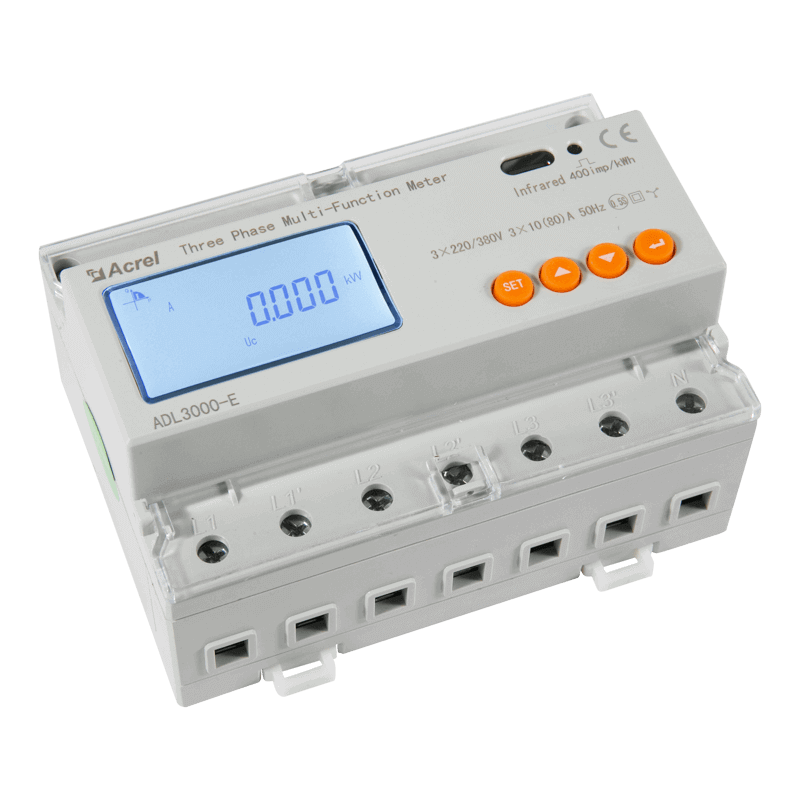

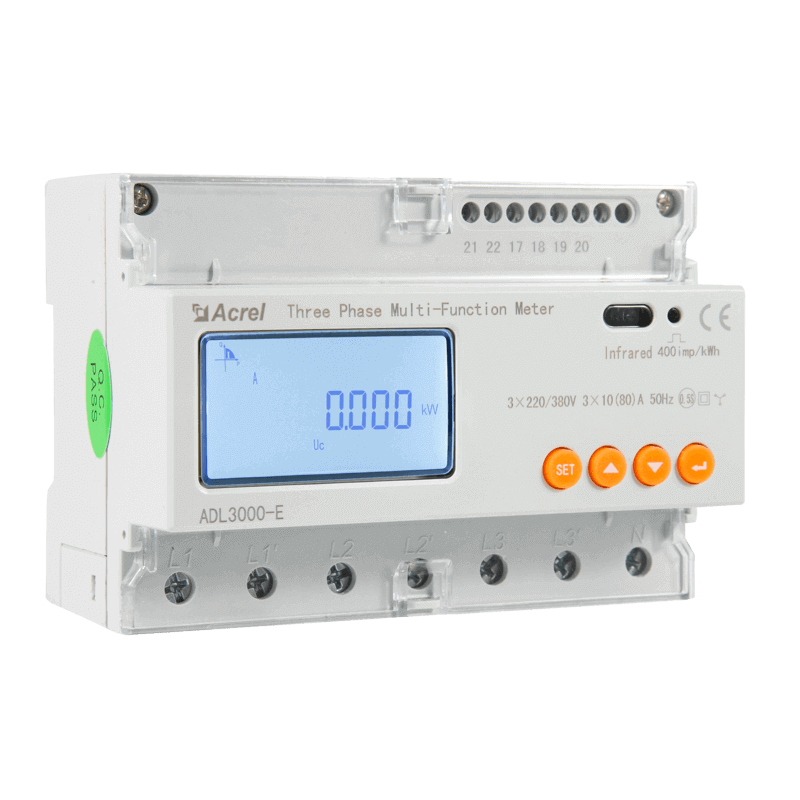

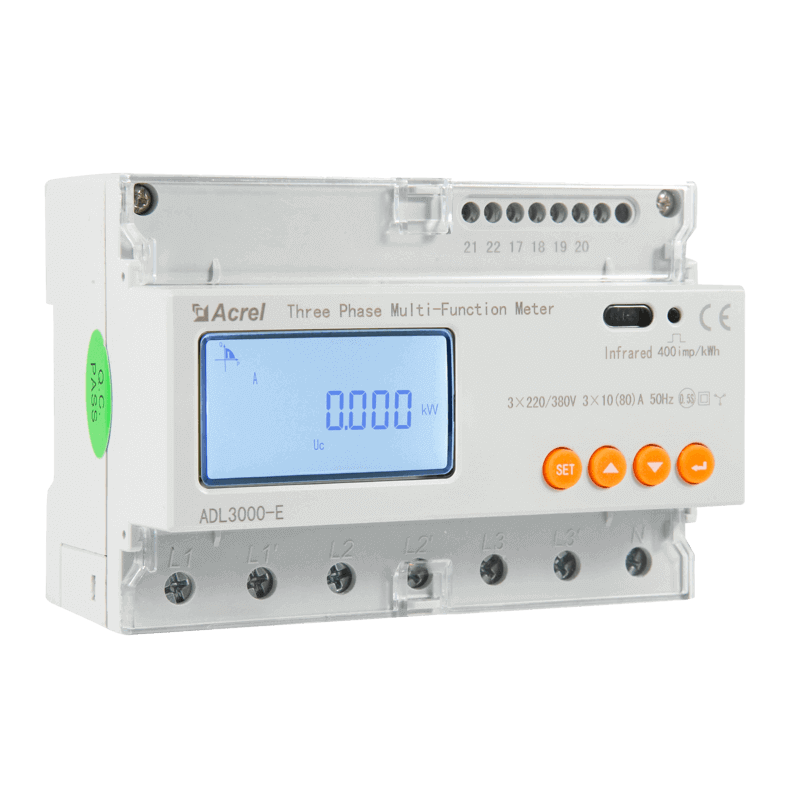

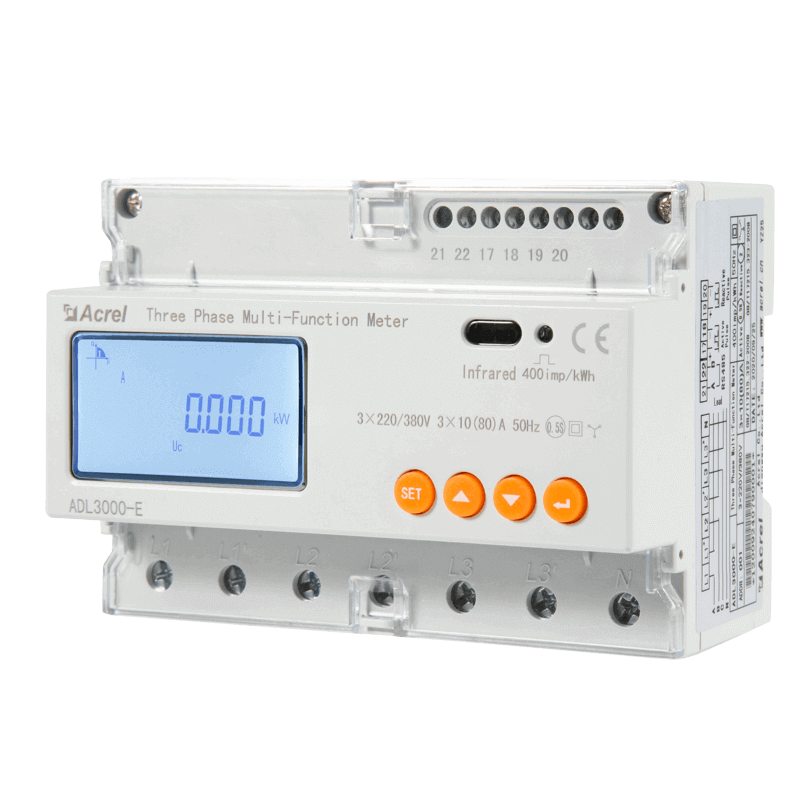

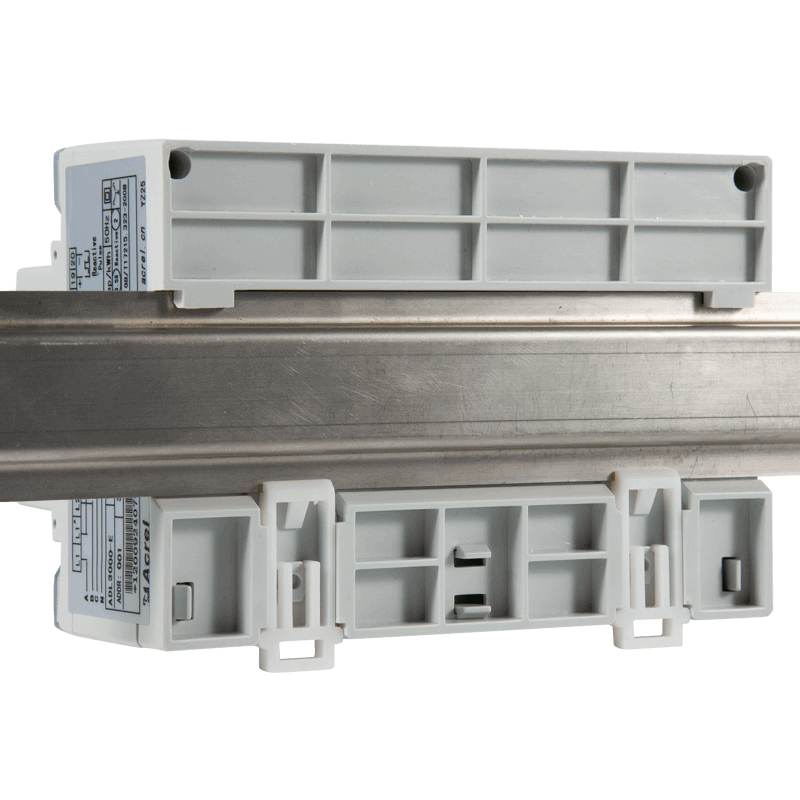

Din-rail Three-phase KWH Meter

ADL3000-E

  • 3P3L, 3P4L
  • 3×10(80)A; 3×1(6)A
  • Multi-tariff, DI/DO, Temperature
  • RS485 Modbus-RTU

Feedback

What Do Our Customers Say?

  • “ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

    Arnold 

    Philippines

  • Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

    Tuan 

    Vietnam

Highlight

What’s the Function of Acrel ADL3000-E Series Din-rail Three-phase KWH Meter?

Measure

  • Voltage, Current
  • Frequency
  • Active Power, Reactive Power
  • Power Factor and etc

Optional Function

  • Multi-tariff
  • 3 channels NTC Temperature
  • DI/DO
  • 2-31st Voltage and Current Hamonic

Accuracy

  • Active: 0.5S class
  • Reactive: 2 class

 Communication

  • Protocol: Modbus-RTU
  • Interface: RS485
  • 2 channels RS485
  • Infrared

Specification

What’s the Specification of Acrel ADL3000-E Series Din-rail Three-phase KWH Meter?

Diverse Electricity Parameters Measurement

● Harmonic (2~31st voltage&current)—Optional

● F (Frequency)

● U (3-phase Voltage)

● I (3-phase Current)

● kWh (3-phase positive Kilowatt-hours)

● kVarh (Kilovar-hours)

● P (Power)

● Q (Reactive power)

● S (Apparent power)

● PF (Power factor)

 Multi-rate/Flexible Tariff

● 4 Time zone

● 4 Tariff rate (Spike, Peak, Flat, Valley)

● 2 Time period list

● 14 Time period by day

● Data Frozen (last 48 months or last 90 days)

● Max demand and occurrence time

 2 Channel RS485 Communication

● Protocol: MODBUS-RTU

● 1 channel RS485 or 2 channel RS485 both optional

● Thermistor: NTC temperature sensor

● Measuring Range: -40℃~+125℃

 DO/DI Switch

● 1 channel DO

● 1 channel DI

 HMI for Parameters Setting

● Code

● Protocol

● Address

● Baud rate

● Parity

● All Display

Infrared Communication for Remote Meter Reading

● Built-in infrared communication

● Easy Remote Meter Reading

● Optional Connection Methods

● Direct Connection with Meter

● First Connection via CT.

 Optional Connection Methods

● Direct Connection with Meter

● First Connection via CT.

Parameter

What’s the Parameter of Acrel ADL3000-E Series Din-rail Three-phase KWH Meter?

1. Function description

Function Function description Function provides


Measurement of kWh

Active kWh (positive and negative)
Reactive kWh (positive and negative)
A, B, C phase positive active kWh
Measurement of electrical parameters U、I、P、Q、S、PF、F
Measurement of 2~31ST Voltage and current harmonic □Note 1
LCD Display 8 bits section LCD display, background light
Key programming 4 keys to communication and set parameters
Pulse output Active pulse output
Reactive pulse output □Note 2
Clock pulse output □Note 2
Multi-tariff and functions Active switch input □Note 3
Switch output □Note 2
Adapt 4 time zones, 2 time interval lists, 14 time intervals by day, and 4 tariff rates
Max demanded kWh and time happened
Frozen data on last 48 months, last 90days
Date, time
Communication Infrared communication
The first communication path: Communication interface: RS485, Communication protocol: MODBUS-RTU
The second communication path: Communication interface: RS485, Communication protocol: MODBUS-RTU □Note 3
Temperature measurement Support 3 outlay NTC temperature □Note 4

“■” means standard, “□” means optional.



2. Technical parameter

Specification 3 phase 3 wires, 3 phase 4 wires
Voltage Reference voltage 3×100V、 3×380V、3×57.7/100V、 3×220/380V
Consumption <10VA(Single phase)
Impedance >2MΩ
Accuracy class  Error±0.2%
Current Input current 3×1(6)A (second connection with 3- phase load line via extra selected CTs)

3×10(80)A (direct connection with 3-phase load line via CTs built-in ADL3000-E)

Consumption <1VA(Single phase rated current)
Accuracy class  Error±0.2%
 Power Active, reactive, apparent power, error±0.5℅
 Frequency 45~65Hz, Error±0.2%
Temperature -40℃~99℃
 Energy Active energy(Accuracy class:0.5, 1), reactive energy(Accuracy class 2)
 Clock ≤0.5s/d
Energy pulse output 1 active optocoupler output, 1 reactive optocoupler output
Switching output 1 Switching output
Switching input 1 optocoupler input
Width of pulse 80±20ms
Pulse constant 6400imp/kWh,400imp/kWh(Correspond with the basic current)
Interface and communication RS485:Modbus RTU
Range of communication address Modbus RTU:1~ 247;
 Baud rate 1200bps~19200bps
Relative temperature -25℃~+55℃
Relative humidity ≤95℅(No condensation)

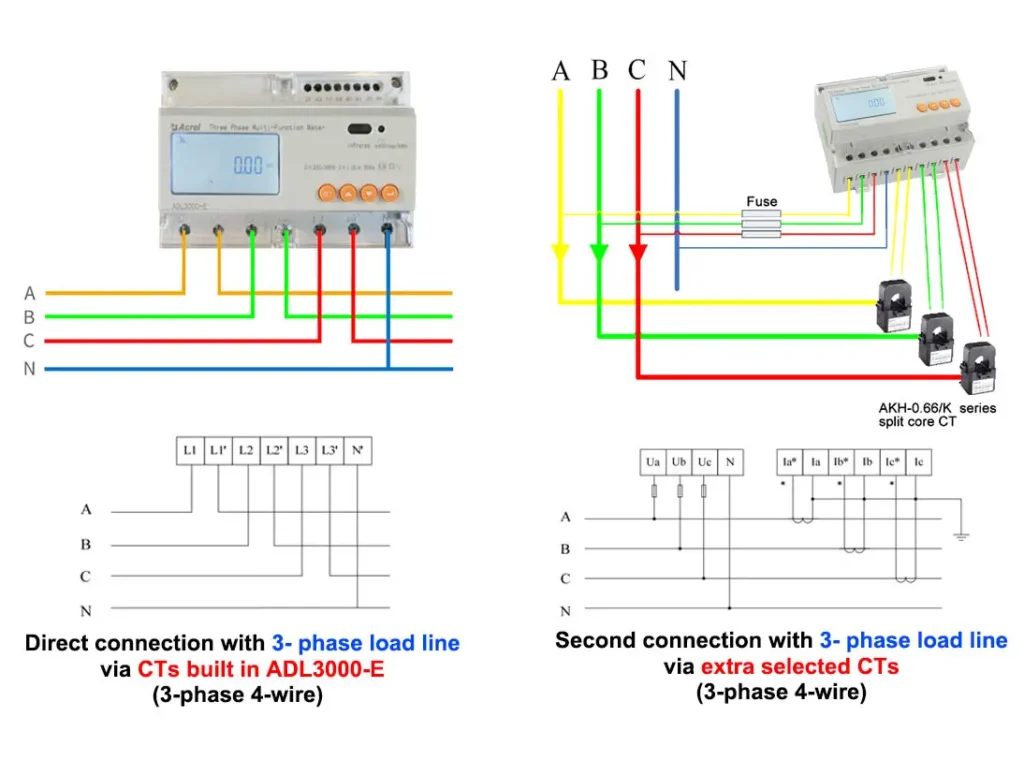

Network

How does Acrel ADL3000-E Series Din-rail Three-phase KWH Meter work?

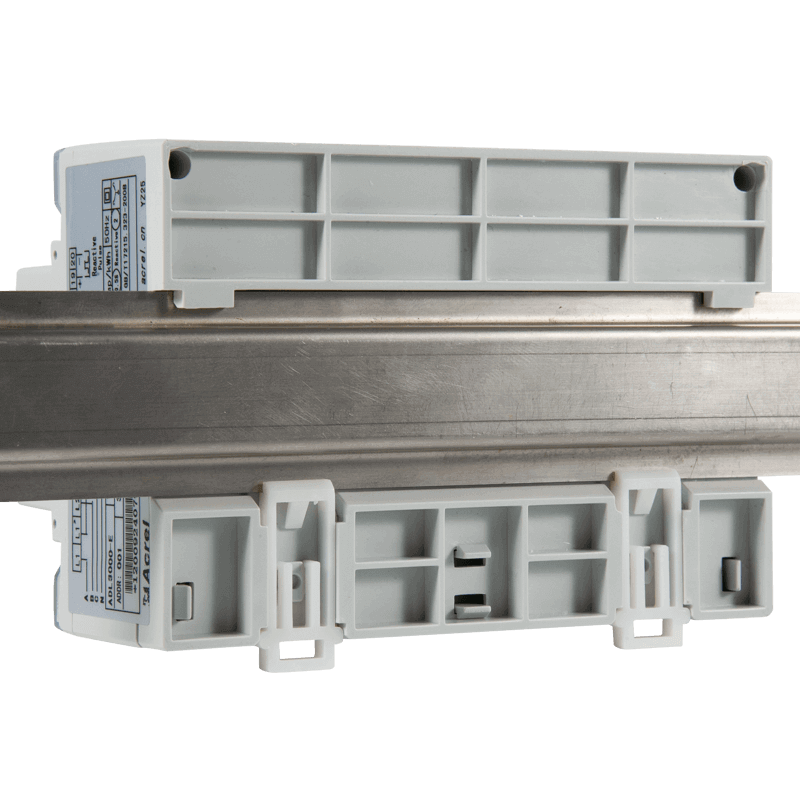

Installation

How to Install the Acrel ADL3000-E Series Din-rail Three-phase KWH Meter?

Why choose us?

  • 2003 Established
  • SZ.300286 Listed Company
  • 1200+ People
  • 25000+㎡ Plant
  • Factory Direct-sale

Request Information & Quotation

Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]

If you have more detailed requirements, Please go to the relevant product page to submit the form.

FAQ

Got a Question? Get your Answer

What are the Main Advantages of Acrel?

We have our own Factory and R&D Center

What are the Difference between Acrel and other Brands?

Rich product series: Cloud Platform, Gateway, Protection Device, Power Meter, Transformer

What Certificates does the Company have?

CNAS, ISO14001, ISO27001, ISO9001

What Certificates do the Products have?

CE, IEC, MID, UL, EAC, ROHS, REACH

How Expensive is Acrel Products?

Competitive Price with High Quality

How long is the product Warranty Period?

2 Years

What is the MOQ?

Purchasing according to your needs, no MOQ limit

How long is the Lead Time?

Sample takes 3 days; Bulk purchase takes 1 month

Single-phase Prepaid KWH Meter

Standard:

2014/35/EU

2014/30/EU

Certificate:

Feature:
  • High Accuracy 0.5S
  • Multi-Tariffs
  • Built-in Relay
  • Switch Control

Six Circuits DC Power Meter without LCD for Telecom Tower

Standard:

IEC61010-1

Certificate:

Feature:
  • Rated -48V DC
  • 6 DC channels
  • Utility Monitor
  • Power for Hall Sensor

Small size Dinrail KWH Meter

Certificate:

Feature:
  • Voltage: 220V
  • Current: 10(60)A
  • Size:2P 36mm
  • Communication: RS485
  • Optional Multi-tariff

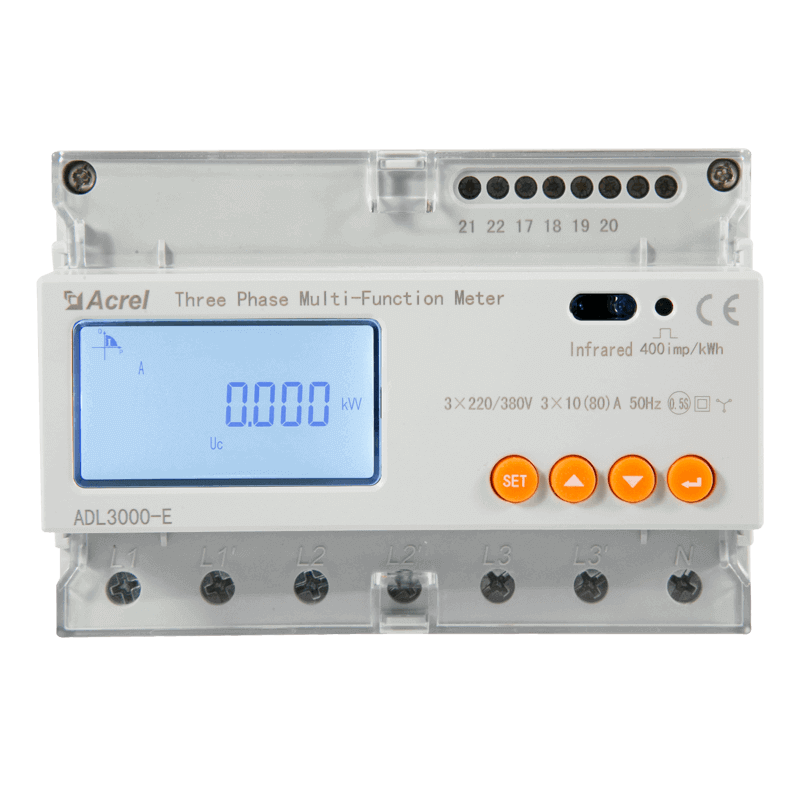

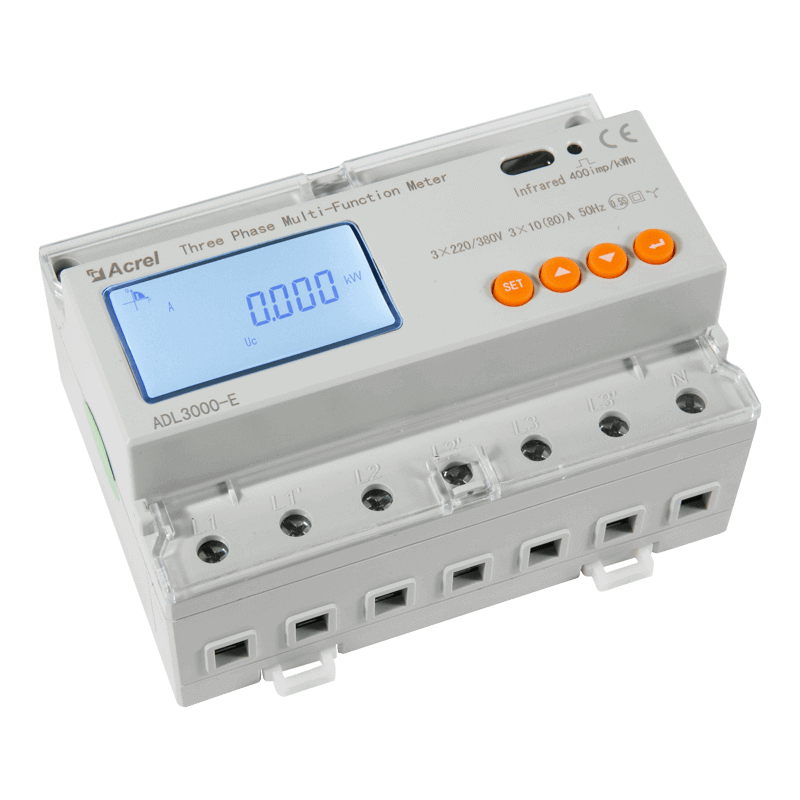

Din-rail Three-phase KWH Meter with CT
