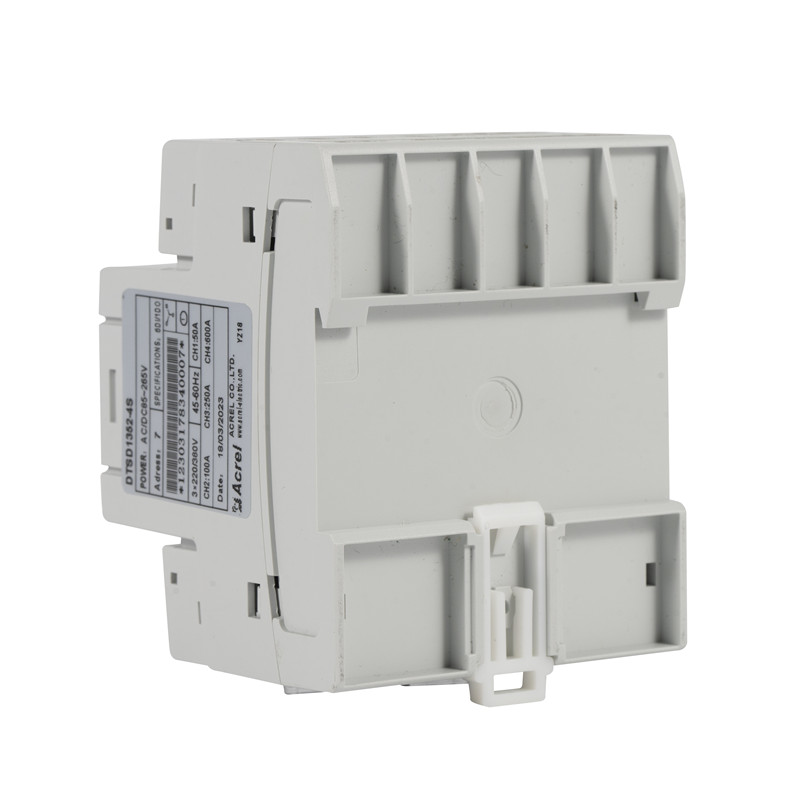

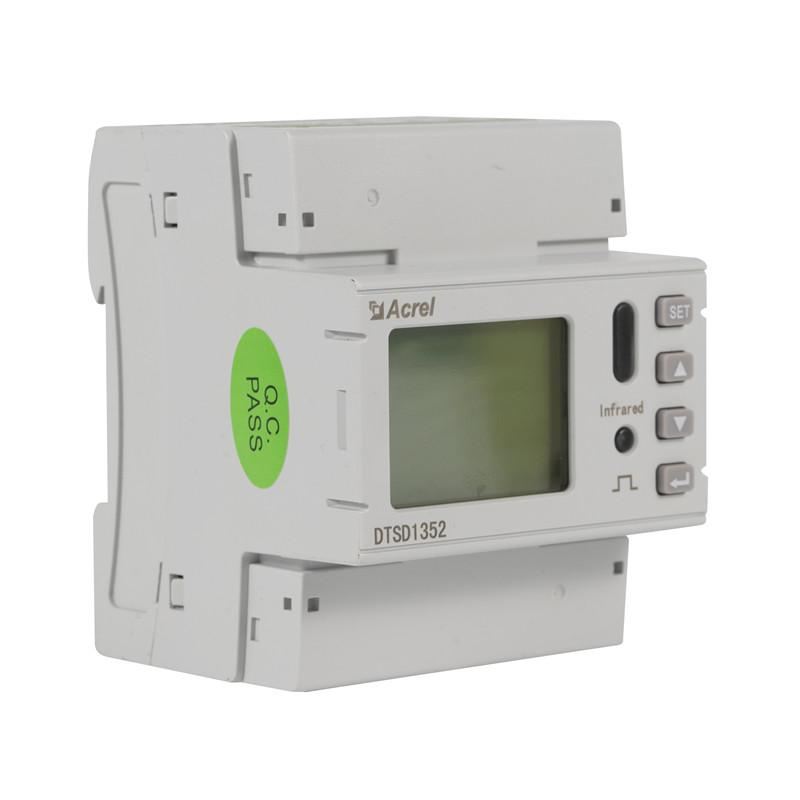

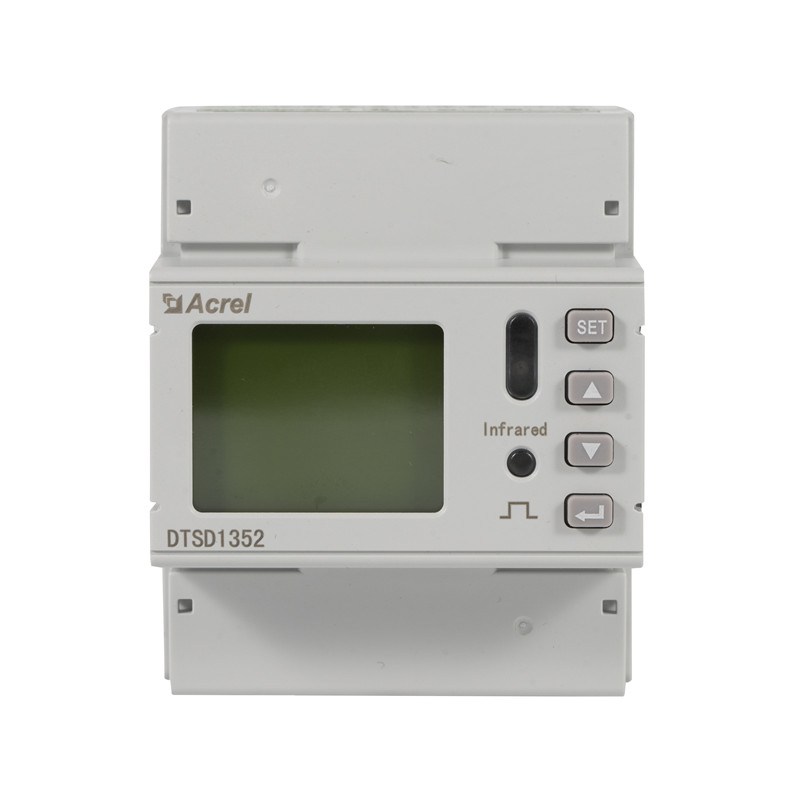

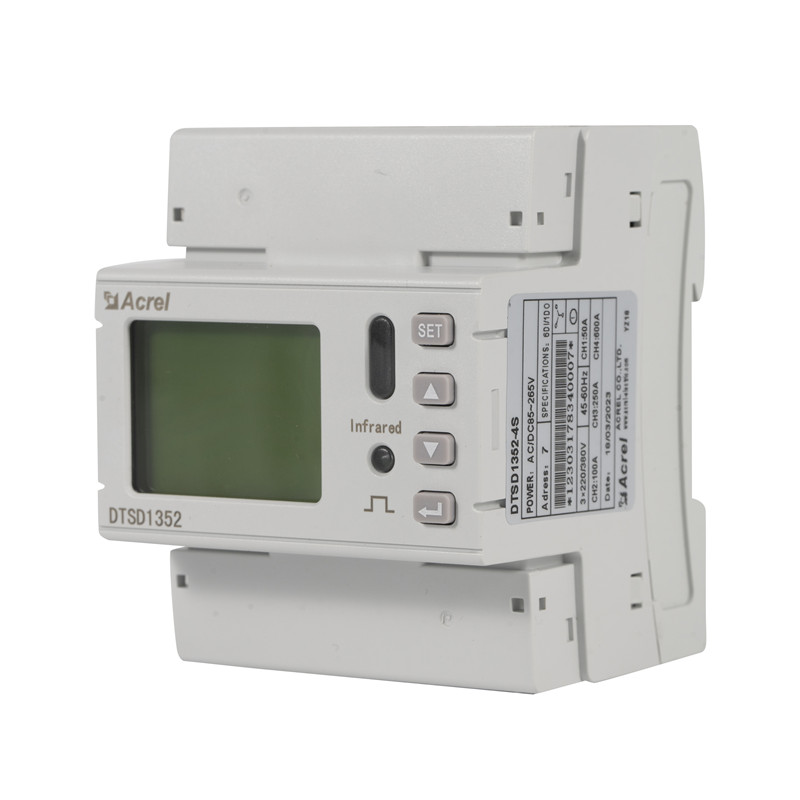

Multi Channels Dual Source Power Meter for Cell Phone Tower

DTSD1352-4S

Standard Lead Time:
Sample: 2 days
Bulk: 1 month

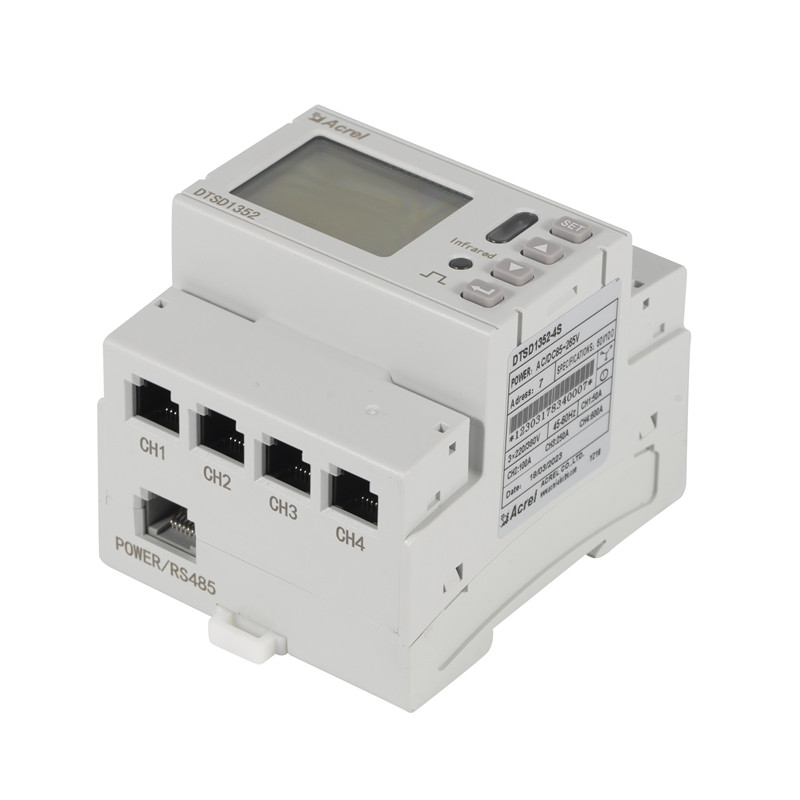

  • Split-core Current Transformer with RJ12 Interface
  • 4 Channels of Three-phase or 12 Channels of Single-phase
  • Communication RS485 Modbus-RTU
  • Identify Generator or Utility Power

Feedback

What Do Our Customers Say?

  • “ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

    Arnold 

    Philippines

  • Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

    Tuan 

    Vietnam

Highlight

What’s the Function of Acrel DTSD1352 Series Multi Channels Dual Source Power Meter for Telecom?

Monitor

  • Electrical Parameters
  • Voltage, Current, Active Power, Reactive Power, Frequency, Power Factor, 2-31st Harmonic, etc

  Tariff

  • 1~4 kinds of Tariffs
  • Peak, Standard, Off-peak

  Installation

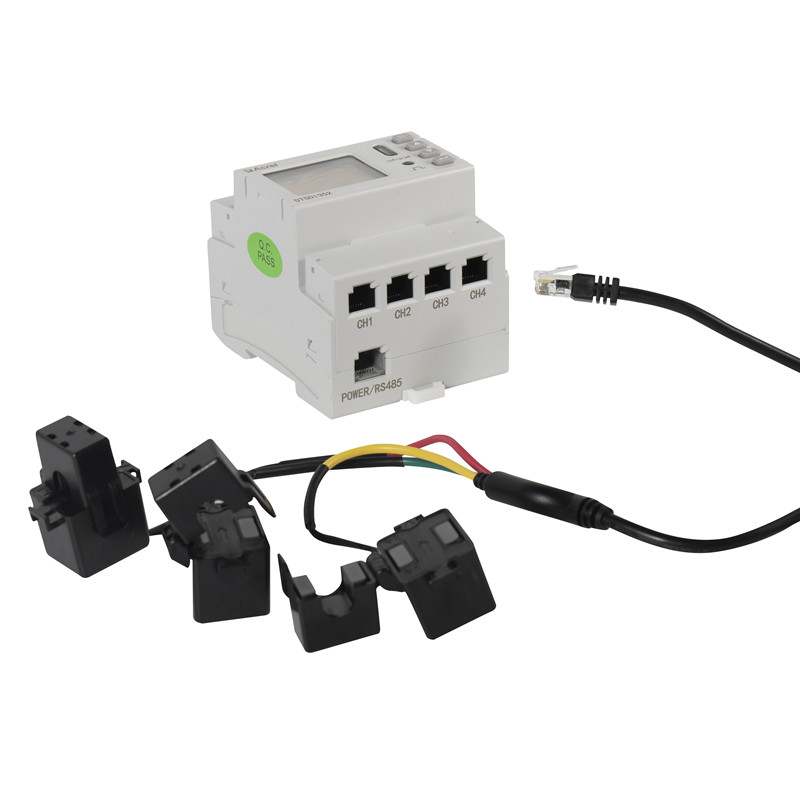

  • Split-core CT with RJ12 Interface

Switch Input

  • 4 channels Passive Dry Contact Input, built-in Power Supply
  • 2 channels Active Wet node Input, Identify Generator or Utility Power

Specification

What’s the Specification of Acrel DTSD1352-4S series Multi Circuits Dual Source Energy Meter?

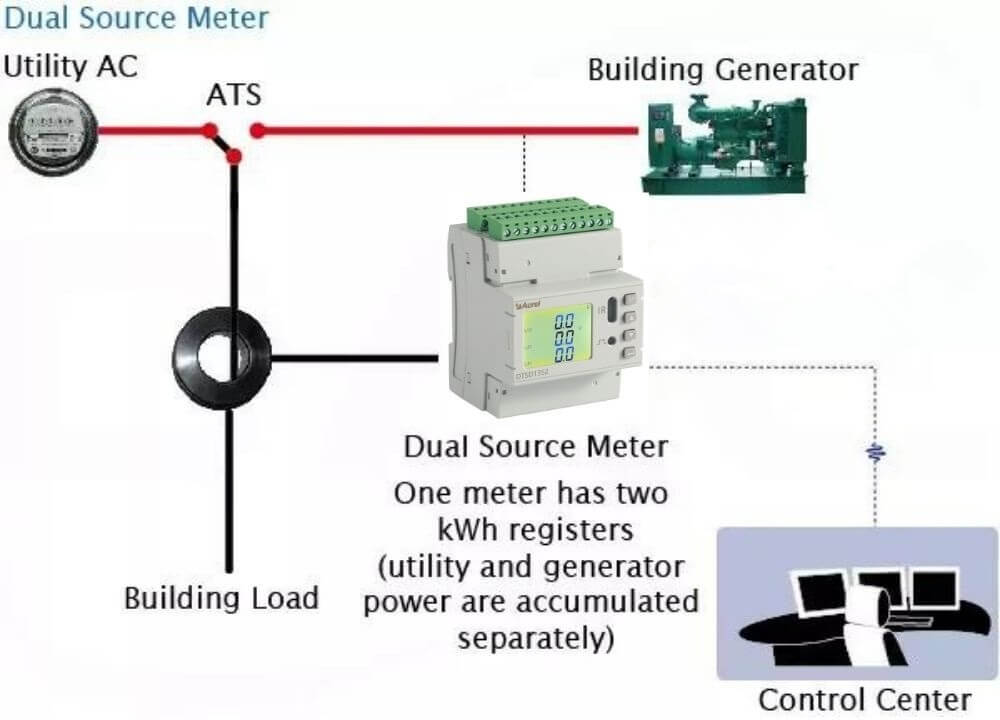

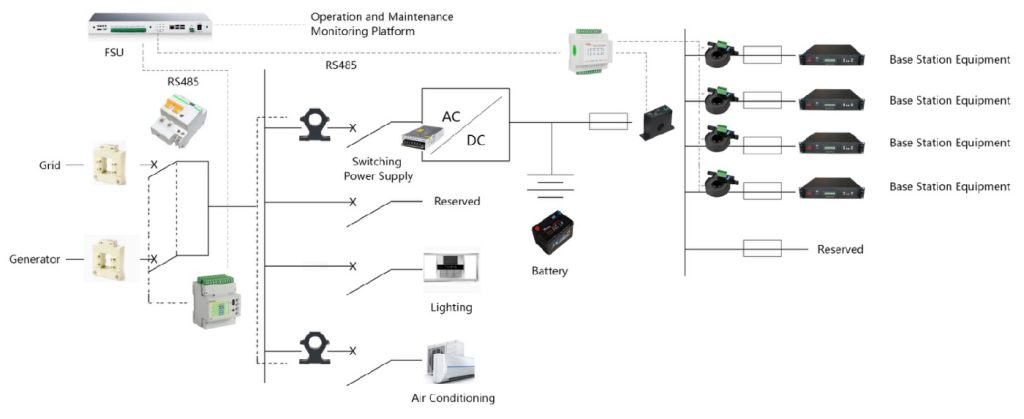

In some places where utility power is unstable and unreliable, many buildings have adopted their own private generators as backup power sources to provide a continuous and uninterrupted power source.

Dual source energy meters are digital dual meters that offer comprehensive 3-phase electrical instrumentation and load management facilities in a compact and rugged package for the dual source energy Utility (U) and Generator (G)

It provides two counters showing energy consumption on public electricity board (EB) and diesel generator ( DG).

Parameter

What’s the Parameter of Acrel DTSD1352 Series Multi Channels Dual Source Power Meter for Telecom?

Auxiliary Power AC/DC 85~265V; power consumption≤10VA;
Input Signal Frequency 45~65Hz;
Voltage Rated value: AC 3×220V/380V;
Overload: 1.2 times rated value (continuous); 2 times rated value/1 second;
power consumption: ≤ 0.5VA(each channel);
Current Rated value: Secondary input rated current:50mA
Overload: 1.2 times rated value (continuous); 10 times rated value/1 second;
power consumption: ≤ 0.5VA(each channel);
Measurement Accuracy Frequency: 0.05Hz, voltage and current: 0.5 class, active energy: 1 class, reactive energy: 2 class; 2nd to 31st harmonic accuracy: ±1%;
Function Pulse output Output method: optocoupler pulse with open collector (and active open input can only be either-or.);
communication RS485 interface, Modbus-RTU protocol; baud rate 1200~38400;
Switch Input 2-way or 4-way passive dry contact input, built-in power supply;

2-way active wet node input (AC220V), identify the oil generator and mains access (and pulse output can only be either-or.);

Output Output method: relay normally open contact output;

Contact rating: AC 250V/3A  DC 30V/3A;

Paired Current Transformer

Phase Specification Ratio Cable Accuracy Installation Diameter
Three-phase AKH-0.66/K-Φ10N 50A/20mA 50A/20mA (1+0.2)m 0.50% Open、RJ12 φ10mm
AKH-0.66/K-Φ16N 100A/50mA 100A/50mA (1+0.2)m 0.50% Open、RJ12 φ16mm
AKH-0.66/K-Φ24N 200A/50mA 200A/50mA (1+0.5)m 0.50% Open、RJ12 φ24mm
AKH-0.66/K-Φ24N 250A/50mA 250A/50mA (1+0.5)m 0.50% Open、RJ12 φ24mm
AKH-0.66/K-Φ36N 400A/50mA 400A/50mA (1+0.5)m 0.50% Open、RJ12 φ36mm
AKH-0.66/K-Φ36N 600A/50mA 600A/50mA (1+0.5)m 0.50% Open、RJ12 φ36mm
AKH-0.66 Z-3*Φ15Y(1/0.5) 100A/50mA 100A/50mA (1+0.5)m 0.20% Closed、RJ12 φ15mm
AKH-0.66/W-9NY 50A/20mA 50A/20mA (1+0.2)m 0.20% Closed、RJ12 φ9mm
AKH-0.66/W-12NY 100A/50mA 100A/50mA (1+0.2)m 0.20% Closed、RJ12 φ12mm
AKH-0.66/W-20Y 200A/50mA 200A/50mA (1+0.5)m 0.20% Closed、RJ12 φ20mm
AKH-0.66 W-20Y(1/0.5) 250A/50mA 250A/50mA (1+0.5)m 0.20% Closed、RJ12 φ20mm
AKH-0.66/W-30NY 250A/50mA 250A/50mA (1+0.5)m 0.20% Closed、RJ12 φ31*13mm
AKH-0.66/W-45NY 400A/50mA 400A/50mA (1+0.5)m 0.20% Closed、RJ12 φ45mm
AKH-0.66/W-45NY 600A/50mA 600A/50mA (1+0.5)m 0.20% Closed、RJ12 φ45mm
AKH-0.66-TD-Φ60-NY 300-1000A/50mA (1+0.5)m 0.20% Closed、RJ12 φ60mm
AKH-0.66-TD-Φ70-NY 200-1200A/50mA (1+0.5)m 0.20% Closed、RJ12 φ73mm
AKH-0.66-TD-50III-NY 300-800A/50mA (1+0.5)m 0.20% Closed、RJ12 φ52*30mm
AKH-0.66-TD-80III-NY 600-1600A/50mA (1+0.5)m 0.20% Closed、RJ12 φ82*32mm
Single-phase AKH-0.66 W-12Y(1/0.5) 100A/50mA 100A/50mA (1+0.5)m 0.20% Closed、RJ12 φ12mm
