Electrical Energy Meter with Modbus-RTU RS485 for EV Charger & Telecom Tower

MODBUS-RTU RS485

  • Switchgear
  • EV Charger
  • Data Center
  • Telecom Tower

Feedback

What Do Our Customers Say?

  • My first contact with ACREL was through Mrs. Feeling Chang. He was extremely friendly, approachable and very helpful. It will be the beginning of a long partnership between Bikoelectronics and Acrel.

    Vanessa 

    Portugal

  • “ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

    Arnold 

    Philippines

  • Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

    Tuan 

    Vietnam

Highlight

What’s the Highlight of Electrical Energy Meter for EV Charger & Telecom Tower?
Modbus-RTU RS485

EV Charger

  • MID Certificate
  • AC Single phase
  • AC Three phse
  • DC dual source

Telecom Tower

  • Verizon
  • AT&T
  • China Mobile
  • Deutsche Telekom

Data Center

  • UPS
  • Generator
  • Utility
  • Branch Circuit

Substation

  • Power Quality Analyzer
  • 2-63rd Harmonic
  • SD card
  • Ethernet

Acrel Electrical Energy Meter is a state-of-the-art instrument designed to help businesses, organizations, and governments manage their energy resources more effectively. It is the perfect device to have in your facility to help you minimize electricity wastage, reduce your carbon footprint, and save huge costs that accumulate as a result of inefficient power usage.

Acrel Power Meter is a reliable and versatile tool that can be used for a variety of applications, including electrical system monitoring, energy management, and power quality analysis. It can measure, display, and record a wide range of power and energy parameters, including voltage, current, power factor, frequency, energy consumption, and more. The meter is designed to work with single-phase and three-phase power systems, making it a flexible and powerful solution for many applications.

Telecom Tower
Smart Factory
Data Center
Smart Building
EV Charger

MID

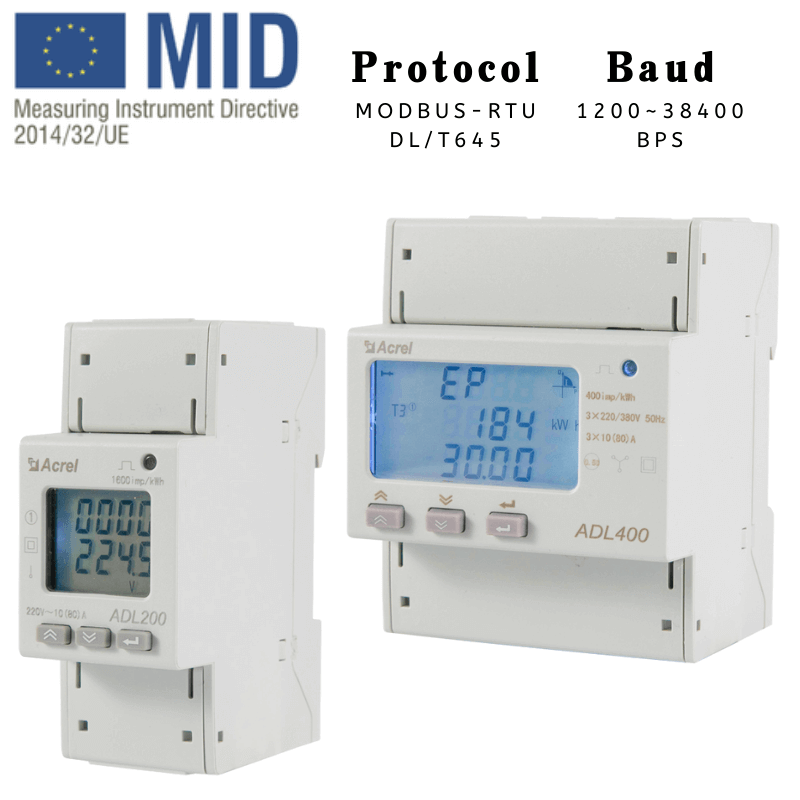

Acrel Power Meter with MID Certificate for EV Charger

ADL200

Single phase

Specificate1P
VoltageAC 220V
Current10(80)A
Accuracy1 class
CommunicationModbus-RTU, RS485
Auxiliary Powerno
CertificateMID, CE, EAC
ApplicationEV Charger, Industrial, Commercial

ADL400

Three phase

Specificate3P3L, 3P4L
VoltageAC 3*100V, 3*380V;
3*57.7/100V, 3*220/380V
Current3*1(6)A, 3*10(80)A
Accuracy0.2 class
CommunicationModbus-RTU, RS485
Auxiliary Powerno
CertificateMID, CE, EAC
ApplicationEV Charger, Industrial, Commercial

Multi Circuits

Multi Circuits Energy Meter for Data Center, Cell Tower

ADW210

Highlight

12 Single phase & 4 Three phase
RJ12 Split-core Current Transformer

SpecificateSingle phase & Three phase
VoltageAC 3*220/380V
CurrentAC 5A~600A
Accuracy1 class
CommunicationModbus-RTU, RS485
Auxiliary PowerAC/DC 85-265V

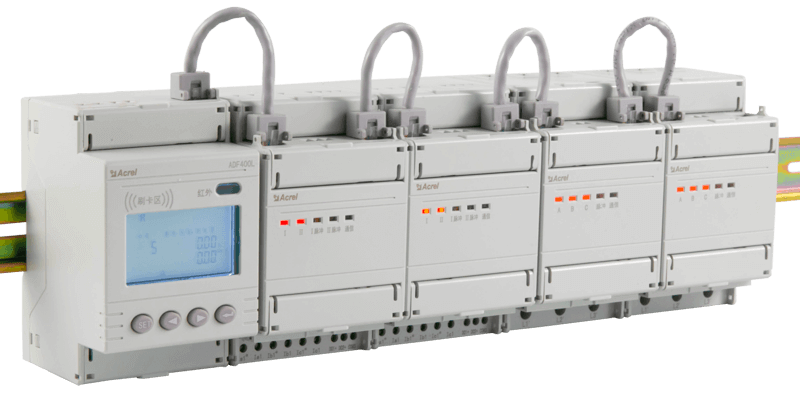

ADF400L

Highlight

36 Single phase & 12 Three phase
block design

SpecificateSingle phase & Three phase
VoltageAC 3*220/380V, 3*57.7/100V
Current3*1(6)A, 3*10(80)A
Accuracy0.5s class
CommunicationModbus-RTU, Modbus-TCP
Auxiliary PowerAC3*220/380V

DC

DC Energy Meter for EV Charger & Telecom Tower

DJSF1352-Rn

Highlight

2 DC Channels

VoltageDC 0-1000V
CurrentHall Sensor: 0-20mA, 4-20mA; 0-5V, 0-10V
Splitter: 0-75mV
Accuracy1 or 0.5 class
CommunicationModbus-RTU, RS485
Auxiliary PowerAC/DC 85-265V; DC24V, DC48V
ApplicationTelecom Tower, EV Charger
CertificateUL, CE, ROHS

AMC16L-DETT

Highlight

6 DC Channels

DC48V Power Supply

Voltage-48V DC
Current6 channels of Hall sensors, 200A/5V
Accuracy1 class
CommunicationModbus-RTU, RS485
Auxiliary Power-40~-60V DC
ApplicationTelecom Tower
CertificateCE, IEC

Panel

AC Panel Electrical Meter for Substation Switchgear

APM8

Power Quality Analyzer
2-63rd Harmonic

Specificate3P3L, 3P4L
VoltageAC 100V, 110V, 400V, 690V
CurrentAC 1A, 5A
Accuracy0.2s class
CommunicationModbus-RTU, Modbus-TCP
Auxiliary PowerAC85-265V, DC100-350V;
AC100-415V, DC125-500V

AMC

Competitive price

Specificate3P3L, 3P4L
VoltageAC 100V, 110V, 400V, 690V
CurrentAC 1A, 5A
Accuracy0.5 class
CommunicationModbus-RTU, RS485
Auxiliary PowerAC/DC 85-265V

Request Information & Quotation

Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]

If you have more detailed requirements, Please go to the relevant product page to submit the form.

Why choose Acrel?

  • 2003 Established
  • SZ.300286 Listed Company
  • 1200+ People
  • 25000+㎡ Plant
  • Factory Direct-sale

FAQ

Got a Question? Get your Answer

What are the Main Advantages of Acrel?

We have our own Factory and R&D Center

What are the Difference between Acrel and other Brands?

Rich product series: Cloud Platform, Gateway, Protection Device, Power Meter, Transformer

What Certificates does the Company have?

CNAS, ISO14001, ISO27001, ISO9001

What Certificates do the Products have?

CE, IEC, MID, UL, EAC, ROHS, REACH

How Expensive is Acrel Products?

Competitive Price with High Quality

How long is the product Warranty Period?

2 Years

What is the MOQ?

Purchasing according to your needs, no MOQ limit

How long is the Lead Time?

Sample takes 3 days; Bulk purchase takes 1 month

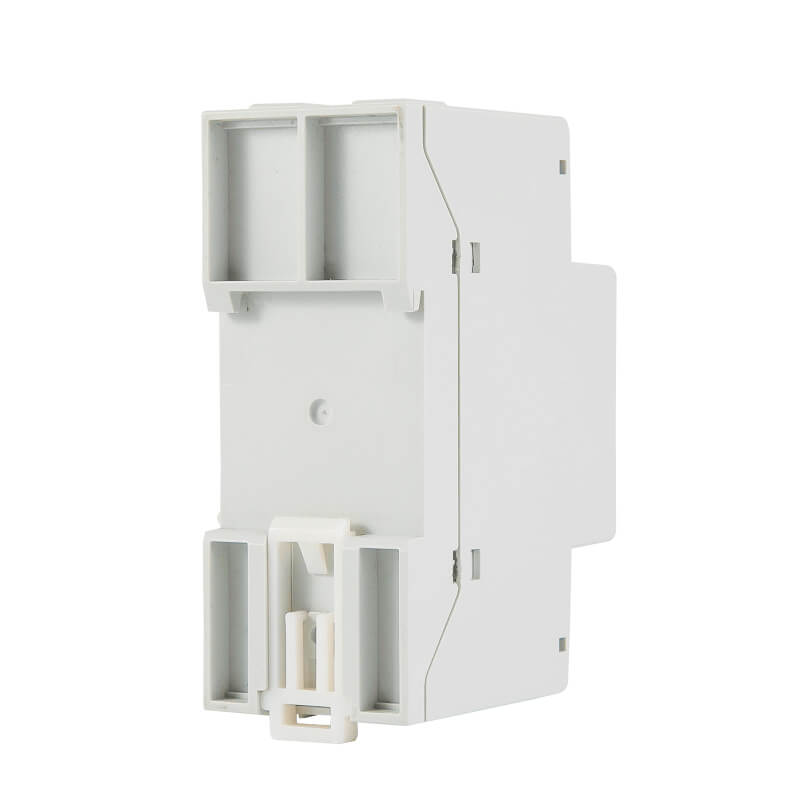

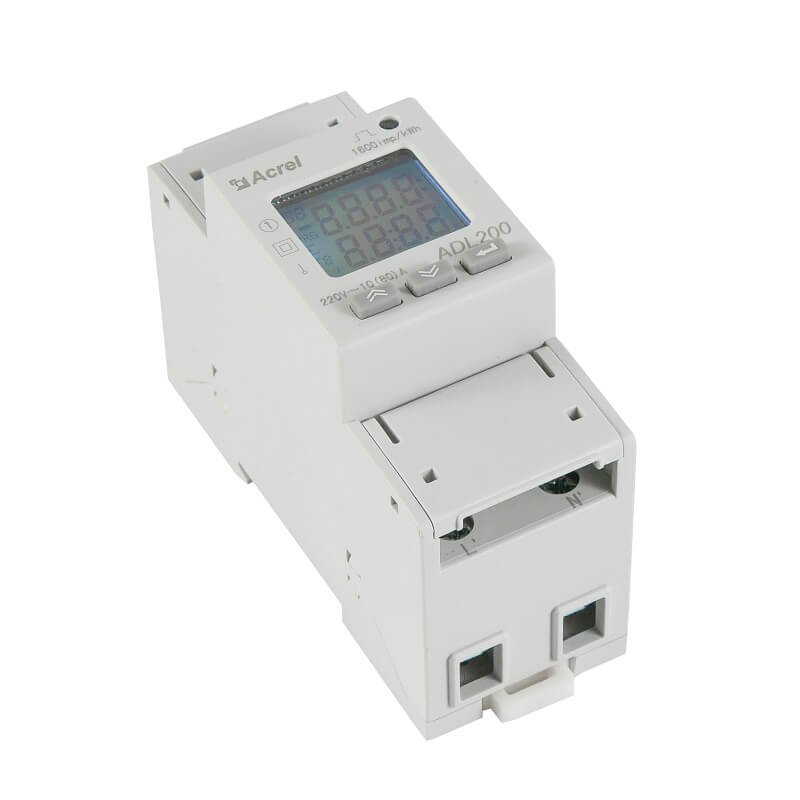

Single phase KWH Meter with MID

Standard:

2014/30/EU

2014/32/EU

2014/35/EU

IEC62052-11, IEC62053-22

EN61010-1, EN61000-3



Certificate:

Feature:
  • 1-Phase 2-Wire
  • Direct load 80A
  • Multi-Tariffs
  • Cost-effective

Three-phase KWH Meter with MID

Standard:

2014/30/EU

2014/32/EU

2014/35/EU

IEC62052-11, IEC62053-22

EN61010-1, EN61000-3

Certificate:

Feature:
  • 3P3L & 3P4L
  • Direct load 80A or via CT
  • Multi-Tariffs
  • Cost-effective

DC Energy Meter for Charging Station with 2 Guns

Standard:

2014/30/EU

2014/35/EU

Certificate:

Standard Lead Time:
Sample: 2 days
Bulk: 1 month

Feature:
  • Dual DC Circuits
  • Secondary RS485
  • DC1000V
  • 5s Accuracy

Modbus Multi Circuits Electrical Power Meter

Standard:

IEC 62052

IEC 62053

2014/30/EU

EN IEC 61000

2014/35/EU

EN IEC 61000

EN61010

Certificate:

Standard Lead Time:
Sample: 2 days
Bulk: 1 month

Feature:
  • Modular Design
  • Max 12 Channels of Three-phase
  • High Accuracy 0.5s Class
  • Communication RS485, CE

Panel Power Quality Analyzer

Standard:

2014/35/EU

2014/30/EU

Certificate:

Feature:
  • Quality Analysis
  • Multi-Communication
  • High Precious 0.2s
  • 32G SD Card

DTSD1352-4S Multi Channels Meter for Telecom Tower

Standard:

2014/30/EU

EN 61000

2014/35/EU

EN 61010

Certificate:

Standard Lead Time:
Sample: 2 days
Bulk: 1 month

Feature:
  • -DC48V Auxi. Power
  • Split-core Current Transformer with RJ12 Interface
  • 4 Channels of Three-phase or 12 Channels of Single-phase
  • Communication RS485 Modbus-RTU
  • Identify Generator or Utility Power

AMC16L-DETT DC Energy Meter for Telecom Tower

Standard:

EN 61326-1-2013

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A2:2021

IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8

Certificate:

Standard Lead Time:
Sample: 2 days
Bulk: 1 month

Feature:
  • Rated -48V DC
  • 6 DC channels
  • Utility Monitor
  • Power for Hall Sensor
