MID Power & Energy Meter for EV Charger

ADL-MID

Standard Lead Time:
Sample: 2 days
Bulk: 1 month

  • 1P
    3P3L &3P4L
  • Direct load 80A
    or via CT
  • Multi-Tariffs
  • RS485
    Modbus-RTU

Feedback

What Do Our Customers Say?

  • Acrel is one of the best supplier for me. They are so easy to communicate and very friendly. They even give an online tour of their factory. Looking forward for more business together in the future.

    Liezel 

    Philippines

  • “ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

    Arnold 

    Philippines

  • Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

    Tuan 

    Vietnam

Highlight

What’s the Function of Acrel ADL Series MID Power & Energy Meter for EV Charger?

Monitor

  • Voltage: Vab, Vbc, Vac; Va, Vb, Vc
  • Current: Ia, Ib, Ic
  • Power: P, Q, S
  • Energy: Wh, Varh, VAh
  • Frequency: F(Hz), PF

Tariff

  • 1~4 kinds of Tariffs
  • Peak, Standard, Off-peak
  • 14 Time period by day

   Input

  • Single phase
  • Input direct 10(80)A
  • Three phase
  • Input direct 3*10(80)A
  • Input via CT 3*1(6)A

Communication

  • RS485 Interface
  • Modbus-RTU Protocol

Specification

What’s the Specification of Acrel ADL Series MID Power & Energy Meter for EV Charger?

Panel
Specification ADL200 ADL400
Phase Single-phase Three-phase
Current Input Direct: 10(80)A Direct: 3*10(80)A

Via CT: 3*1(6)A

Parameter

What’s the Parameter of Acrel ADL Series MID Power & Energy Meter for EV Charger?

Single-phase Three-phase
Input Voltage Rated Voltage AC 220V 3×100V, 3×380V;
3×57.7/100V, 3×220/380V
Accuracy class 0.20%
Power Consumption <10VA(Single phase)
Input Current Rated Current 10(80)A 3×1(6)A, 3×10(80)A
Consumption <4VA <1VA Single phase
Accuracy class 1.00% 0.20%
Frequency Rated Frequency 45~65Hz,Error±0.2%
Communication Protocol MODBUS-RTU
Interface RS485(A+、B-)

Installation

How to Install the Acrel ADL Series MID Power & Energy Meter for EV Charger?

ADL200ADL400-DirectADL400-CT

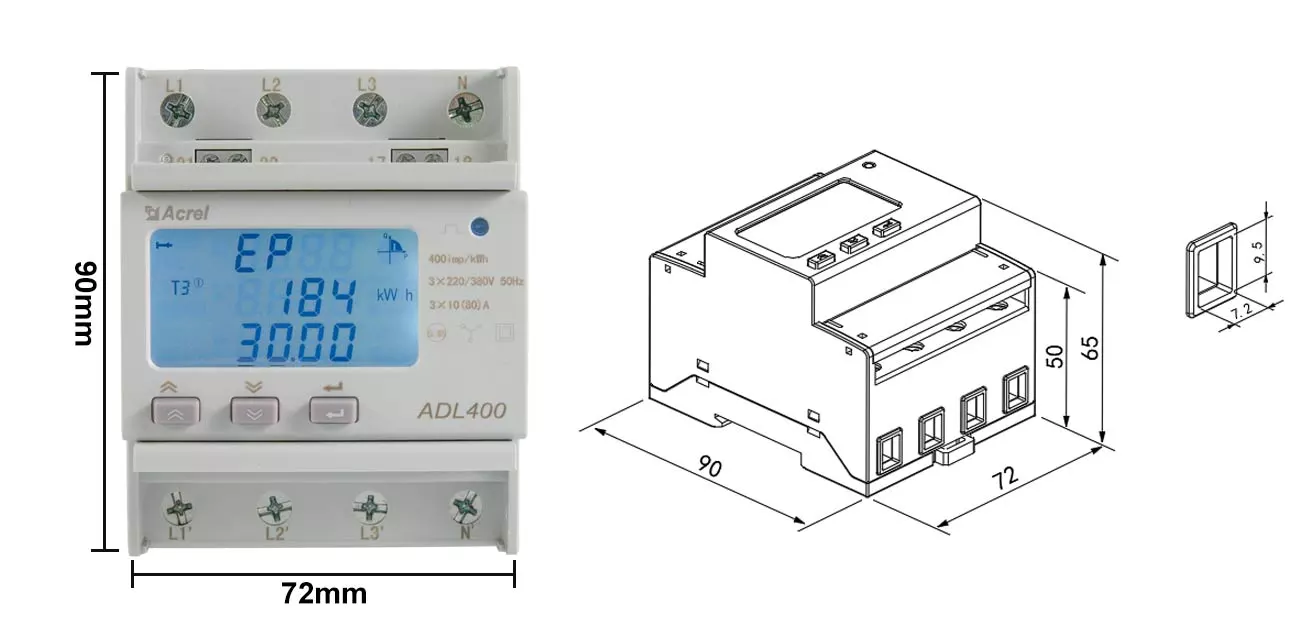

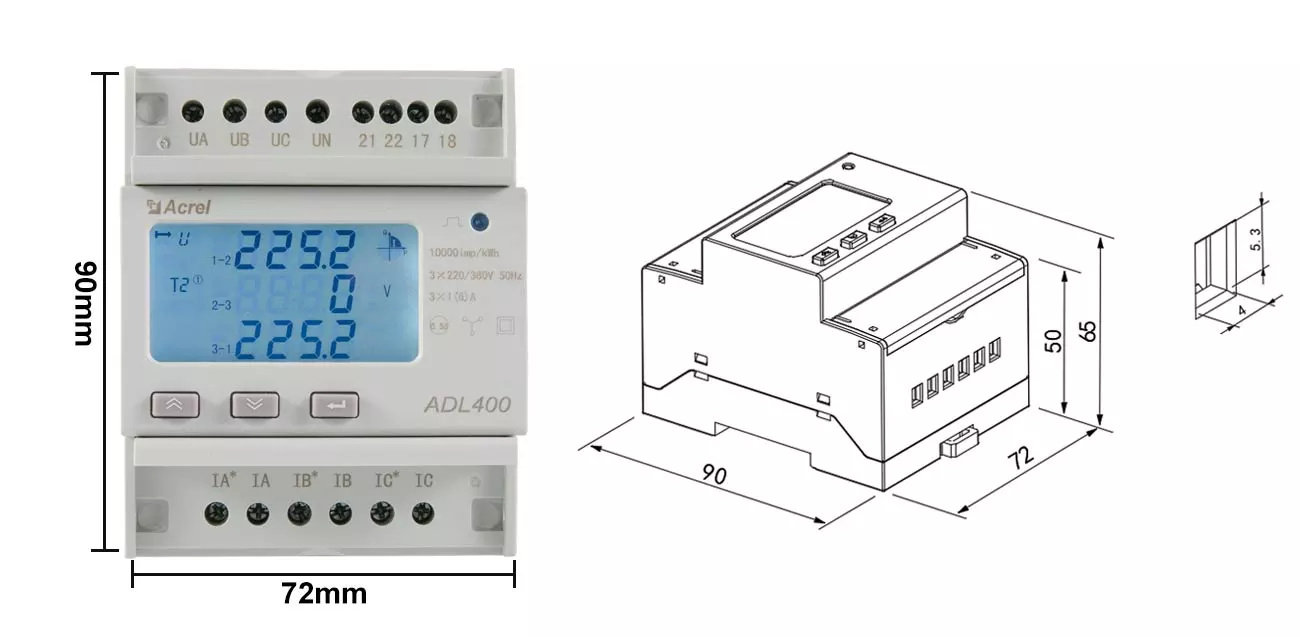

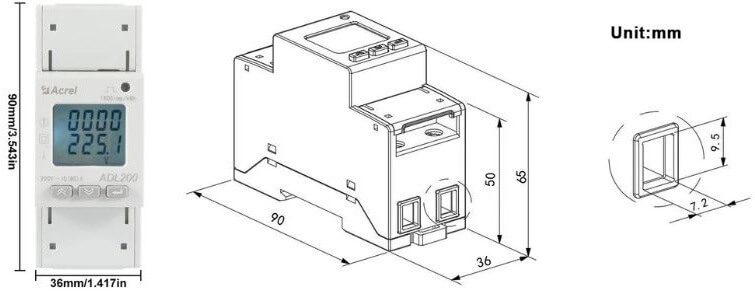

Dimension of ADL200 (Current Input via Direct Connect)Dimension of ADL400 (Current Input via Direct Connect)Dimension of ADL400 (Current Input via CTs)

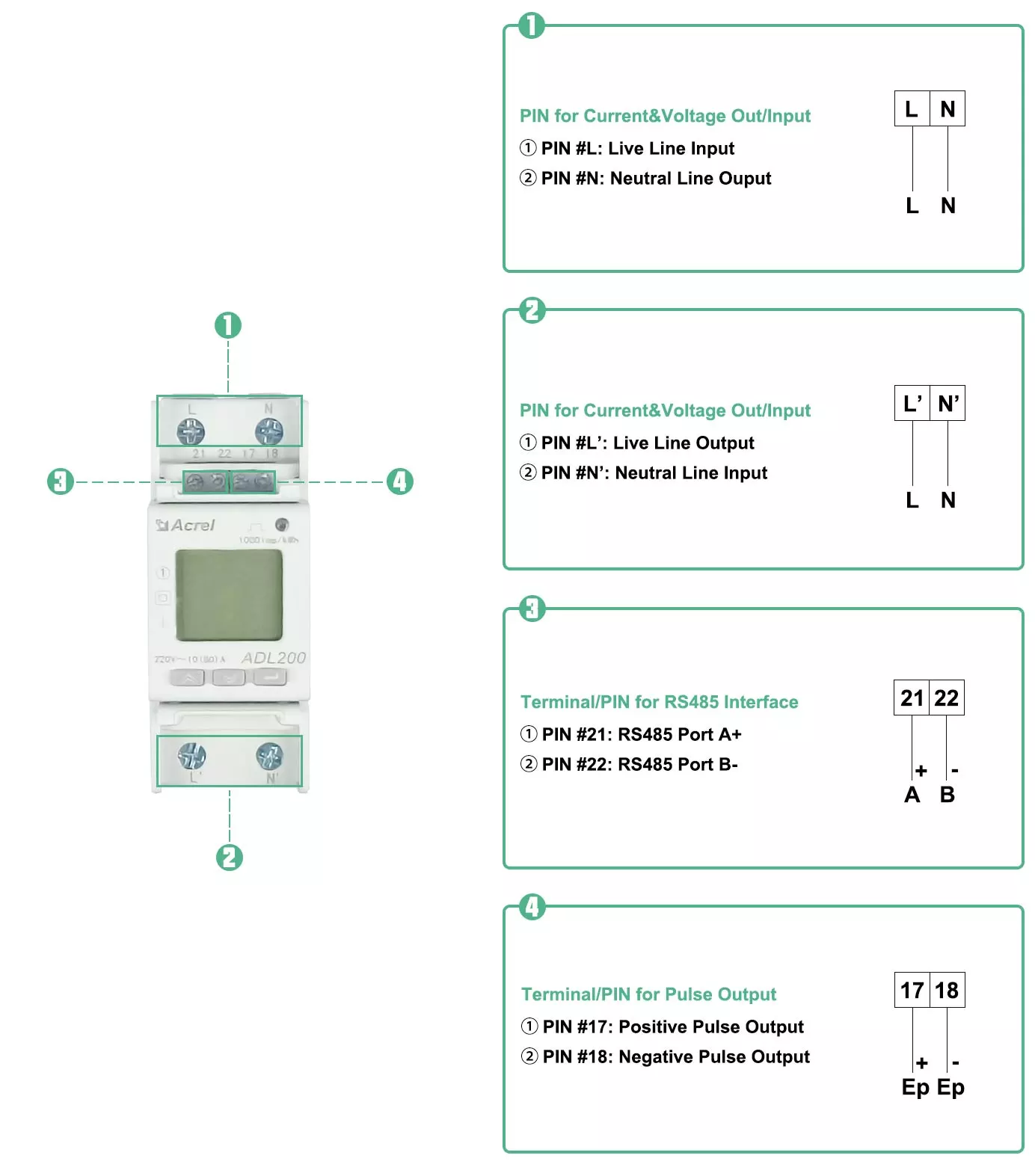

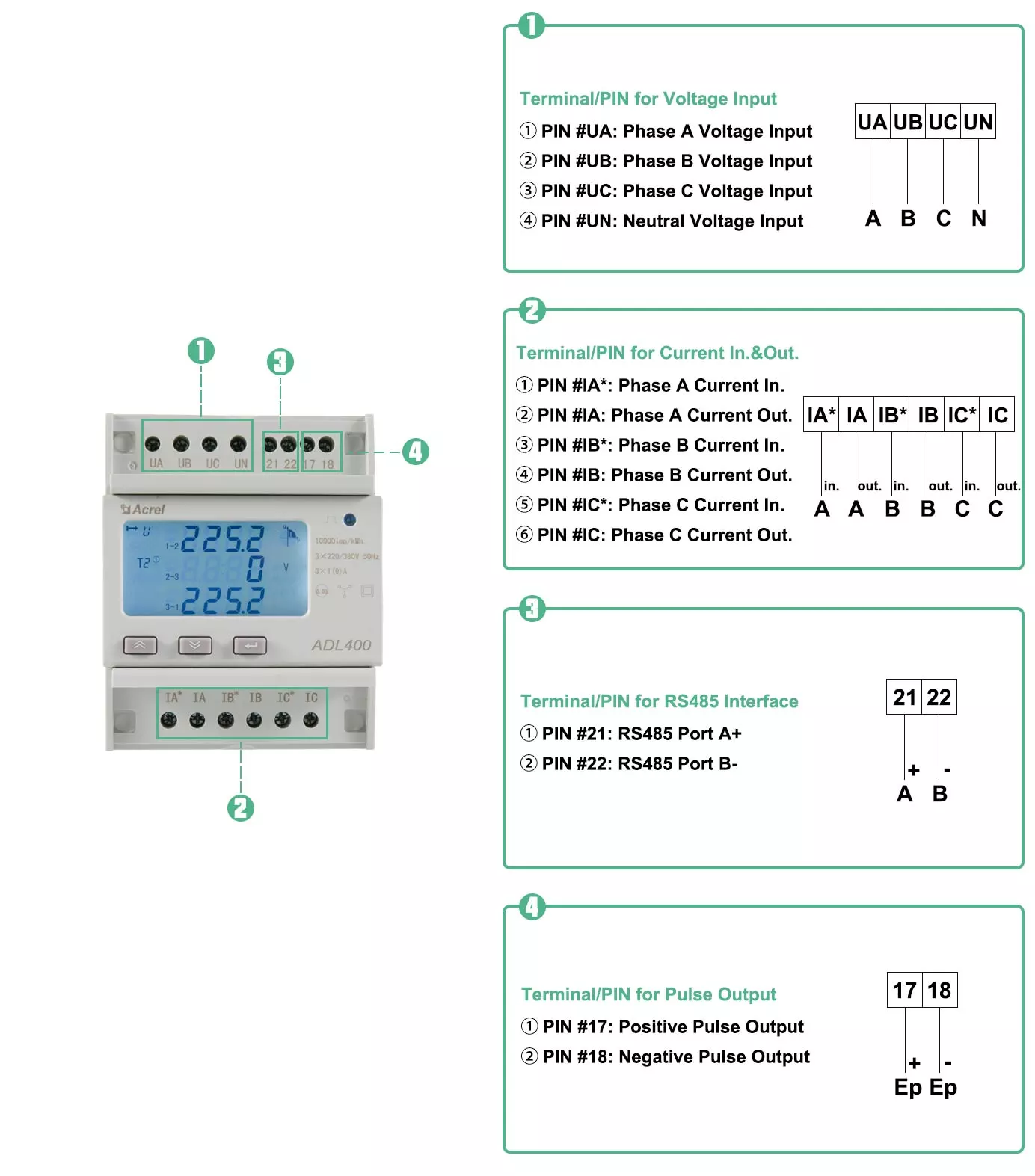

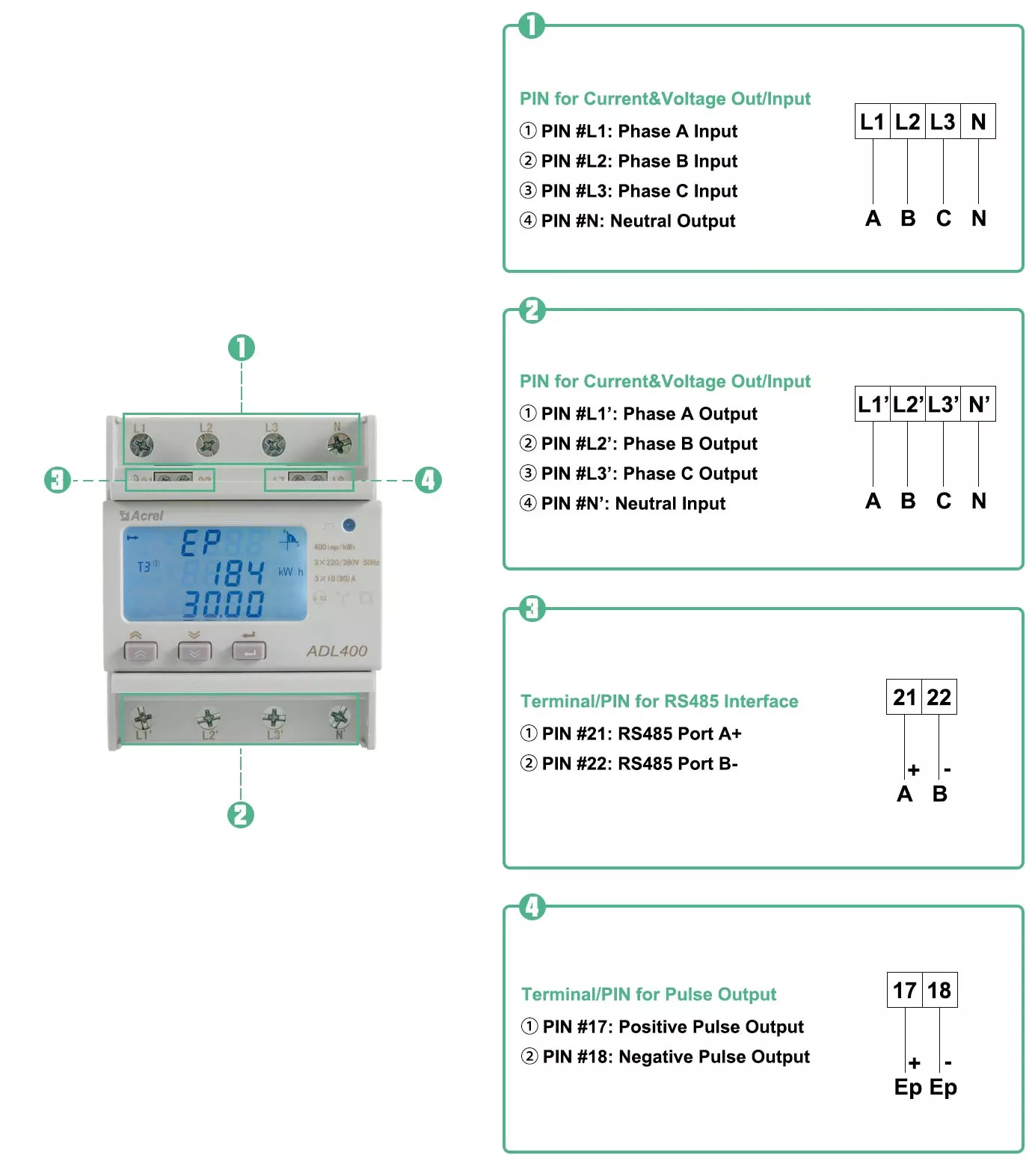

PIN/Terminal Overview of ADL200 (Direct Connect Type)PIN/Terminal Overview of ADL400 (Direct Connect Type)PIN/Terminal Overview of ADL400 (CT Operated Type)

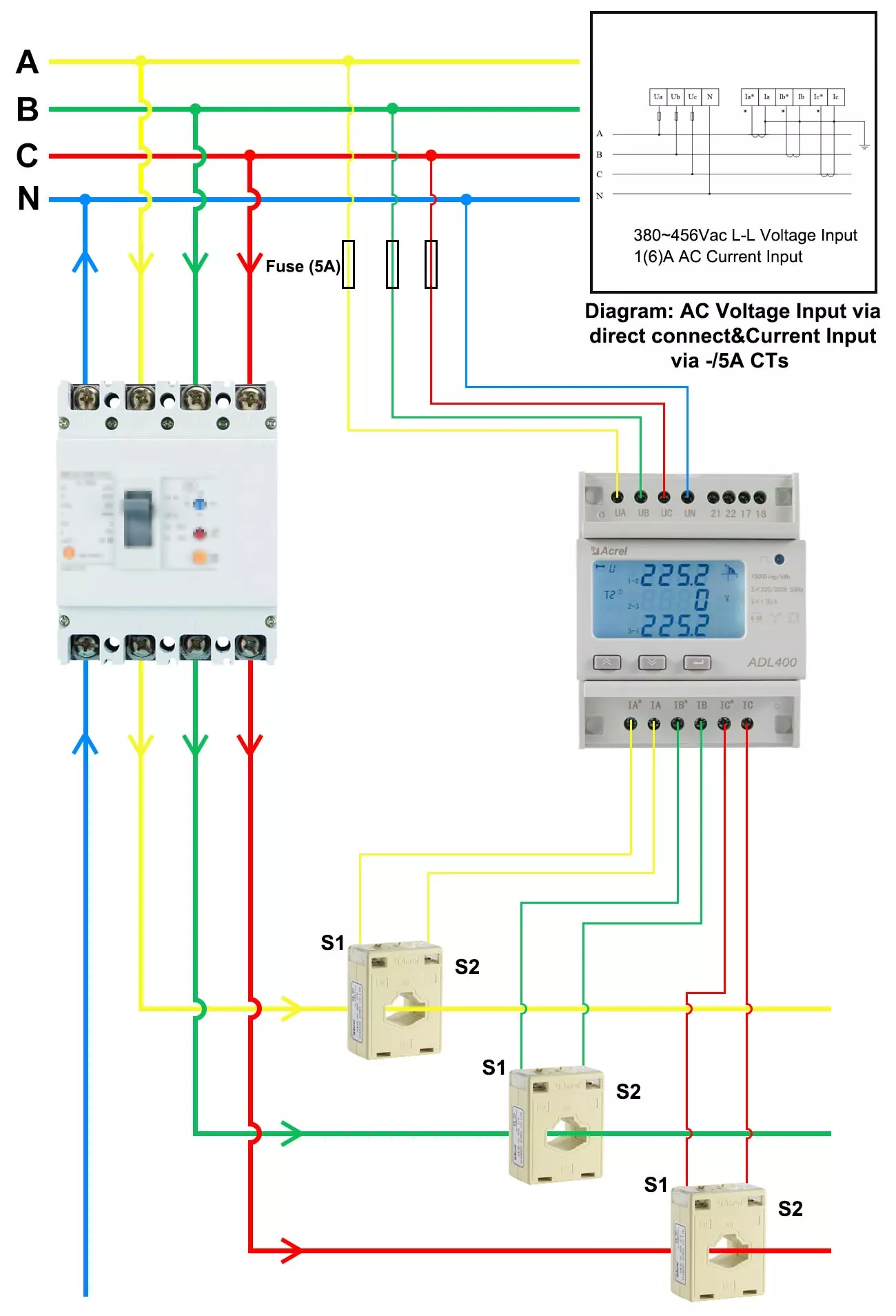

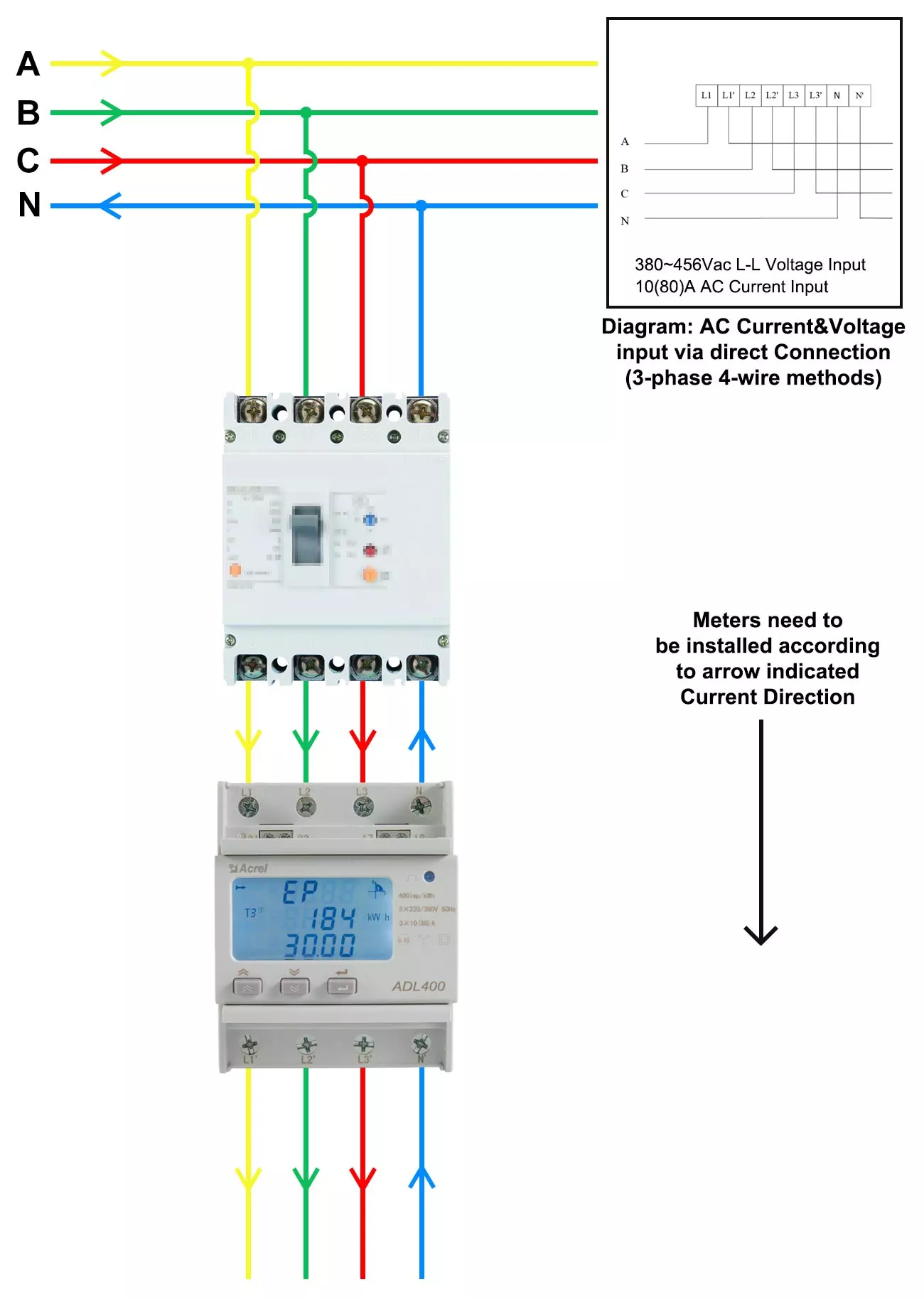

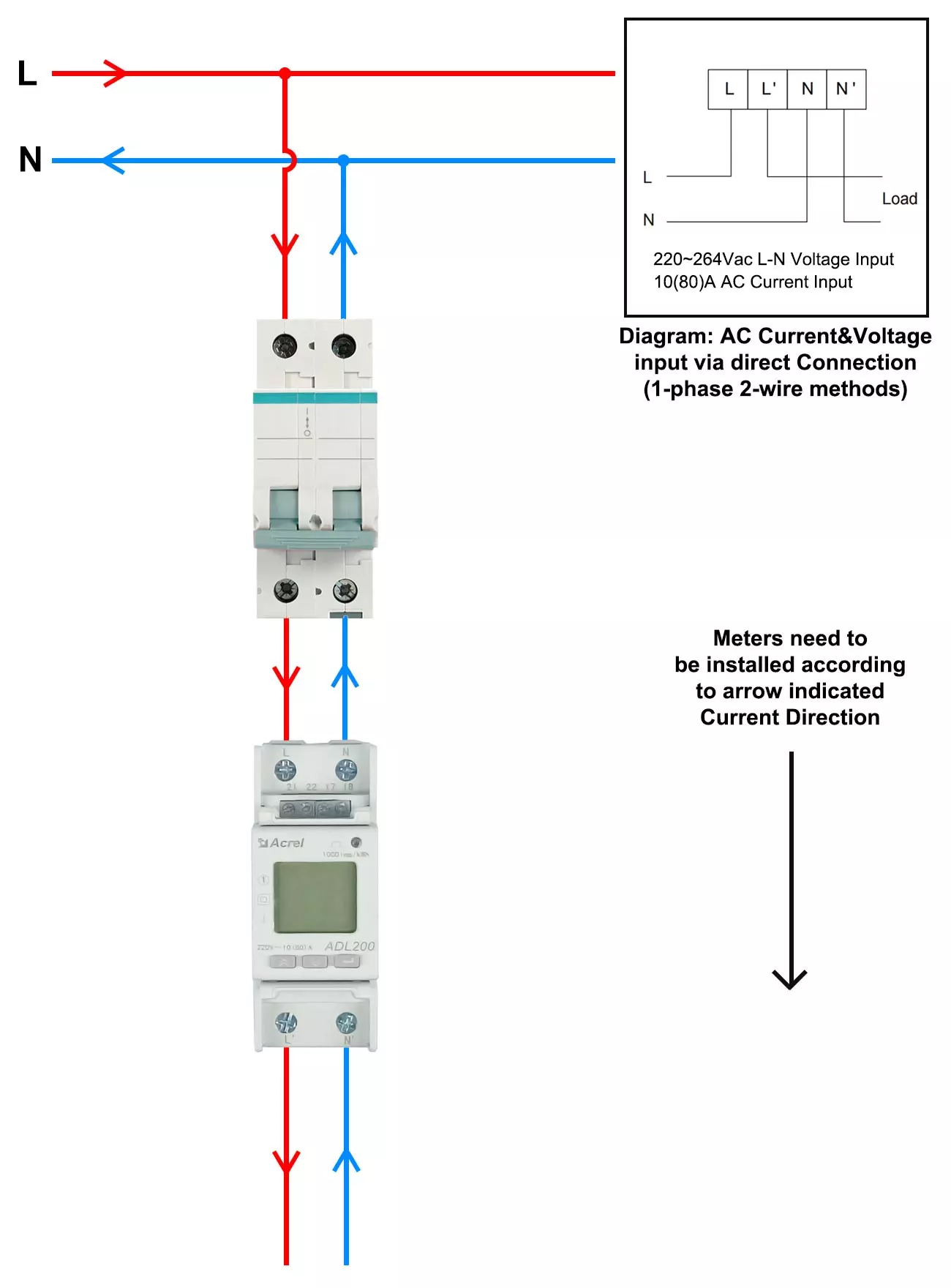

1-phase 2-wire via direct connect3-phase 4-wire via direct connect3-phase 4-wire CT operated

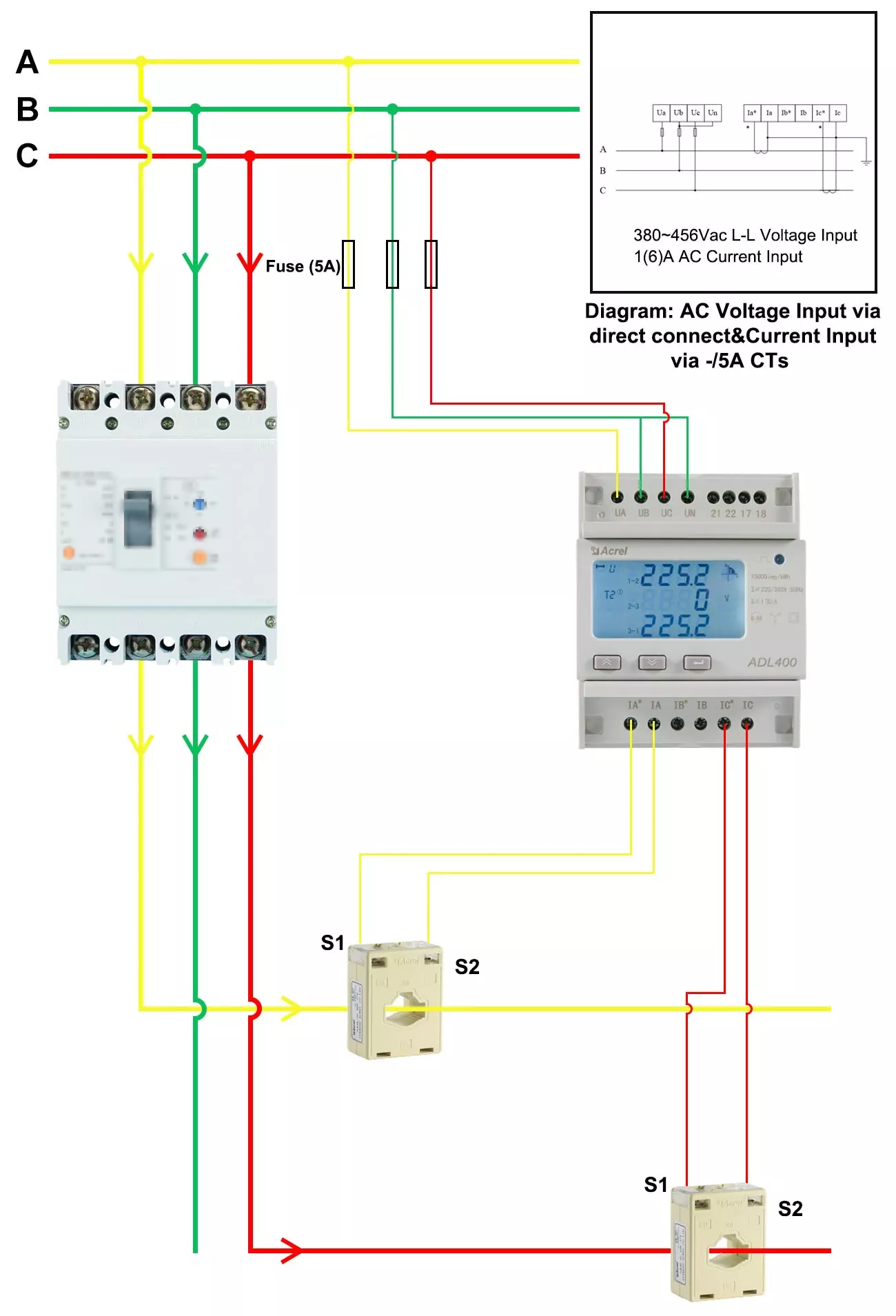

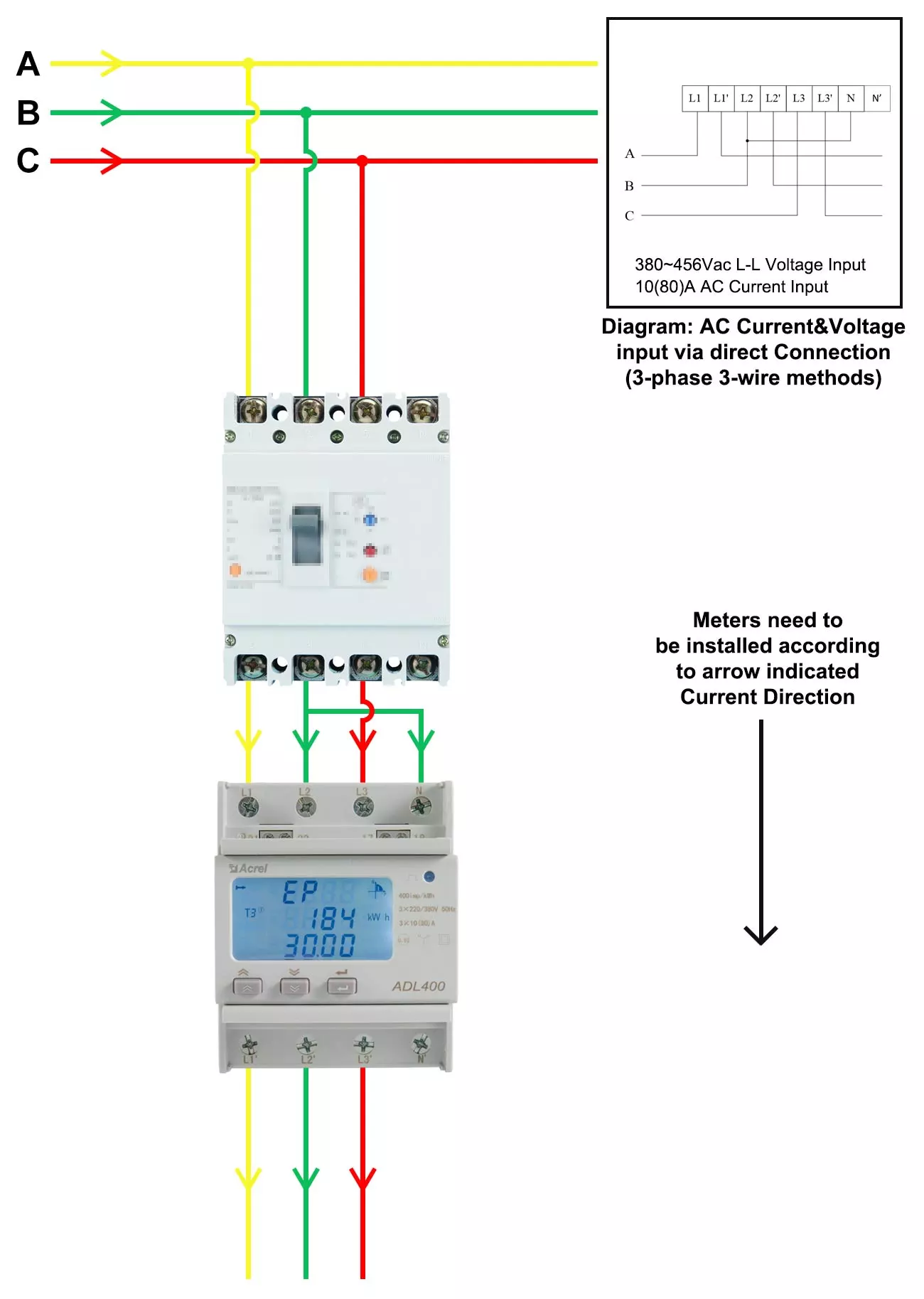

3-phase 3-wire via direct connect3-phase 3-wire CT operated
