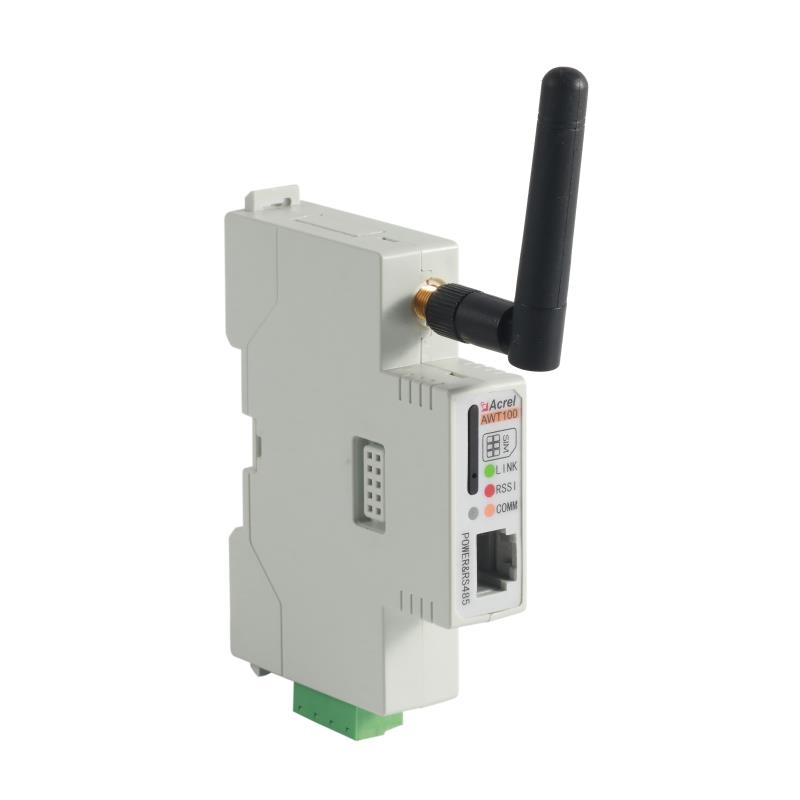

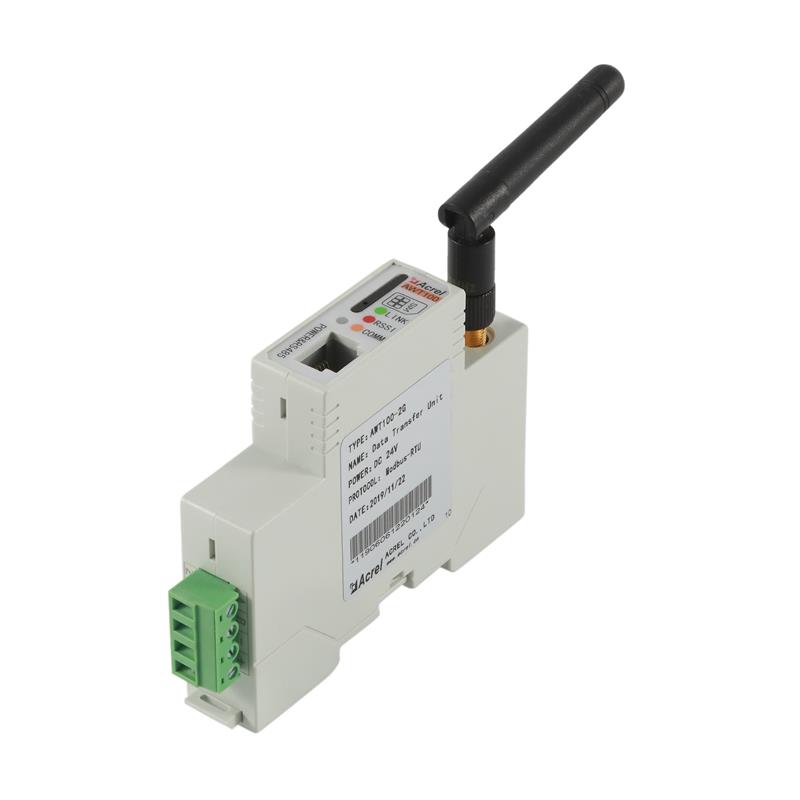

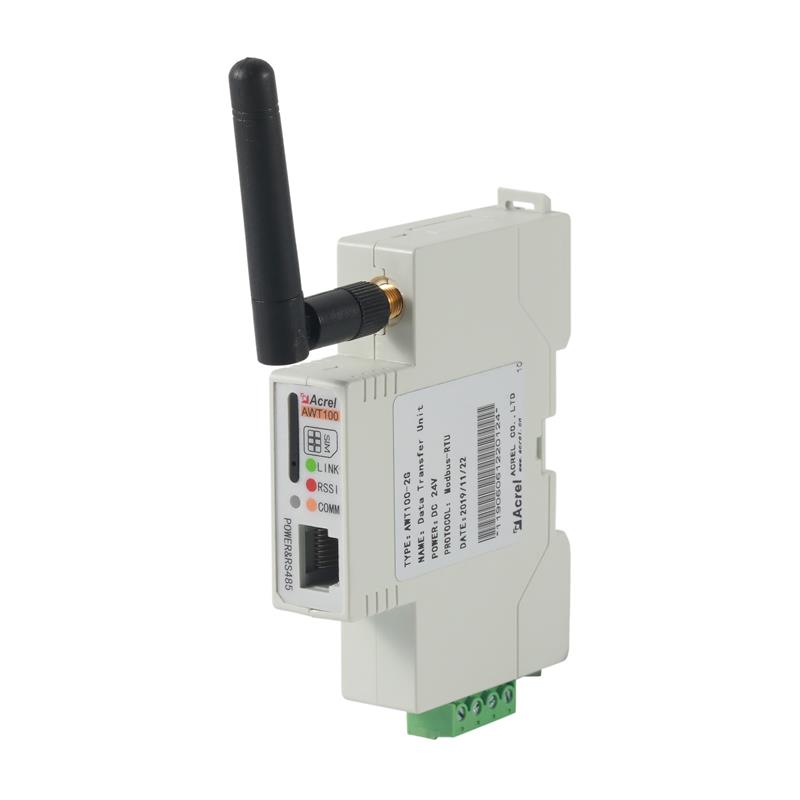

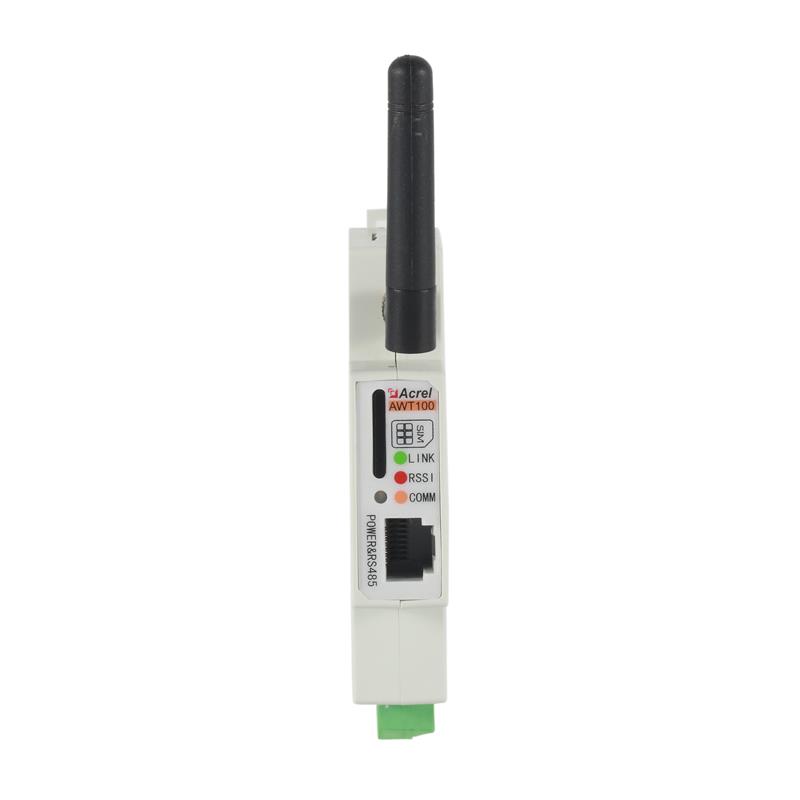

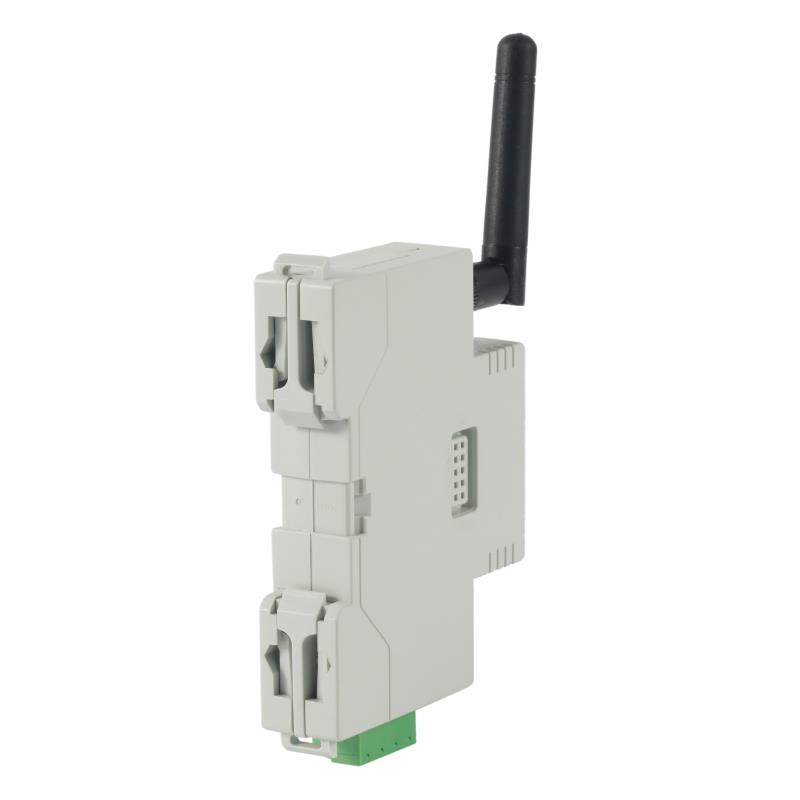

4G Gateway

AWT100-4G

  • Uplink Method: 4G LTE
  • Uplink Protocol: MODBUS-TCP, MQTT
  • Downlink Method: RS485 Interface
  • Downlink Protocol: MODBUS-RTU

Feedback

What Do Our Customers Say?

  • “ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

    Arnold 

    Philippines

  • Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

    Tuan 

    Vietnam

Highlight

What’s the Function of 4G Gateway?

Uplink

  • 4G LTE
  • MODBUS-TCP
  • MQTT

Downlink

  • RS485
  • MODBUS-RTU

  Support

  • 20-25 Devices
  • with RS485

 Power Supply

  • 24Vdc (Default)
  • 85-265Vac/Vdc (via AWT100-POW)

Specification

What’s the Specification of Acrel AWT100 series Gateway?

Specification AWT100-4G AWT100-WIFI AWT100-LORA AWT100-LORAWAN AWT100-CE AWT100-DP AWT100-GPS AWT100-Pow
Uplink 4G WIFI LORA LORAWAN CE DP GPS Power Supply

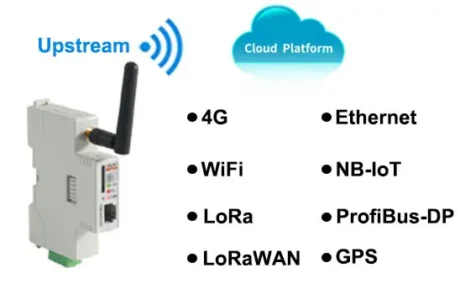

Various Upstream Communication Methods

● 4G (Support Global Frequency Bands)

● WiFi

● LoRa

● LoRaWAN

● Ethernet

● NB-IoT

● ProfiBus-DP

● GPS

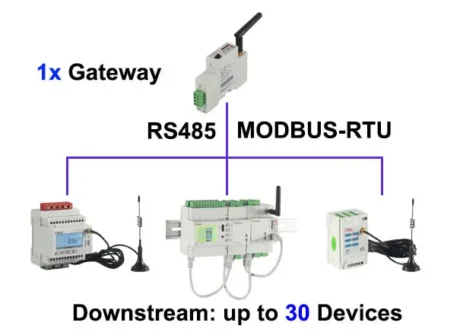

 Collect Data from up to 30 Devices

● Downstream Communication: RS485

● Downstream Protocol: MODBUS-RTU

● Data acquisition of 5 register address fields each device

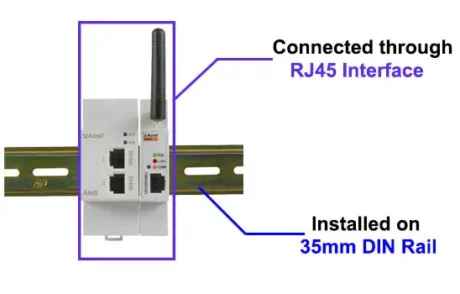

 Easy Installation

● RJ45 Interface

● 35mm standard DIN Rail

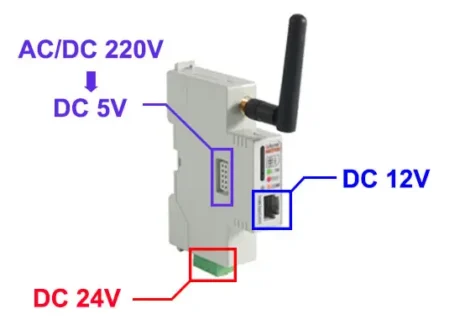

 Three Optional Power Supply

● DC 12V

● DC 24V

● AC/DC 220V→DC 5V (paired with AWT100-POW)

● 3 types of Power Supply can’t co-exist

Parameter

What’s the Parameter of Smart Gateway?

1. Typical Applications

Parameter Name AWT100-4G AWT100-NB AWT100-2G AWT100-LoRa

AWT100-LW

Working  frequency LTE-FDD B1 B3 B5 B8

LTE-TDD B34 B38 B39 B40 B41

CDMA B1 B5 B8

GSM 900/1800M

H-FDD B1 B3 B8 B5 B20 GSM 850

EGSM 900

DCS 1800

PCS 1900

LoRa 460 510MHz
Transmission rate LTE-FDD

Maximum downlink rate 150Mbps

Maximum uplink rate 50Mbps

LTE-TDD

Maximum downlink rate130Mbps

Maximum uplink rate 35Mbps

CDMA

Maximum downlink rate 3.1Mbps

Maximum uplink rate 1.8Mbps

GSM

Maximum downlink rate 107Kbps

Maximum uplink rate 85.6Kbps

Maximum downlink

rate 25.2Kbps

Maximum uplink rate

15.62Kbps

GPRS

Maximum downlink

rate

85.6kbps

Maximum uplink rate

85.6kbps

LoRa 62.5kbps
Downlink RS485 Communication
Uplink 4G Communication NB-IoT

Communication

2G Communication LoRa

Communication

SIM card voltage 3V,1.8V /
Working current Static power:≤1W,Transient power consumption:≤3W Static power: ≤0.5W, Transient power

Consumption:≤1W

Antenna interface 50Ω/SMA(Faucet)
Serial port type RS-485
Baud rate 4800bps、9600bps、19200bps、38400bps(default 9600bps)
Operating Voltage DC24V /AC/DC220V①
Operating temperature -10℃~55℃
Storage temperature -40℃~85℃
Humidity range 0~95% Non-condensing



2. Technical Parameters

Parameter name AWT100-GPS AWT100-WiFi AWT100-CE AWT100-DP
Work Positioning accuracy:

2.5-5m

Support 2.4G frequency band

WiFi rate: 115200bps

Ethernet rate 10/100M adaptive Profibus address: 1~125. (Note)
Downlink RS485 Communication
Uplink GPS positioning WiFi wireless Ethernet

communication

Profibus

communication

Working current Static power consumption:≤1W,transient power consumption:≤3W Static power

consumption:

≤0.5W,

transient power

consumption:

≤1W

Interface 50Ω/SMA(Faucet) RJ45 DP9
Serial port type RS-485 Communication
Baud rate 4800bps、9600bps、19200bps、38400bps(Default 9600bps)
Operating Voltage DC24V or AC/DC220V①
Operating temperature -10℃~55℃
Storage temperature -40℃~85℃
Humidity range 0~95% Non-condensing



Note:

①AC/DC220V power supply requires external AWT100-POW power supply module.

②Profibus communication rate: 9.6kbps, 19.2kbps, 45.45kbps, 93.75kbps, 187.5kbps, 500kbps, 1.5Mbps, 3Mbps, 6Mbps, 12Mbps. Data exchange length: total input length<=224 bytes, total output length<=224 bytes. The number of downstream instruments connected: 1~80.

Installation

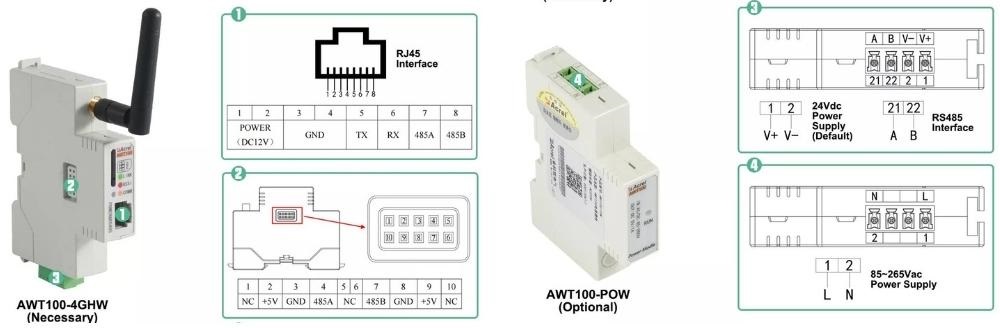

How to Connect the Smart Gateway?

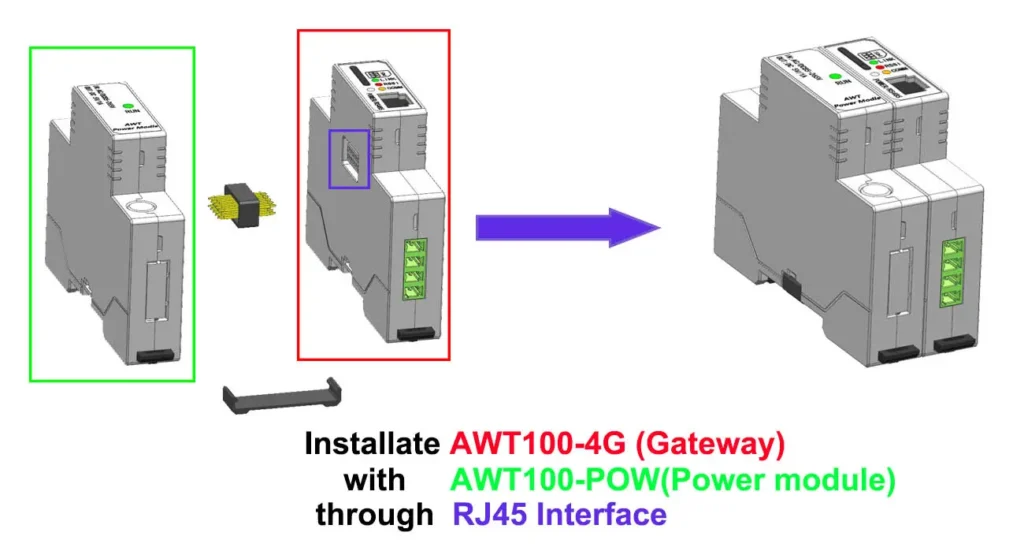

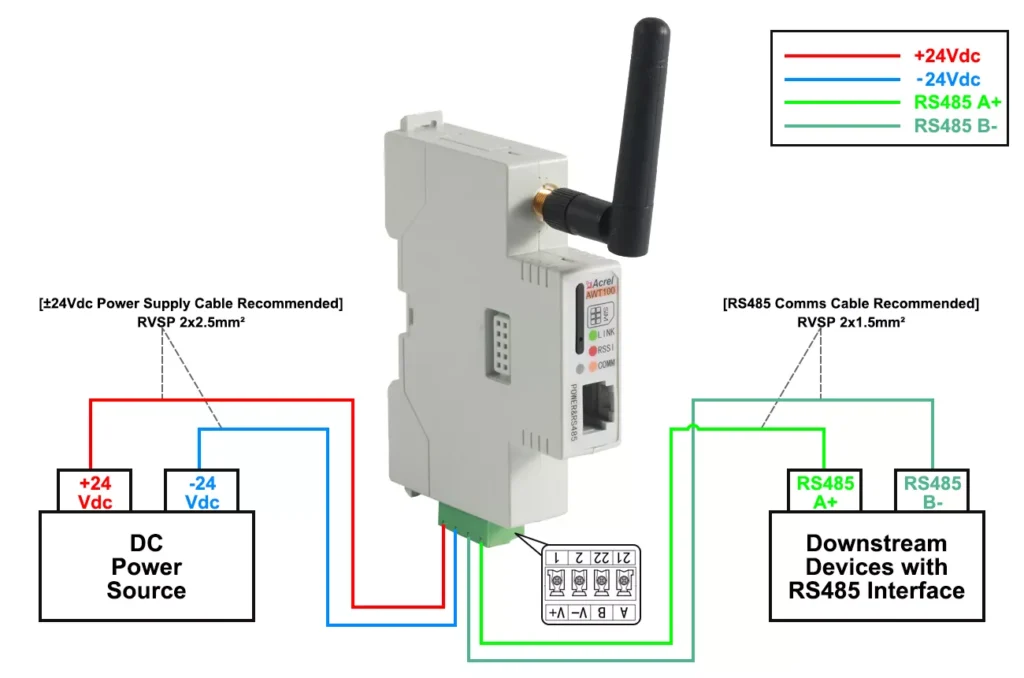

For power supply DC 24V

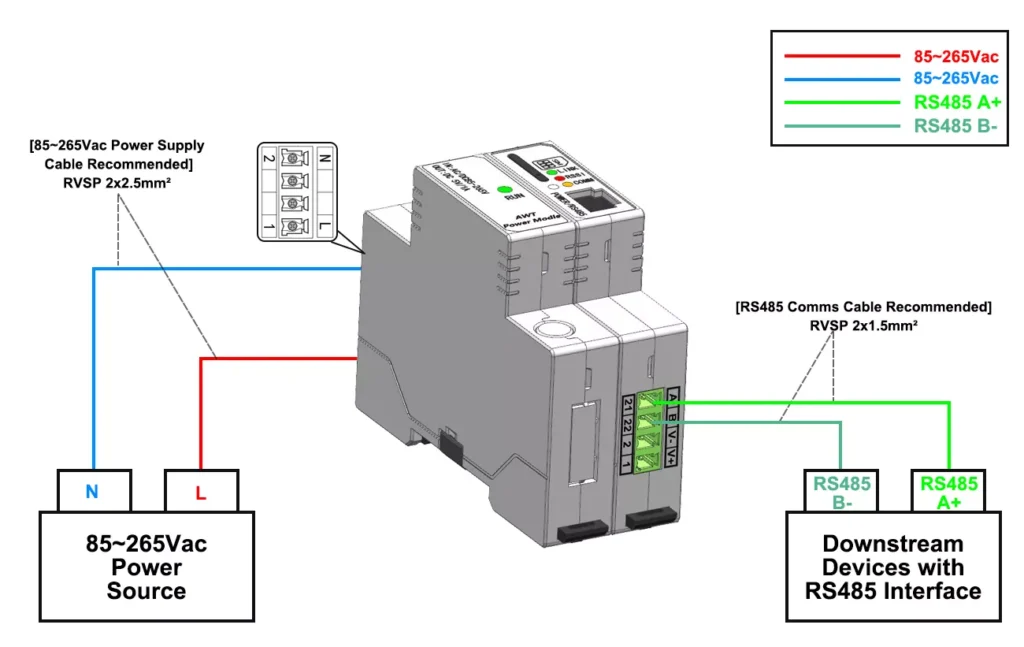

For power supply AC 85-265V

Typical Topology

How does 4G Gateway work?

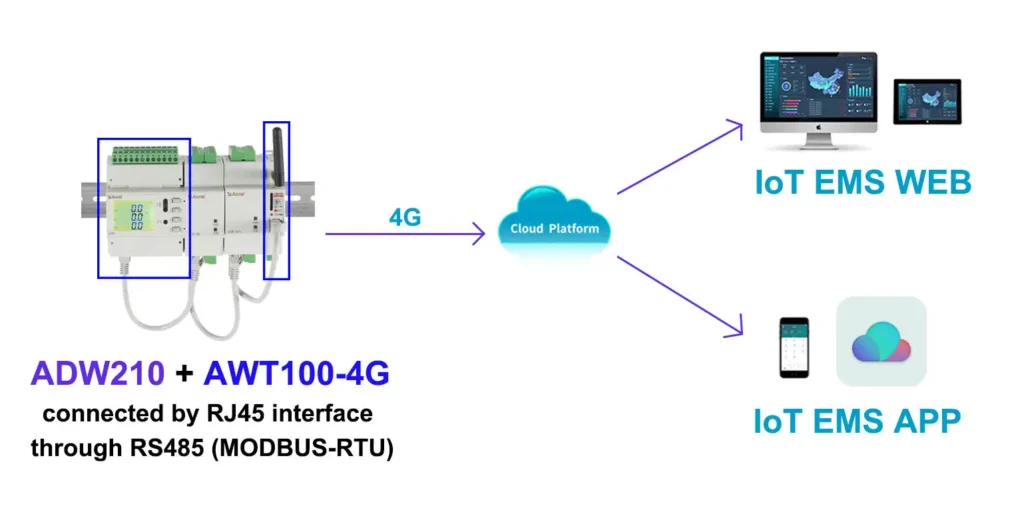

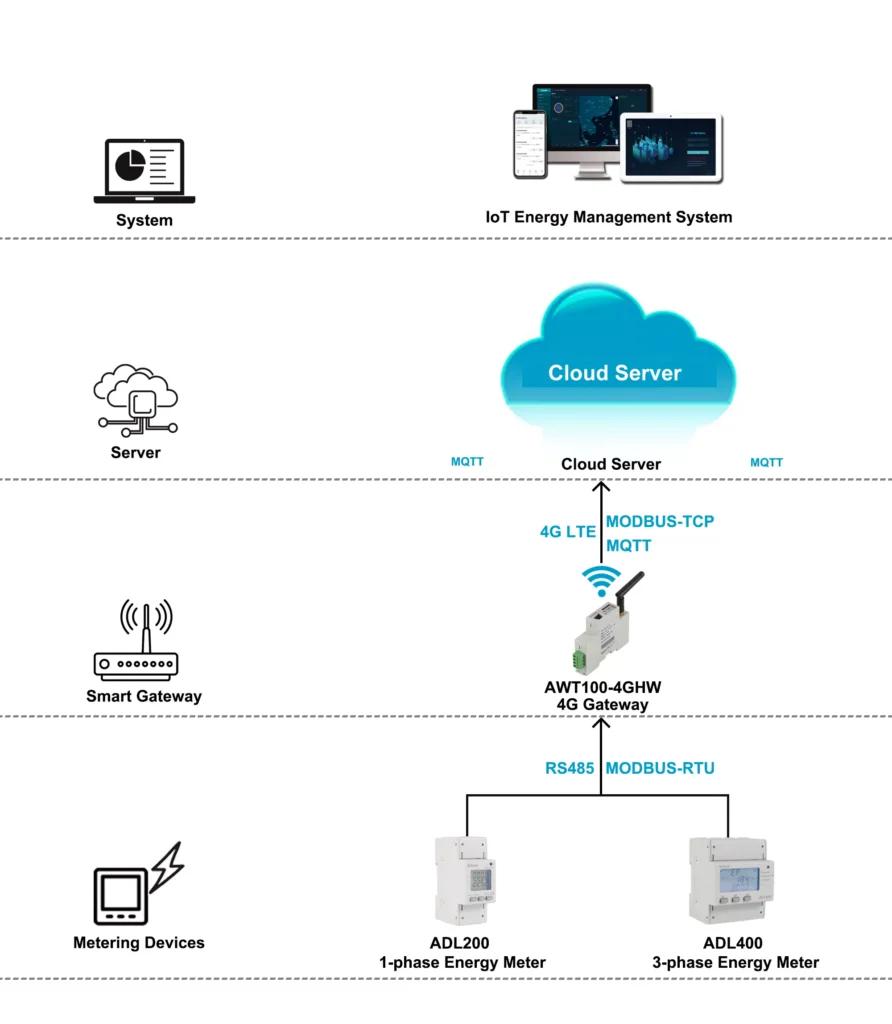

RS485 to 4G Solution Structure

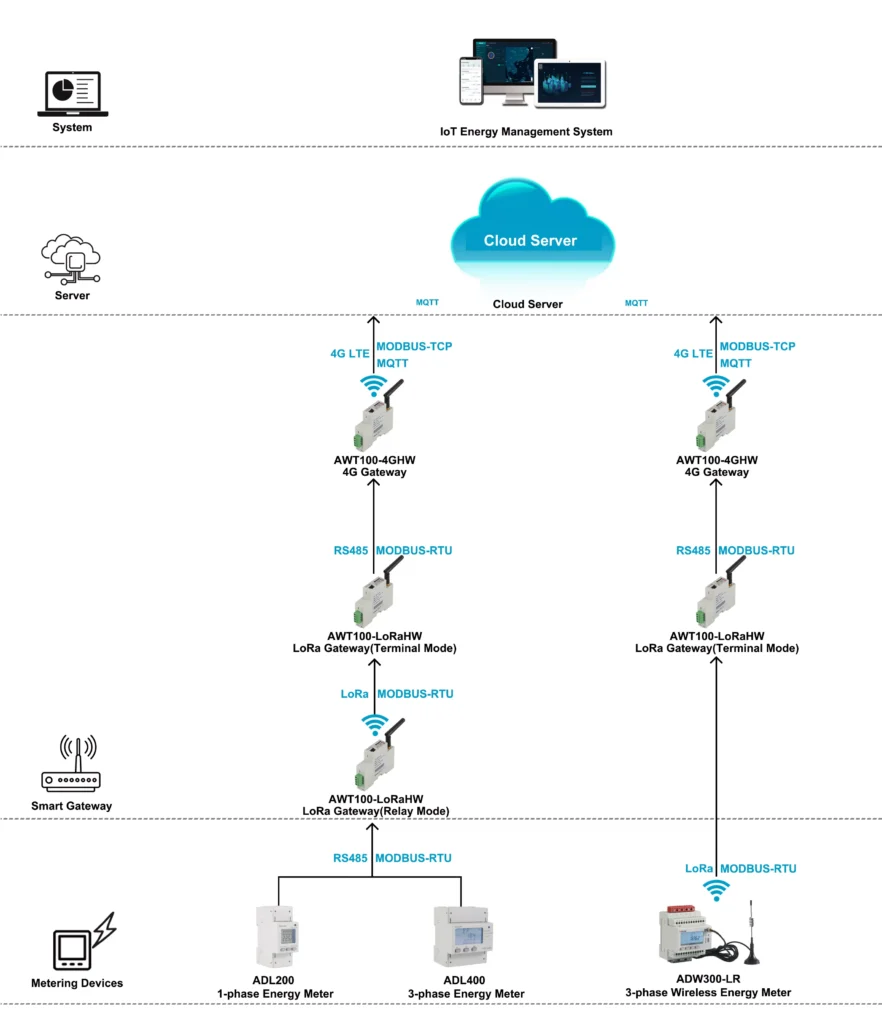

Lora to 4G Solution Structure

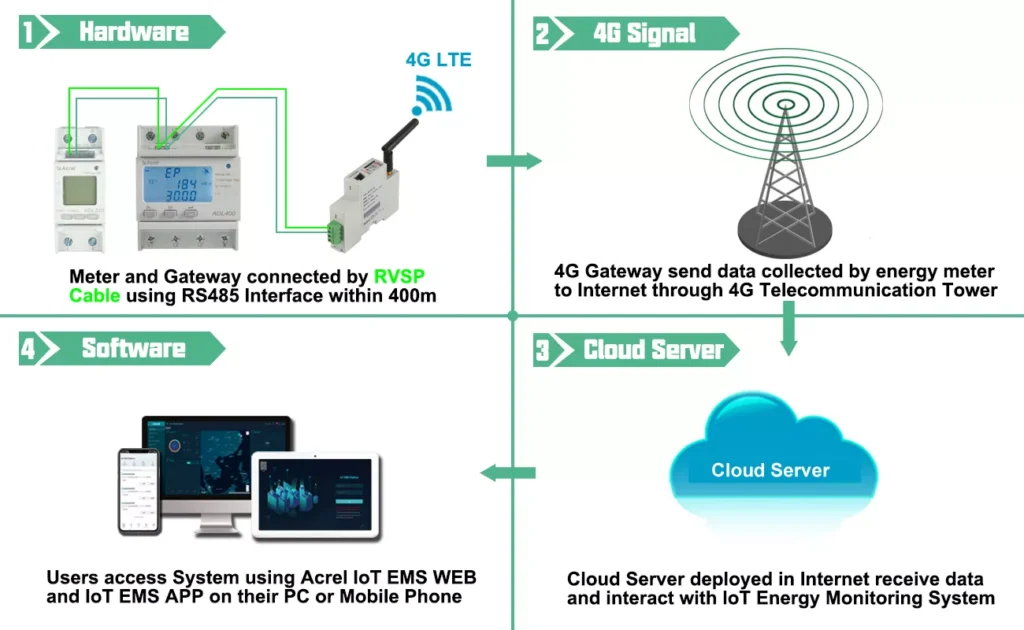

RS485 to 4G Solution Illustration

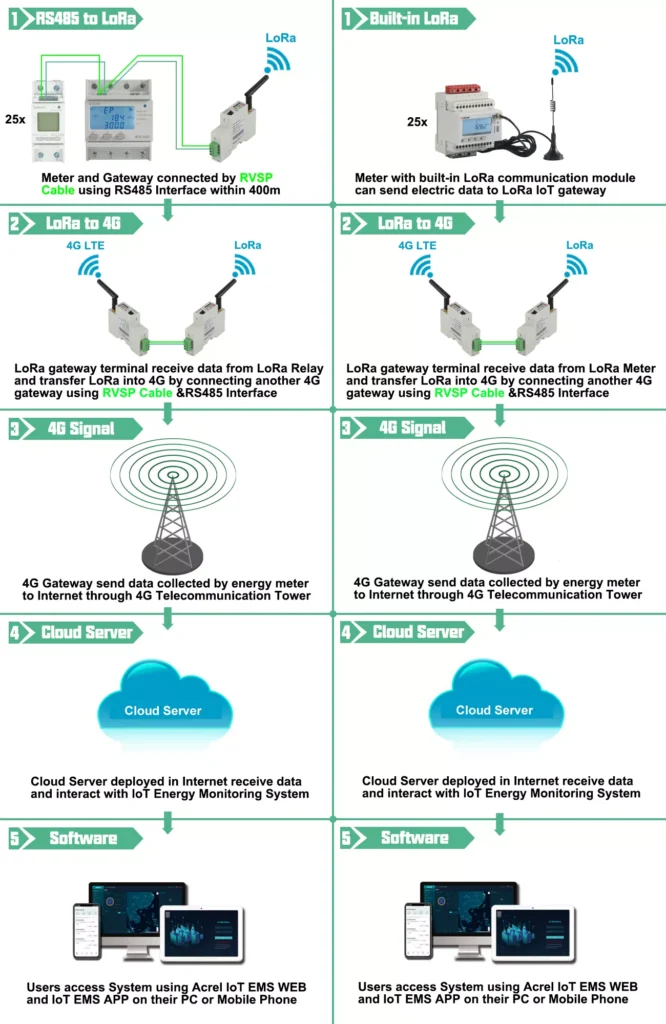

Lora to 4G Solution Illustration
