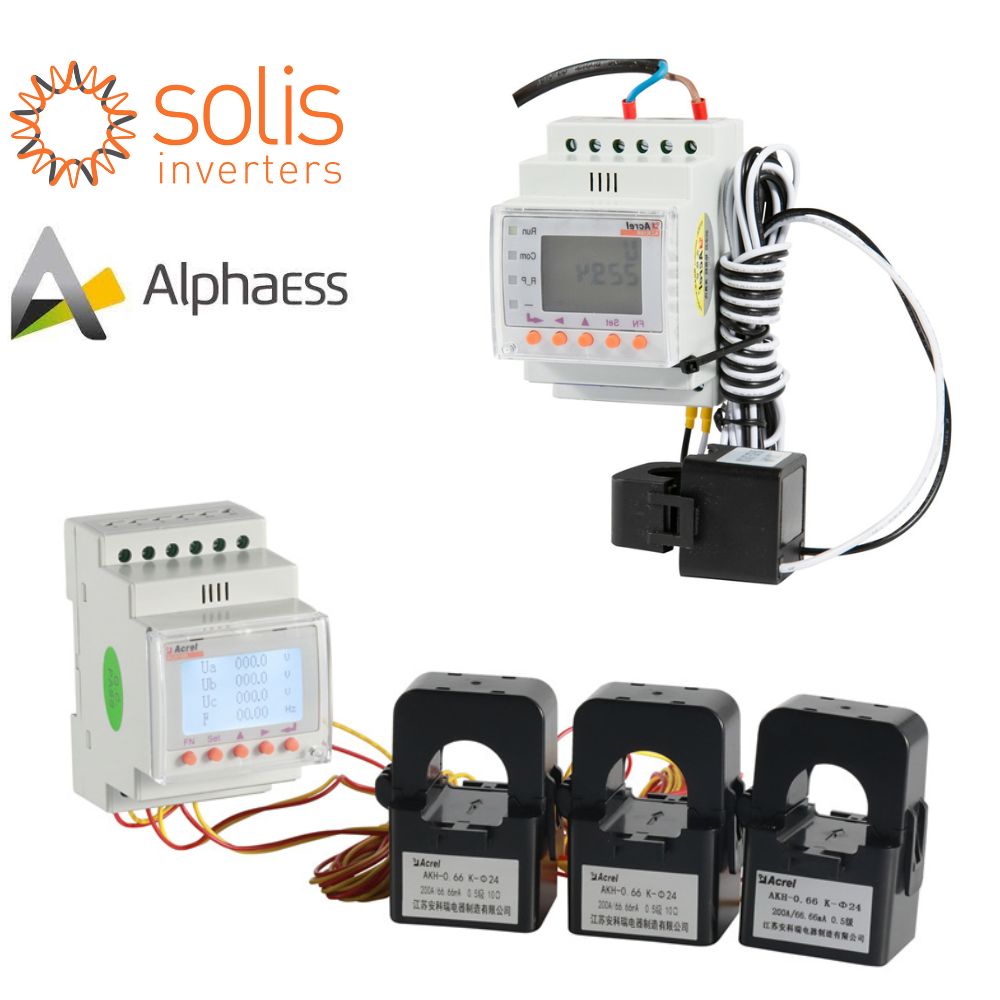

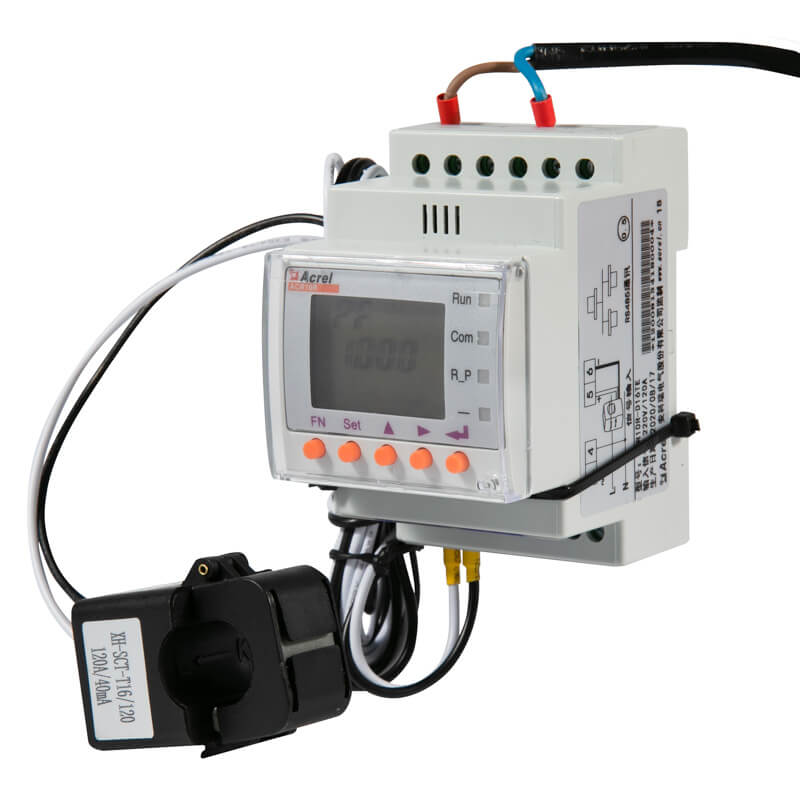

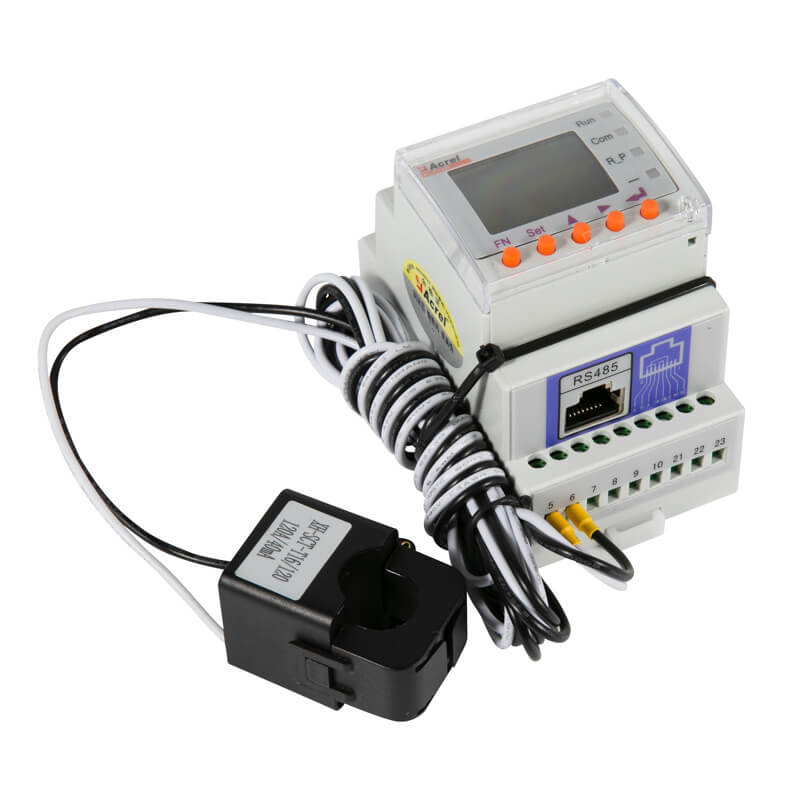

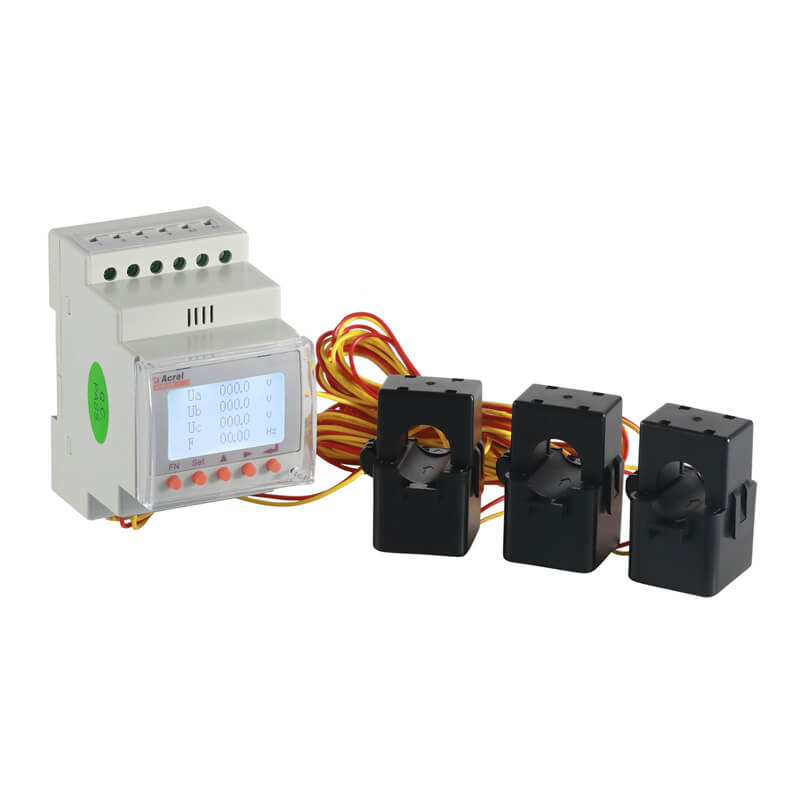

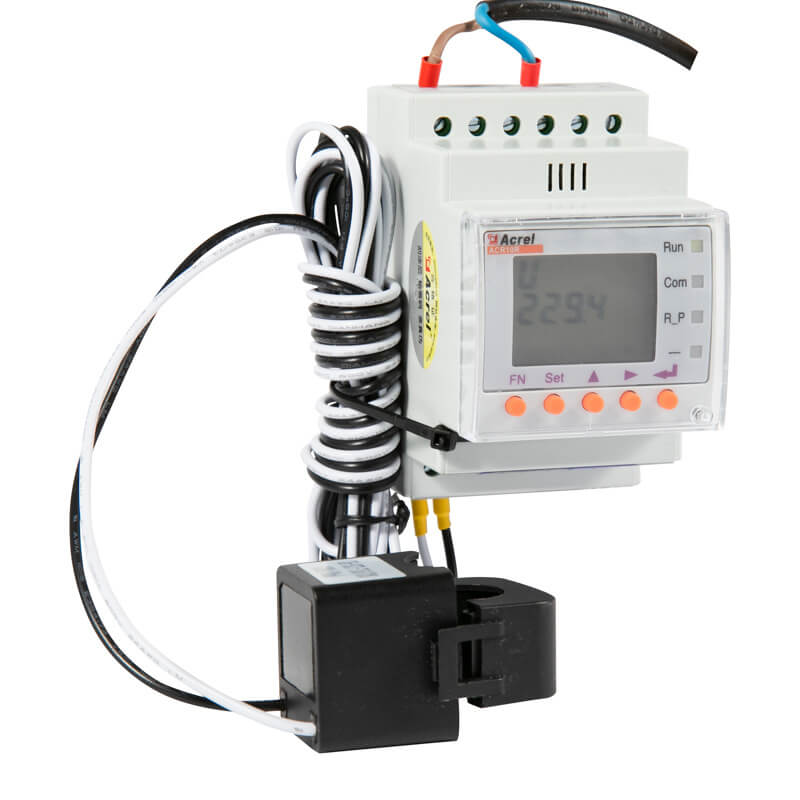

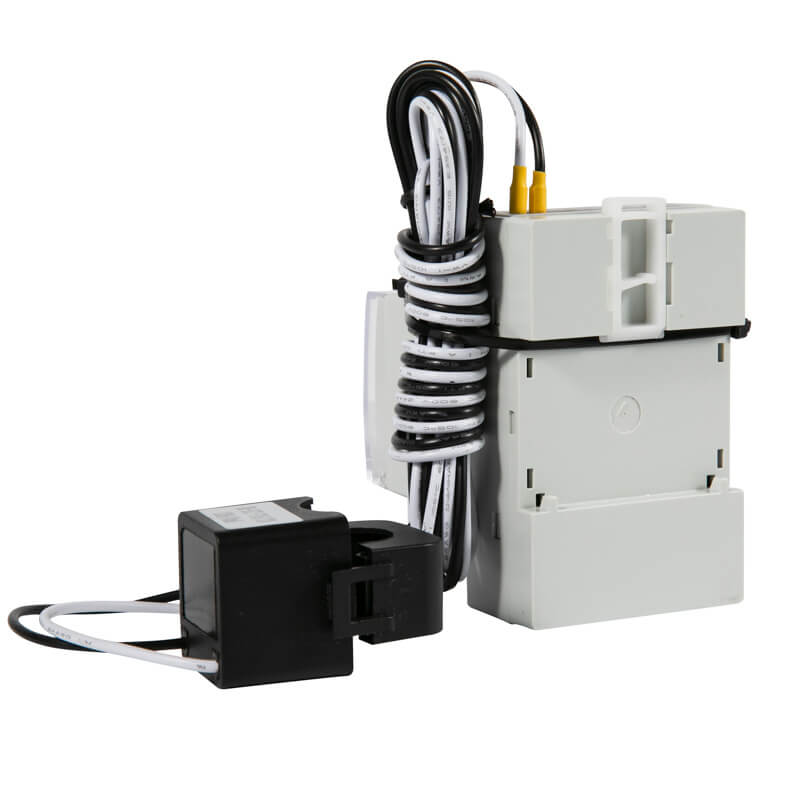

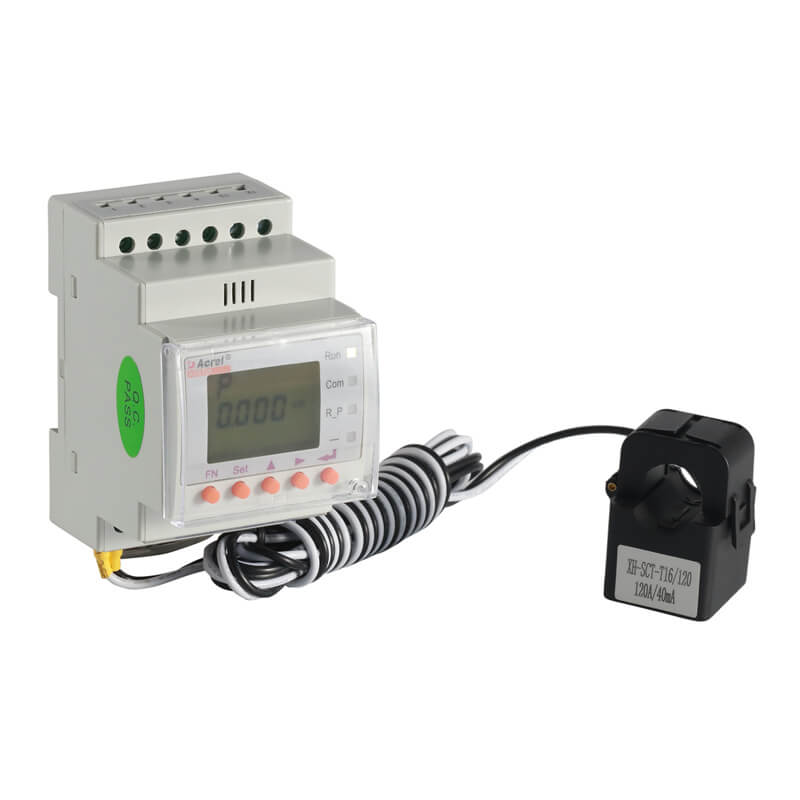

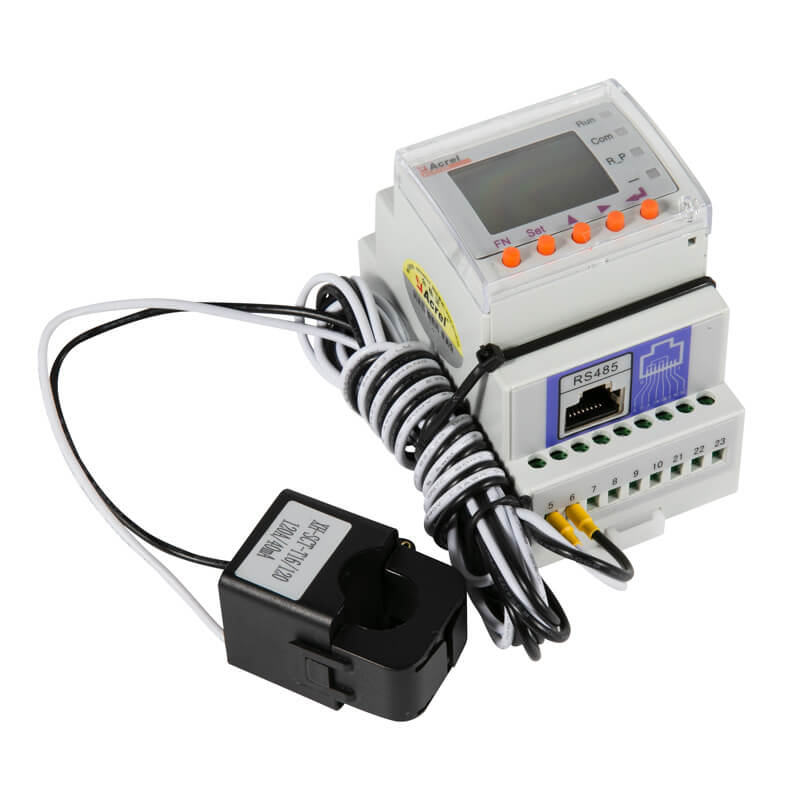

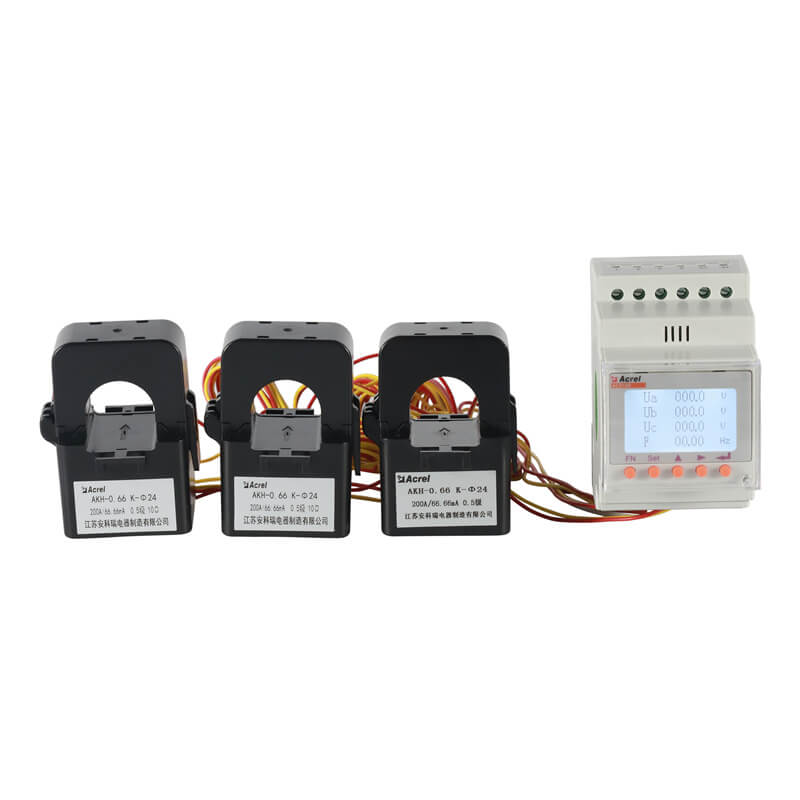

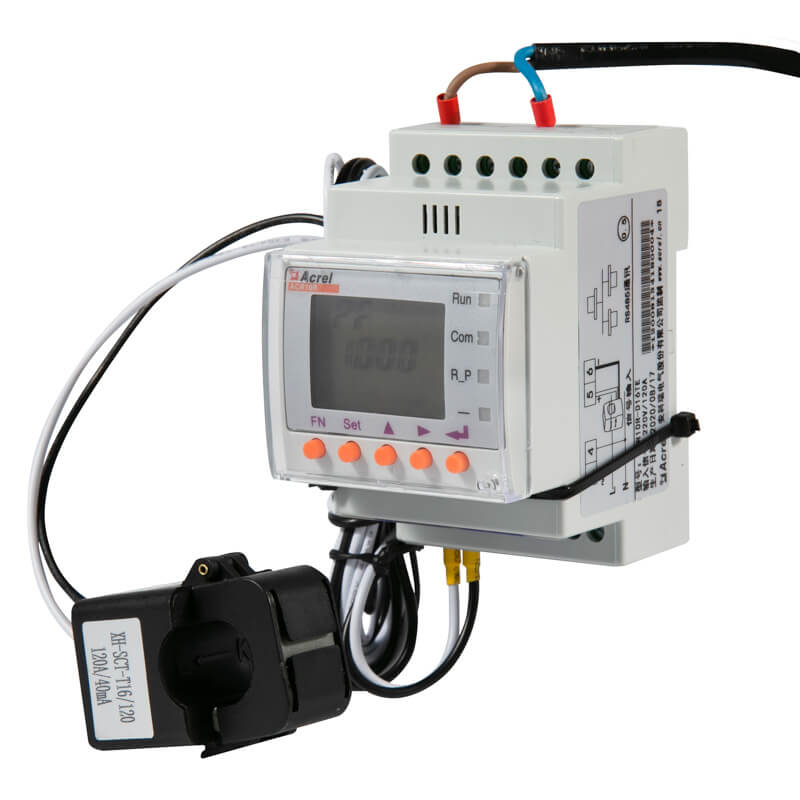

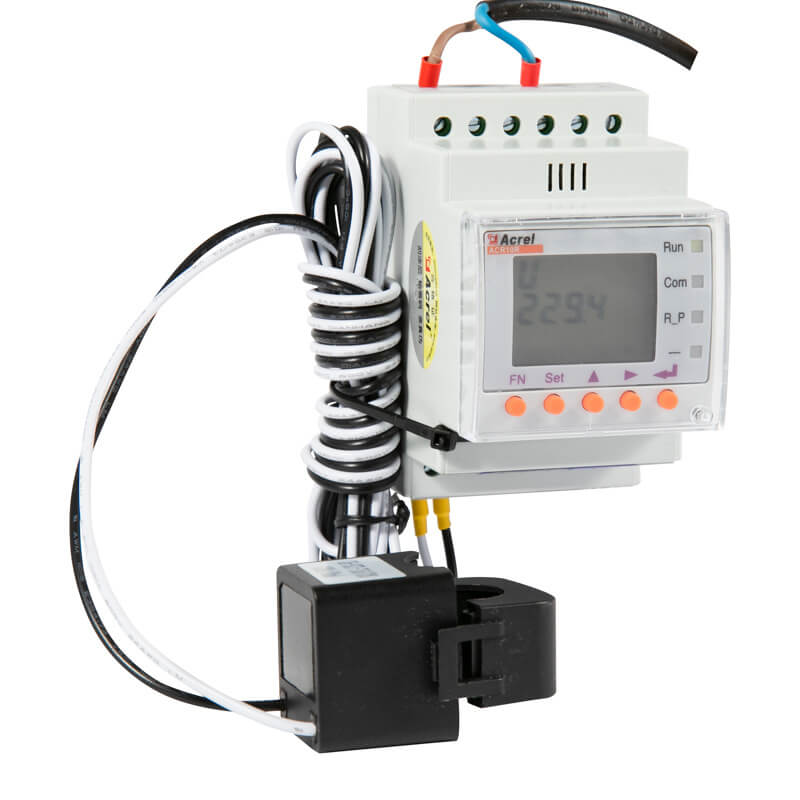

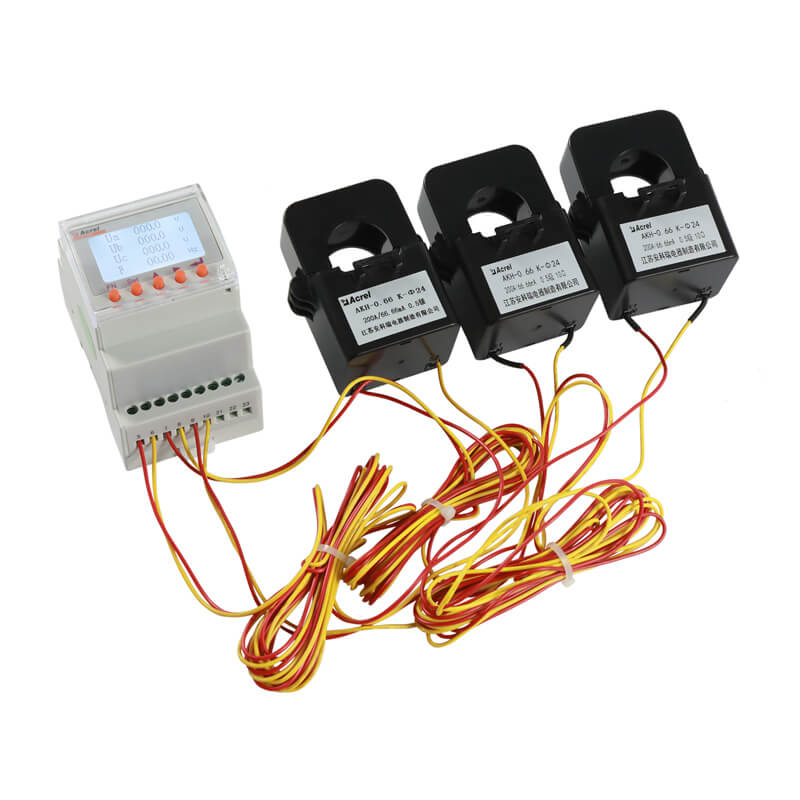

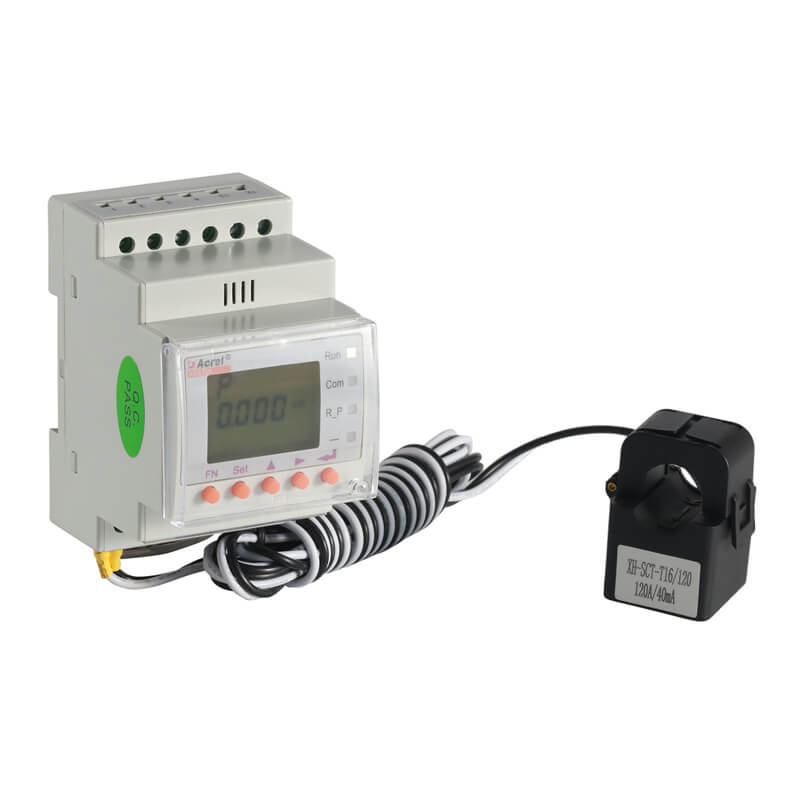

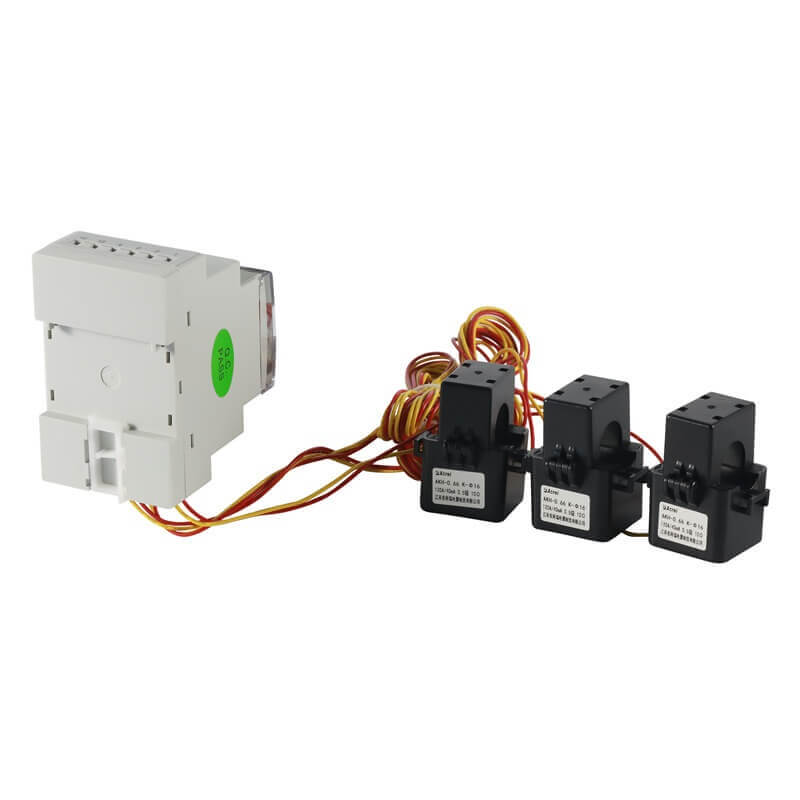

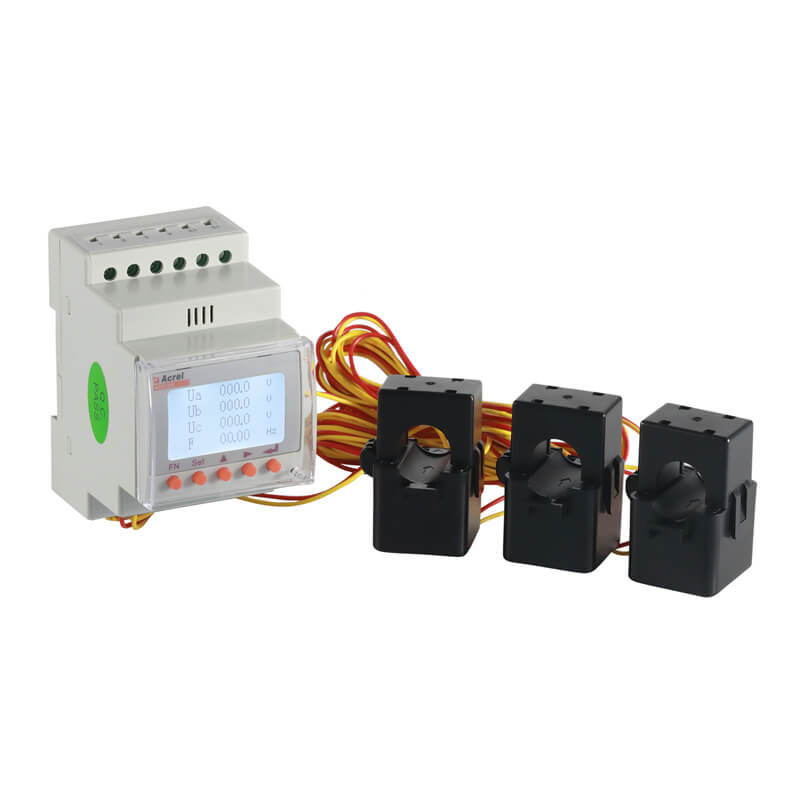

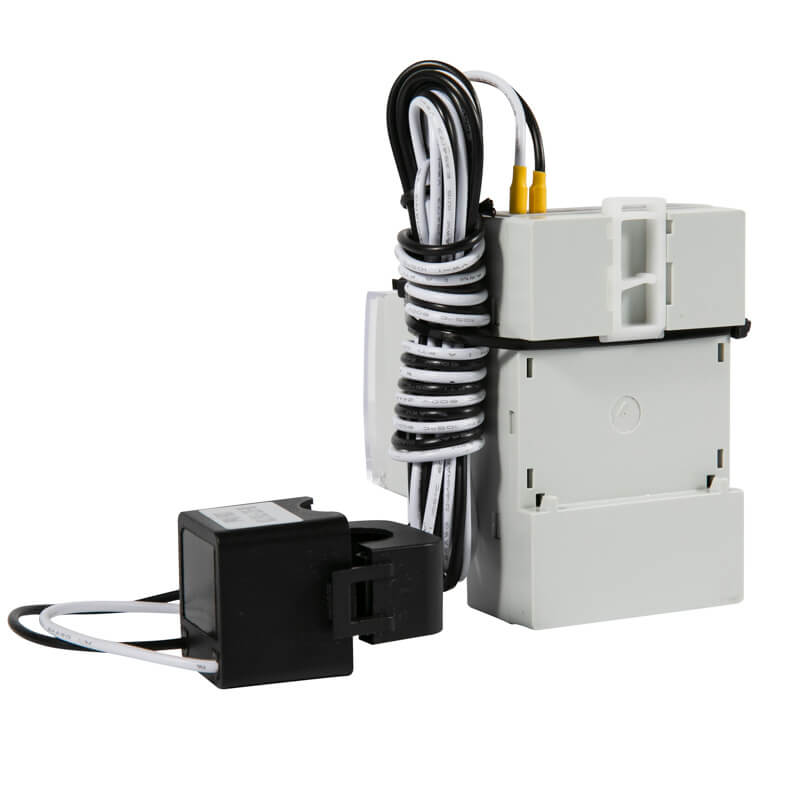

Acrel ACR10R Single & Three Phase Power Meter 120A with CT for Solis & Alpha ESS

ACR10R-120A CT ---Standard Lead Time: Sample: 2 days; Bulk: 1 month

  • 1ph & 3ph
  • 300A Input
  • MODBUS-RTU
  • RS485

Feedback

What Do Our Customers Say?

  • Acrel is one of the best supplier for me. They are so easy to communicate and very friendly. They even give an online tour of their factory. Looking forward for more business together in the future.

    Liezel 

    Philippines

  • “ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

    Arnold 

    Philippines

  • Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

    Tuan 

    Vietnam

Highlight

What’s the Highlight of Acrel ACR10R-120A Single & Three Phase Power Meter 120A with CT for Solis & Alpha ESS?

Measure

  • Single phase & Three phase
  • Current, Voltage
  • Active Power, Reactive Power, Power Factor
  • Active Energy, Reactive Energy

Current

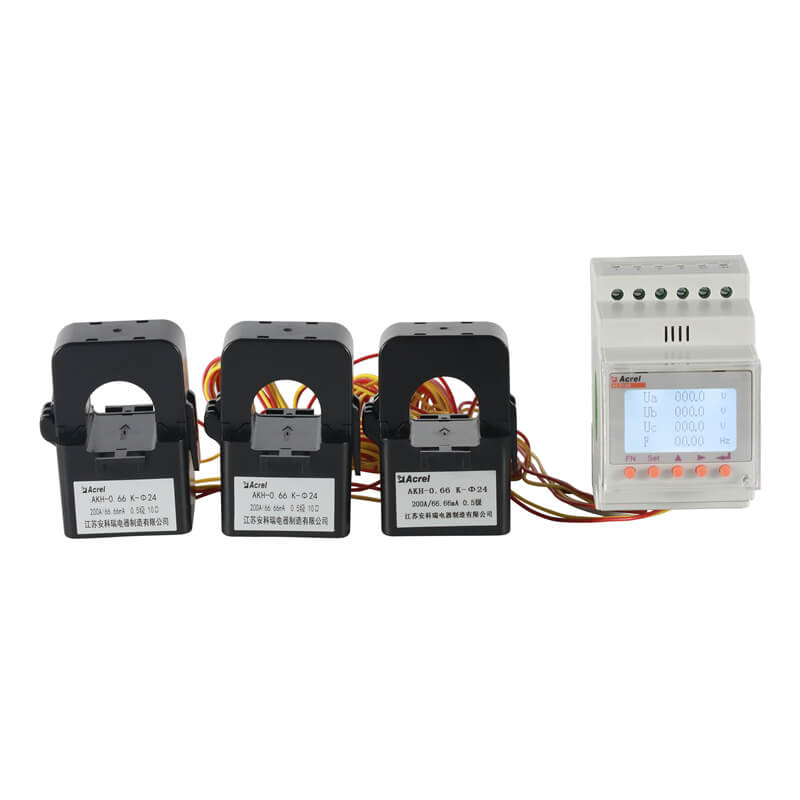

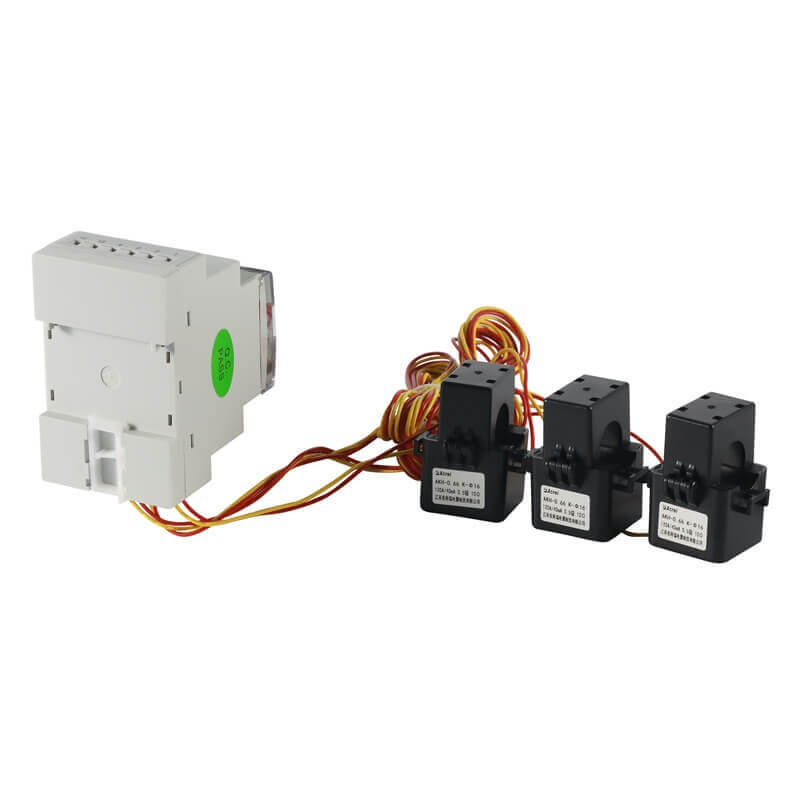

  • External Split core Current Transformer
  • D10-Φ10mm,80A
  • D16-Φ16mm,120A
  • D24-Φ24mm,200A
  • D36-Φ36mm,300A

  Communication

  • RS485
  • MODBUS-RTU

 Power Supply

  • 85~265V AC or 100~350V

The data transmission is accomplished via the RS485 port using an RJ45 cable with only 2pin wiring.
The energy meter is powered directly from the mains voltage and along with the current measurement, your inverter will know the exact power demand (in watts)

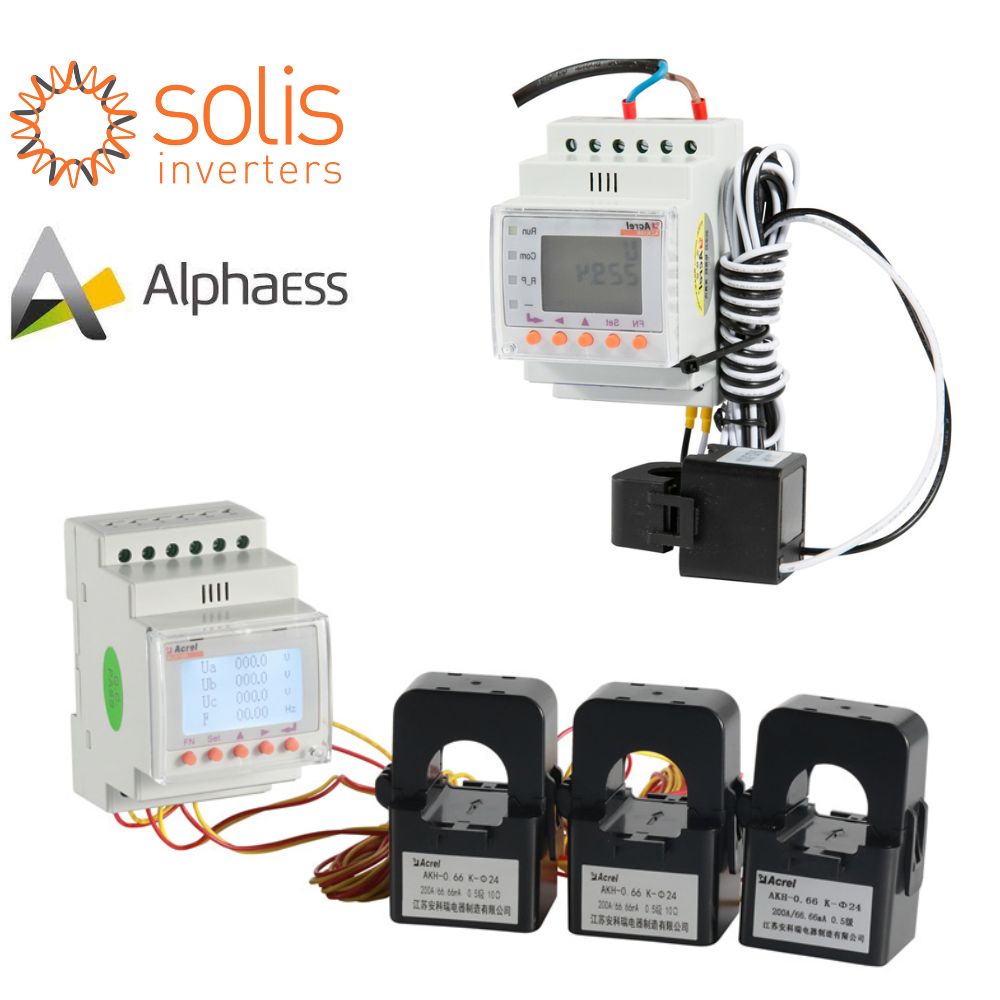

Application

Solis

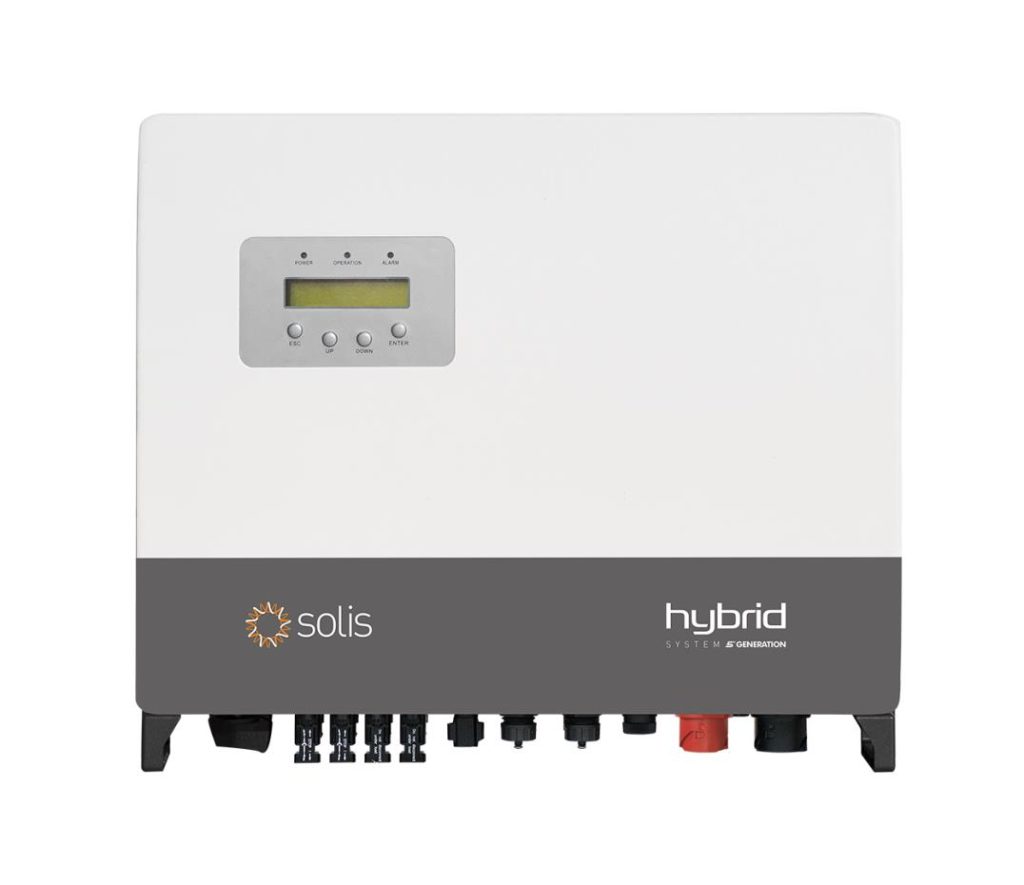

RHI-5G Series

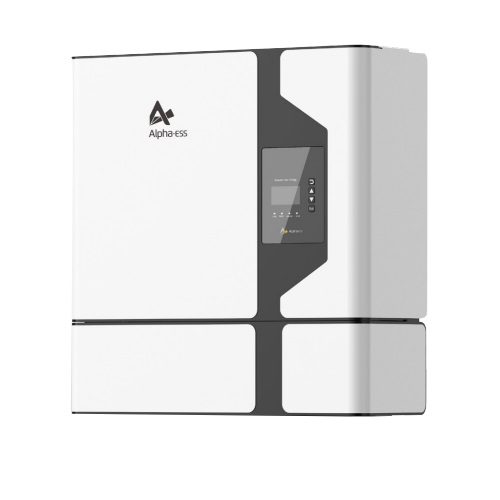

Alpha ESS

Smile B3 & Smile5

Wiring

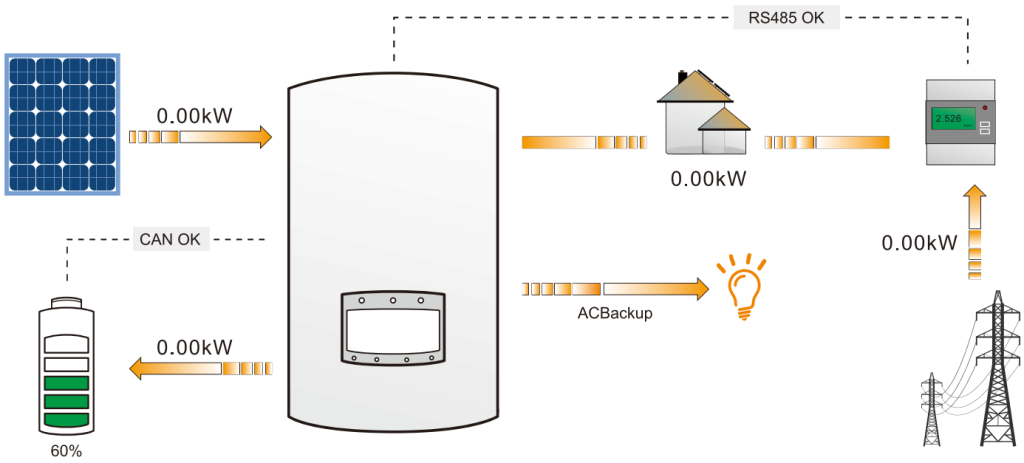

System Connection Wiring Diagram

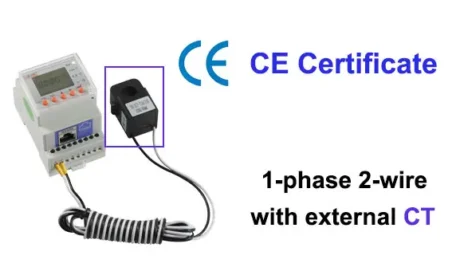

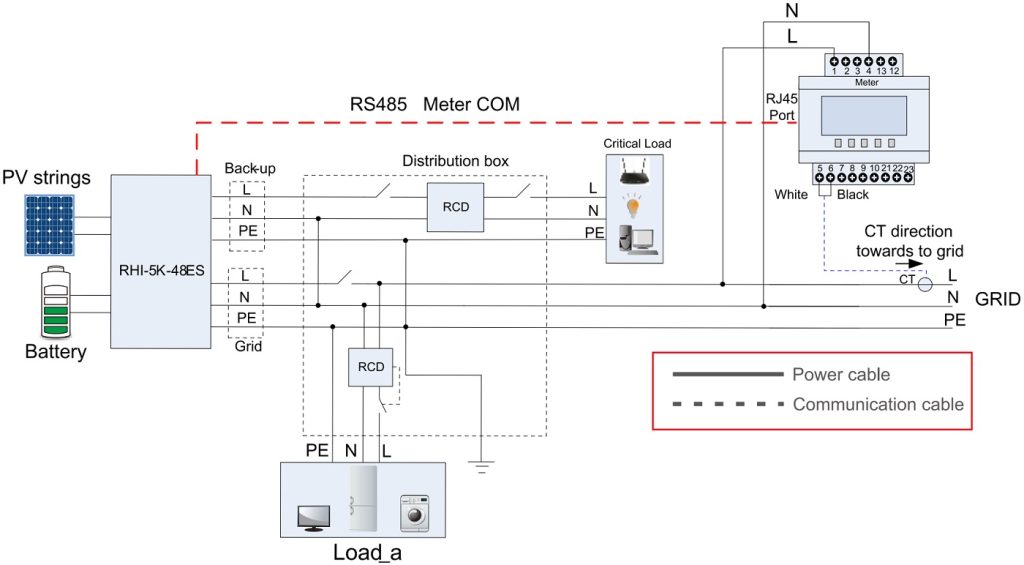

ACR10R Single Phase Meter Wiring

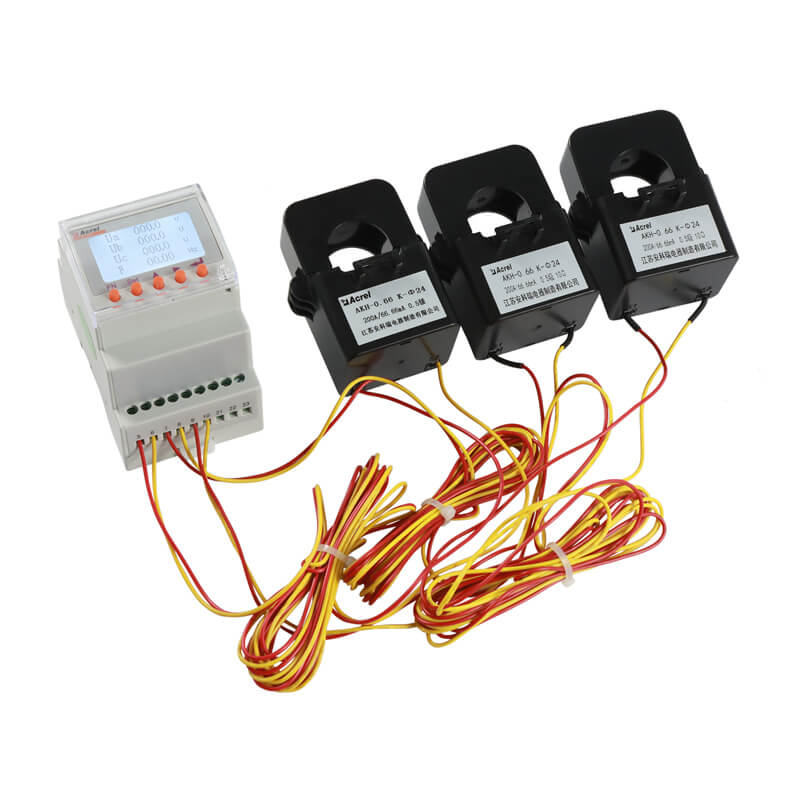

ACR10R Three Phase Meter Wiring

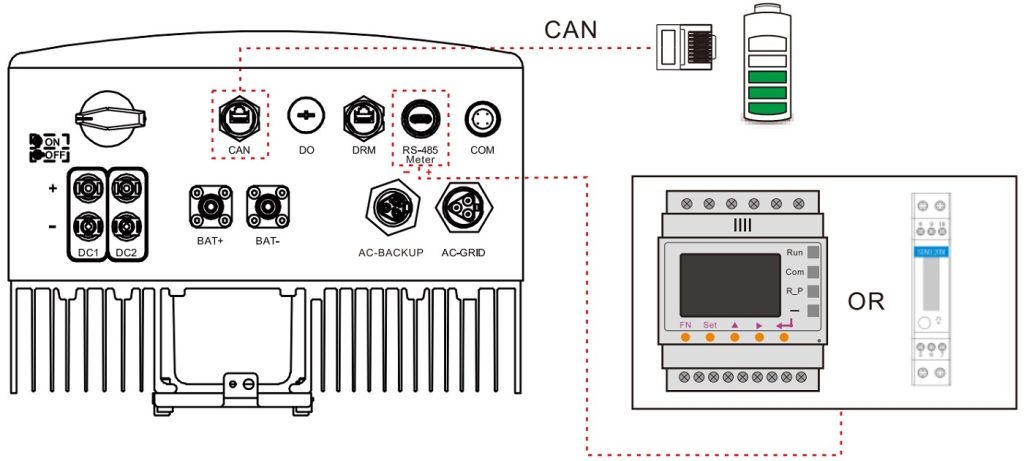

ACR10R Communication Cable Assembly

The RHI-5G Series inverter uses RS485 cable to communicate with the Meter and CAN tocommunicate with the battery's BMS. The image below shows the assembly of the RS485/CANcommunication cables.

Procedure for connecting the CAN cable:

1. Take out the CAN cable (terminal marks 'CAN' on one end and 'to Battery' on the other end).

2. Unscrew the swivel nut from CAN port.

3. Insert the RJ45 terminal with CAN label into the CAN port, then fasten the swivel nut.

4. Connect the other end to the battery.

Procedure for connecting the RS485 cable:

1. Take out the RS485 cable (terminal marks 'RS485'on one end and 'to Meter' on the other end).

2. Unscrew the swivel nut from RS485 port.

3. Insert the Two-pin terminal with RS485 label into the RS485 port, then fasten the swivel nut.

4. Connect the other end to the Meter.

Connection

Detailed Cable Connection

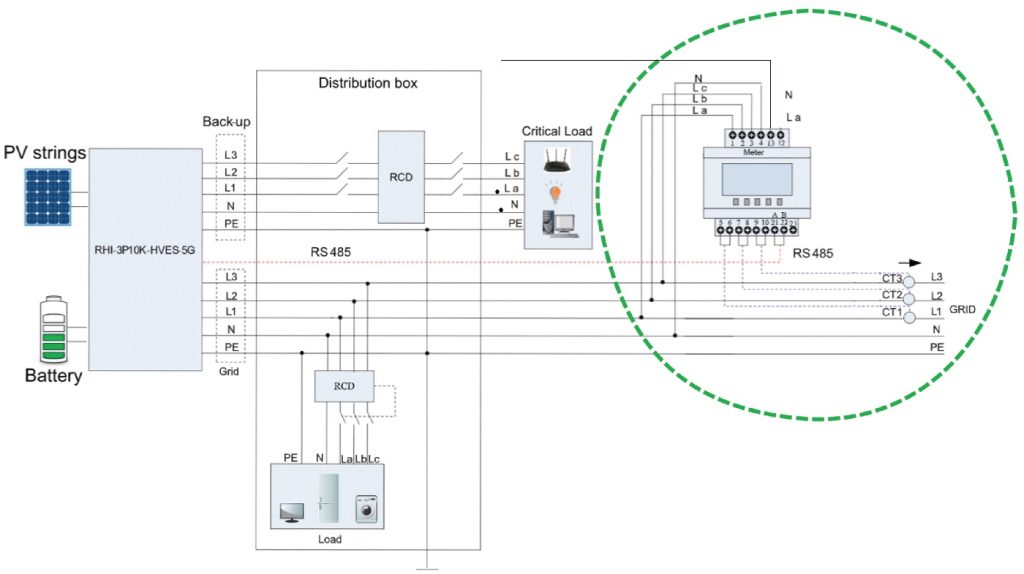

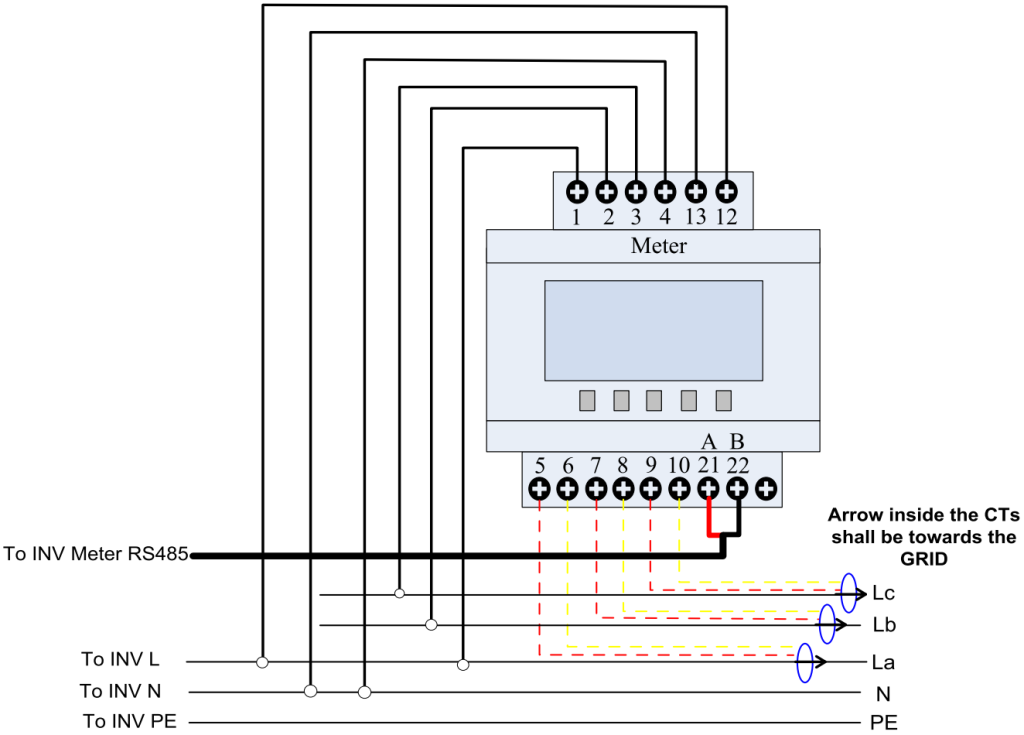

The following figure illustrates how to connect the three-phase meter to a Solis High Voltage Inverter.

Setp 1

The ports 5-6, 7-8 and 9-10 are the CT cable connections. Please ensure the CTs are connected with the correct polarity and the corresponding grid phase. Also, please note the small arrow inside the CTs, shall be pointed towards the Grid (5-6 to La, 7-8 to Lb, 9-10 to Lc)

Step 2

1,2,3 and 4 are the voltage detection ports. Please connect the ports with the corresponding grid phases (1 to La, 2 to Lb, 3 to Lc, 4 to N)

Step 3

12 and 13 are the auxiliary power source of the meter, 13 should be connected to the Neutral Wire(N) while the 12 should be connected to line La on the inverter backup output

Request Information & Quotation

Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]

If you have more detailed requirements, Please go to the relevant product page to submit the form.

Function

What’s the Function of Acrel ACR10R-120A Single & Three Phase Power Meter 120A with CT for Solis & Alpha ESS?

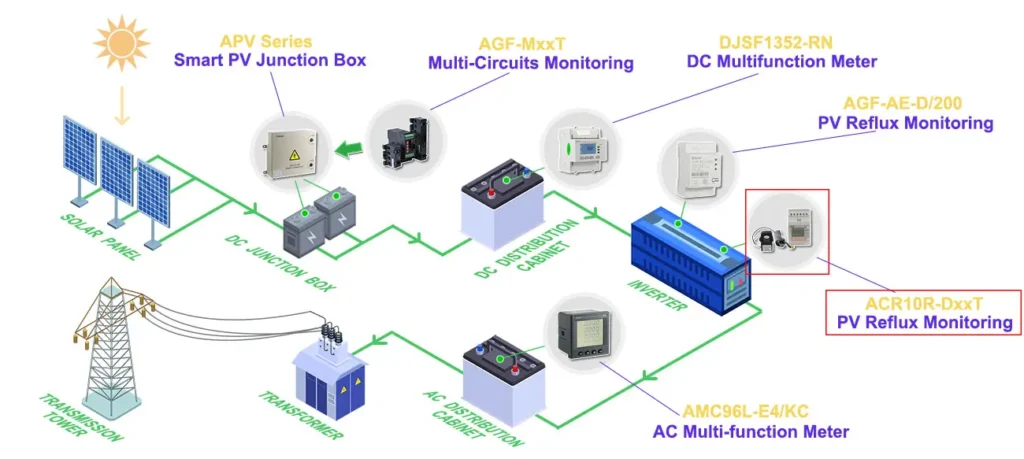

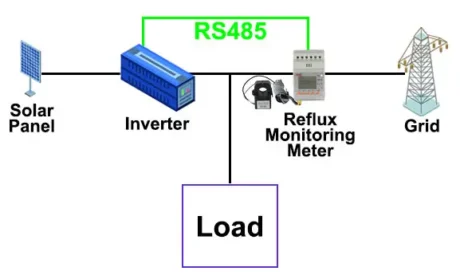

Used for distributed Solar PV

●Reflux Monitoring

● Harmonic Monitoring

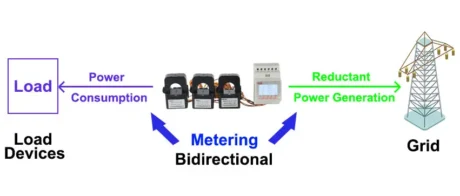

 Bidirectional Metering

● Active Energy

● Reactive Energy

● Active Power

● Reactive Power

 RS485 Communication

● MODBUS-RTU Protocol

● Communicate with Inverter to realize anti-reflux Function

 Current Transformer

● Paired with external split core CT

● Rated Voltage: AC 100V, 400V
D10-Φ10mm,80A
D16-Φ16mm,120A
D24-Φ24mm,200A
D36-Φ36mm,300A

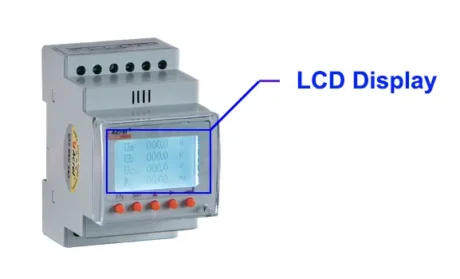

 LCD Display

● Parameter Display

● Programming Interface

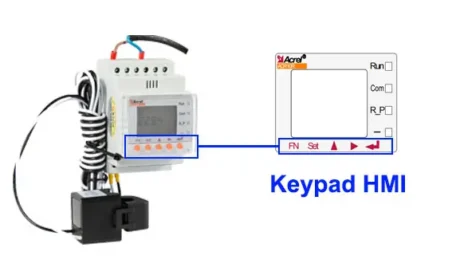

 Keypads HMI for Programming

● Parameter Display Setting

● Communication(address, baud rate and etc.)

Parameter

What’s the Parameter of the Acrel ACR10R-120A Single & Three Phase Power Meter 120A with CT for Solis & Alpha ESS?

Technical parameters Indicators
Input Net work 1-phase; 3-phase 3-wire,3-phase 4 wire
Frequency 45~65Hz
Voltage Rating:AC 57.7V/100V(100V)、220V/380V(400V)
Overload:1.2-fold rating(continuous);2-fold rating/1second
Consumption:<0.2VA
Current Rating: 80A,120A,200A .etc(See specific product specifications,special parameters can be customized)
Overload:1.2-fold rating(continuous);10-fold rating/1 second
Consumption:< 0.2VA
Output Electric energy Output mode:Open-collector photocoupler pulse,two way output
Three-phase Pulse constant:4000、8000imp/kWh
Communication RS485 interface,Modbus-RTU Protocol
Display mode LCD
Function Switching Input Four way dry contact input
Output Output mode: two way relay nO contact output
Contact capacity:AC 250V/3A、DC 30V/3A
Measuring accuracy Frequency0.05Hz、reactive electric energy1class、other 0.5class
Power supply AC85~265V or DC100~350V;DC24V(±10%);DC48V(±10%)

Consumption≤10VA

Safety Power-frequency withstand voltage Power frequency withstand voltage between Auxiliary power and switch volume output and current input and voltage input and communication and pulse output and switch volume input terminal is AC2kV 1min;Power frequency withstand voltage between auxiliary power and switch volume output and current input voltage input terminal is AC 2kV/1min;Power frequency withstand voltage between communication and pulse output and switch volume input terminal is AC 1kV/1min;
Insulation resistance Input,Output terminal to housing>100MΩ
Environment Working temperature:-10℃~+55℃;Storage temperature:-20℃~+70℃

Relative humidity:5%~95% No condensation;Altitude:≤2500m
