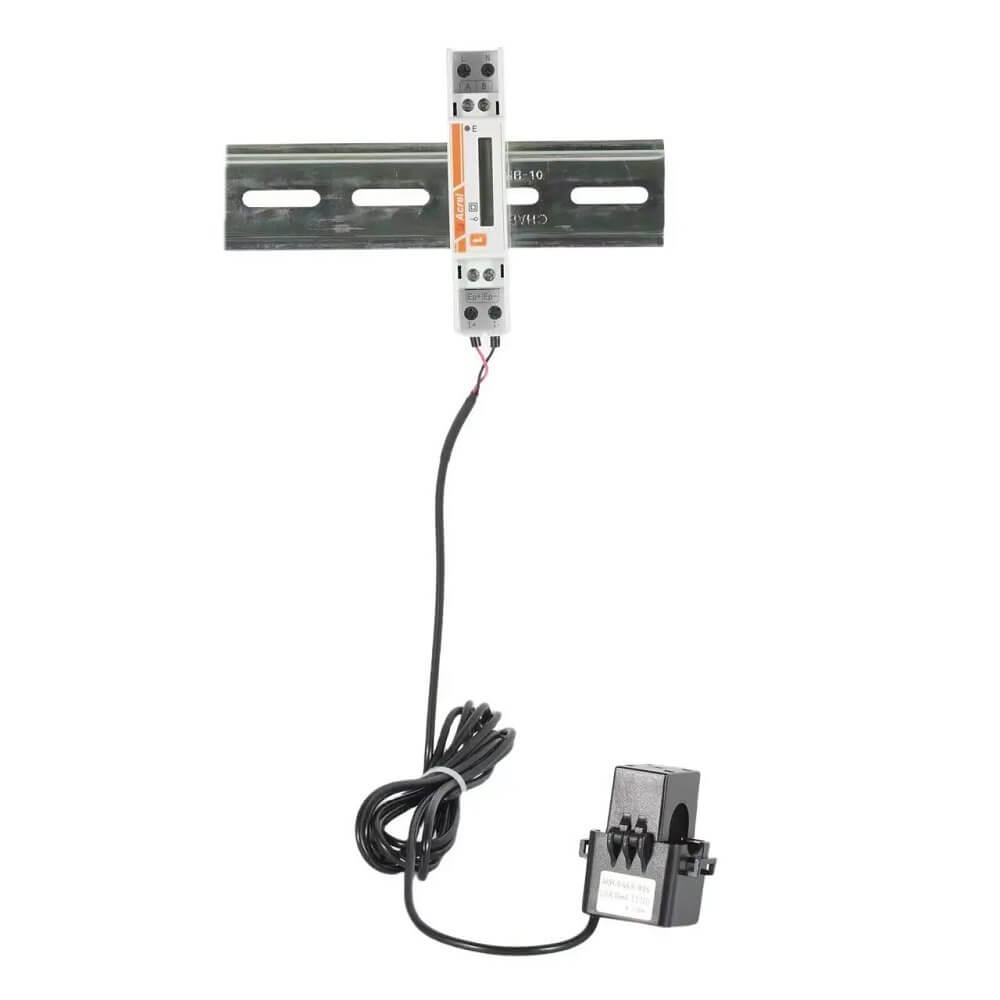

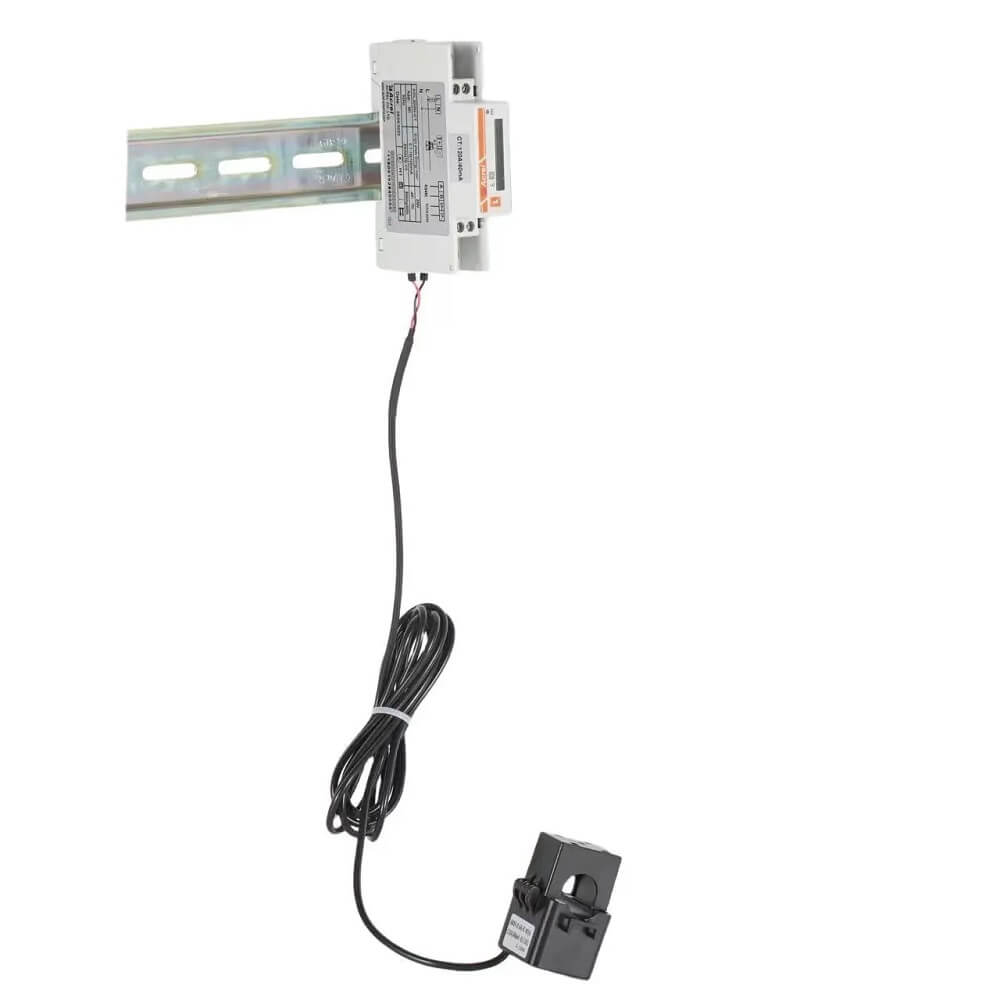

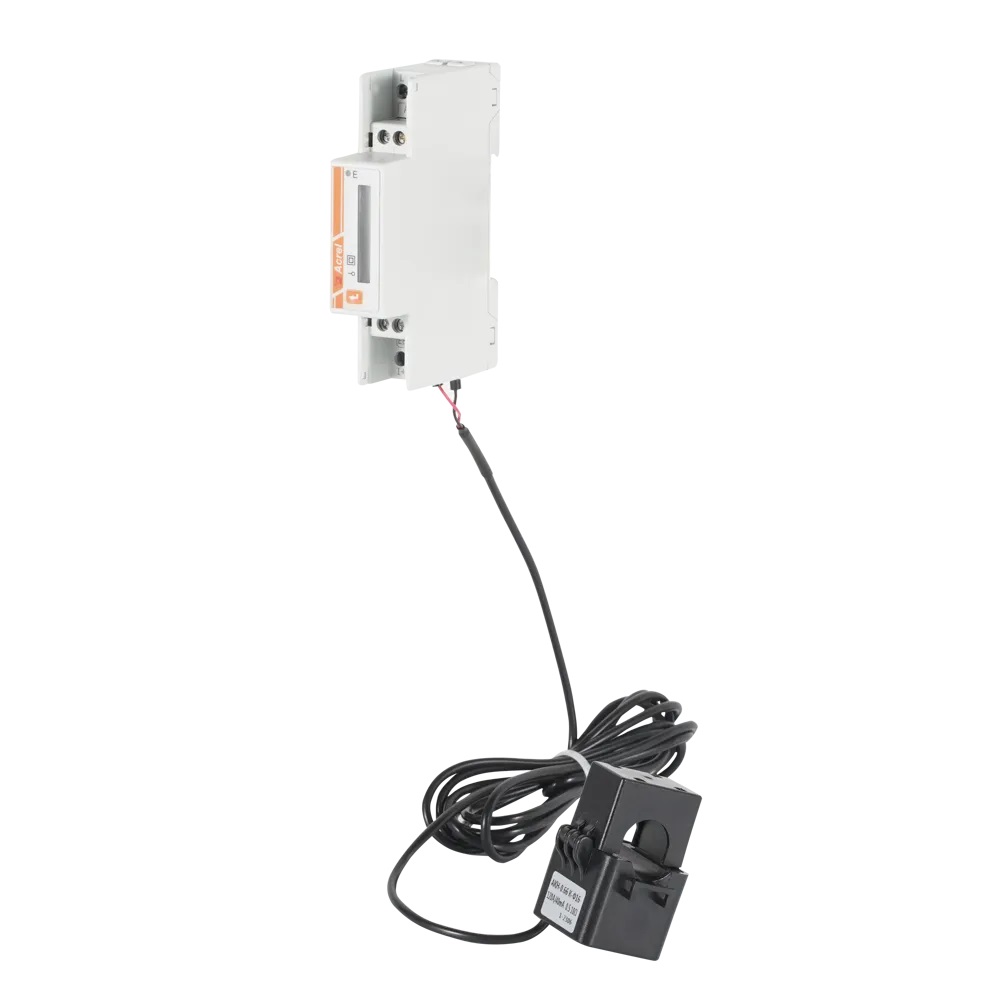

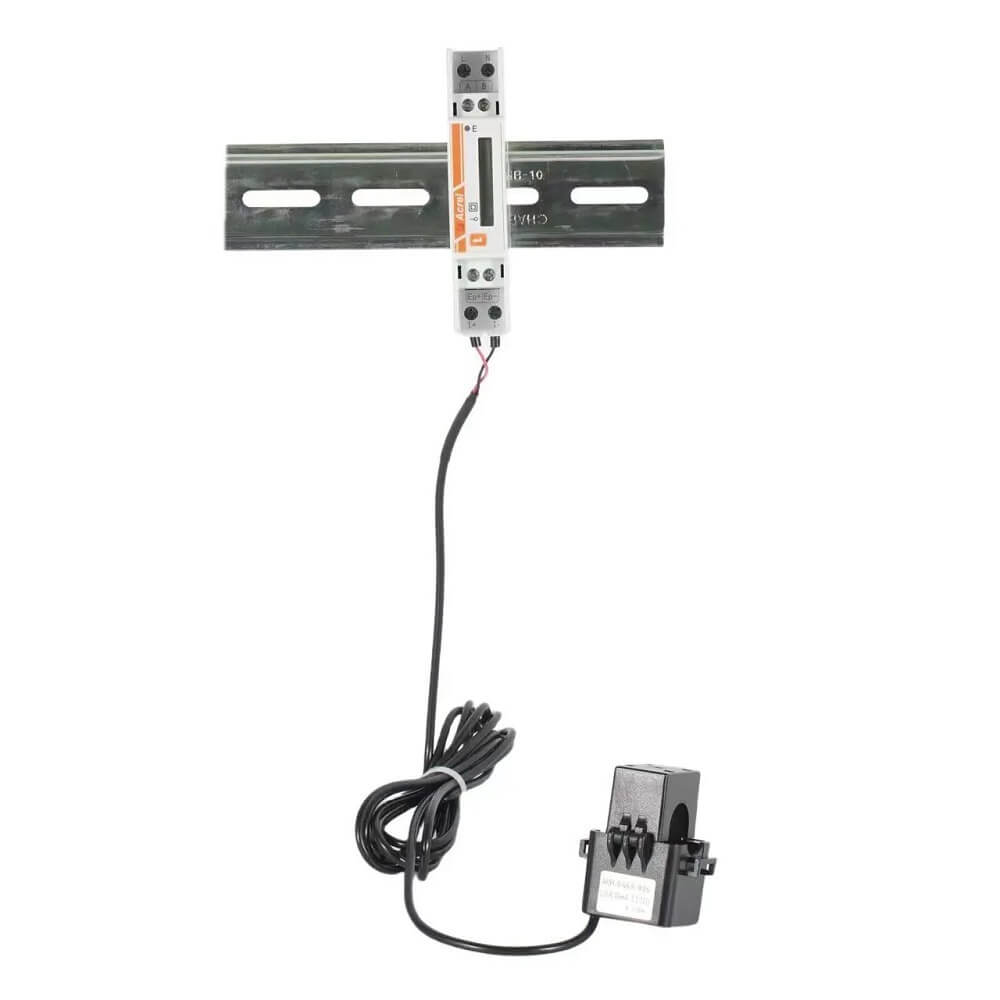

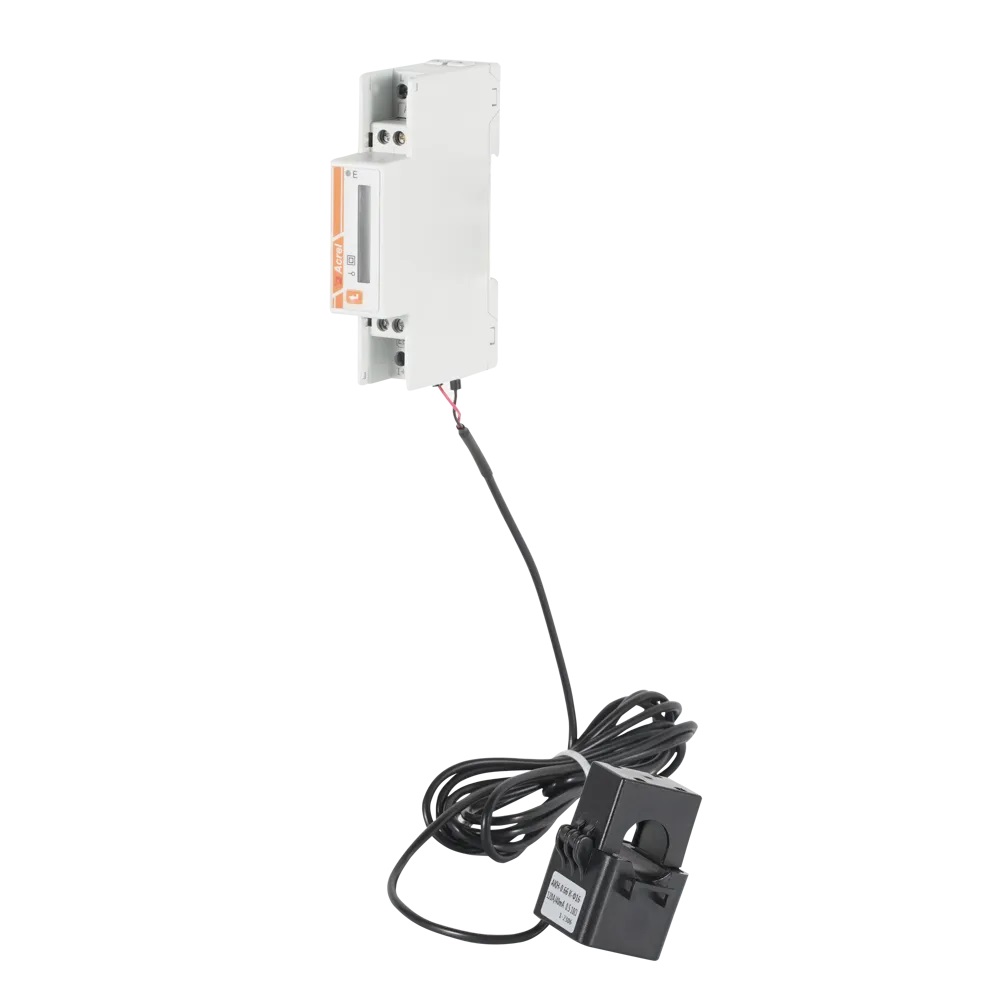

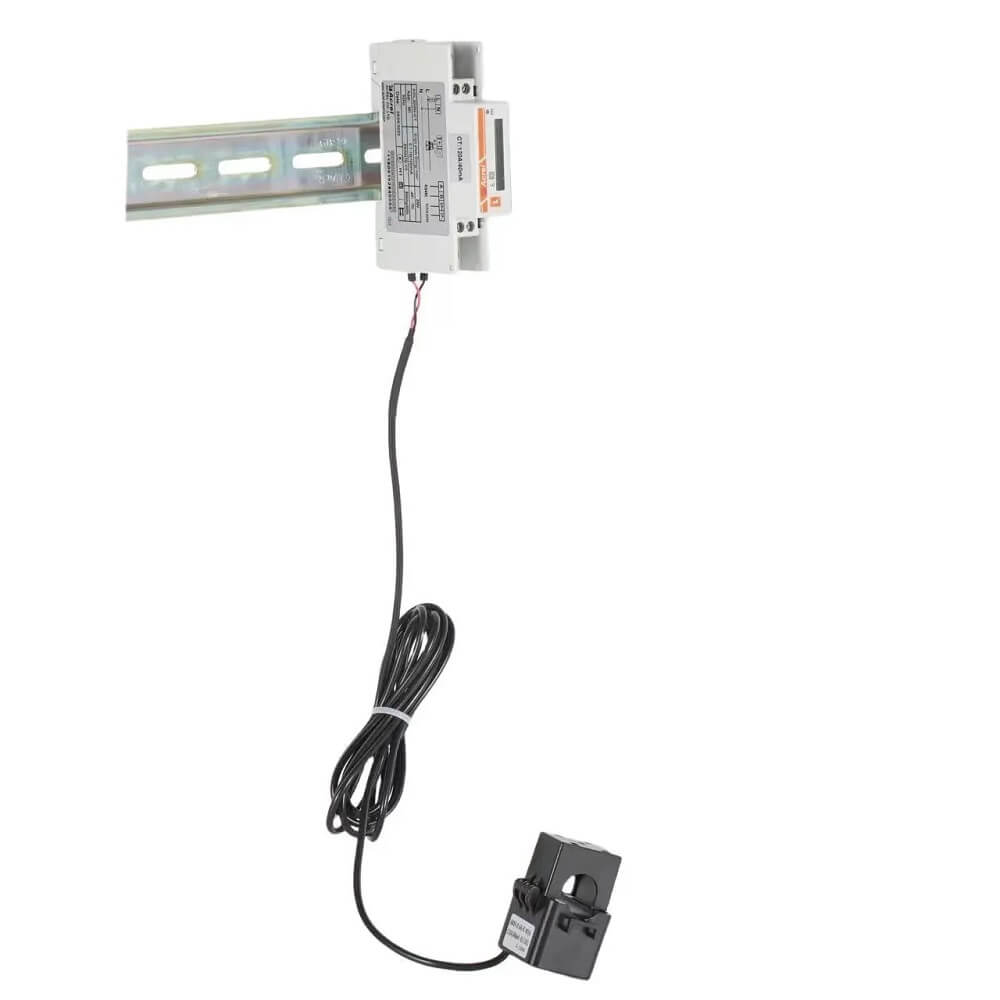

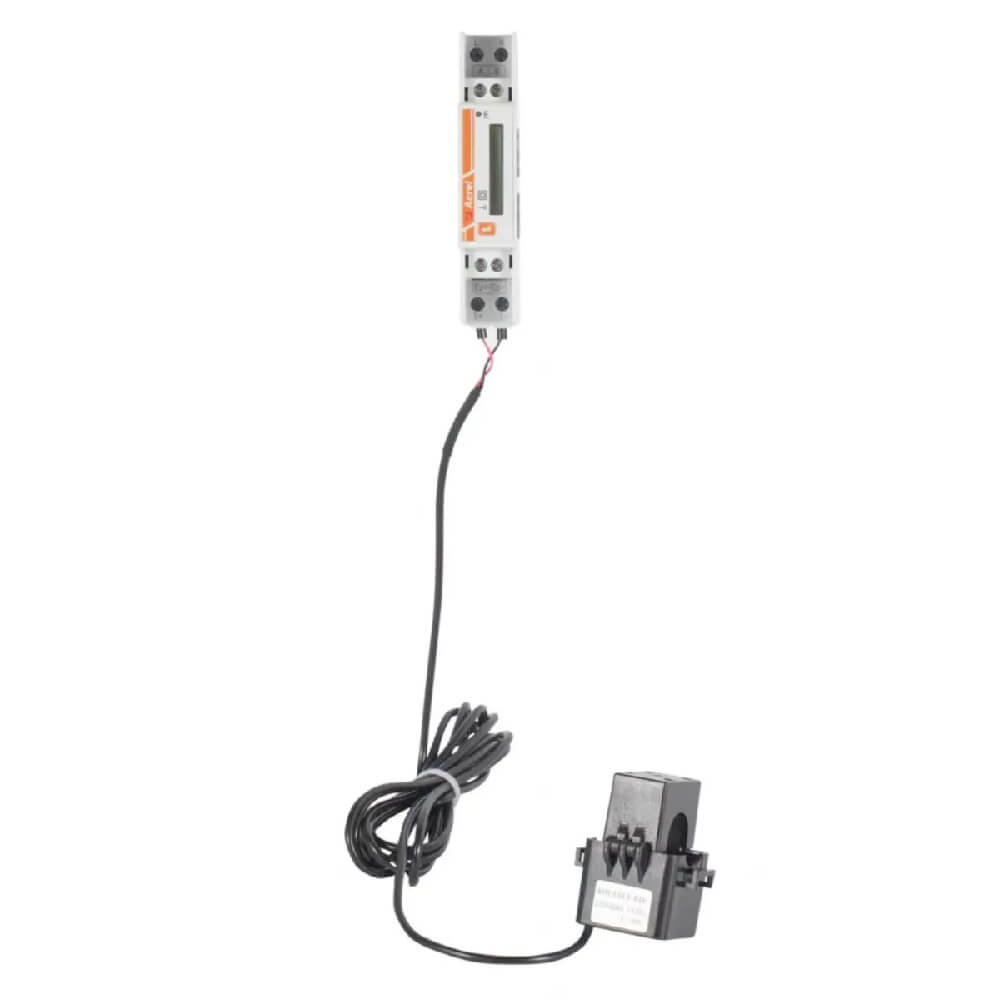

ADL200N-CT Single-phase Power Meter & CT with 1P Size

ADL200N-CT

  • U, I, P, Q, S, PF, F
  • single phase with
    80A, 120A, 200A, 300A CT
  • response ≤ 100ms
  • Modbus-RTU
Chat Online Leave Message

Highlight

What’s the Highlight of Acrel ADL200N-CT Single-phase Power Meter & CT?

Function

  • U, I
  • P, Q, S, PF, F
  • Active energy (forward and reverse)
  • Reactive energy (forward and reverse)

Input Current

  • 80A / 26.6mA
  • 120A / 40mA
  • 200A / 66.6mA
  • 300A / 100mA

Response Time

  • U, I, P ≤ 100ms

 Communication

  • Protocol: Modbus-RTU
  • Interface: RS485

Parameter

What’s the Parameter of Acrel ADL200N-CT Single-phase Power Meter & CT?

Model Series ADL200N-CT
Grid Single Phase
Rated Voltage 230V
Input Current 80A, 120A, 200A, 300A
Power Active, reactive, apparent power, error ±0.5℅
Grid Frequency 45~65Hz, error ±0.5%
Response Rate ≤100ms (voltage, current, power)≤1s (electrical energy)
Electric energy Active energy ：Class B (split current transformer) /Class C (closed current transformer) Reactive energy (Class 2 accuracy)
Electrostatic discharge immunity class III
Electrical fast transient burst immunity class IV
Surge (shock) immunity Class IV
Input and output terminals to casing >100MΩ RS485 interface and Modbus RTU protocol
Communication address range Modbus RTU:1~ 247；
Baud rate Support 1200bps-38400bps
Certificate MID CE UL

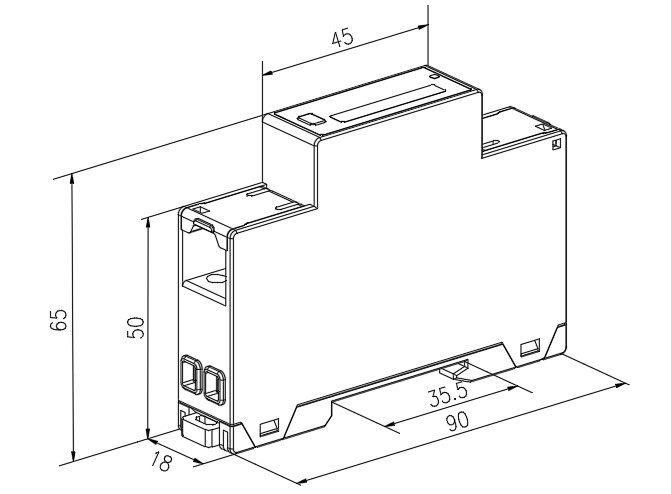

Diamension

What's the Diamension of Acrel ADL200N-CT Single-phase Power Meter & CT?

K-Φ10 CT 80A/26.6mA
CT 200A/66.6mA
K-Φ16 CT 120A/40mA
CT 300A/100mA

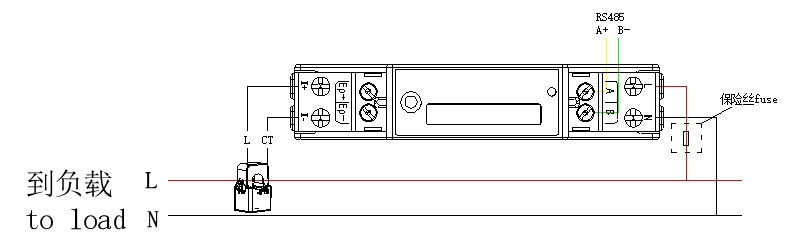

Wiring

How to Wire the Acrel ADL200N-CT Single-phase Power Meter & CT?
