AMC300L-4E AC Panel Power Meter with 4 Circuits

AMC300L-4E

  • 4 Three-phase
  • 12 Single-phase
  • 6DI/2DO
  • Modbus-RTU

Feedback

What Do Our Customers Say?

  • “ During the time I have worked with Acrel on this project, I have found Acrel and its team to be highly knowledgeable and results-driven. Based on preliminary pilot testing and a strong understanding of subsurface. ”

    Derek AuCoin

    Derek AuCoin 

    Defence Construction Canada

  • Acrel is one of the best supplier for me. They are so easy to communicate and very friendly. They even give an online tour of their factory. Looking forward for more business together in the future.

    Liezel 

    Philippines

  • My first contact with ACREL was through Mrs. Feeling Chang. He was extremely friendly, approachable and very helpful. It will be the beginning of a long partnership between Bikoelectronics and Acrel.

    Vanessa 

    Portugal

  • “ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

    Arnold 

    Philippines

  • Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

    Tuan 

    Vietnam

Highlight

What’s the Highlight of Acrel AMC300L Series AC 4 Three-phase or 12 Single-phase Multi Circuit Panle Meter for Cell Site?

Function

  • Monitor: Grid, Generator, Air Conditioner, Lighting, etc
  • Active 2DI + Passive 4DI + 2DO

Circuit

  • Up to 4 channels of Three-phase
  • or 12 channels of Single-phase
  • mA Class Current Sensor

Power Supply

  • AC 85-265V
  • DC 85-265V

 Communication

  • Protocol: Modbus-RTU
  • Interface: RS485

Parameter

What’s the Parameter of Acrel AMC300L Series AC 4 Three-phase or 12 Single-phase Multi Circuit Panle Meter for Cell Site?

Item Index
Input Voltage Rated: AC 3*220/380V
Overload: 1.2 times/Continuous, 2 times/1s
Consumption: ≤0.5VA/Circuit
Current RatedAC100A
Overload: 1.2 times/Continuous, 10 times/1s
Consumption: ≤0.5VA/Circuit
Frequency 45-65Hz
Function Communication Modbus-RTU; Baud Rate:1200~38400
Pulse Output mode: open collector optocoupler pulse
DI 4 dry contact inputs, 2 active (AC 220V input)
DO Relay normally open contact output; contact capacity:
AC 250V/3A DC 30V/3A
Temperature -20℃~100℃, accuracy:±2
Accuracy Frequency:0.05Hz, Voltage&Current:0.5 class, Active Power:1 class
Auxi. Power AC/DC 85265VConsumption≤10VA
Security Withstand >AC 2kV/1min
Insulation Input and output terminals to the chassis>100MΩ
Working Enviroment -20℃~+60
Electromagnetic Compatibility better than grade 3

Network

How does the Acrel AMC300L Series AC 4 Three-phase or 12 Single-phase Multi Circuit Panle Meter for Cell Site?

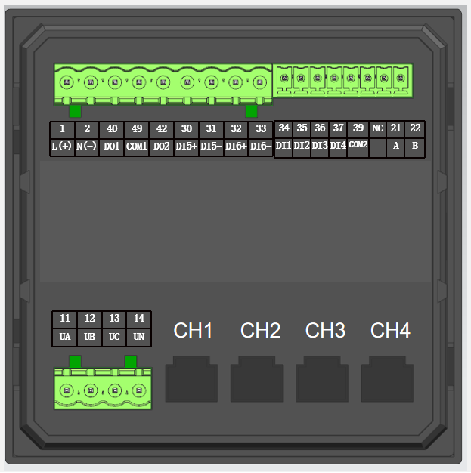

Installation

How to Install the Acrel AMC300L Series AC 4 Three-phase or 12 Single-phase Multi Circuit Panle Meter for Cell Site?

Request Information & Quotation

Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]

If you have more detailed requirements, Please go to the relevant product page to submit the form.

Why choose Acrel?

  • 2003 Established
  • SZ.300286 Listed Company
  • 1200+ People
  • 25000+㎡ Plant
  • Factory Direct-sale

FAQ

Got a Question? Get your Answer

What are the Main Advantages of Acrel?

We have our own Factory and R&D Center

What are the Difference between Acrel and other Brands?

Rich product series: Cloud Platform, Gateway, Protection Device, Power Meter, Transformer

What Certificates does the Company have?

CNAS, ISO14001, ISO27001, ISO9001

What Certificates do the Products have?

CE, IEC, MID, UL, EAC, ROHS, REACH

How Expensive is Acrel Products?

Competitive Price with High Quality

How long is the product Warranty Period?

2 Years

What is the MOQ?

Purchasing according to your needs, no MOQ limit

How long is the Lead Time?

Sample takes 3 days; Bulk purchase takes 1 month
