AMB100 Busway Plug-in unit Temp. Monitoring System

AMB100 is used to monitor the operating status of the Busway
including the End-tap box, plug-in box and connector parts,
monitor switch status, alarm status, voltage, current, power and energy, as well as pin temperature, connector temperature and other parameters
realize centralized display through HMI to improve the safety and reliability of power distribution.
our customers: Vertiv, Eaton, Siemens

Highlight

What’s the Highlightsn of Acrel AMB300 Infrared Busway joint Temp System - Non-contact Online Monitoring?

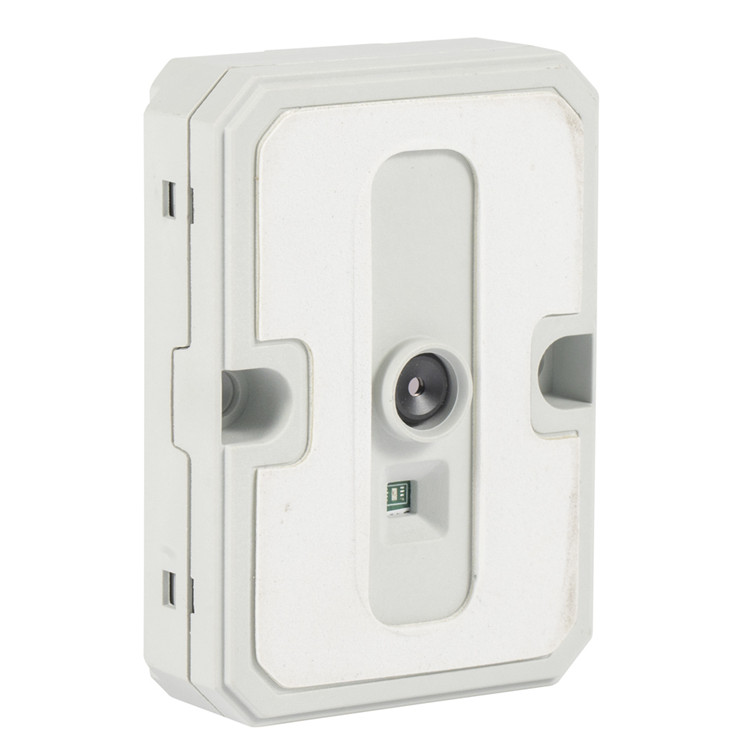

Non-contact Sensing

Range: -10℃ ~ 150℃
Accuracy: ±3℃ (-10℃~85℃) / ±5℃ (85℃~150℃)
Supports area array (AMB300-Z) or spot measurement (AMB300-D4/15)

Two-wire Bus Efficiency

1x AMB310 hub supports 2 bus lines, max 80 modules per line
Bus length ≤250 meters (Requires Cat6 oxygen-free copper cable)
Connectivity: RJ45 port or clip-on terminal (for 1.5mm² wire)

Communication Protocol

AMB310 output: RS-485 Modbus-RTU
Default: 57600bps, 8 data bits, no parity
CRC16 error check supported

Environmental Compliance

Protection: IP51
Operating temp: -20℃ ~ 85℃
EMC: IEC 61000-4-2 Level 4 / IEC 61000-4-4 Level 4

Application

What’s the Application of Acrel AMB300 Series Infrared Temp Sensor?

Projects

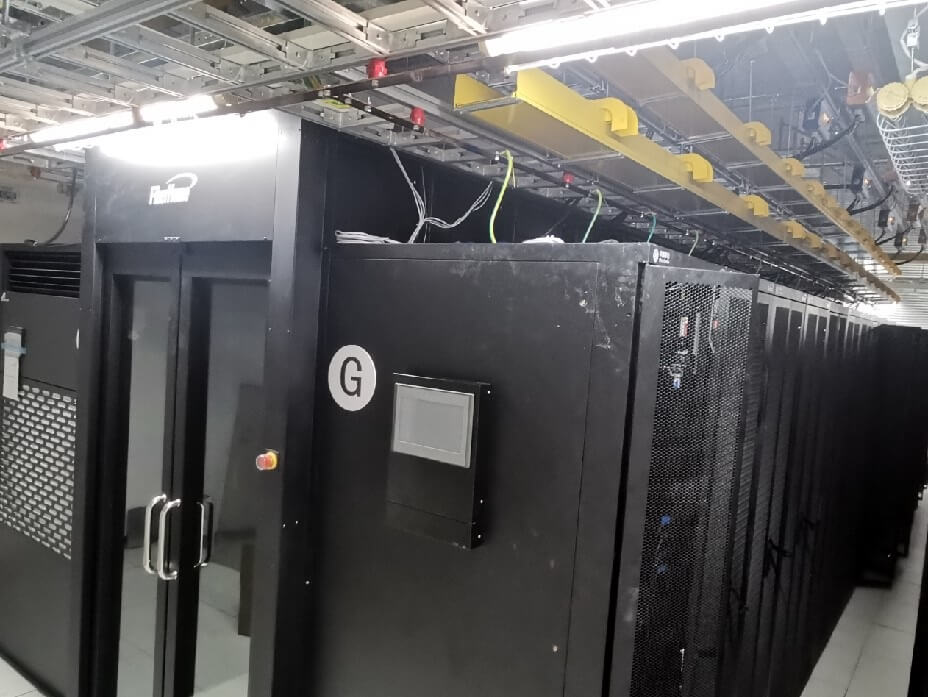

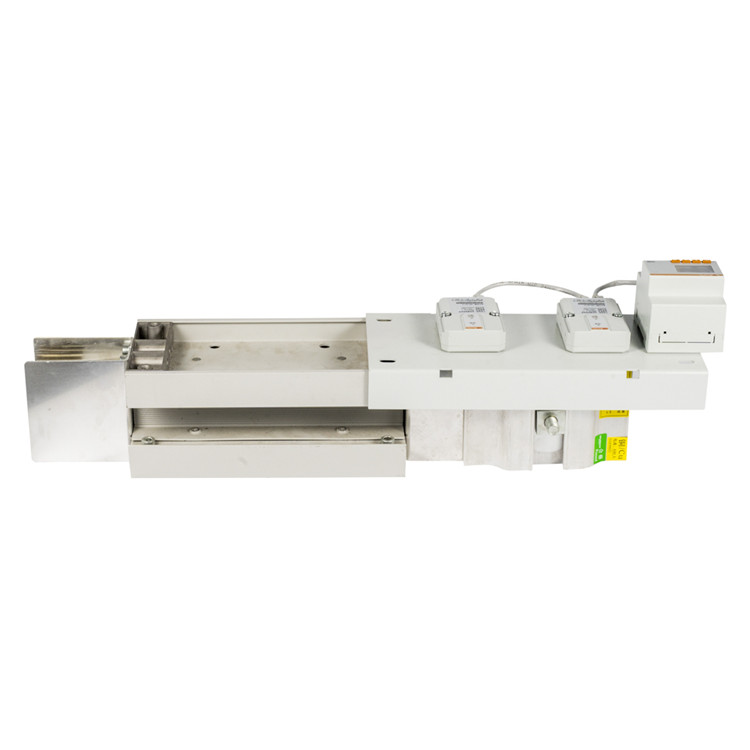

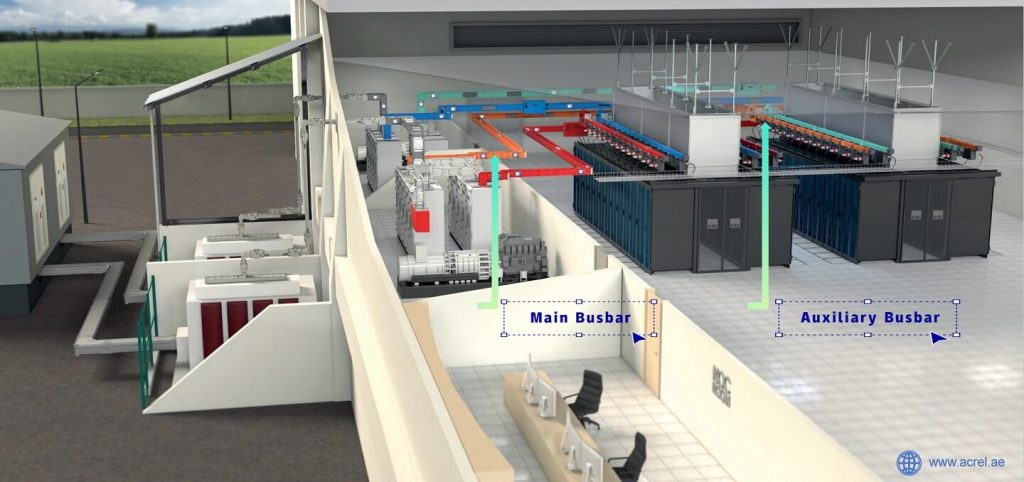

AMB300 Infrared Thermometry Solution for China Mobile Data Center Busway

Request Information & Quotation

Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]

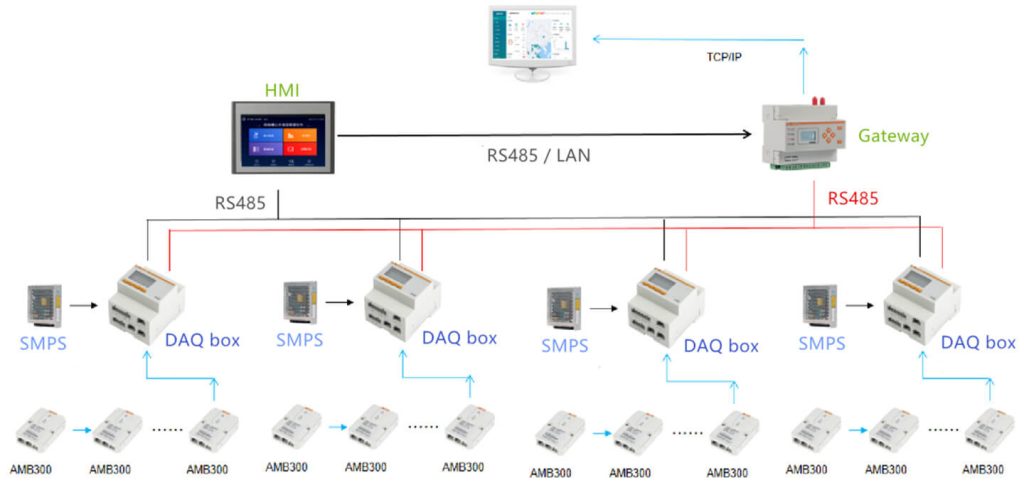

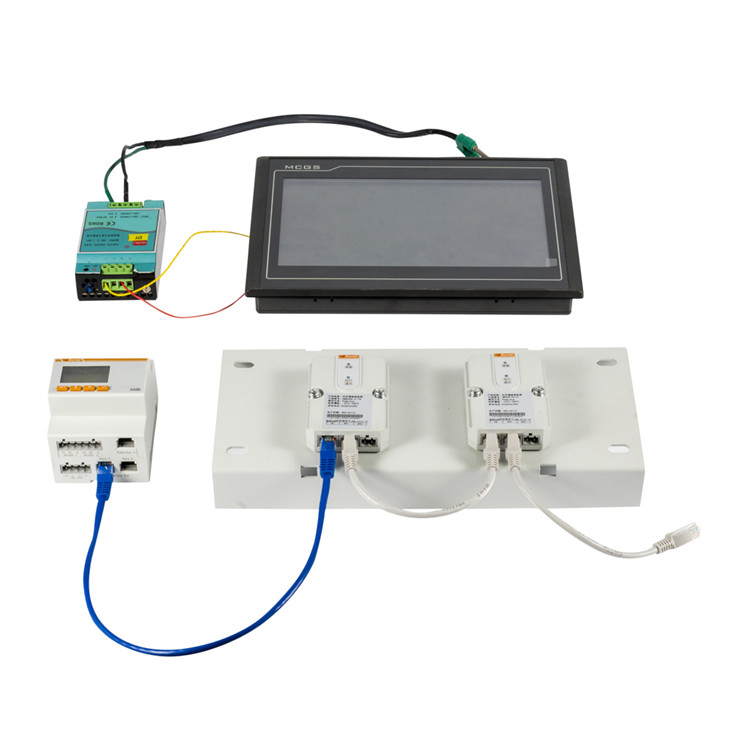

Topology

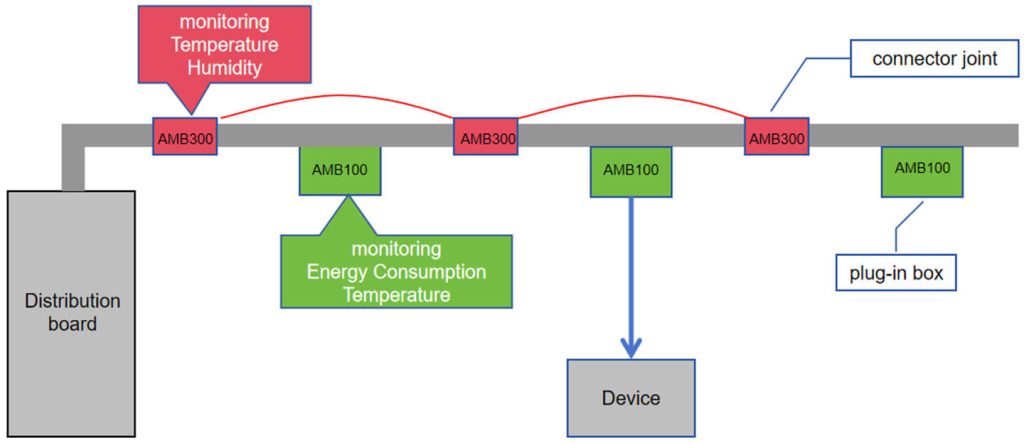

Structure

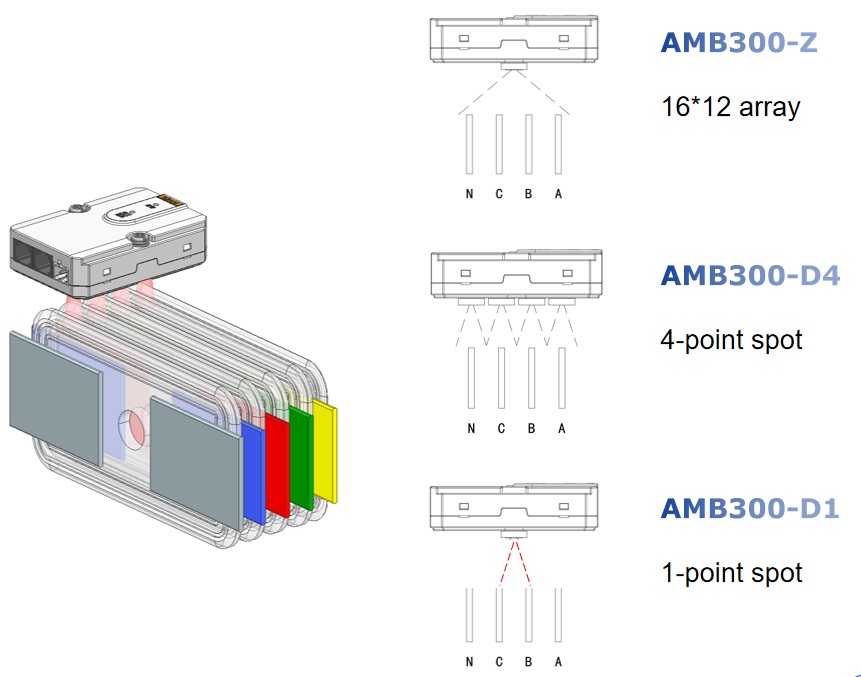

Principle

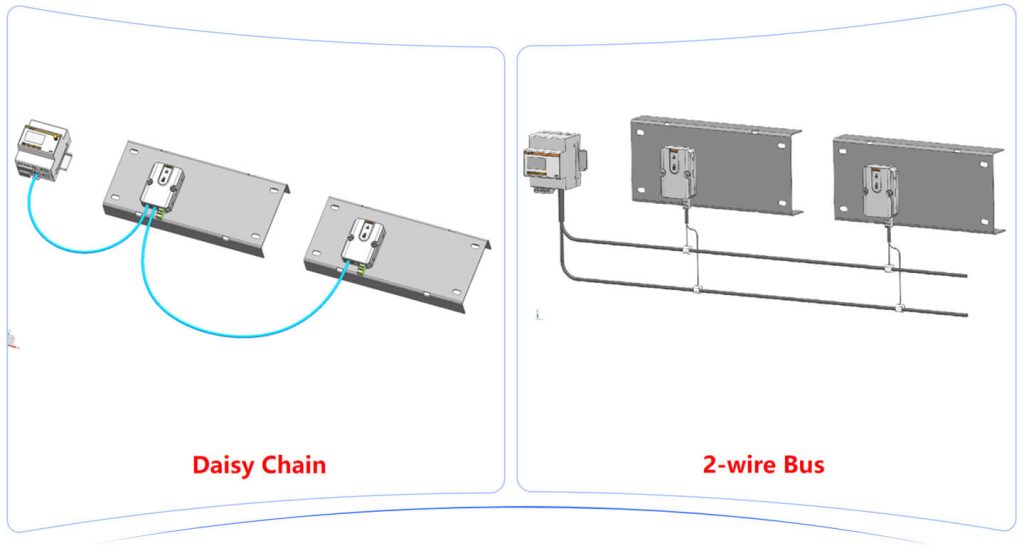

Wiring

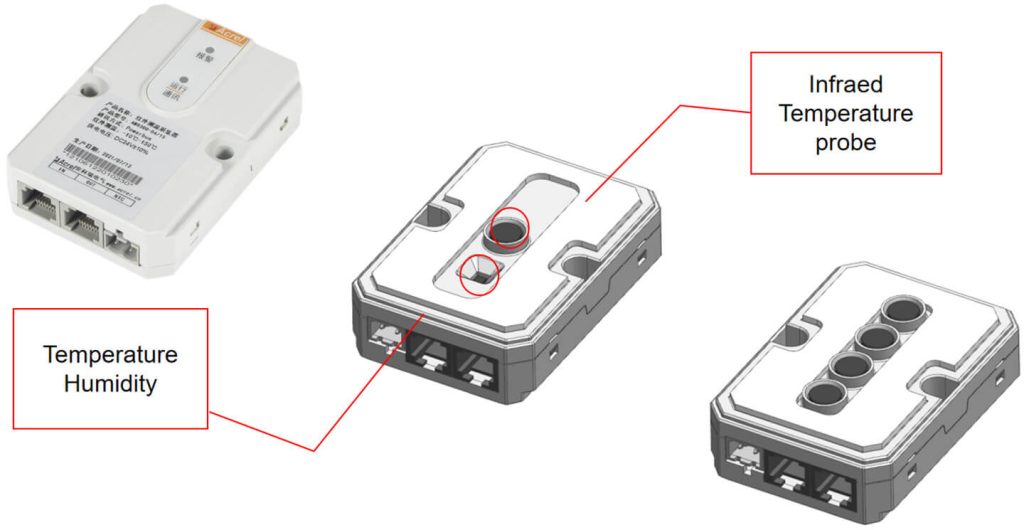

Module

Specification

What’s the Specification of Acrel AMB300 Series Infrared Temp Sensor?

Model	Measurement Type	Function
AMB300-Z	Area array temp	Monitors 1 zone, displays max 4 temperatures
AMB300-Z-T	Area array temp, Clip-on terminals
AMB300-Z-TH	Area array temp, Clip-on terminals, Humidity

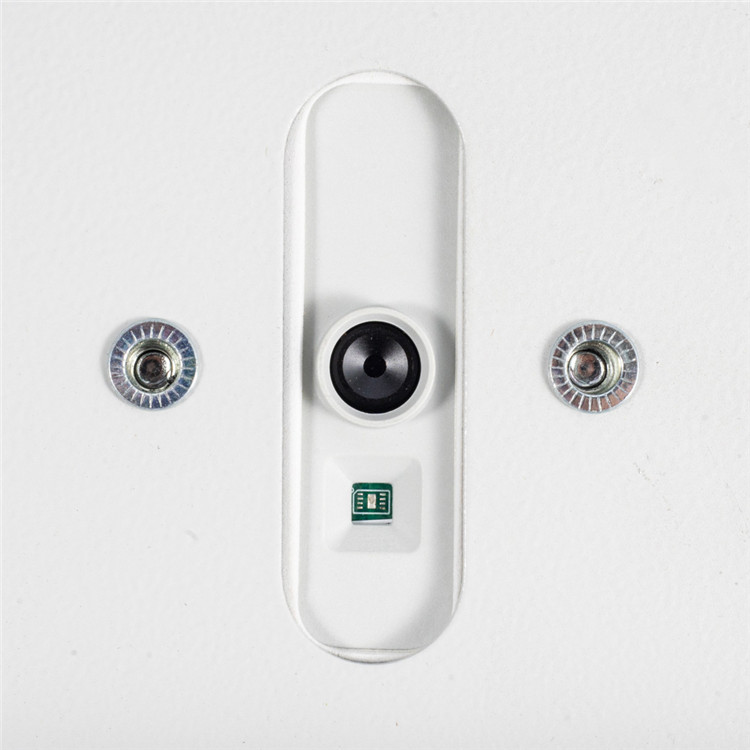

AMB300-D1	1-point spot temp	Monitors 1 point
AMB300-D1-T	1-point spot temp, Clip-on terminals
AMB300-D1-TH	1-point spot temp, Clip-on terminals, Humidity

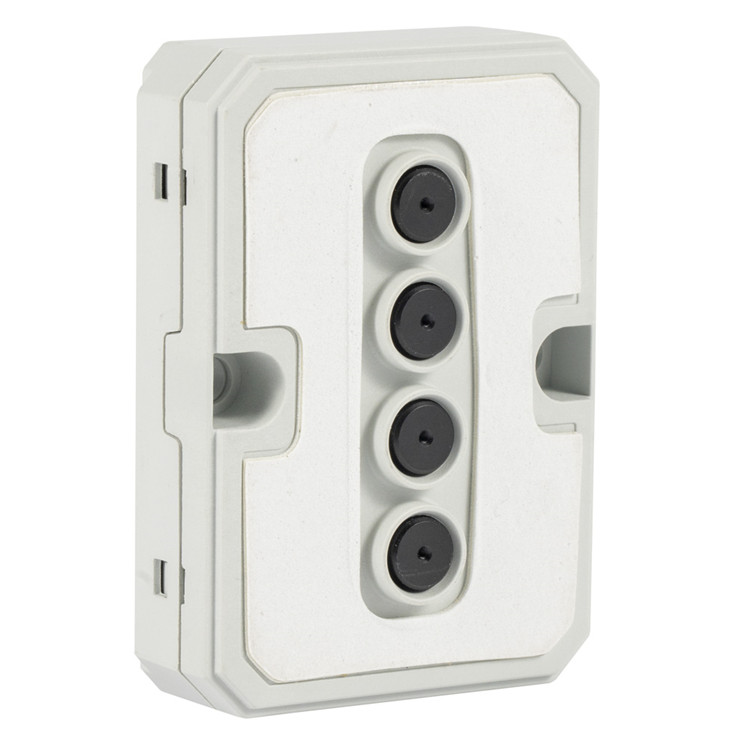

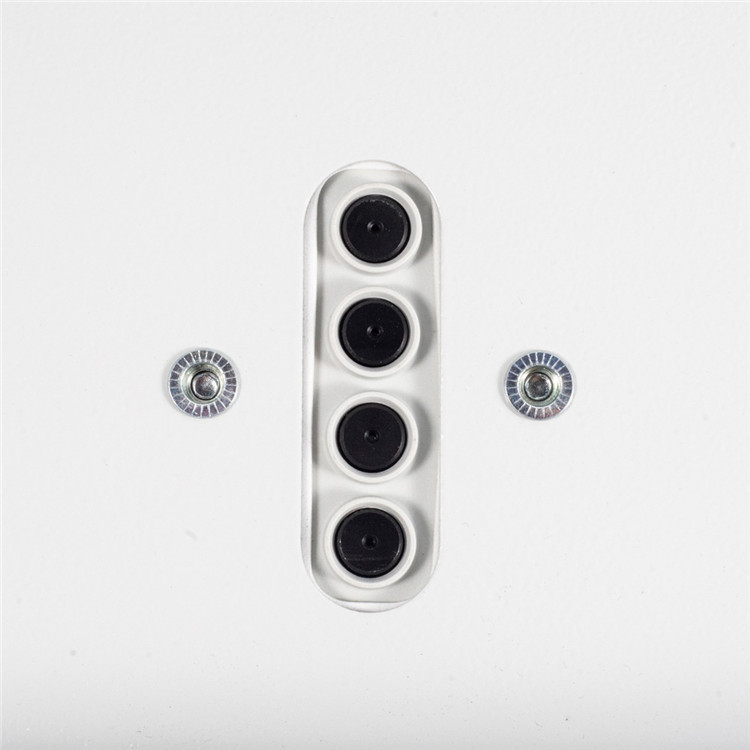

AMB300-D4/15	4-point spot temp	15mm probe spacing, independent monitoring
AMB300-D4/15-T	4-point spot temp, Clip-on terminals	15mm probe spacing, independent monitoring

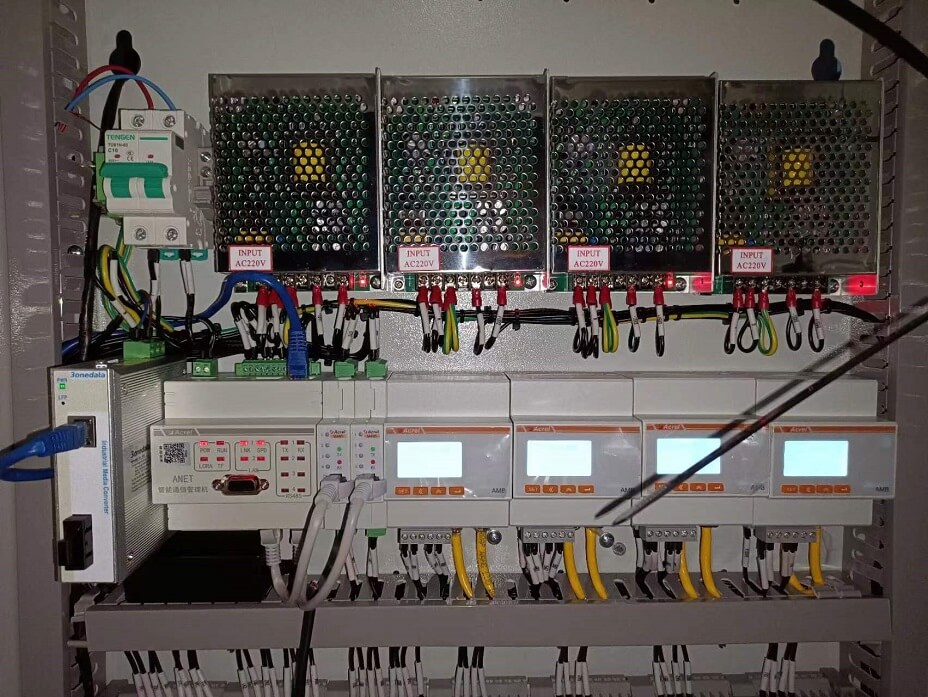

AMB310	Data aggregation	2x two-wire bus in, 80pcs AMB300/channel 2x RS485 out, DC 24-30V input
