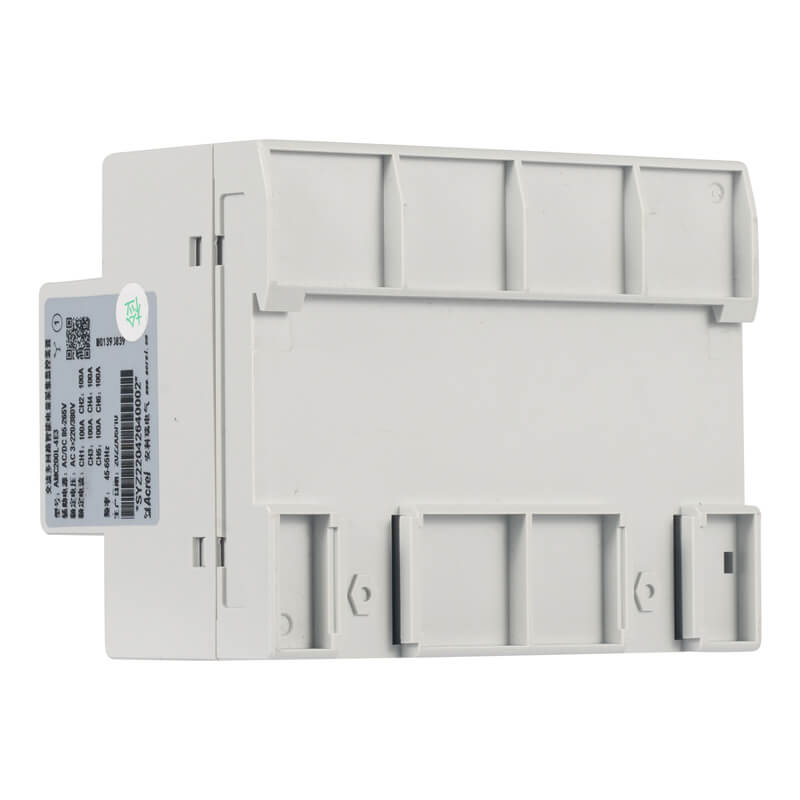

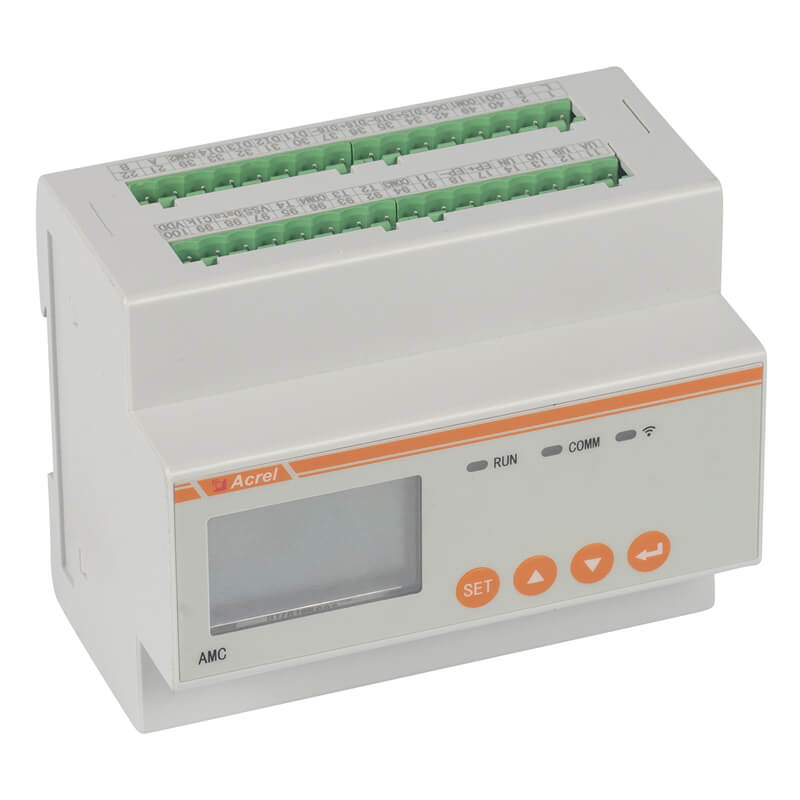

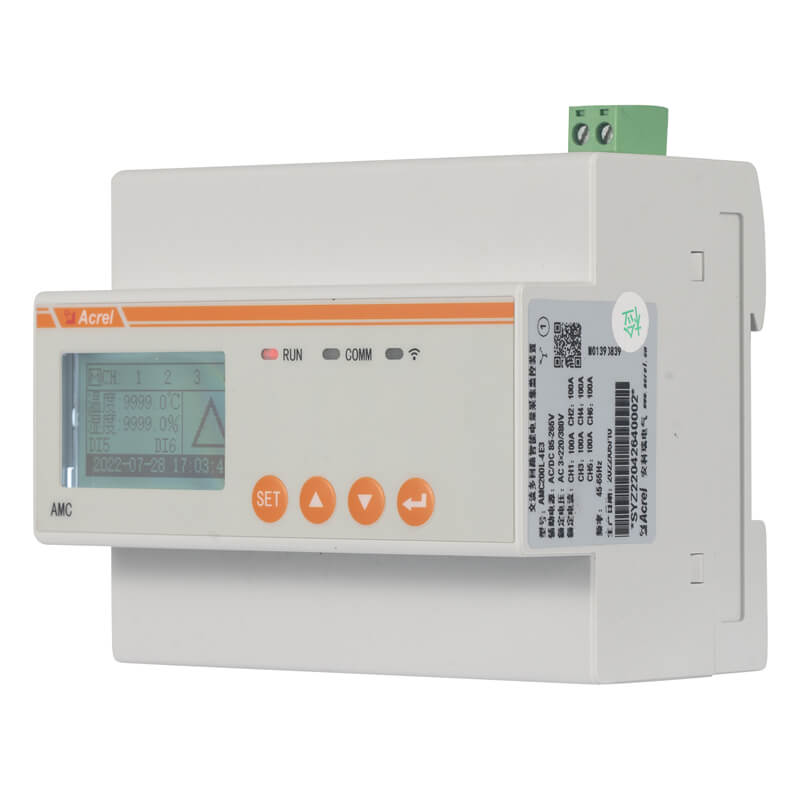

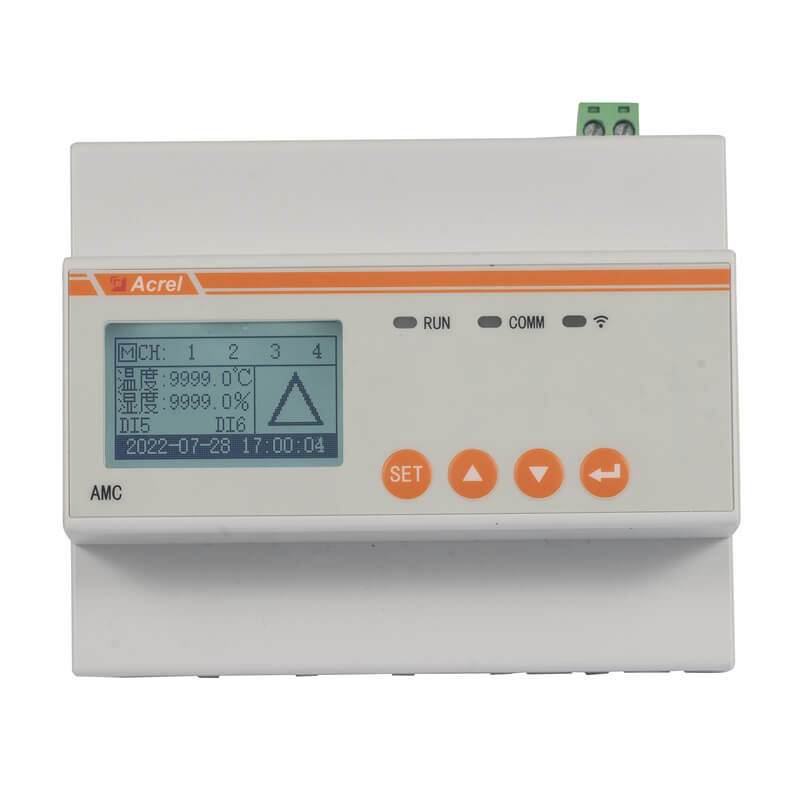

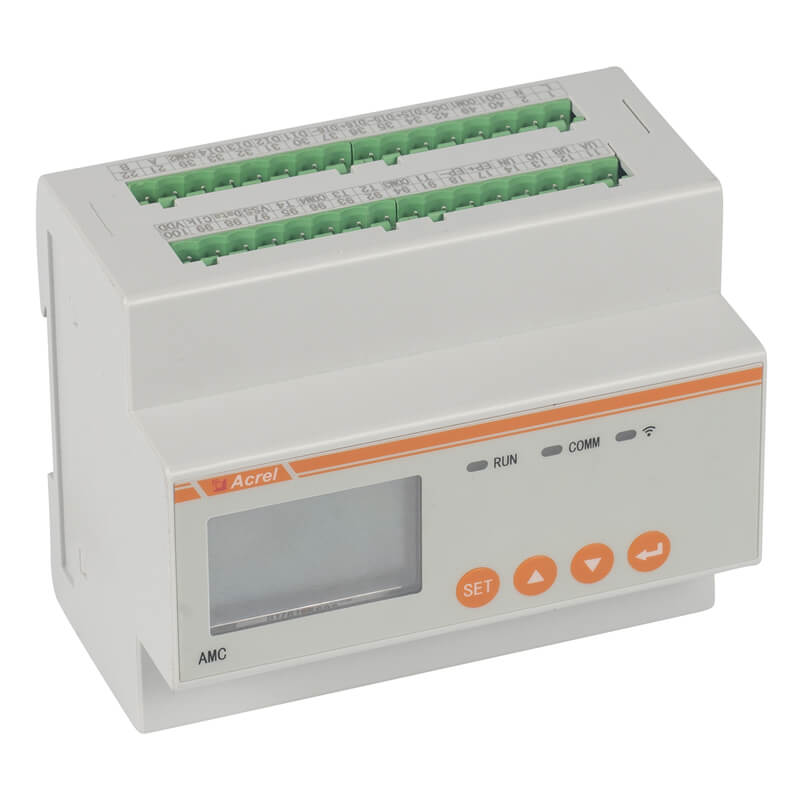

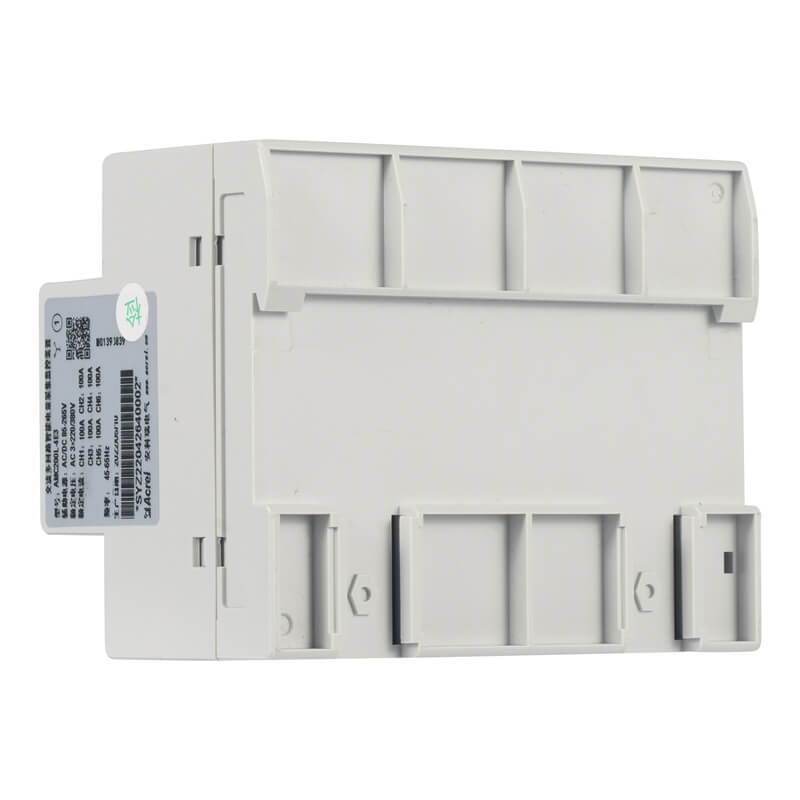

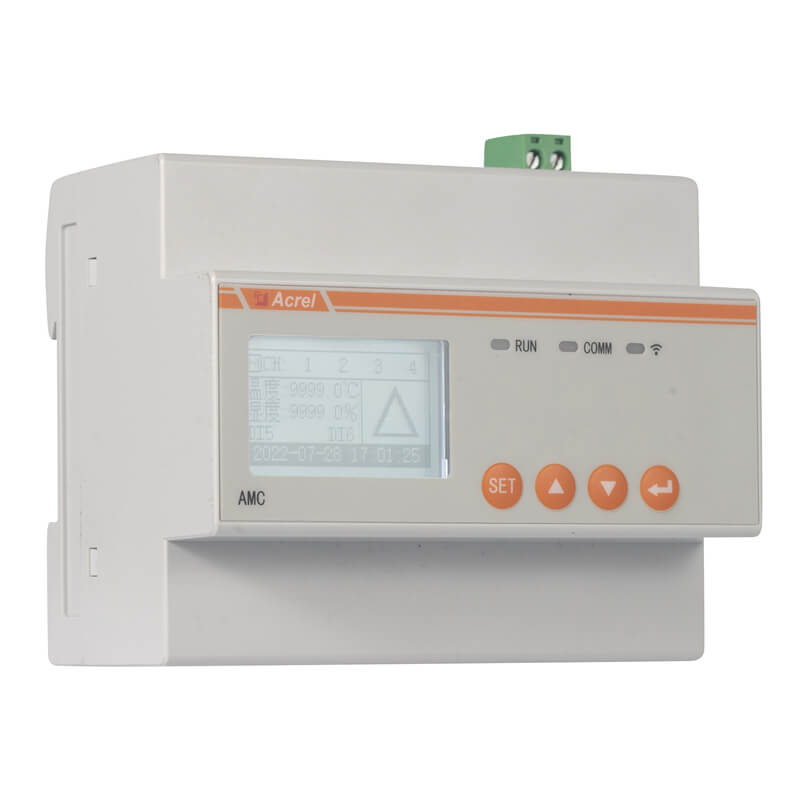

AMC200L-4/8E3 AC Power Meter with 4 or 8 Circuits RJ12

Feedback

What Do Our Customers Say?

Acrel is one of the best supplier for me. They are so easy to communicate and very friendly. They even give an online tour of their factory. Looking forward for more business together in the future.

Liezel 

Philippines
My first contact with ACREL was through Mrs. Feeling Chang. He was extremely friendly, approachable and very helpful. It will be the beginning of a long partnership between Bikoelectronics and Acrel.

Vanessa 

Portugal
“ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

Arnold 

Philippines
Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

Tuan 

Vietnam

Highlight

What’s the Highlight of Acrel AMC200L AC Power Meter with 4 or 8 Circuits?

Function

full power parameter measurement
Active 2DI + Passive 4DI + 2DO
4 NTC Temperature
1 T&H

Circuit

4 or 8 channels of Three-phase
12 or 24 channels of Single-phase
mA Class Current Sensor

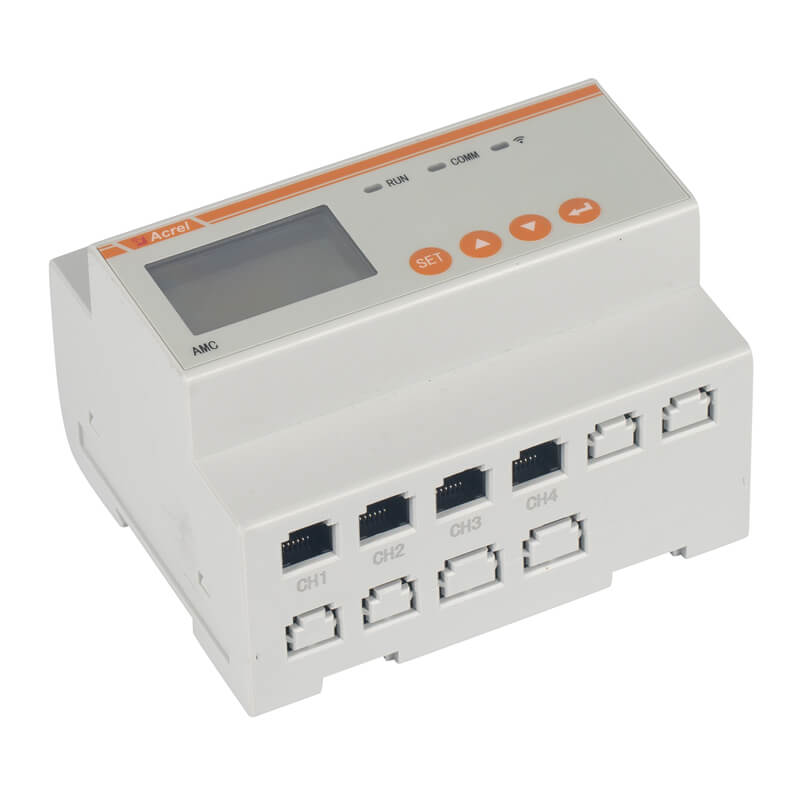

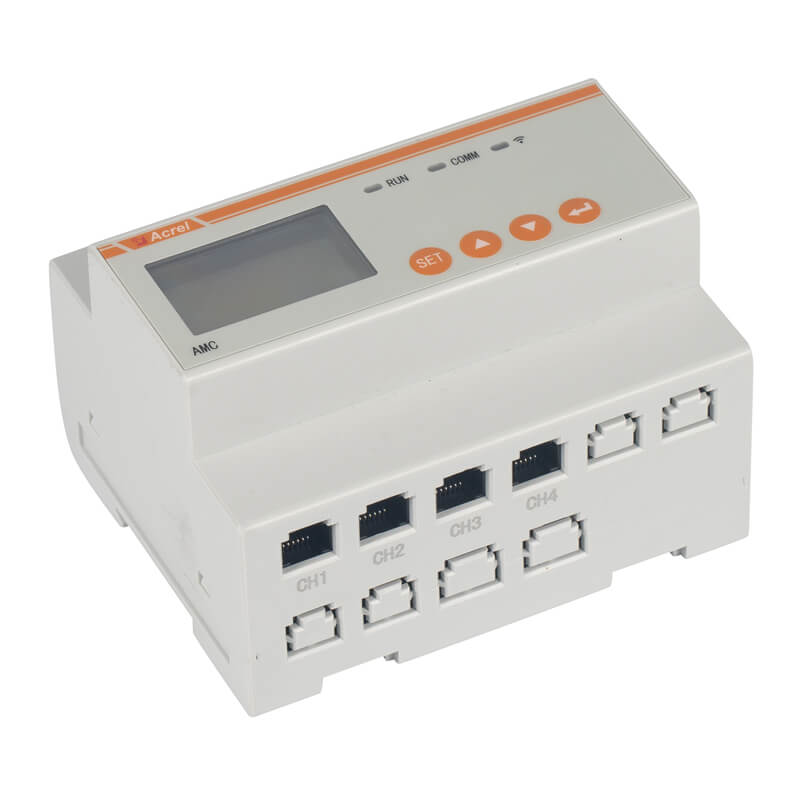

RJ12 interface

Power Supply

AC 85-265V
DC 85-265V

Communication

Protocol: Modbus-RTU
Interface: RS485

Parameter

What’s the Parameter of Acrel AMC200L AC Power Meter with 4 or 8 Circuits?

Technical Parameter				Technical Indicator
Input	Frequency			45～65Hz；
	Voltage			Rating: AC 3×220V/380V;
				Overload: 1.2 times rated (continuous); 2 times rating value/1 second;
				Power consumption: ≤0.5VA (per channel);
	Current			Rating: AC xxxA/50mA, need external transformer;
				Overload: 1.2 times rated (continuous); 10 times rating value /1 second;
				Power consumption: ≤0.5VA (per channel);
Function	Pulse Output			Output mode: open collector optocoupler pulse (default 400imp/kWh);
	Communication			Modbus-RTU or YD/T 1363 protocol(use in China);Baud rate 1200～38400;
	Switch		Input
			Output	Output mode: relay normally open contact output; Contact capacity: AC 250V/3A or DC 30V/3A;
	NTC Temperature Measurement			Temperature: -20~100℃ (accuracy ±2℃);
	Temp&Humidity Measurement			Temperature: -20~100℃ (accuracy ±2℃); Humidity: 20-90%RH (accuracy ±5%RH)
Measurement accuracy				Frequency 0.05Hz, voltage and current 0.5 level, active power 1 level;
Auxiliary power supply				AC/DC 85 ~ 265V; Power consumption ≤10VA;
Security		Power Frequency Withstand Voltage		>AC 2kV/1min；
		Insulation Resistance		Input and output end to the housing>100MΩ;
Environment				Operating temperature: -20℃ ~ +60℃; Storage temperature: -40℃ ~ +70℃; Relative humidity: ≤95% no condensation; Altitude: ≤2500m;
Electromagnetic compatibility				Surge (impact) immunity test level 4
				Electrostatic discharge immunity test level 3
				Electrical fast transient pulse group immunity test level 3

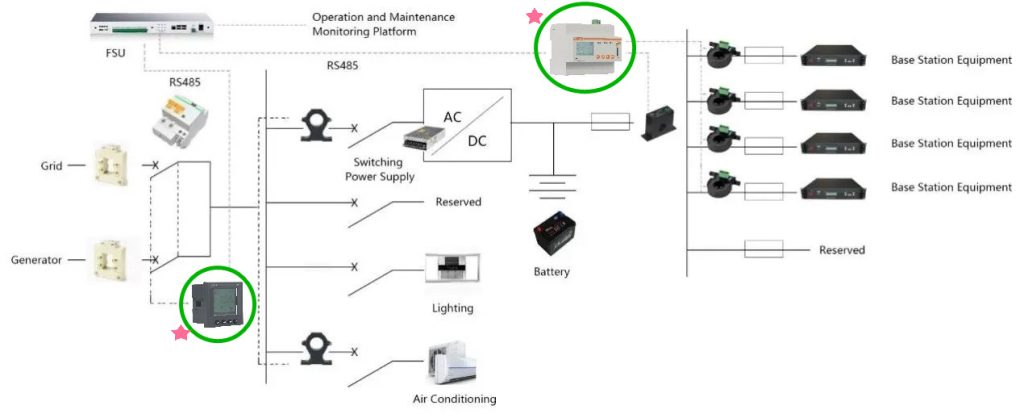

Network

How does the Acrel AMC200L AC Power Meter with 4 or 8 Circuits for Cell Site?

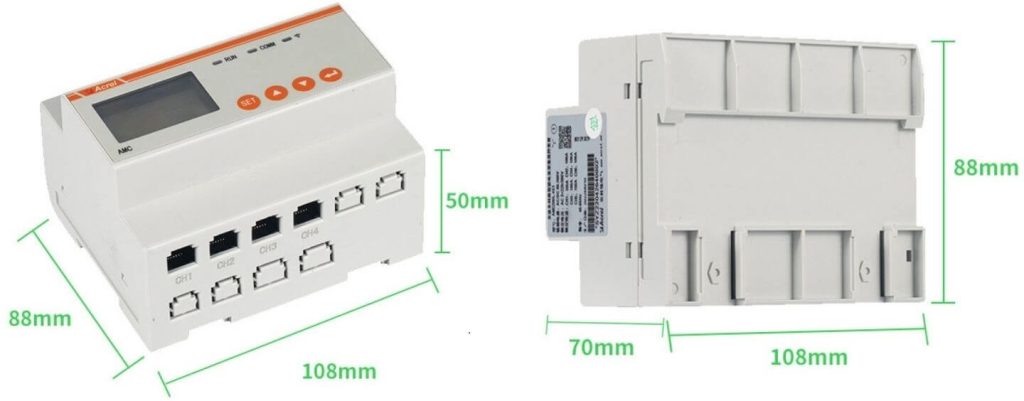

Diamension

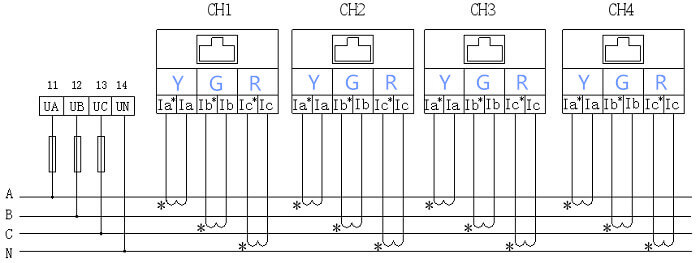

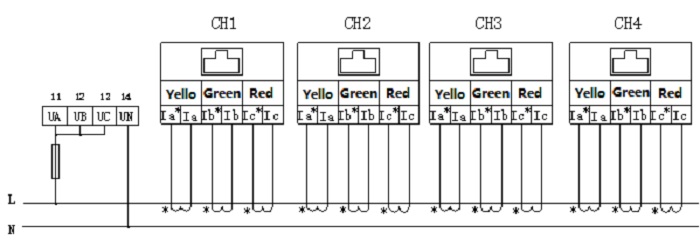

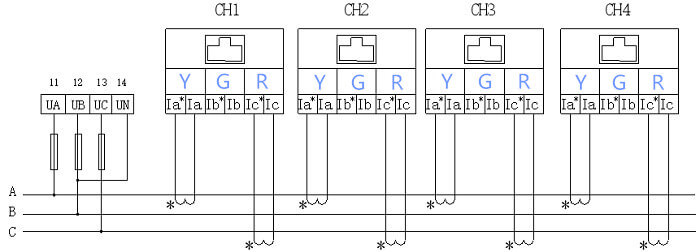

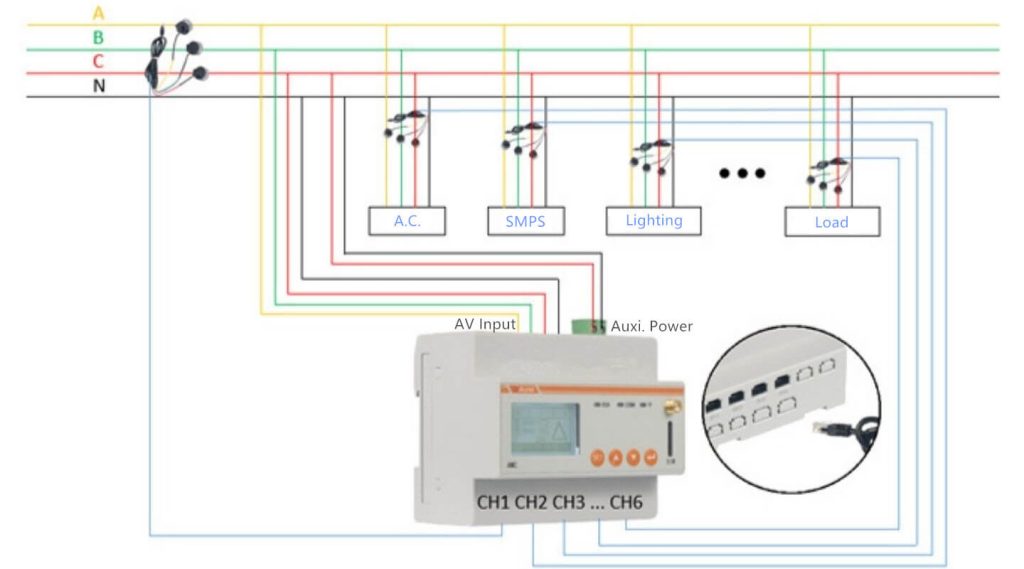

Installation

How to Install the Acrel AMC200L AC Power Meter with 4 or 8 Circuits?
