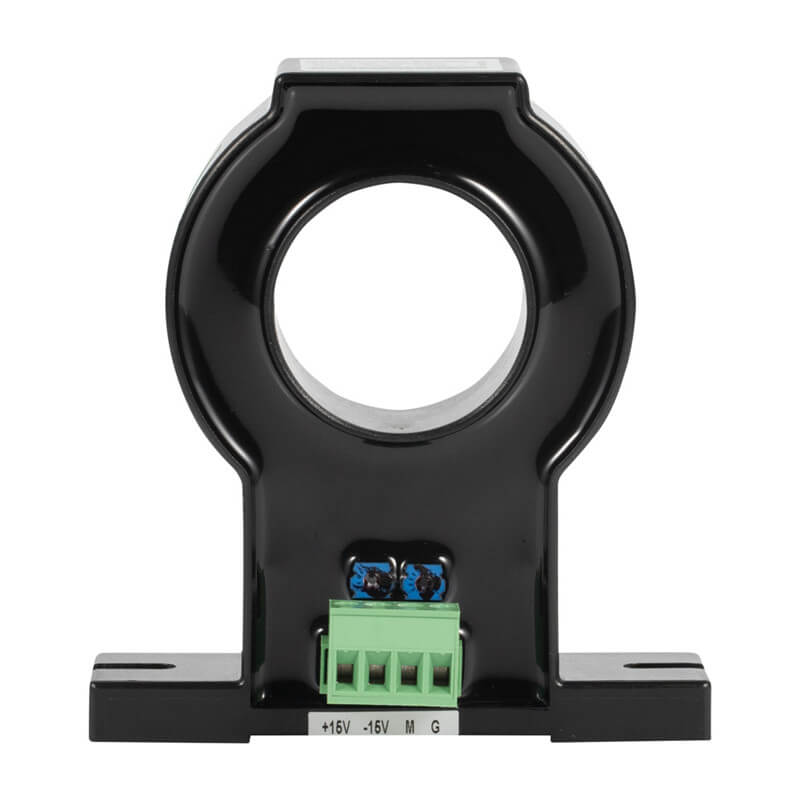

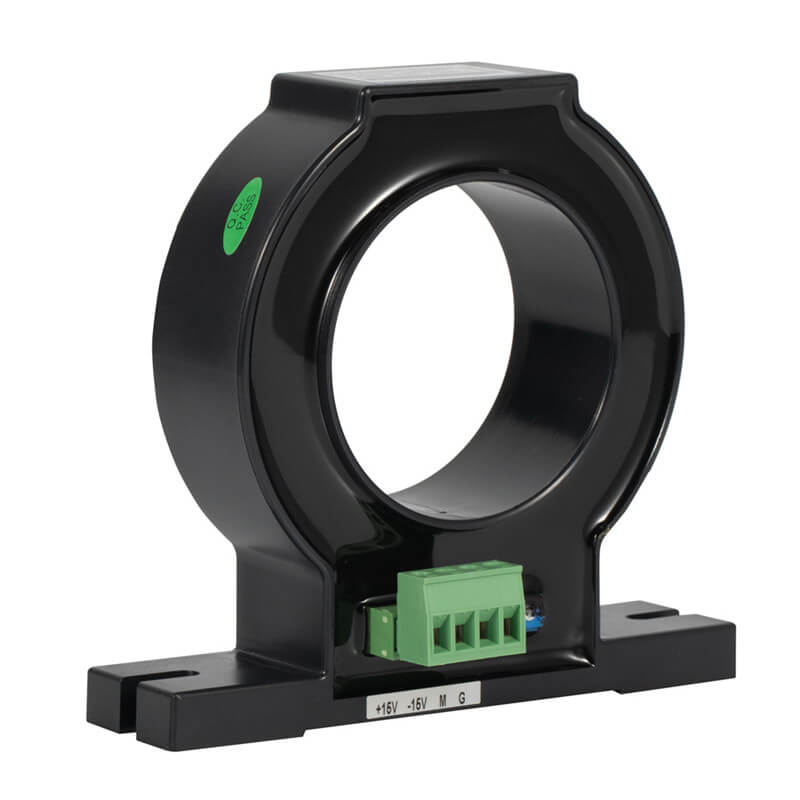

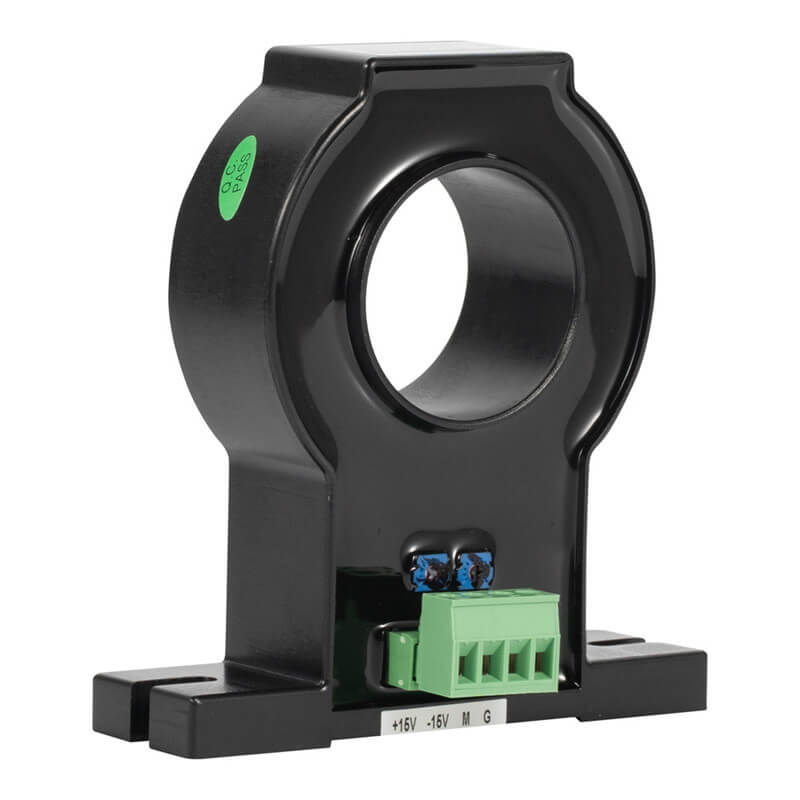

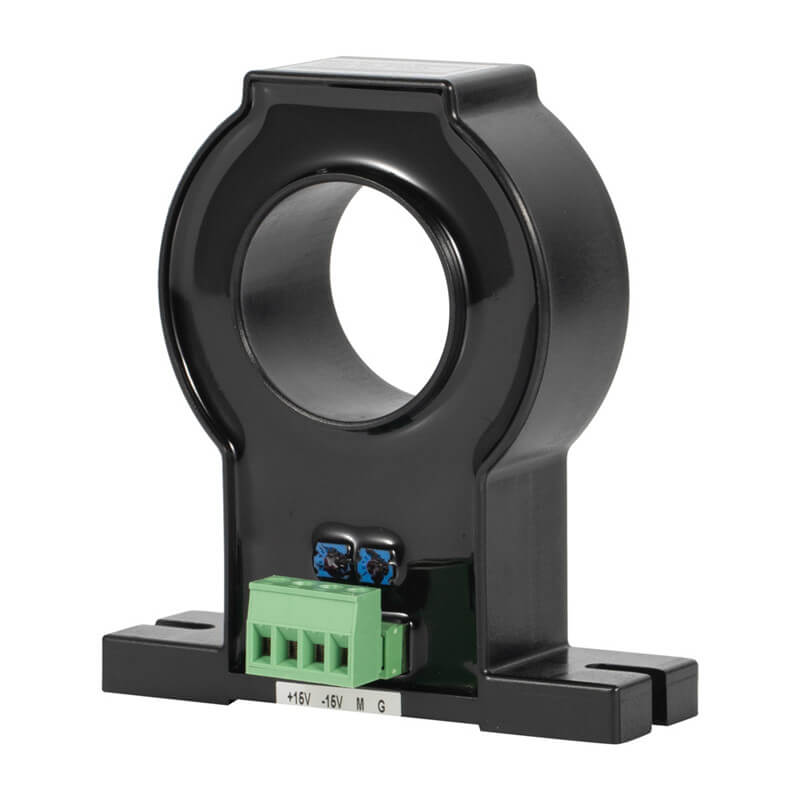

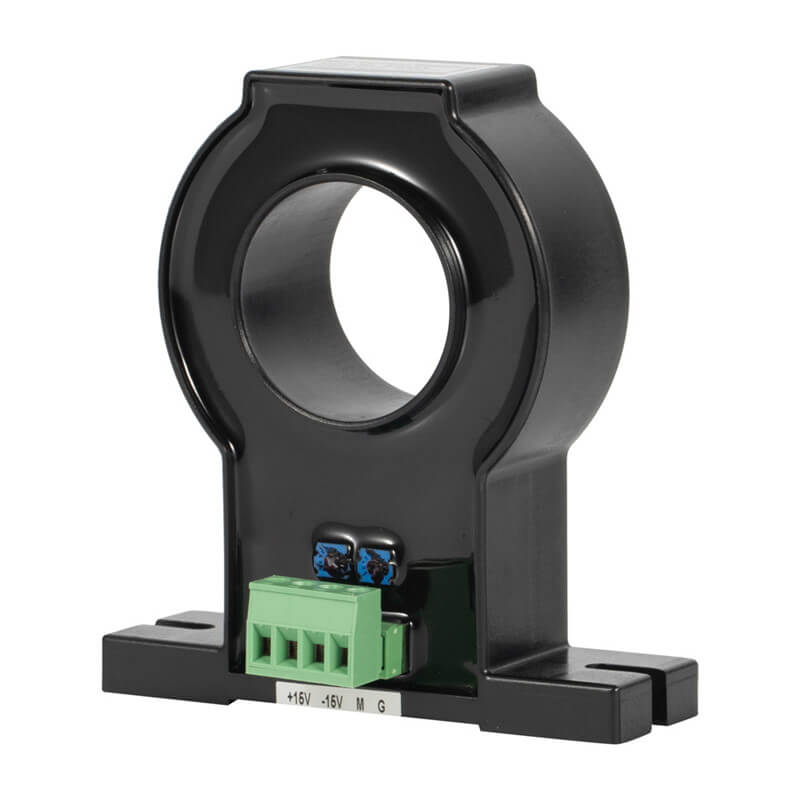

Closed type Open-loop Hall Sensor for Cable

AHKC-CC

  • Wide Measuring Range
  • High Overload
  • Good Linearity
  • Anti-interface
Chat Online Leave Message

Highlight

What’s the Function of Split-core Open-loop Hall Sensor?

Theory

  • Hall Effect

 Primary

  • AC or DC 0-1500A

Secondary

  • 5V/4V

Application

  • Measuring end for Solar and Wind energy

Specification

What’s the Specification of Acrel AHKC series Closed type Open-loop Hall Sensor for Cable?

Specification AHKC-E AHKC-EA AHKC-EB AHKC-LT
Inner Size Φ20 mm Φ40 mm Φ60 mm Φ32.5 mm
Input Current AC/DC 0~(50-500) A AC/DC 0~(200-1000) A AC/DC 0~(500-1500) A AC/DC 0~(100-800) A
Output Signal DC 0-4V, 0-5V DC 0-4V, 0-5V DC 0-4V, 0-5V DC 0-4V, 0-5V
Auxiliary Power DC ±12V /±15V

Parameter

What’s the Parameter of Closed type Open-loop Hall Sensor?

Accuracy 1.0 class
Linearity ≤0.2% FS
Bandwidth 0-20 KHz
Response Time ≤5 μs
Withstand AC3500V
Temperature -40℃~85℃
Altitude ≤2000 m
Humidity ≤95%

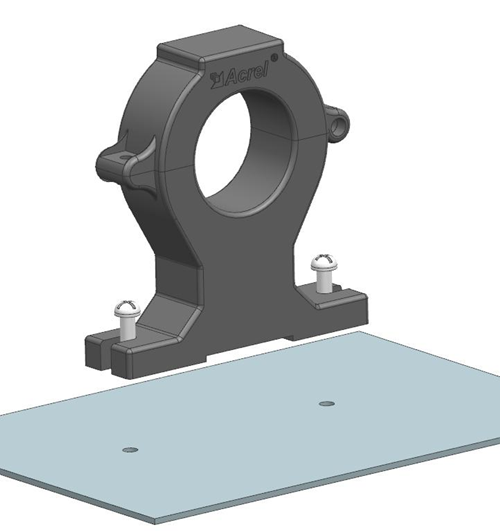

Installation

How to Install the Closed type Open-loop Hall Sensor?
