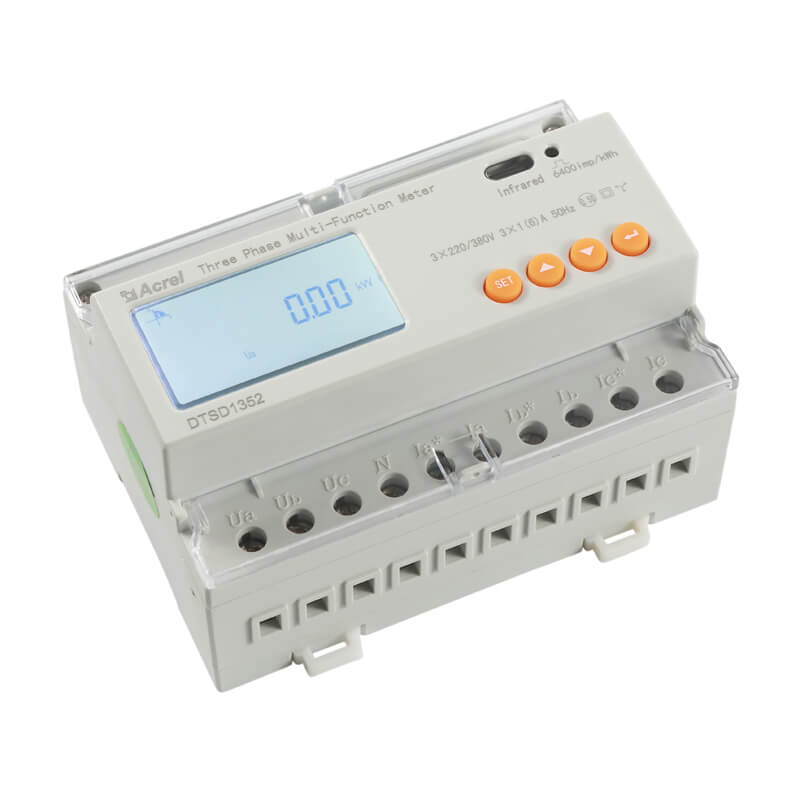

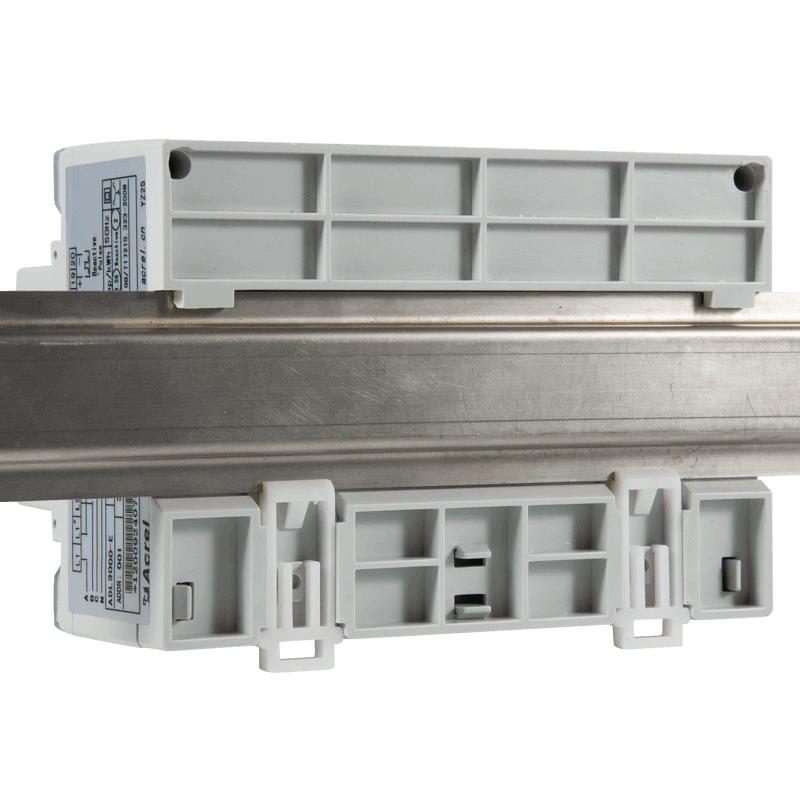

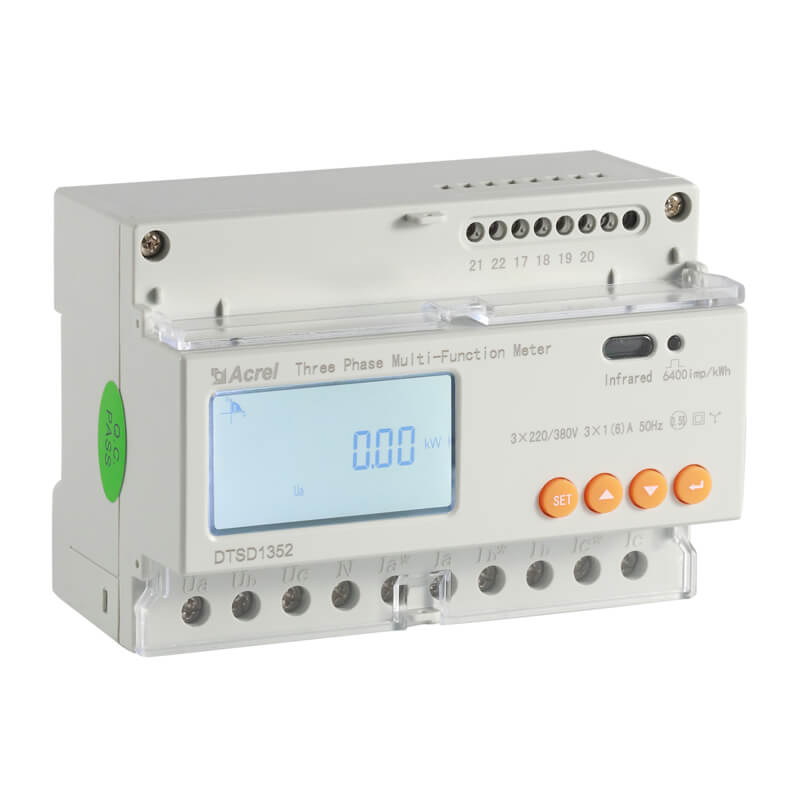

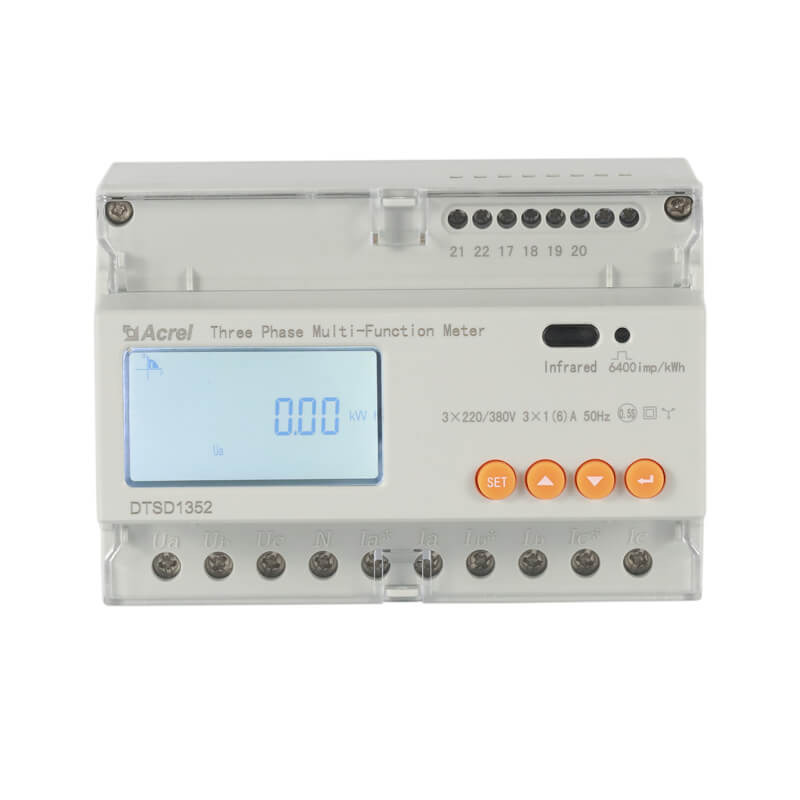

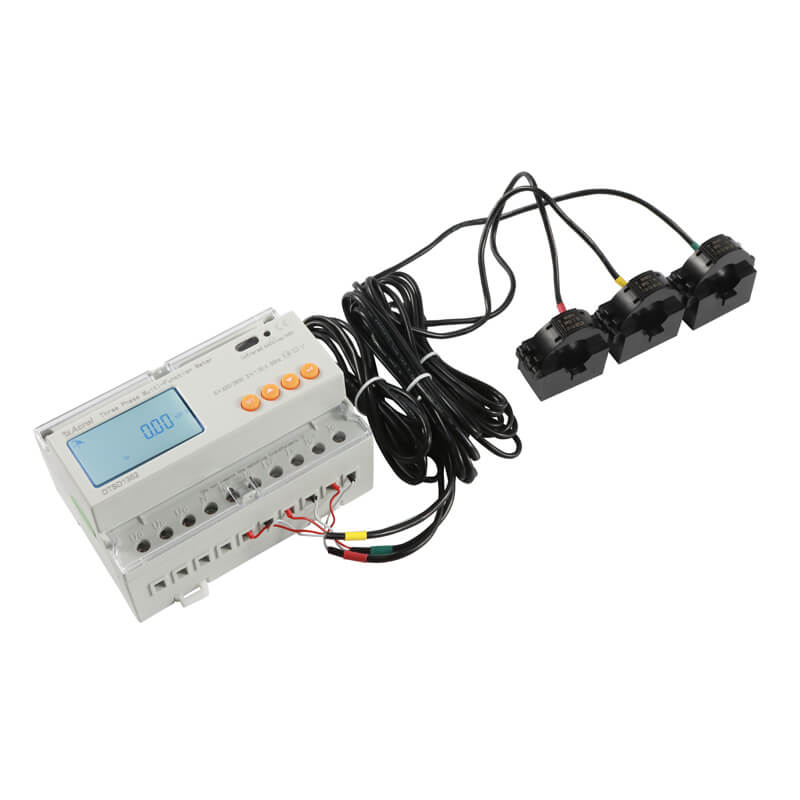

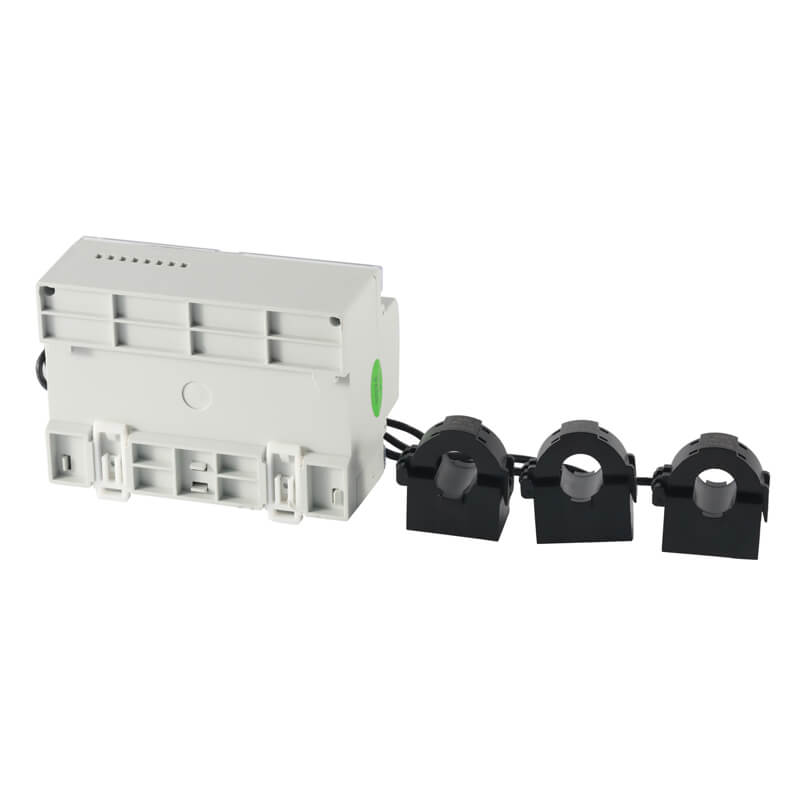

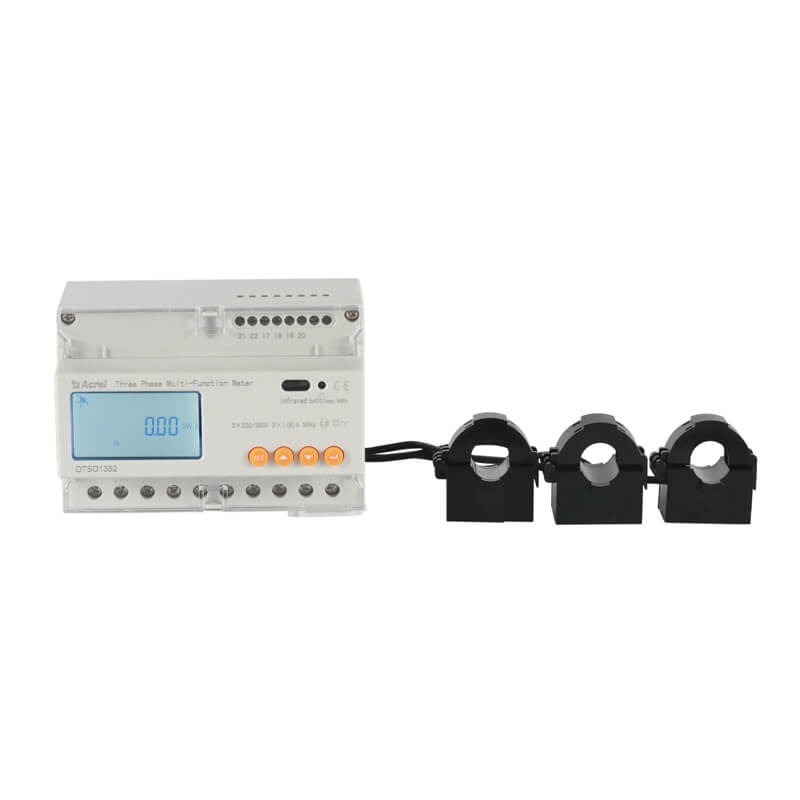

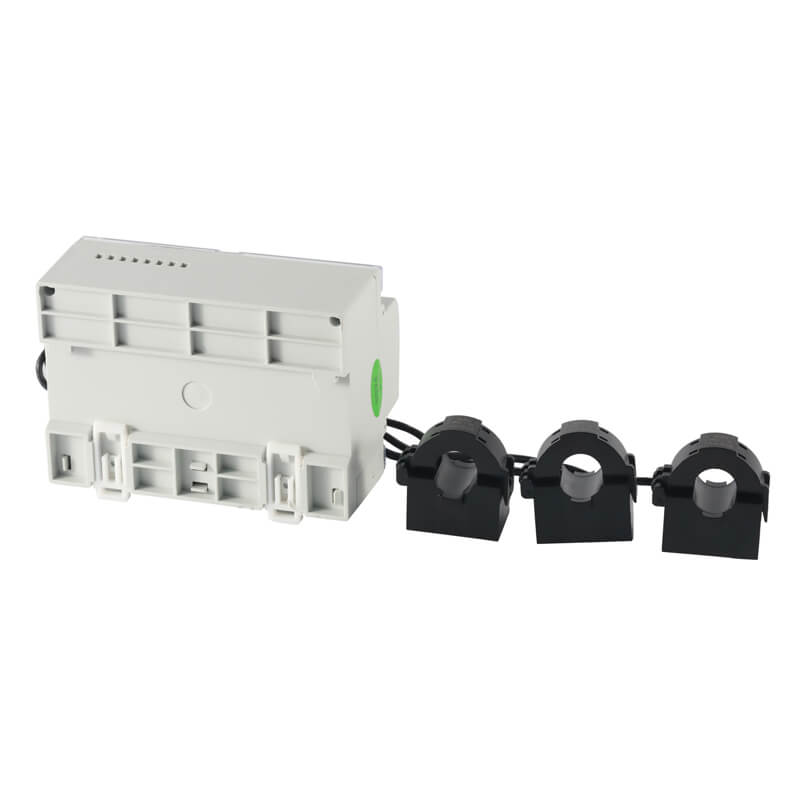

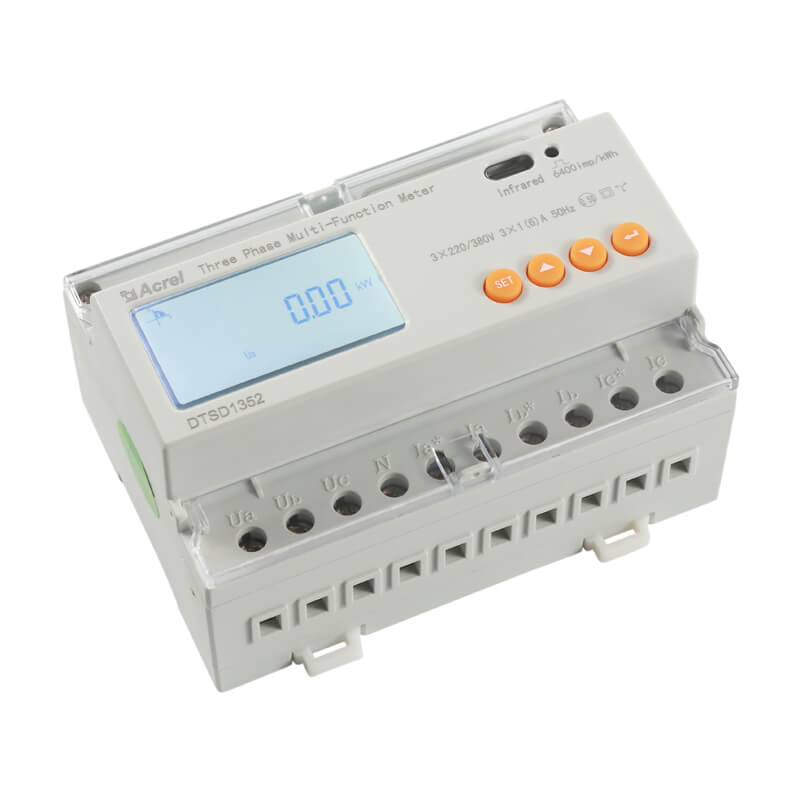

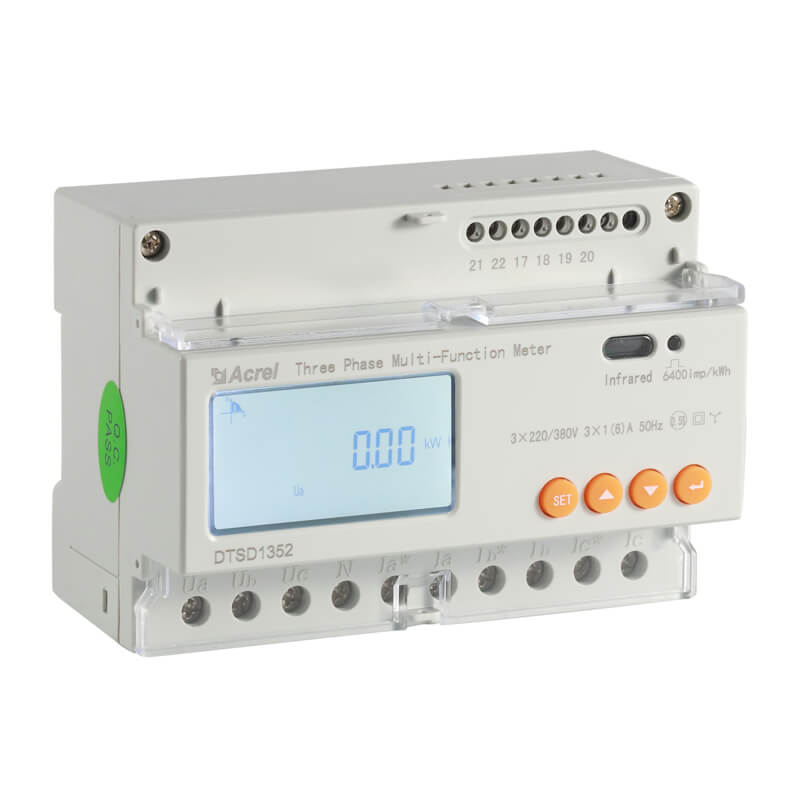

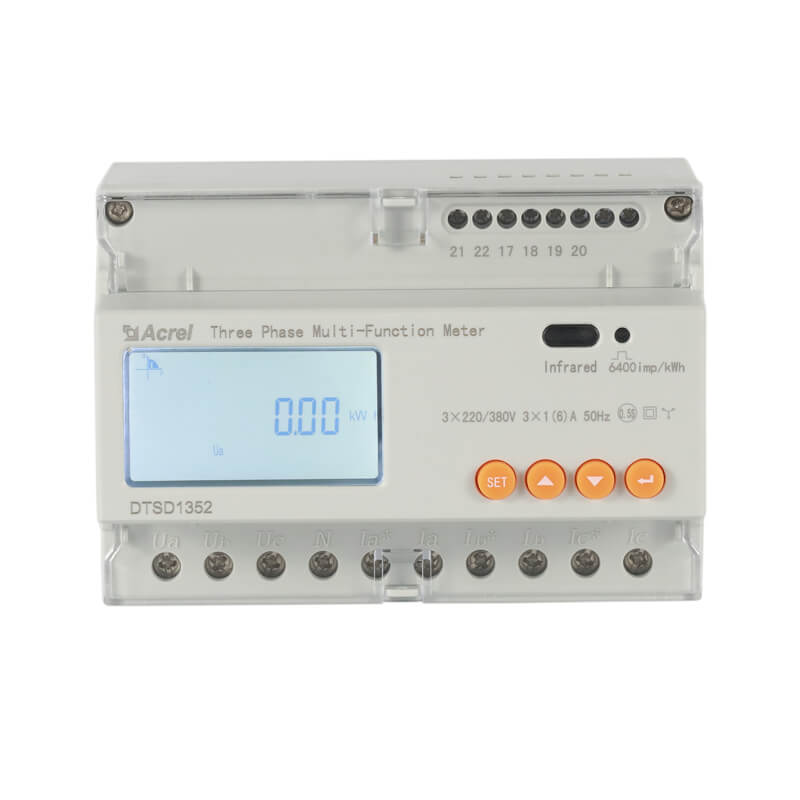

DTSD1352-C/1(6)A Three phase Smart Energy Meter for Sungrow Inverter

DTSD1352-C/1(6)A ---Standard Lead Time: Sample: 2 days; Bulk: 1 month


  • 230/400V
  •  3×1(6)A
  • RS485
  • Modbus-RTU

Feedback

What Do Our Customers Say?

  • Acrel is one of the best supplier for me. They are so easy to communicate and very friendly. They even give an online tour of their factory. Looking forward for more business together in the future.

    Liezel 

    Philippines

  • “ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

    Arnold 

    Philippines

  • Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

    Tuan 

    Vietnam

Highlight

What’s the Function of Acrel DTSD1352-C/1(6)A Three phase Smart Energy Meter for Sungrow Inverter?

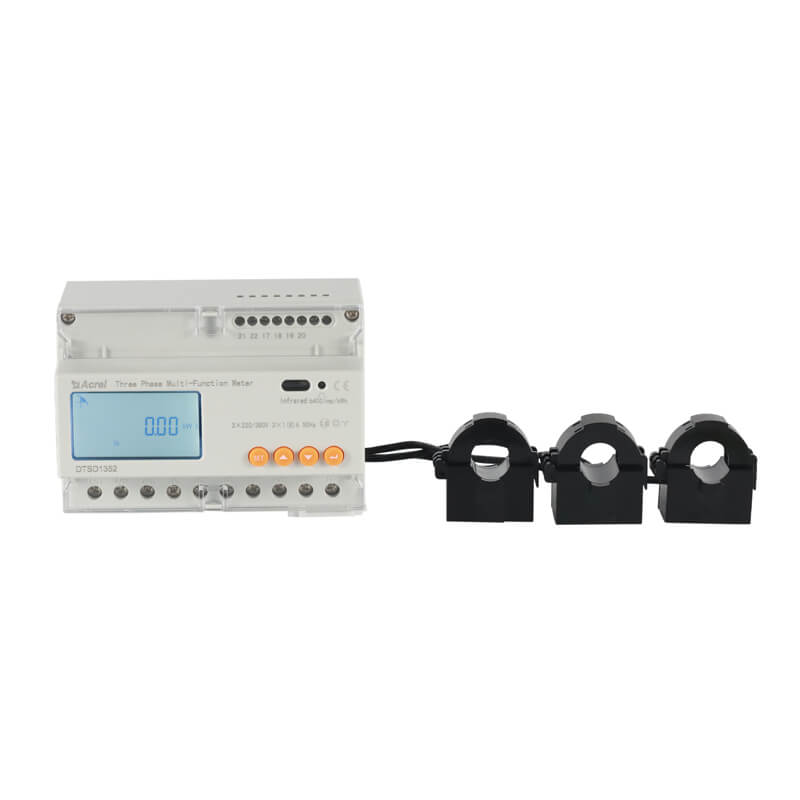

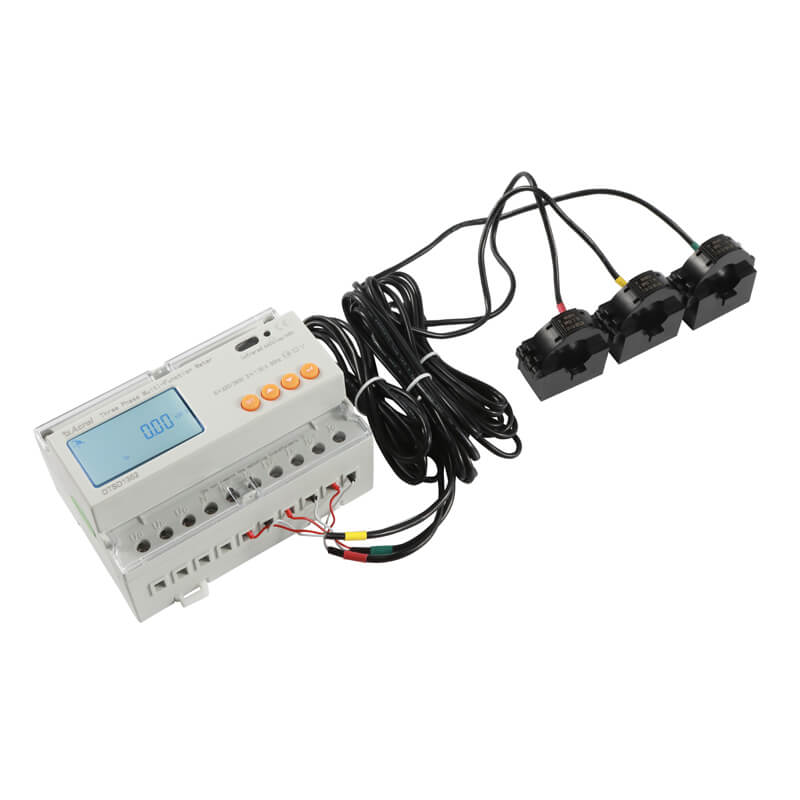

DTSD1352-C/1(6)A needs to be used with CT externally

Measure

  • Voltage, Current
  • Frequency
  • Active Power, Reactive Power
  • Power Factor and etc

Optional Function

  • Multi-tariff
  • 3 channels NTC Temperature
  • DI/DO
  • 2-31st Voltage and Current Hamonic

Accuracy

  • Active: 0.5S class
  • Reactive: 2 class

 Communication

  • Protocol: Modbus-RTU
  • Interface: RS485
  • 2 channels RS485
  • Infrared

Application

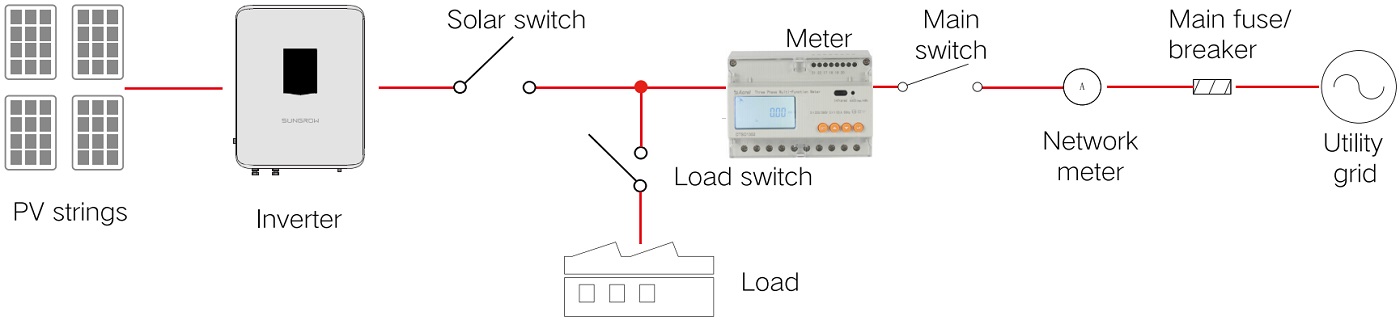

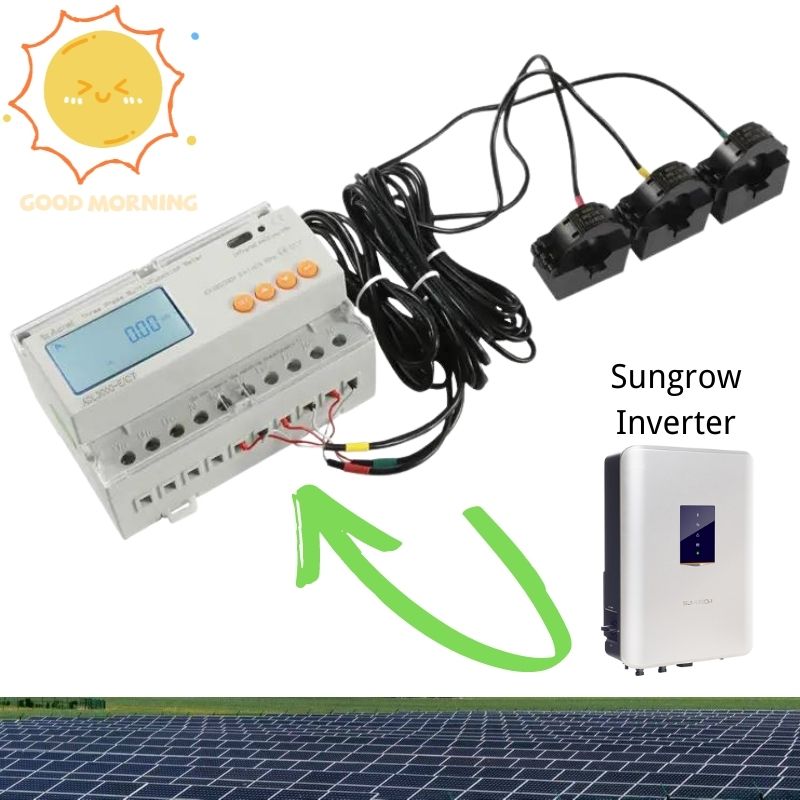

What’s the Application of Acrel DTSD1352-C/1(6)A Three phase Smart Energy Meter for Sungrow Inverter in PV System?

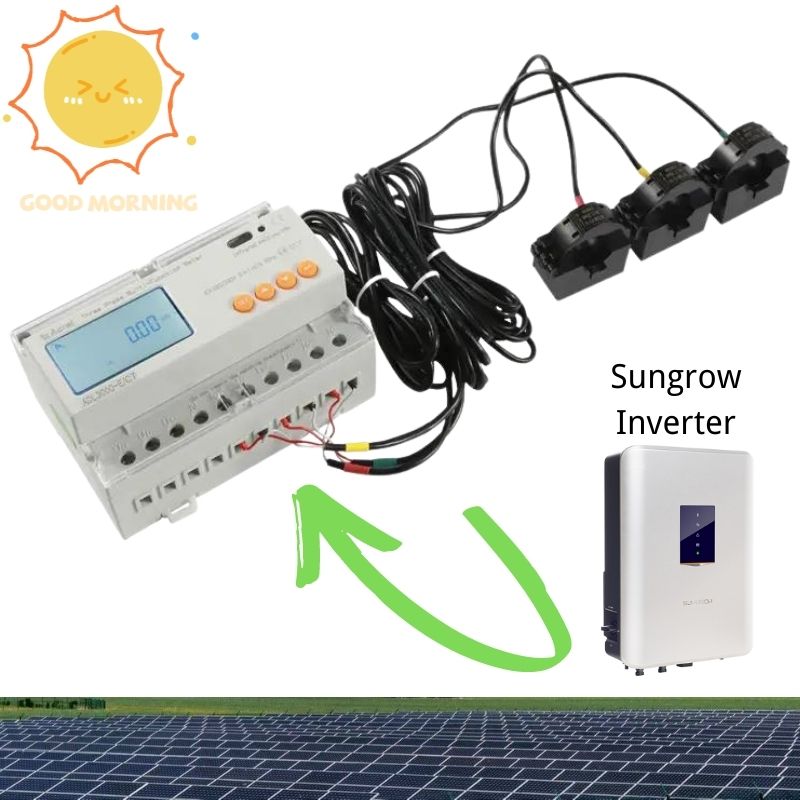

The Sungrow DTSD1352 three-phase energy meter is designed for use with Sungrow inverters.

The meter's display provides real-time information to the user about solar panel energy production and energy consumption.

The Sungrow DTSD1352 provides real-time monitoring of energy production and consumption, giving end-users insight into solar panel yields and the ability to adjust energy usage as needed.

The Sungrow DTSD1352 provides detailed data analysis and reporting, allowing users to identify patterns in energy consumption and production and anticipate future needs.

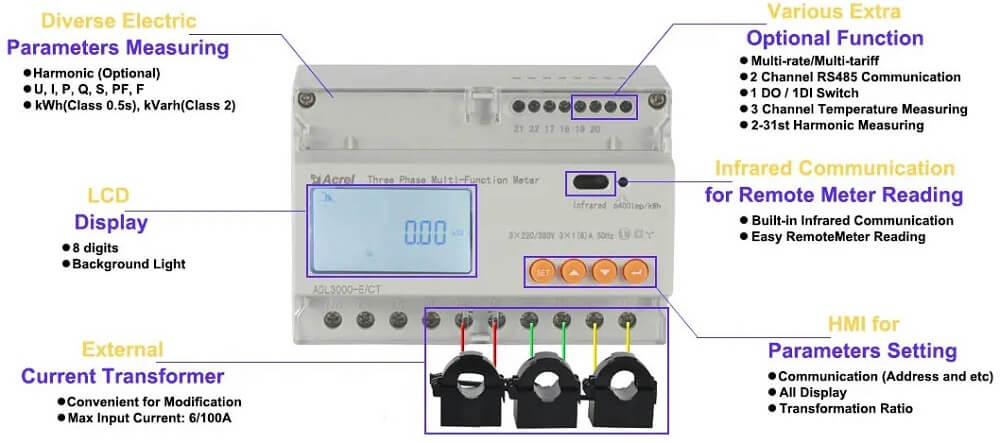

Function

What’s the Function of Acrel DTSD1352-C/1(6)A Three phase Smart Energy Meter for Sungrow Inverter?

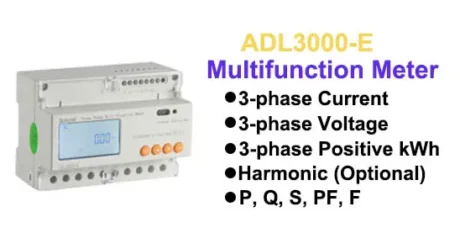

Diverse Electricity Parameters Measurement

● Harmonic (2~31st voltage&current)—Optional

● F (Frequency)

● U (3-phase Voltage)

● I (3-phase Current)

● kWh (3-phase positive Kilowatt-hours)

● kVarh (Kilovar-hours)

● P (Power)

● Q (Reactive power)

● S (Apparent power)

● PF (Power factor)

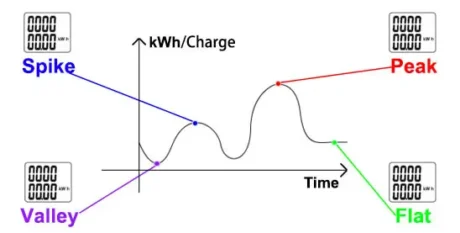

 Multi-rate/Flexible Tariff

● 4 Time zone

● 4 Tariff rate (Spike, Peak, Flat, Valley)

● 2 Time period list

● 14 Time period by day

● Data Frozen (last 48 months or last 90 days)

● Max demand and occurrence time

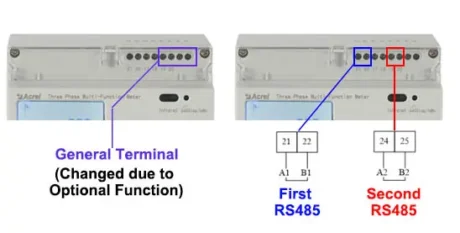

 2 Channel RS485 Communication

● Protocol: MODBUS-RTU

● 1 channel RS485 or 2 channel RS485 both optional

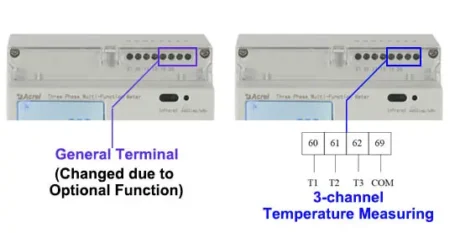

● Thermistor: NTC temperature sensor

● Measuring Range: -40℃~+125℃

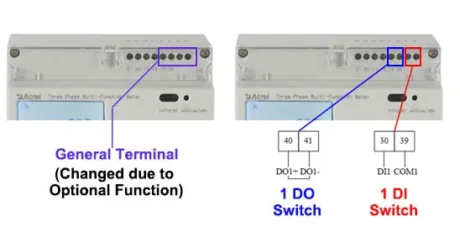

 DO/DI Switch

● 1 channel DO

● 1 channel DI

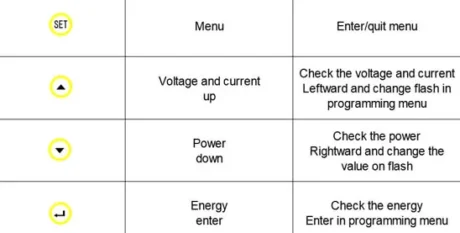

 HMI for Parameters Setting

● Code

● Protocol

● Address

● Baud rate

● Parity

● All Display

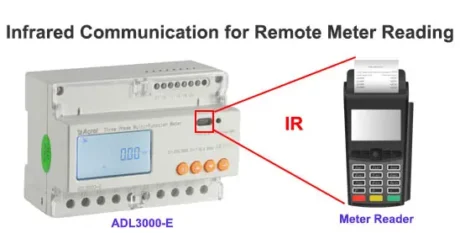

Infrared Communication for Remote Meter Reading

● Built-in infrared communication

● Easy Remote Meter Reading

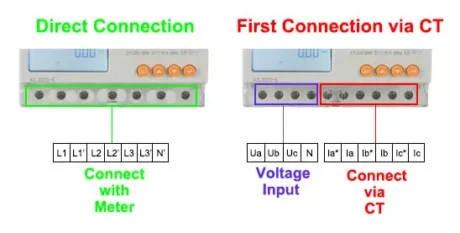

● Optional Connection Methods

● Direct Connection with Meter

● First Connection via CT.

 Optional Connection Methods

● Direct Connection with Meter

● First Connection via CT.

Parameter

What’s the Parameter of Acrel DTSD1352-C/1(6)A Three phase Smart Energy Meter for Sungrow Inverter?

1. Function description

Function Function description Function provides


Measurement of kWh

Active kWh (positive and negative)
Reactive kWh (positive and negative)
A, B, C phase positive active kWh
Measurement of electrical parameters U、I、P、Q、S、PF、F
Measurement of 2~31ST Voltage and current harmonic □Note 1
LCD Display 8 bits section LCD display, background light
Key programming 4 keys to communication and set parameters
Pulse output Active pulse output
Reactive pulse output □Note 2
Clock pulse output □Note 2
Multi-tariff and functions Active switch input □Note 3
Switch output □Note 2
Adapt 4 time zones, 2 time interval lists, 14 time intervals by day, and 4 tariff rates
Max demanded kWh and time happened
Frozen data on last 48 months, last 90days
Date, time
Communication Infrared communication
The first communication path: Communication interface: RS485, Communication protocol: MODBUS-RTU
The second communication path: Communication interface: RS485, Communication protocol: MODBUS-RTU □Note 3
Temperature measurement Support 3 outlay NTC temperature □Note 4

“■” means standard, “□” means optional.



2. Technical parameter

Specification 3 phase 3 wires, 3 phase 4 wires
Voltage Reference voltage 3×100V、 3×380V、3×57.7/100V、 3×220/380V
Consumption <10VA(Single phase)
Impedance >2MΩ
Accuracy class  Error±0.2%
Current Input current 3×1(6)A (second connection with 3- phase load line via extra selected CTs)

3×10(80)A (direct connection with 3-phase load line via CTs built-in ADL3000-E)

Consumption <1VA(Single phase rated current)
Accuracy class  Error±0.2%
 Power Active, reactive, apparent power, error±0.5℅
 Frequency 45~65Hz, Error±0.2%
Temperature -40℃~99℃
 Energy Active energy(Accuracy class:0.5, 1), reactive energy(Accuracy class 2)
 Clock ≤0.5s/d
Energy pulse output 1 active optocoupler output, 1 reactive optocoupler output
Switching output 1 Switching output
Switching input 1 optocoupler input
Width of pulse 80±20ms
Pulse constant 6400imp/kWh,400imp/kWh(Correspond with the basic current)
Interface and communication RS485:Modbus RTU
Range of communication address Modbus RTU:1~ 247;
 Baud rate 1200bps~19200bps
Relative temperature -25℃~+55℃
Relative humidity ≤95℅(No condensation)

Wiring

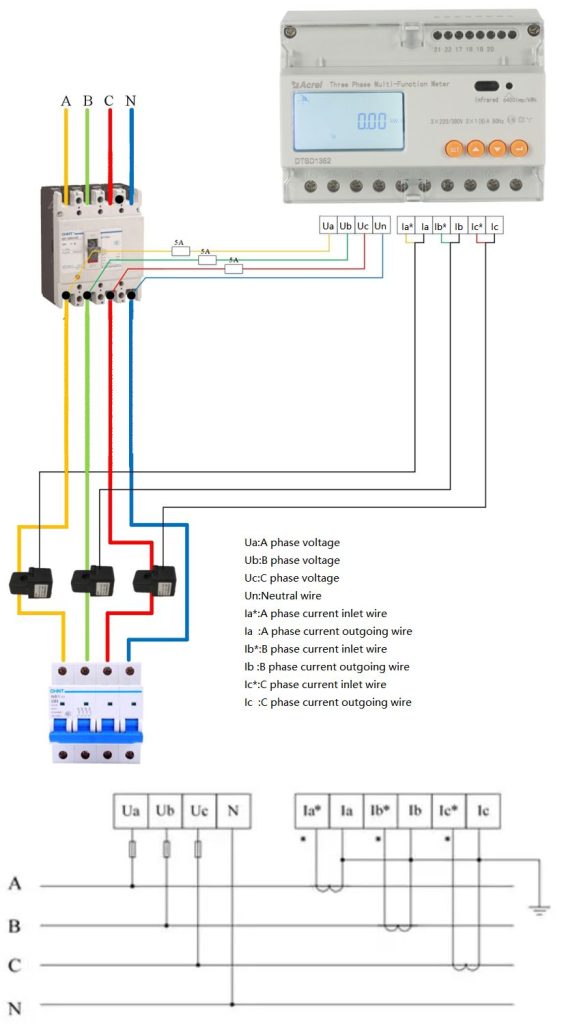

How to Wire the Acrel DTSD1352-C/1(6)A Three phase Smart Energy Meter for Sungrow Inverter?

Sungrow Manual

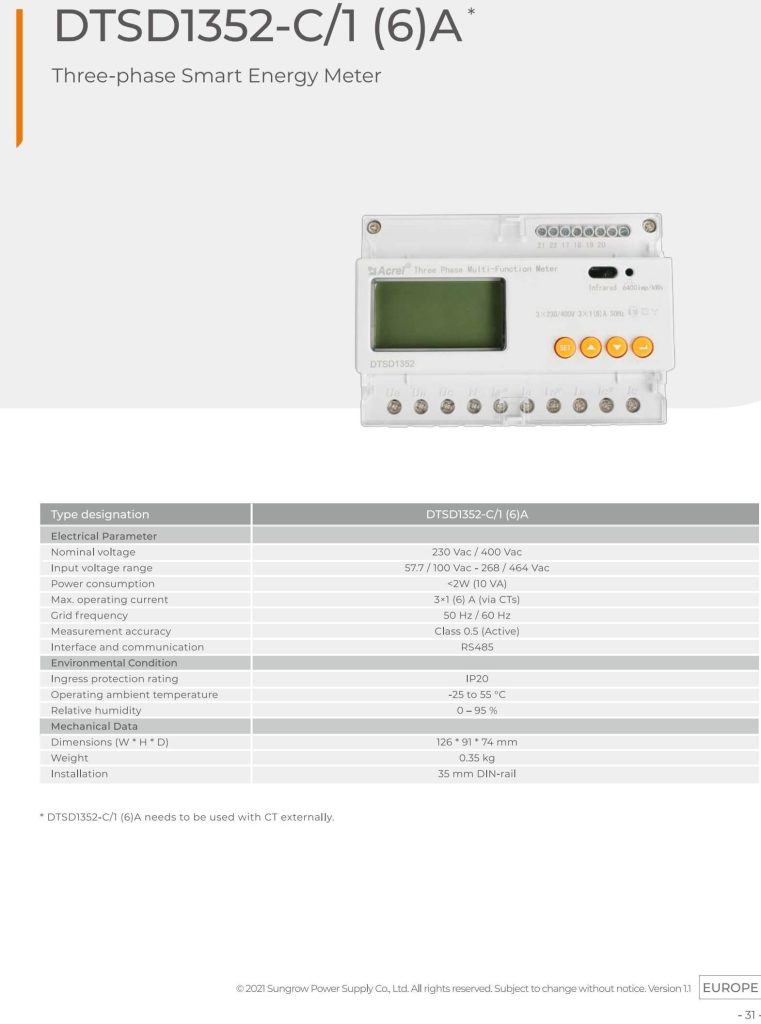

Acrel DTSD1352-C/1(6)A Three phase Smart Energy Meter Manul from Sungrow Power Supply Co., Ltd
