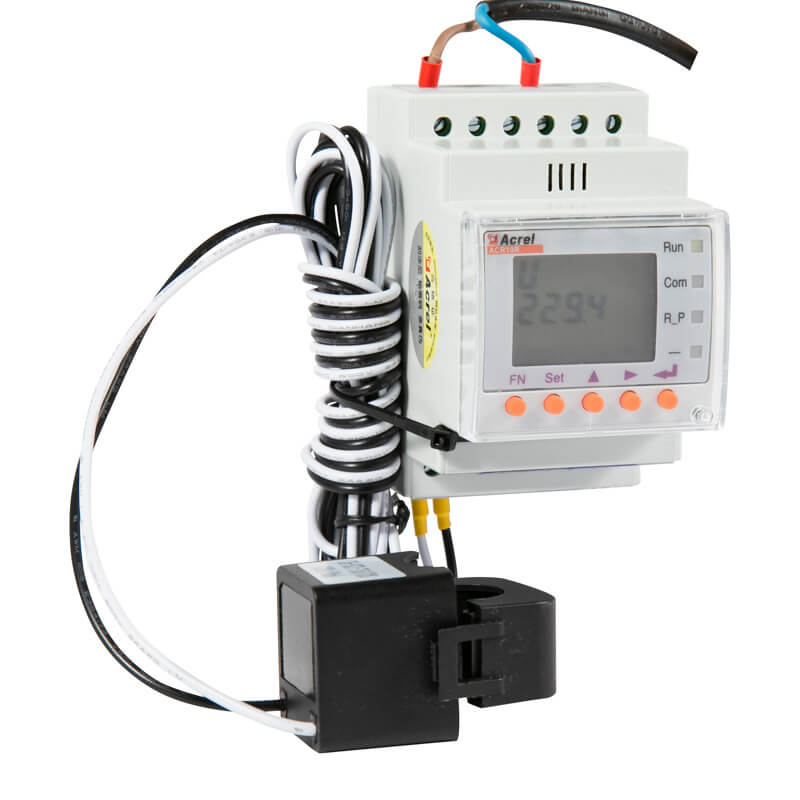

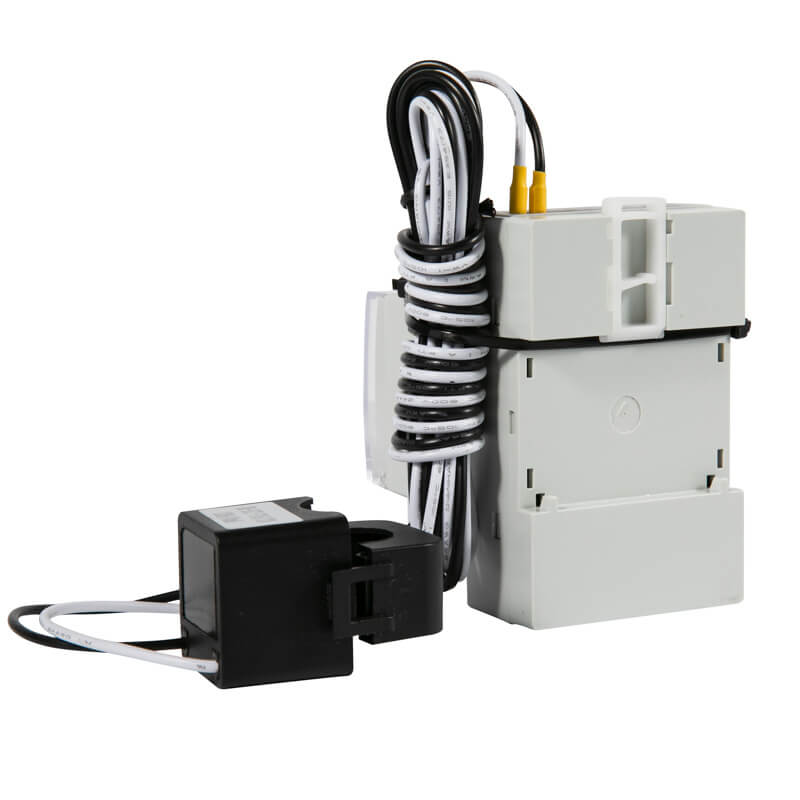

ACR10R-S
Single-phase
300A Input
MODBUS-RTU
RS485
What Do Our Customers Say?
“ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "
Arnold
Philippines
Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.
Tuan
Vietnam
What’s the Function of Single-phase Anti-Reflux Energy Meter?
What’s the Specification of Acrel ACR10R series Single-phase Anti-Reflux Energy Meter?

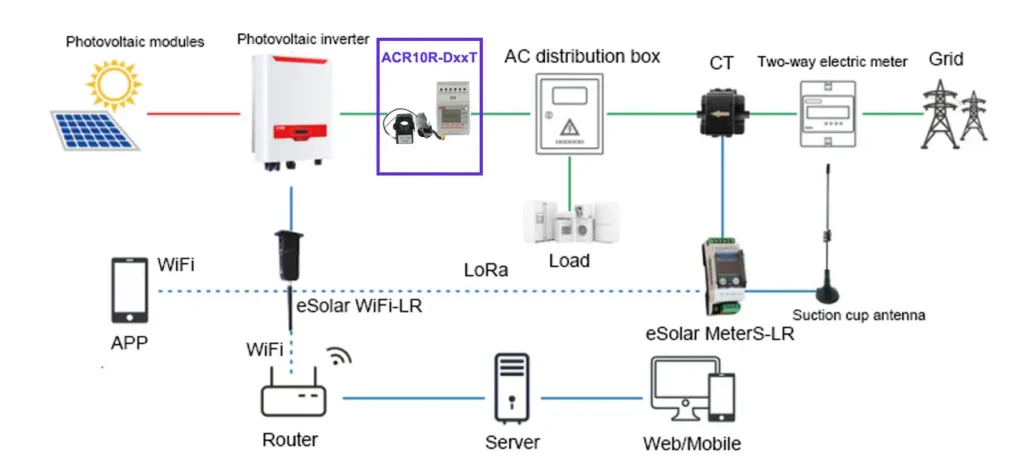

| Used for distributed Solar PV
●Reflux Monitoring ● Harmonic Monitoring |
|

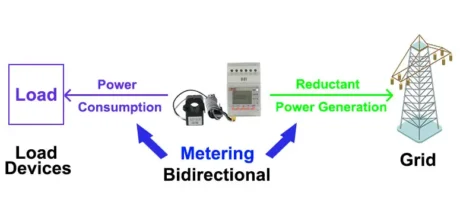

| Bidirectional Metering
● Active Energy Metering ● Reactive Energy Metering |
|

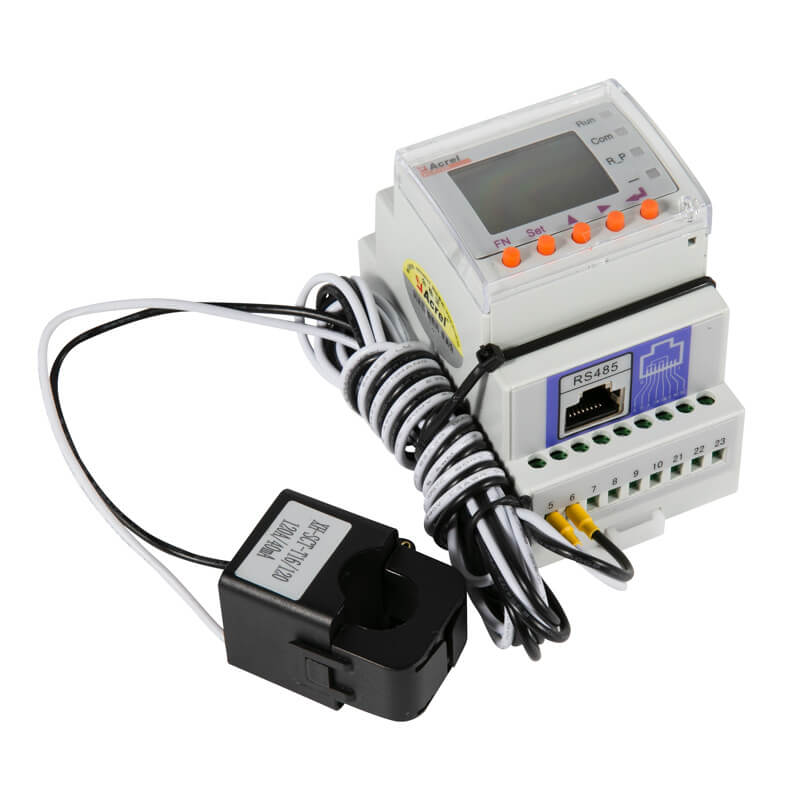

| RS485 Communication
● MODBUS-RTU Protocol ● Communicate with Inverter to realize anti-reflux Function |
|

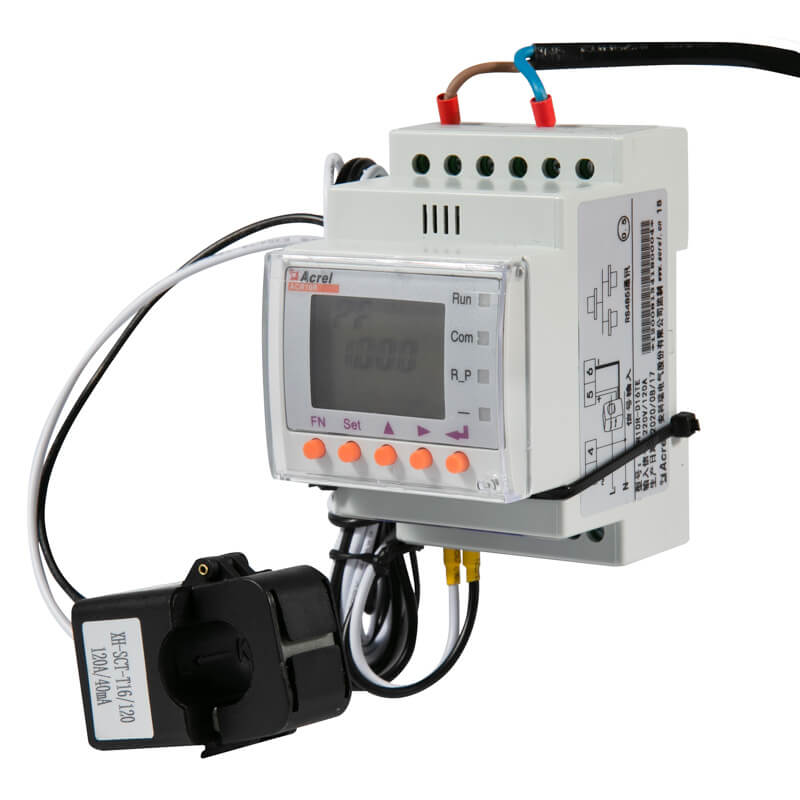

| Single-phase Two-Wire Connection
● Paired with external split core CT ● Rated Voltage: AC 100V, 400V |
|

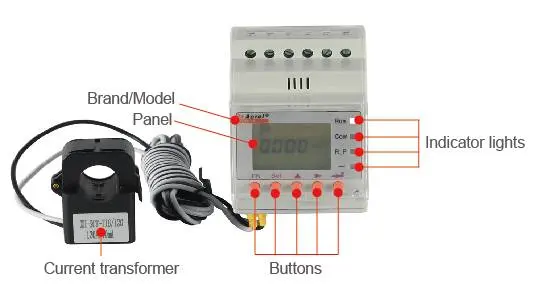

| LCD Display
● Parameter Display ● Programming Interface |
|
| Keypads HMI for Programming
● Parameter Display Setting ● Communication(address, baud rate and etc.) |
 |
What’s the Parameter of the Acrel ACR10R series Single-phase Anti-Reflux Energy Meter?
| Technical parameters | Indicators | ||
| Input | Grid | Single-phase | |
| Frequency | 45～65Hz | ||
| Voltage | Rated voltage: AC 100V, 400V | ||
| Overload: 1.2 times the rated voltage(continuous); 2 times the rated voltage lasting for 1 second | |||
| Power consumption: less than 0.2VA | |||
| Current | Rated current: 10A，20A，40A，80A，120A，200A etc. (for details see product specifications) | ||
| Overload: 1.2 times the rated current(continuous);10 times the rated current lasting for 1 second | |||
| Power consumption: less than 0.2VA | |||
|
Output |
Communication | RS485 interface, Modbus-RTU | |
| Display | LCD | ||
| Measurement precision | Voltage: 0.2 level, current, power Active energy: 0.5 level,0.01Hz frequency, Reactive energy: 1 level | ||
| Power supply | AC85～265V or DC100～350V; power consumption ≤10VA | ||
|
Safety |
Power frequency withstands voltage | AC2kV 1 min between power supply // current input//voltage input and communication
AC2kV 1 min between each pair of combinations among power supply, current input, and voltage input. |
|
| Insulating resistor | Input, output terminal to housing >100MΩ | ||
| Environment | Working temperature: -10℃～+55℃;storage temperature: -20℃～+70℃
Relative humidity:5%～95%，non-condensing; altitude:≤2500m |
||
