Highlight

What’s the Highlight of Acrel ADW300 Series LoraWan Power & Energy Meter?

Real-Time Monitoring

Voltage- Va, Vb, Vc
Current- la, Ib, lc
Active power - Pa, Pb, Pc, ∑P
Reactive power - Qa, Qb, Qc, ∑Q
Apparent power - Sa, Sb, Sc, ∑S
Power Factor- PFa, PFb, PFc, ∑PF
Active energy - each phase kWh, total kWh
Reactive energy - each phase kvarh, total kvarh

Optional Function

4DI/2DO
4 NTC Temperature
2 Residual Current
2 RS485
Power Outage Alarm

Communication

LoraWan
EU868
AS923
Modbus-RTU RS485

Self-Adaption

Automatch with IoT Energy Monitoring System
Free Debugging

Network

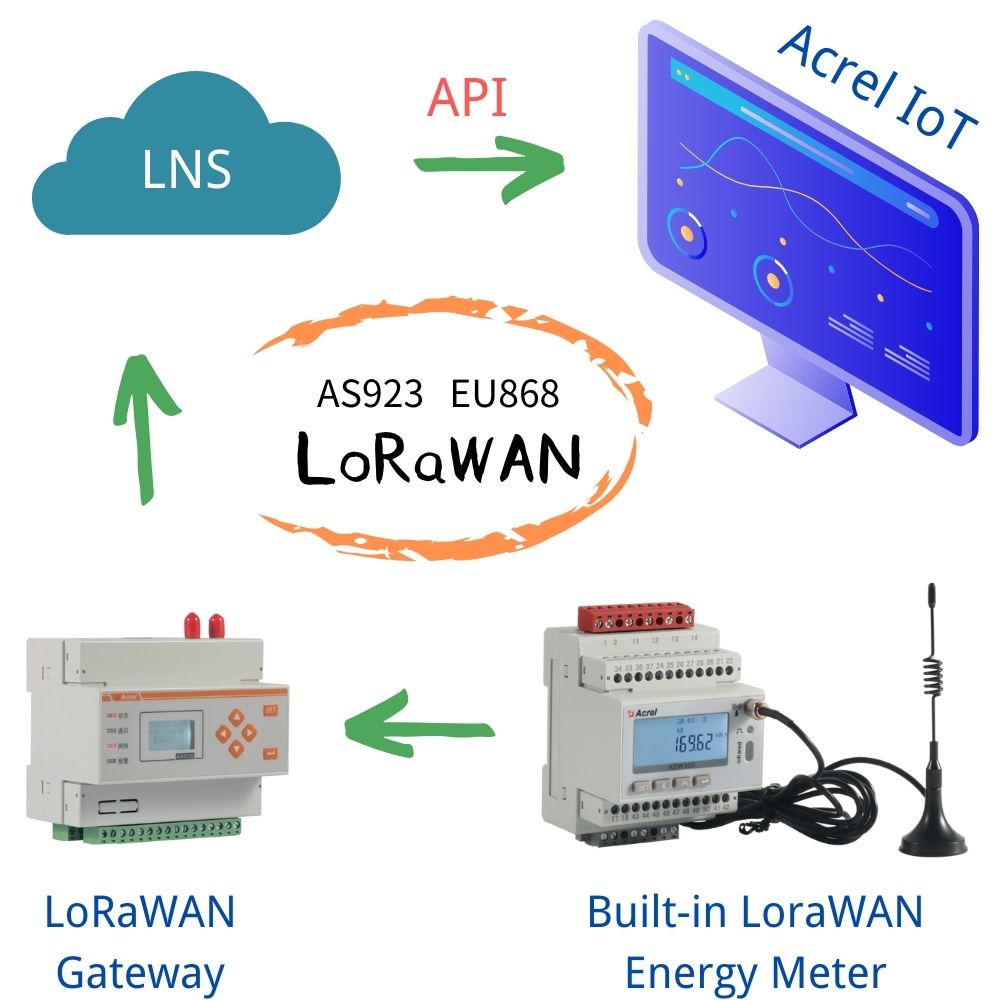

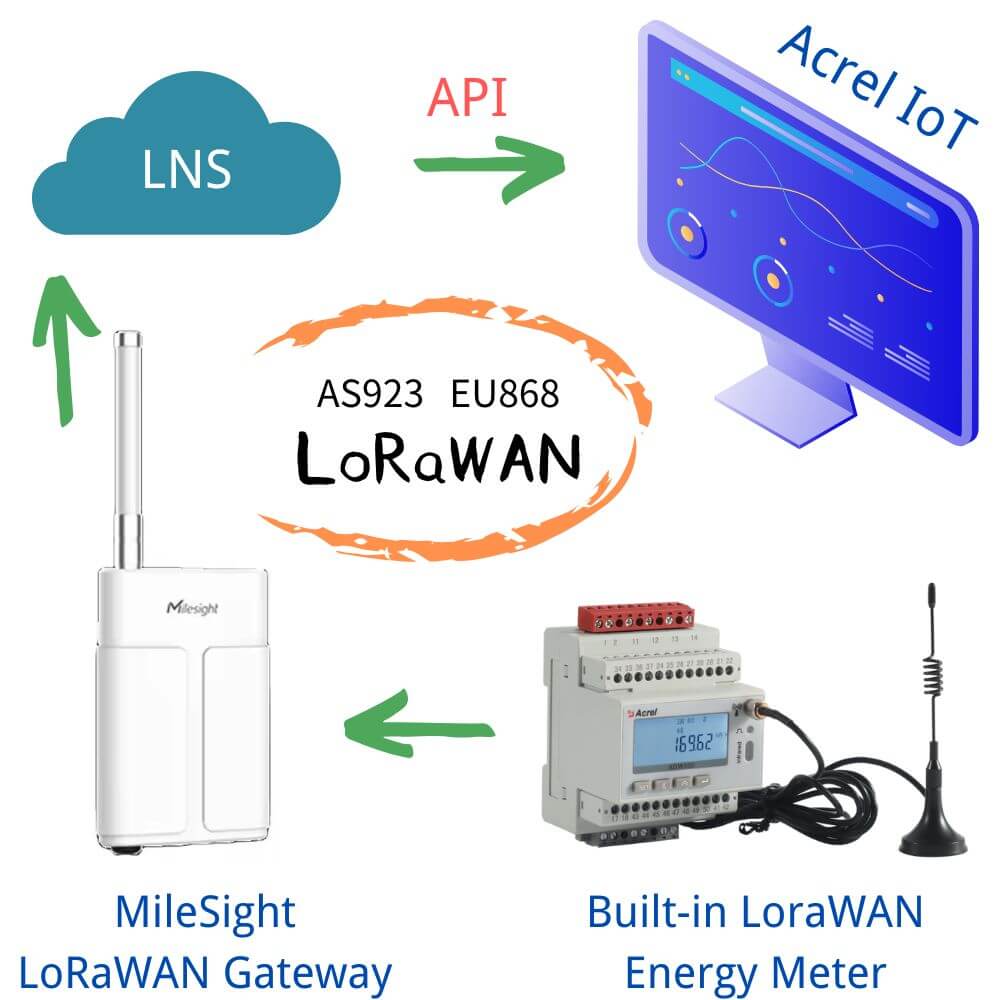

How does the Acrel ADW300 Series LoraWan Power & Energy Meter work?

Acrel IoT Power Meter ADW300 series with built-in LoRaWAN EU868 AS923
send data to LNS and then to Acrel IoT or a Third-party Cloud Platform
through Acrel AWT200 series DTU or ANet series Gateway or MileSight LoraWan Gateway

Function

What’s the Function of Acrel ADW300 Series LoraWan Power & Energy Meter?

Multiple Communication Methods ● 4G LTE ● LoraWan EU868 AS923 ● WiFi (2.4GHz&5GHz) ● LoRa ● RS485 (MODBUS-RTU) ● Paired with IoT Energy Monitoring System
Power Quality Analysis ● Total Harmonic ● 2nd~31st Harmonic ● Voltage Unbalance ● Current Unbalance
Expanded Function ● 2-channel DO (Digital Ouput) ● 4-channel DI (Digital Input) ● 4-channel Cable Temperature Monitoring ● 1-channel Residual Current Measurement
Alarm Function ● Over/Under Current ● Over/Under Voltage ● Over/Under Power ● Phase Loss

FAQ

Got a Question? Get your Answer

What's LoRaWAN?

LoRaWAN (Long Range Wide Area Network) is a low-power long-distance wireless communication technology that uses unlicensed frequency bands (Sub-GHz bands) to achieve wide-area, long-distance, low-speed, and low-power communication.

What's the Applications of LoRaWAN?

Smart Cities, Smart Buildings, intelligent public transportation, IoT manufacturing, location information tracking of logistics goods and personnel, environmental sensing, smart agriculture, etc.

What's the Communication Protocol Stack of LoRaWAN?

The communication protocol stack of LoRaWAN includes the physical layer, data link layer and network layer. The physical layer uses LoRa modulation technology, the data link layer uses MAC protocol, and the network layer is responsible for device registration, identity authentication and key distribution.

What's the Advantage of LoRaWAN?

Low cost: No need for operator's communication network, users can build and operate their own network.
Flexibility: Not limited by operator's service area, independent network environment can be built.
Security: Provides device authentication, data encryption and integrity protection

What's the Project of LoRaWAN?

Cisco has deployed LoRaWAN-based gateways in some of Dubai's smart cities as part of its IoT connectivity technology

Acrel IoT

IoT based Wireless AC Energy & Power Meter
Phase: Single-phase, Three-phase
Communication: WIFI, 4G, LORA, LORAWAN; RS485
Real-time monitoring full Electricity Parameters for Remote Control and Monitor
Function: Power Monitoring, Energy Quality, Demand Analysis, Department Analysis, Operation Management, Alarm

Send us your detailed Requirements, We will open a 3-months Free trial account for you

Request Information & Quotation

Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]

Installation

How to Install the Acrel ADW300 Series LoraWan Power & Energy Meter?

Parameter

What’s the Parameter of the Acrel ADW300 Series LoraWan Power & Energy Meter?

Parameter	Description & Value
Voltage Input	Rated Voltage	3×380~456Vac L-L or 3×660~792Vac L-L (via direct connection) 3×100~120Vac L-L (via PTs)
	Reference Frequency	45~65Hz
	Power Consumption	＜0.5VA (each Phase)
Current Input	Rated Current	3×1(6)A AC (via CTs)
	Starting Current	1% Ib (Class 0.5); 4% Ib(Class 1)
	Power Consumption	＜1VA (each Phase)
Phase Wiring	3P4W	3-phase 4-wire
Phase Wiring	3P3W	3-phase 3-wire
Auxiliary Power Supply	Voltage Range	85~265Vac
Auxiliary Power Supply	Power Consumption	＜2W
Measurement Performance	Standard	IEC 62053-22:2003; IEC 62053-21:2003
Measurement Performance	kWh Accuracy	Class 0.5S
Pulse	Width of Pulse	80±20ms
Pulse	Pulse Constant	6400imp/kWh; 400imp/kWh
