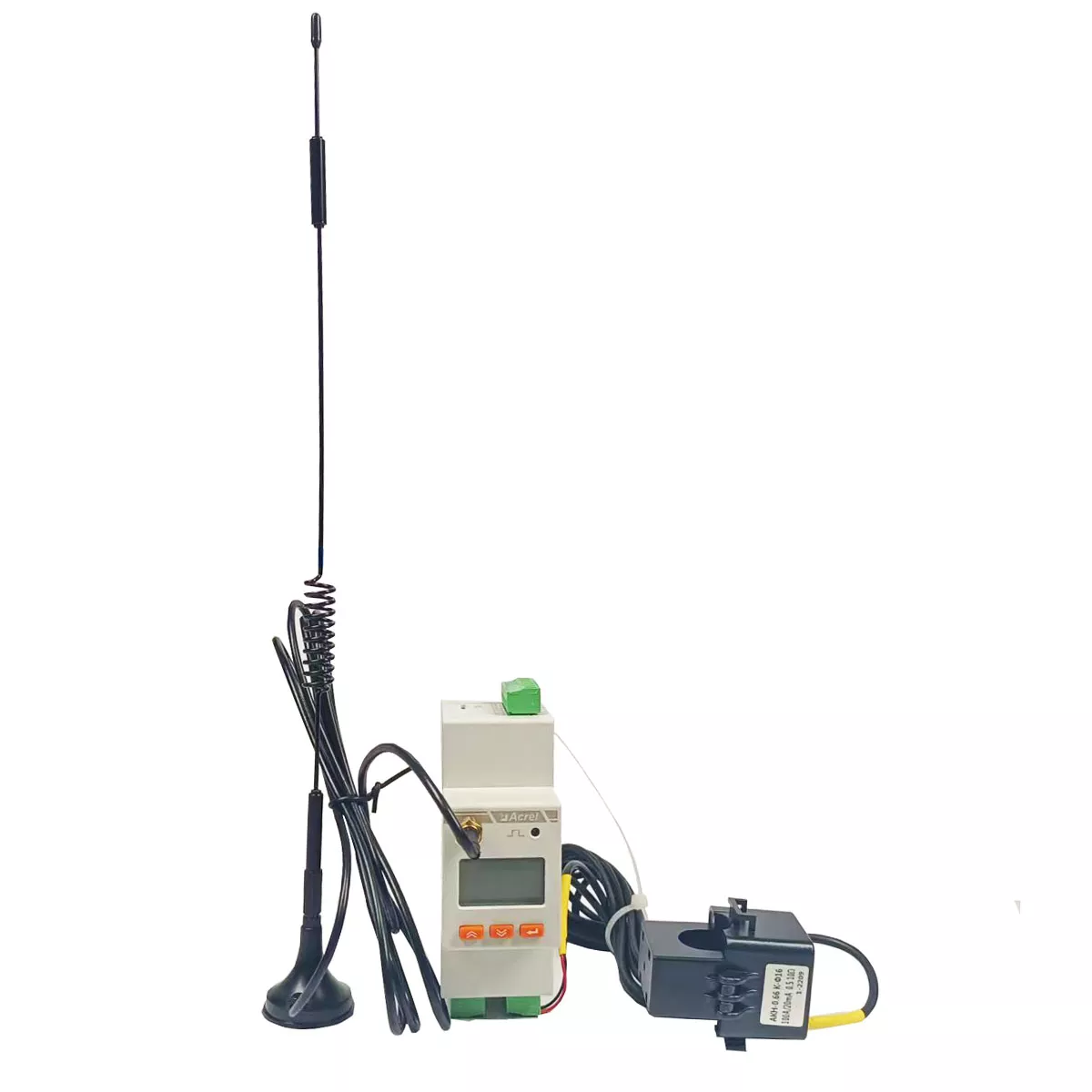

Single-phase 4G Electric Meter

ADW310-4G

Standard Lead Time:
Sample: 2 days
Bulk: 1 month

  • Single-phase
  • 4G, WIFI
  • DI/DO
  • Cable Temperature

Feedback

What Do Our Customers Say?

  • “ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

    Arnold 

    Philippines

  • Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

    Tuan 

    Vietnam

Highlight

What’s the Function of Single-phase Wireless Electric Meter?

Basic Measure

  • 1-phase Active&Reactive Energy
  • Active & Reactive Power
  • Current, Voltage, Frequency
  • Power Factor, Apparent Power

Wireless Communication

  • 4G LTE & GRPS
  • WIFI(2.4&5G HZ)

Expanded Function

  • DI/DO
  • Cable Temperature
  • Residual Current

Alarm Function

  • Over / Under Power
  • Current; Voltage
  • Phase Lose

Specification

What’s the Specification of Acrel ADW310 series Single-phase 4G Electric Meter?

Online&Remote Energy Monitoring

● Paired with Acrel IoT Energy Monitoring System

● PC Access via IoT EMS WEB

● Mobile Phone Access via IoT EMS APP

● 4G Wireless Communication (Global)

● WiFi Wireless Communication (2.4GHz)

● Support MQTT, MODBUS-TCP protocol

● Support standard RS485 interface (MODBUS-RTU)

 Multiple Extra Function

● 1-channel DO (Digital Output)

● 1-channel DI (Digital Input)

● 2-channel Cable Temperature Monitoring

● Active Pulse Output

Alarm Function

● Over/Under Current

● Over/Under Voltage

● Over/Under Power

Parameter

What’s the Parameter of the Acrel ADW310 series Single-phase 4G Electric Meter?

  1. Function Overview
Function Description
Measurement

(Standard)

Single-phase AC Active&Reactive Energy (both forward and backward), Active Power, Reactive Power, Current, Voltage, Frequency, Power Factor, Apparent Power, Frequency
Measurement

(Optional)

Temperature Measurement:2-channel (Live line,Neutral line) Cable Temperature Monitoring;  Thermistor:NTC;  Range: -40~+99℃;  Accuracy:±2℃
Communication

(Standard)

RS485 Port with Modbus-RTU protocol –  1 start bit,8 data bits,1 stop bit, no parity;  Baud Rate 1200~38400 bps, etc.

Infrared Communication – Constant Baud Rate 1200 bps

Communication

(Optional)





4G LTE – Normal Communicaiton Module Support: LTE-FDD: B1/B3/B5/B8;  LTE-TDD:B34/B38/B39/B40/B41

4G LTE – Global Communication Module Support: LTE-FDD: B1/B3/B5/B7/B8/B20/B28;  LTE-TDD: B38/B40/B41

WiFi – Support 2.4GHz or 5GHz
Protocol (For wireless Communication): MQTT and MODBUS-TCP
Display

(Standard)

LCD Display and LED Indicator
HMI

(Standard)

Keypads Programming: Setting of CT/PT Ratio, Communication, Phase Wiring and etc
Software

(Standard)

Adjustment Software: Setting of Data Upload Interval, WiFi configuration (Account&Password), Server Address, Port and etc
Alarm Function

(Standard)

Undervoltage, Overvoltage, Undercurrent, Overcurrent, Underload, Overload, Communication Disconnection and etc
I/O Function

(Optional)

1-channel DI (Digital Input)

1-channel DO (Digital Output)



  1. Main Parameters
Parameter Description&Value
Voltage

Input

Rated Voltage 220~264Vac L-N
Reference Frequency 45~65Hz
Power Consumption <0.5VA (each Phase)
Current

Input

Rated Current 20(100)A AC
Starting Current 1% Ib (Class 0.5); 4% Ib(Class 1)
Power Consumption <1VA (each Phase)
Phase

Wiring

1P2W 1-phase 2-wire
Measurement

Performance

Standard GB/T17215.322-2008,GB/T17215.321-2008
kWh Accuracy Class 1
Pulse Width of Pulse 80±20ms
Pulse Constant 1600imp/kWh;



  1. Environment
Condition Description&Value
Temperature Operating Temperature: -25℃~+55℃;  Storage Temperature: -40°C ~+70°C
Humidity ≤95%RH, no condensation, without corrosive gas
Altitude ≤ 2000m

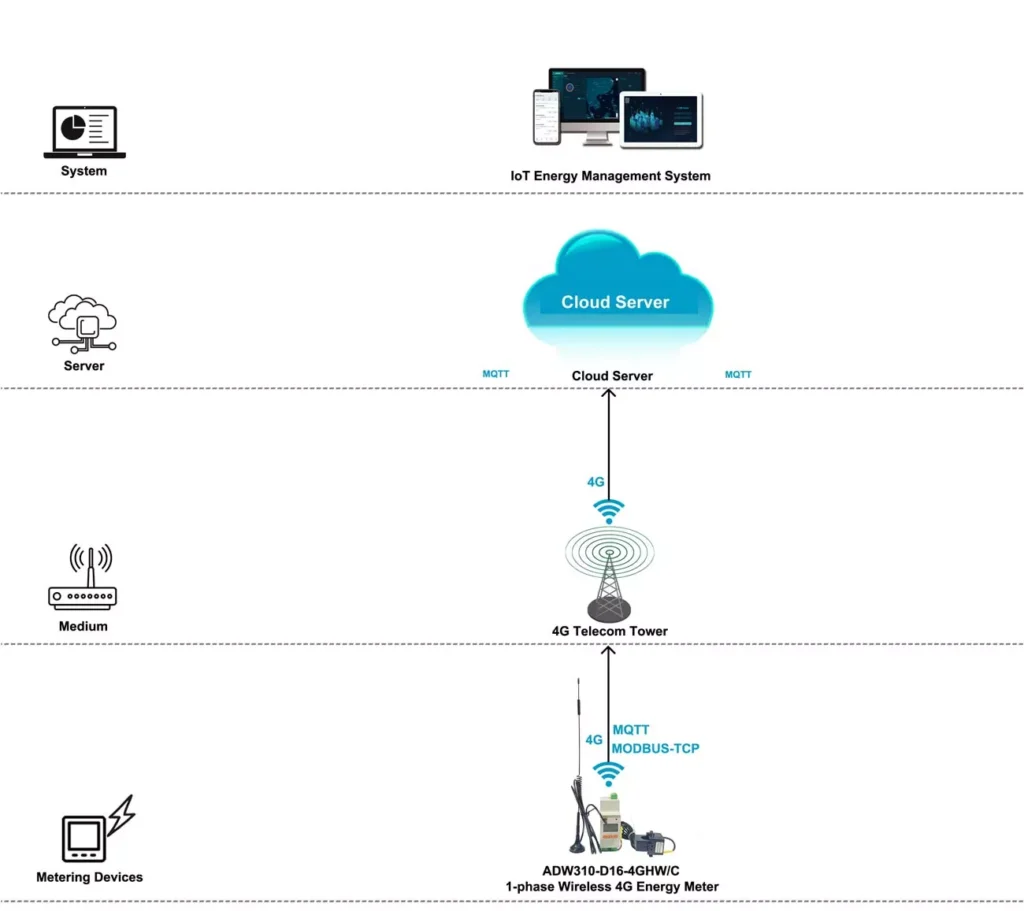

Network

How does Acrel ADW310 series Single-phase 4G Electric Meter work?

Installation

How to Install the Acrel ADW310 series Single-phase 4G Electric Meter?

Specification Dimension (mm) Perforation size (mm) Tolerance (mm)
W H D M N Φ1 Φ2
AKH0.66-K/φ10N 27 44 32 25 36 10 9 ±1
AKH0.66-K/φ16N 31 50 36 27 42 16 17
