From precision Power Meter to complete Power Distribution Systems, we have been focusing on Remote Monitoring Solutions in Telecom Sites for 22 years
Customize
One-stop
Reduce Cost
Deliver on Time
What Acrel do for Telecom Tower Remote Monitoring?
Mainstream Energy Systems of Telecom Sites in the MENA Market

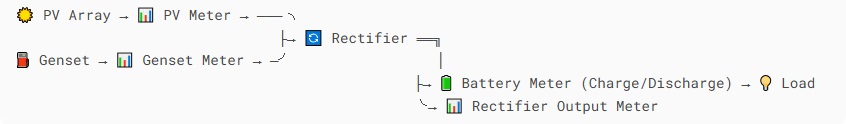

Energy Flow Diagram
Application
Areas with unstable power grid but sufficient sunshine.
Genset: backup power sources,
PV: main power source,
Battery: energy storage and peak regulation
Metering Points
PV Meter: Solar production monitoring
Genset Meter: Generator output measurement
Rectifier Output Meter: Rectifier input/output power
Battery Meter: Battery charge/discharge cycles

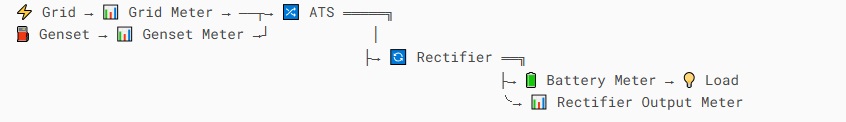

Energy Flow Diagram
Application
Cities and Suburbs
Power Grid: main power source
Genset and battery: short-term backup
Metering Points
Grid Meter: Grid consumption/generation
Genset Meter: Backup generator performance
Rectifier Output Meter: Power conversion efficiency
Battery Meter: State-of-charge (SOC) tracking
ATS Status: Automatic transfer switch monitoring via DI
Energy Flow Diagram
Application
Remote areas without power grid coverage.
Relying on high-capacity battery energy storage,
Need to deal with the loss of photovoltaic panels caused by sandstorms
Metering Points
PV Meter: Solar yield monitoring
Rectifier Output Meter: Rectifier efficiency
Battery Meter: Battery health analysis
Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]
| System | DC system | DC system | AC system | AC system |

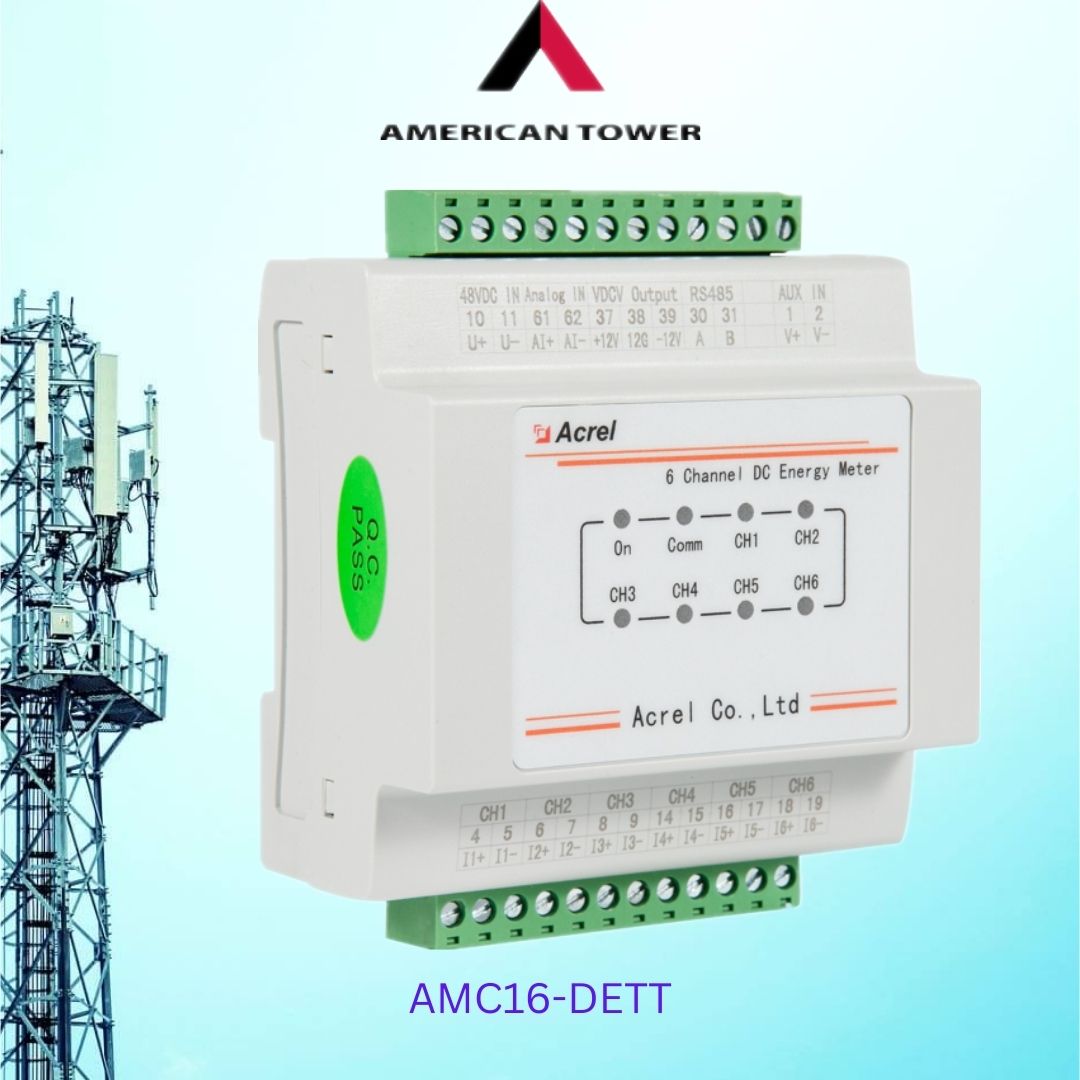

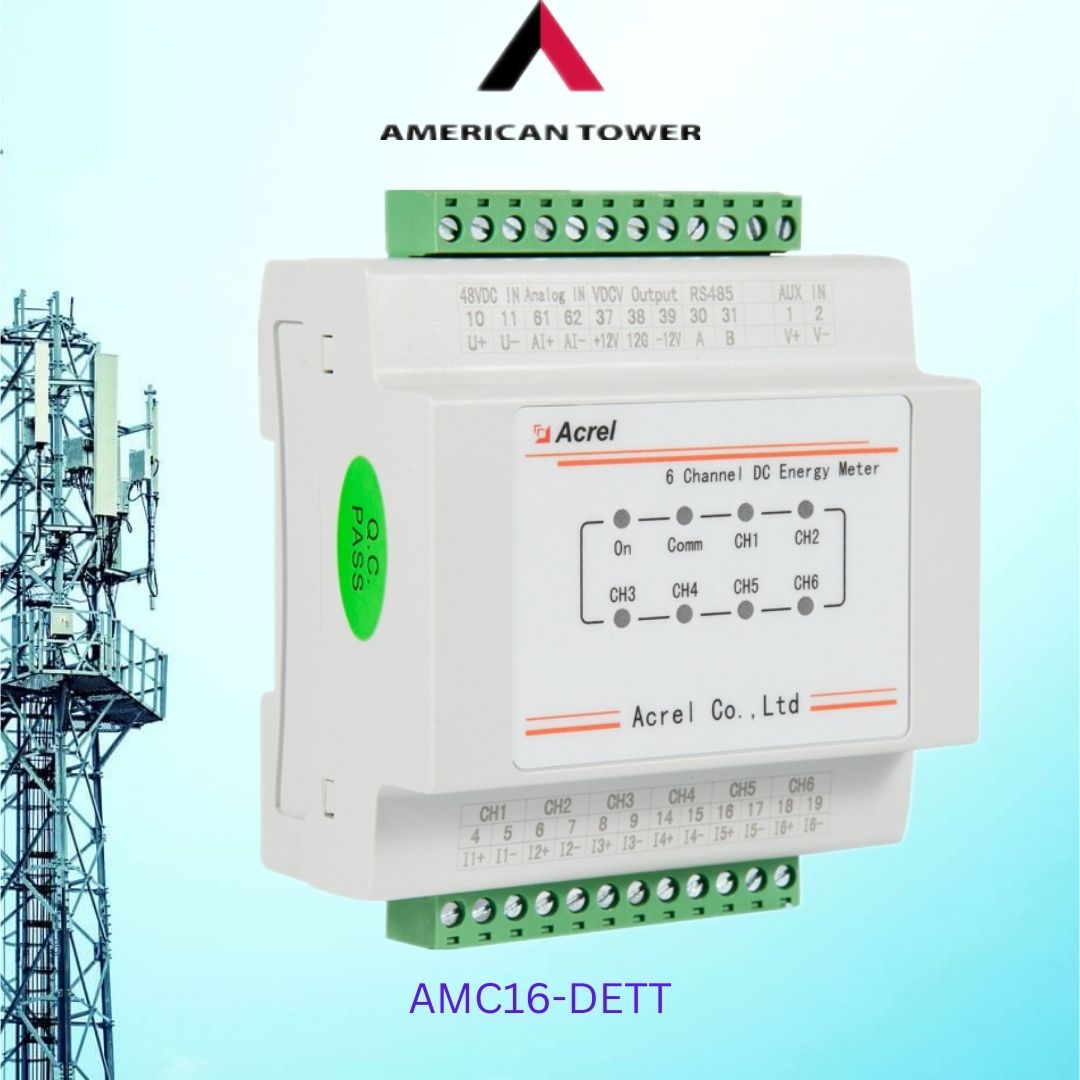

| Specification | AMC16L-DETT | DJSF1352/RN | DTSD1352-4S | ADW300 |
| Channels | 6 ch | 1 / 2 ch | 4 ch | 1 ch |
| Photo |  |  |  |  |
| Sensor |  |  |  |  |
| Connection Type | Terminal block | Terminal block | RJ12 Terminal | Terminal block |

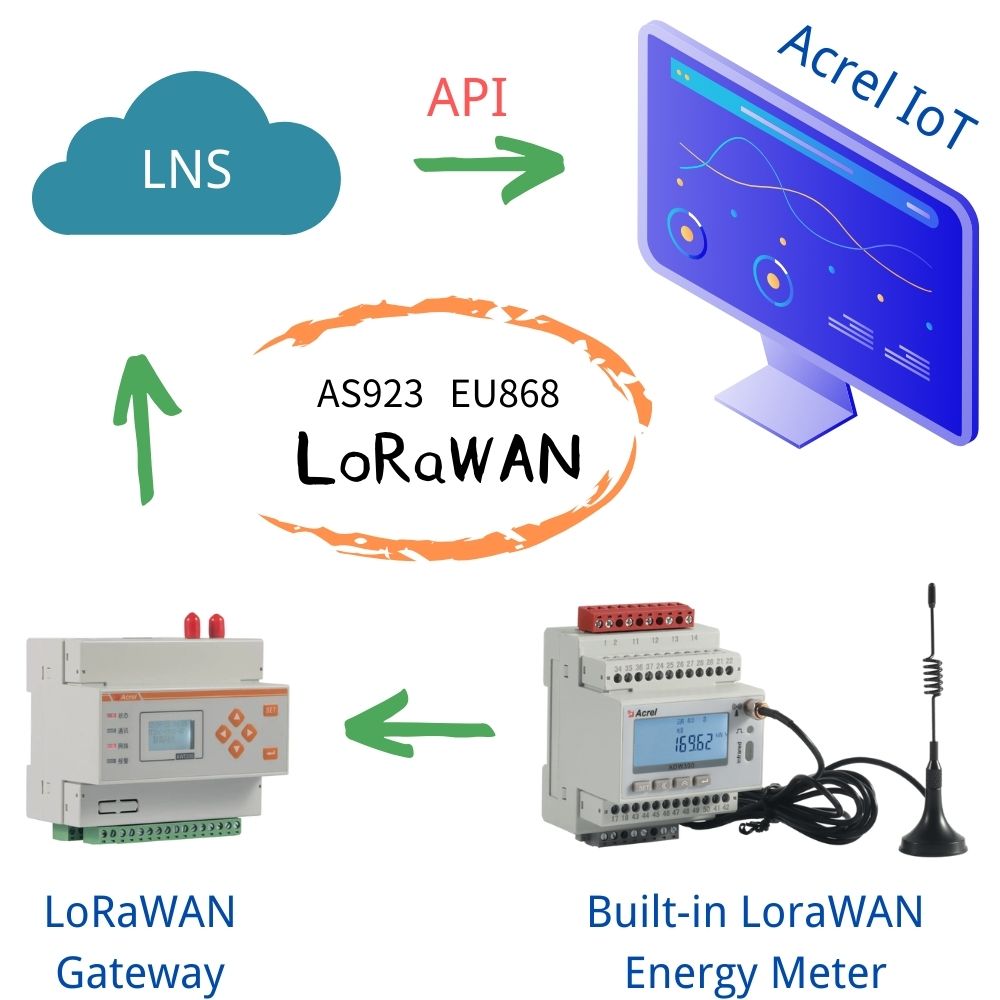

| Communication | Modbus-RTU RS485 | Modbus-RTU RS485 | Modbus-RTU RS485 | Modbus-RTU Modbus-TCP 4G WIFI LORAWAN |

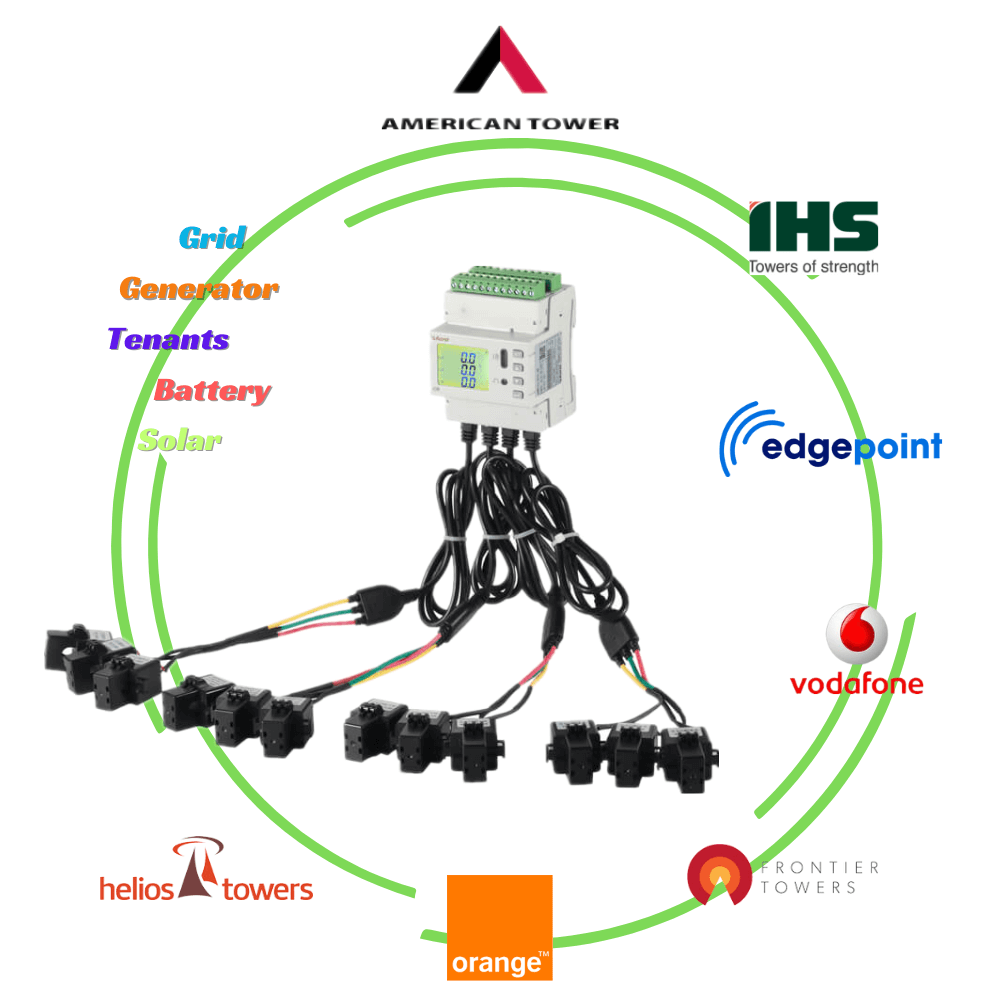

| Customers | American Tower Vodafone Orange | Wallbox | Helios Tower Edgepoint TASC Tower Frontier Tower | IHS Tower Orange Towerco of Africa |
Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]
One-stop Service, Reduce Cost and Deliver on Time
Power Meter Production workshop
Current Sensor Production workshop
Assembly workshop
Power Meter Factory
Assembly Factory
R&D Center
2014/30/EU
EN IEC 61000
IEC 62052
IEC 62053
Standard Lead Time:
Sample: 2 days
Bulk: 1 month
Standard Lead Time:
Sample: 2 days
Bulk: 1 month
