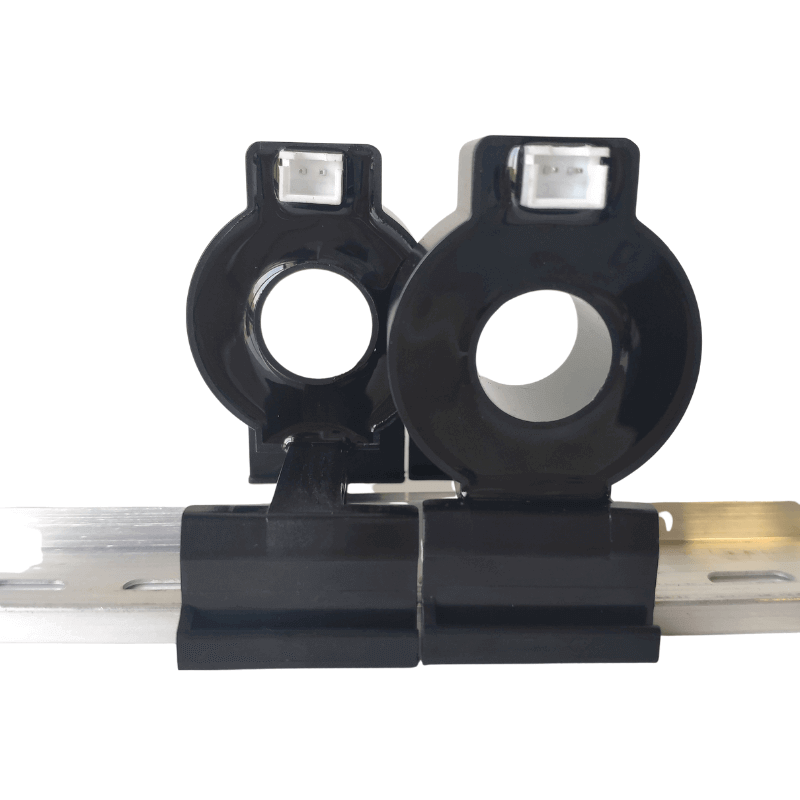

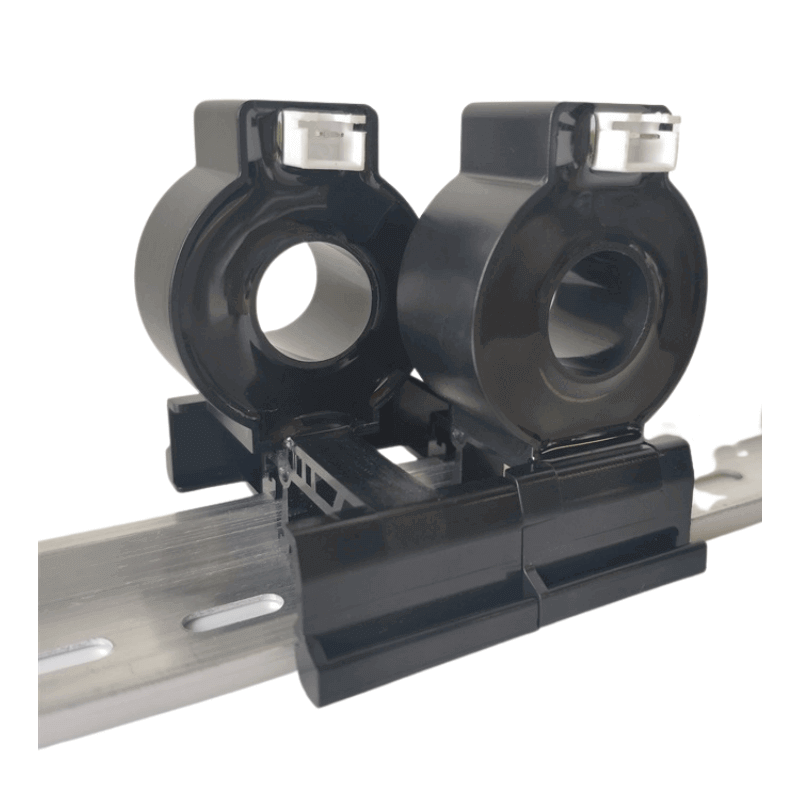

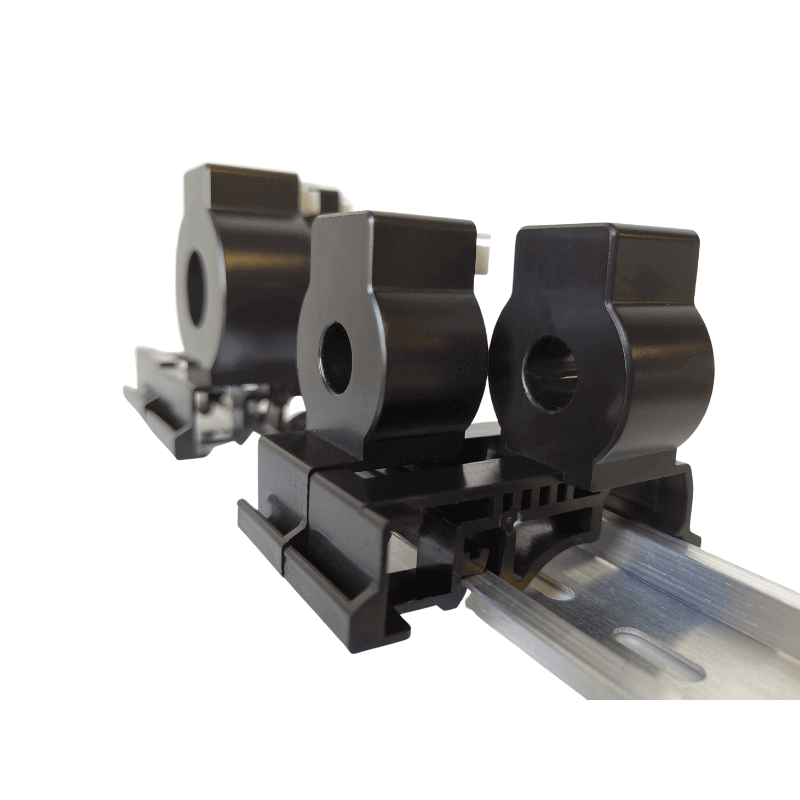

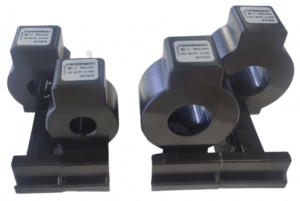

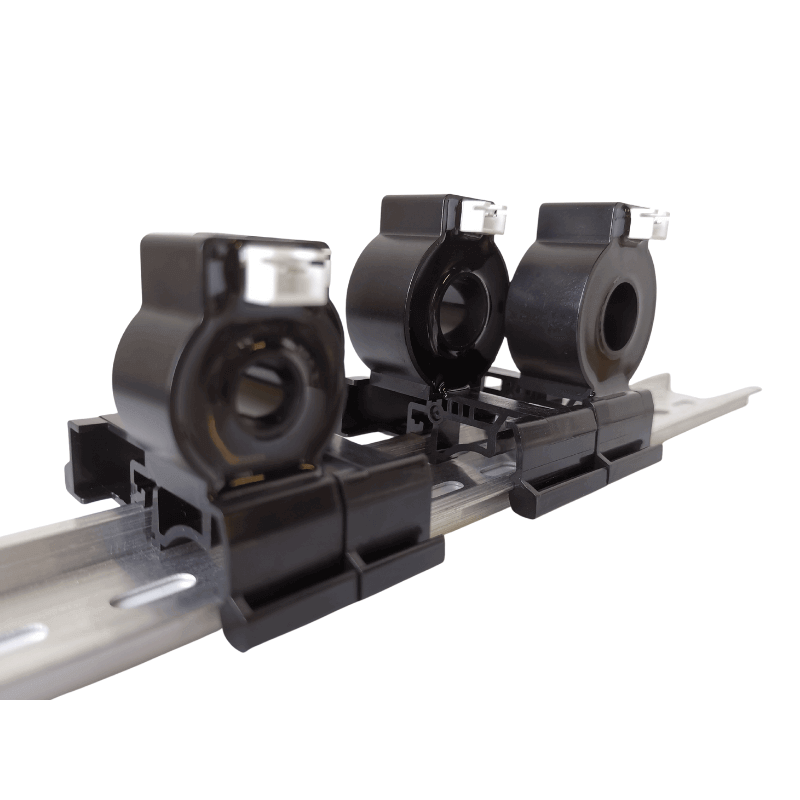

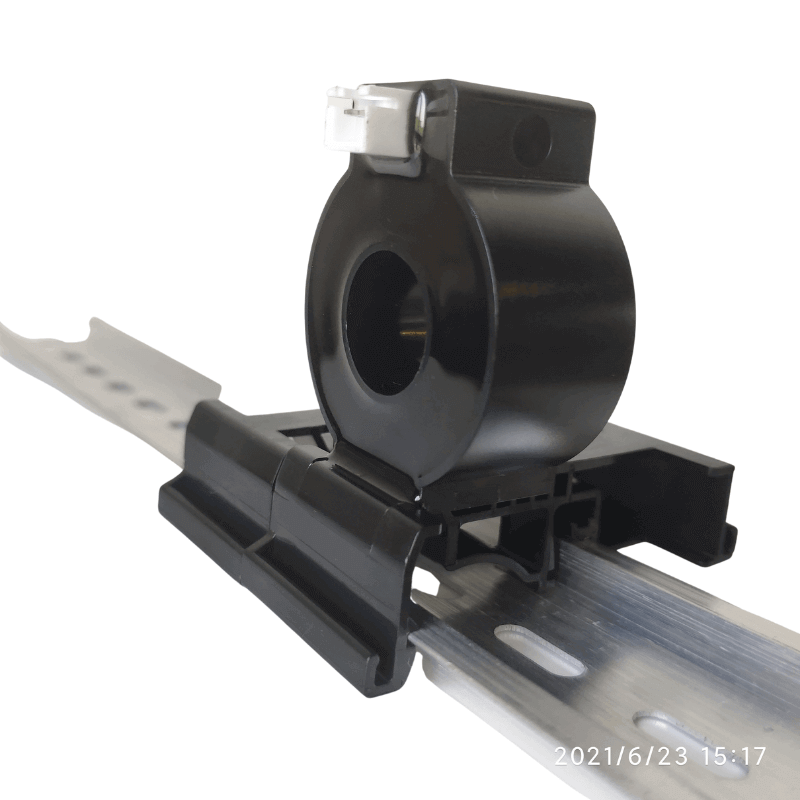

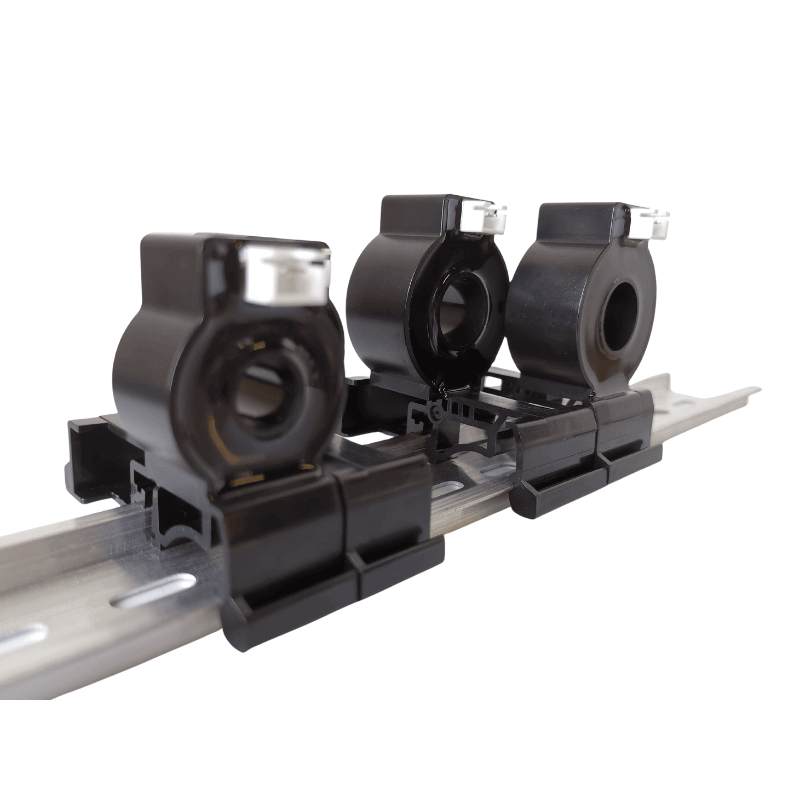

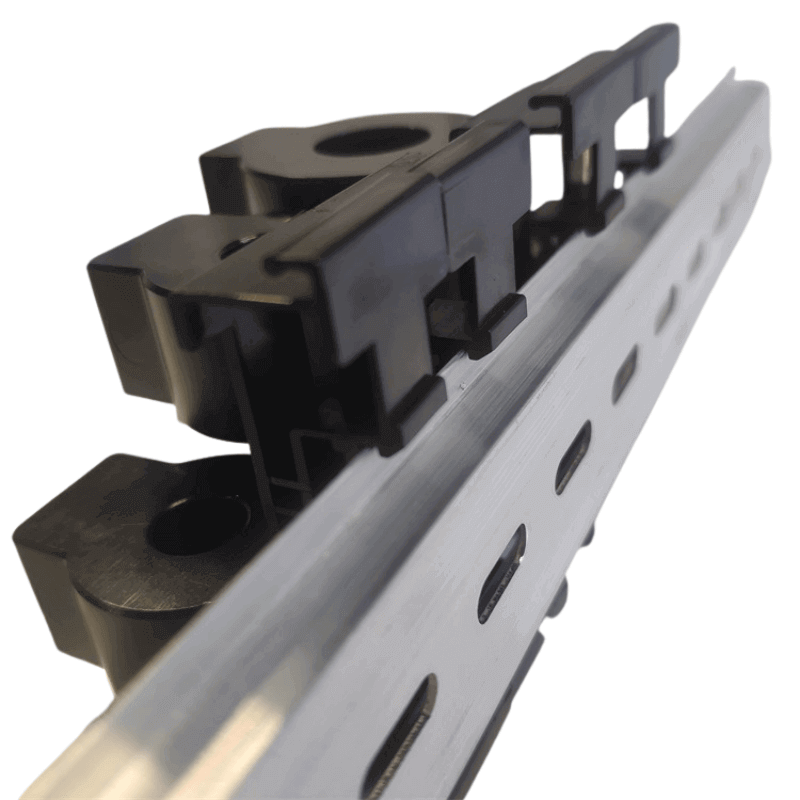

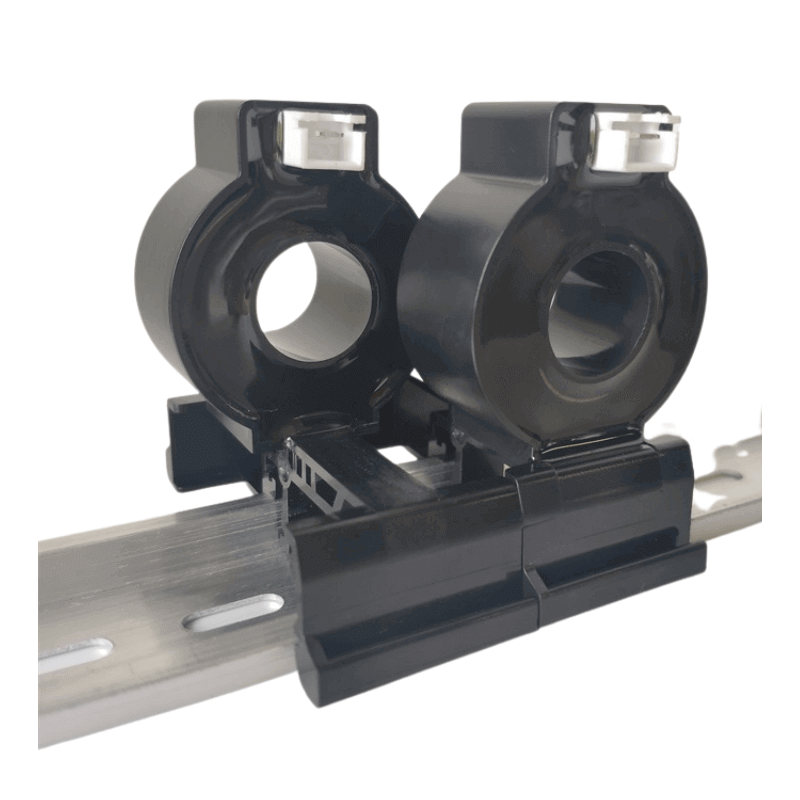

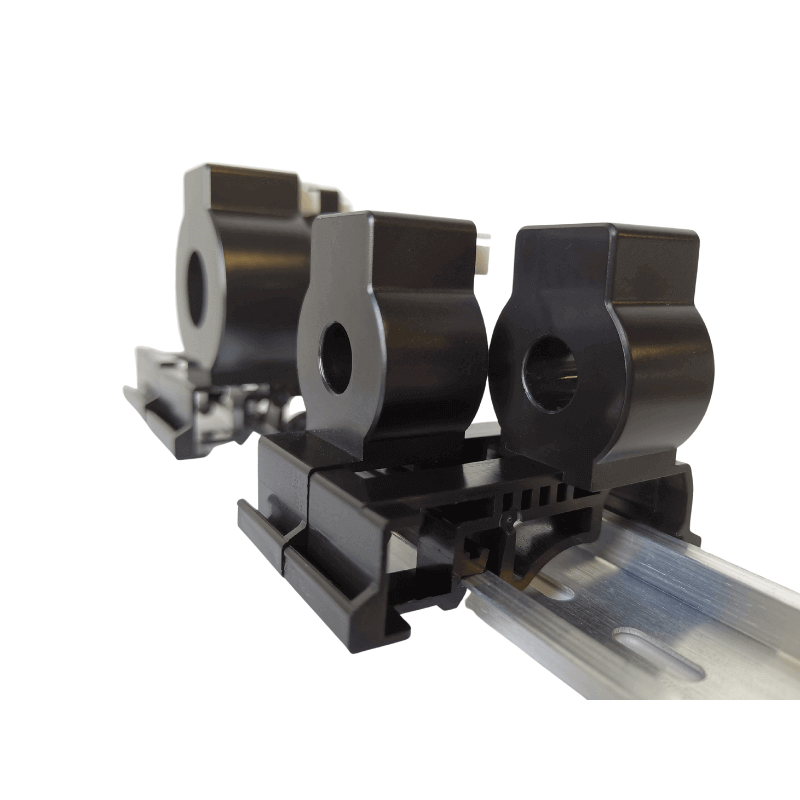

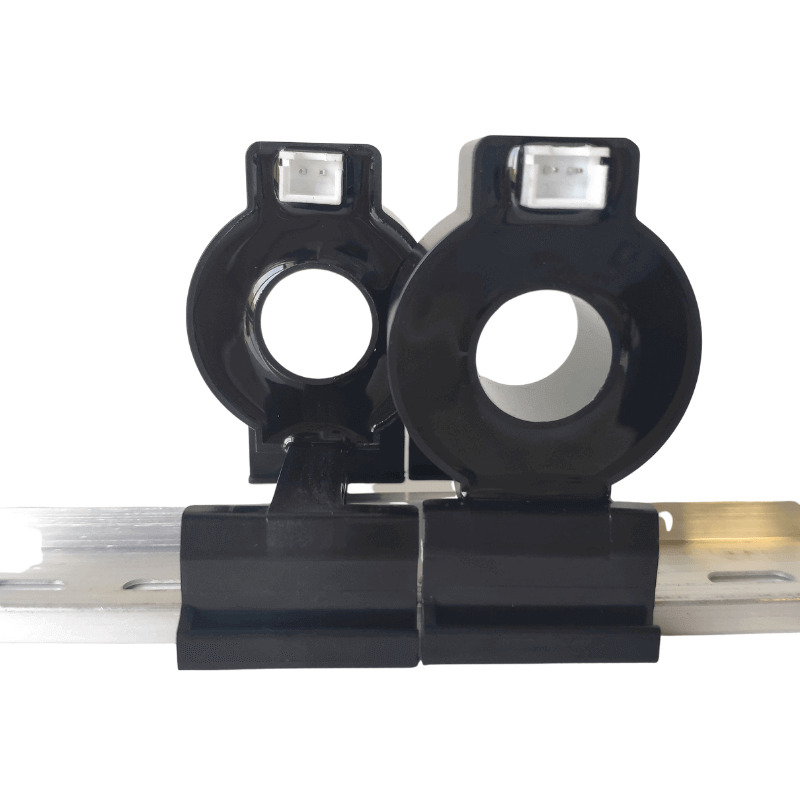

Paired Micro Current Transformer

AKH0.66-WAB

  • Flame Retardant
  • Temp Resistance
  • Paired with Mini Size
  • IEC 61869
Chat Online Leave Message

Highlight

What’s the Function of Micro-Current Transformer?

 Installation

  • Save space

Primary

  • 50-100A

Secondary

  • 50mA

Application

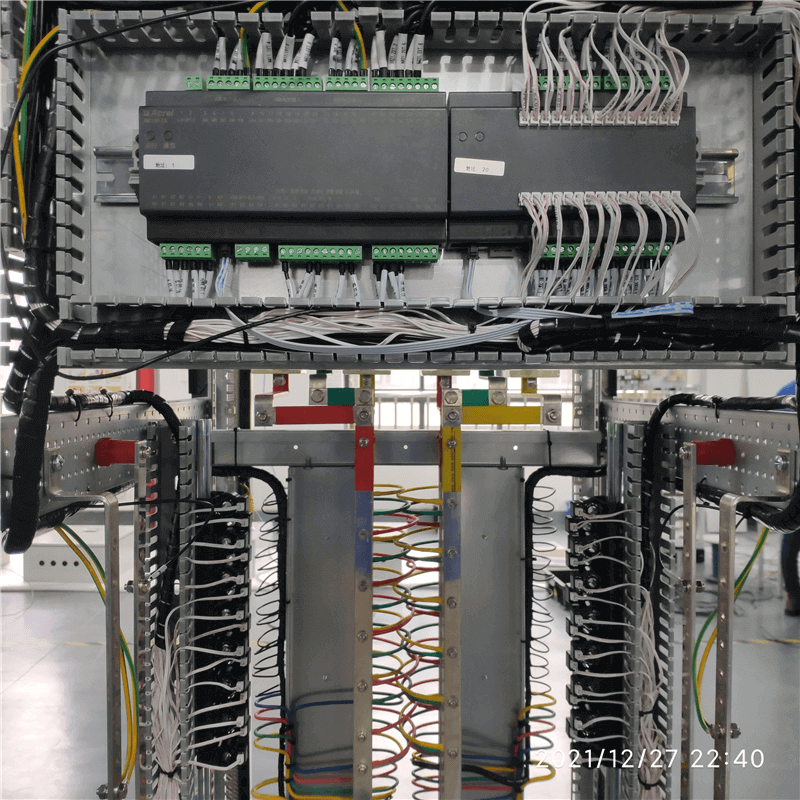

  • Data Center

Specification

What’s the Specification of Acrel AKH0.66-WAB series Paired Micro Current Transformer?

Specification AKH0.66-W-9AB AKH0.66-W-15AB
Inner Size Φ9 mm Φ15 mm
Input Current 50 A 100 A
Output Signal 50mA 50mA

Parameter

What’s the Parameter of a Micro-Current Transformer?

Standard IEC/EN 61869-1, IEC/EN 61869-2
Accuracy 0.2 class
Rated Voltage AC 0.66 KV
Rated Frequency 50-60Hz, 400Hz
Continuous Overload 120% ln
Burden 10 Ω
Protection Level IP30
Temperature -30℃~55℃
Altitude ≤3000 m
Humidity ≤90%
Withstand 3000V/1min 50Hz

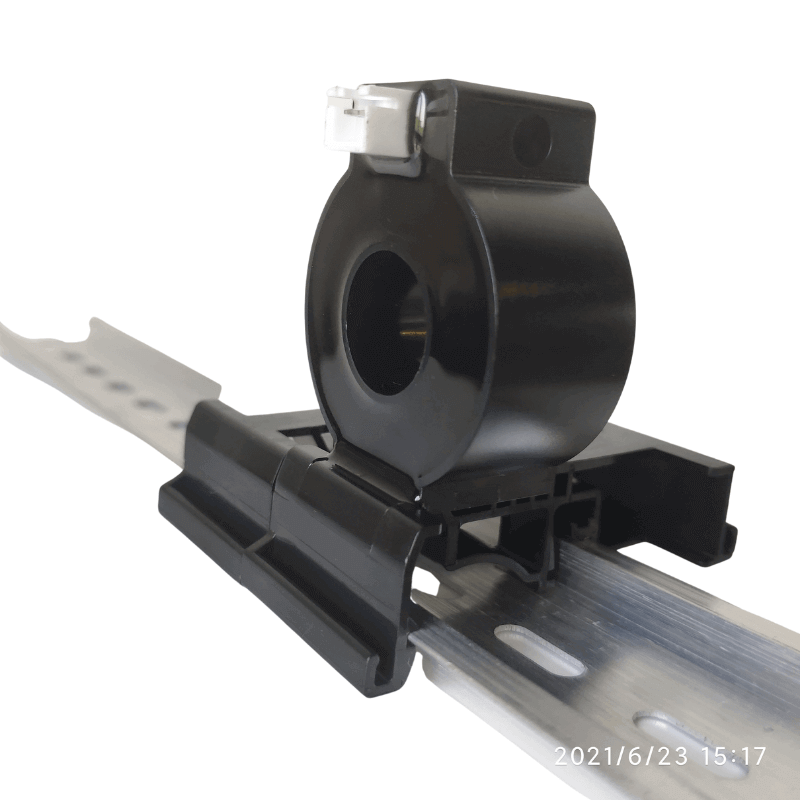

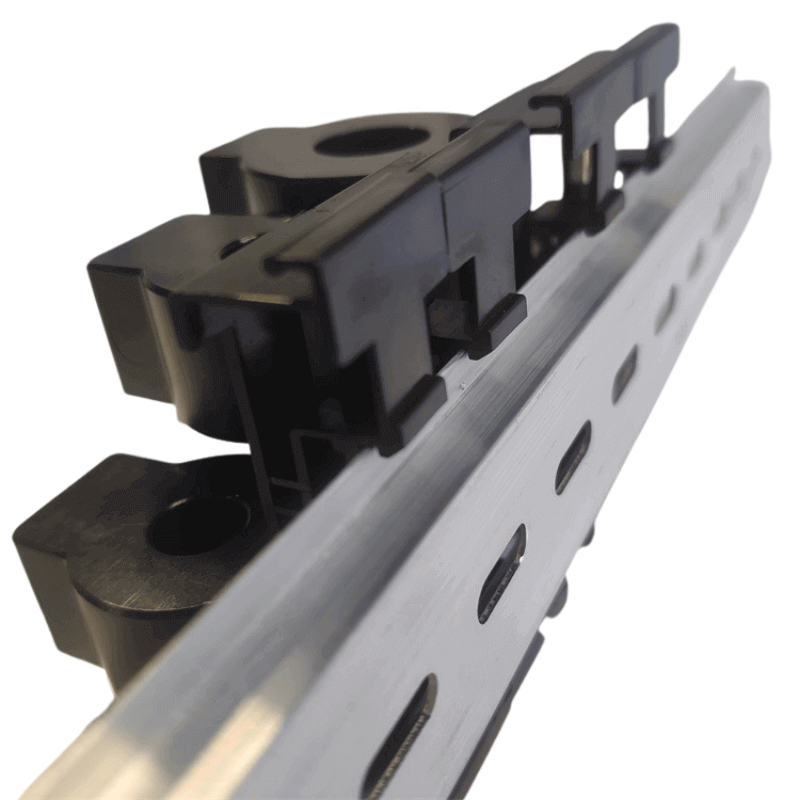

Installation

How to Install the Micro-Current Transformer?

Why choose Acrel?

  • 2003 Established
  • SZ.300286 Listed Company
  • 1200+ People
  • 25000+㎡ Plant
  • Factory Direct-sale
