Summation Current Transforme

AKH0.66-Z

  • Flame Retardant
  • Temp Resistance
  • Silicon Steel Core
  • IEC 61869

Highlight

What’s the Function of Summation Current Transformer?

Installation

  • Save space

 Primary

  • 5-1250A

Secondary

  • 5A
  • 1A
  • 20mA
  • 50mA

Application

  • Multi-Circuit monitoring

Specification

What’s the Specification of Acrel AKH0.66-Z series Summation Current Transformer?

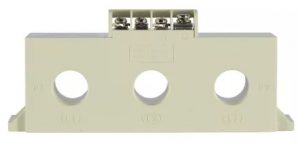

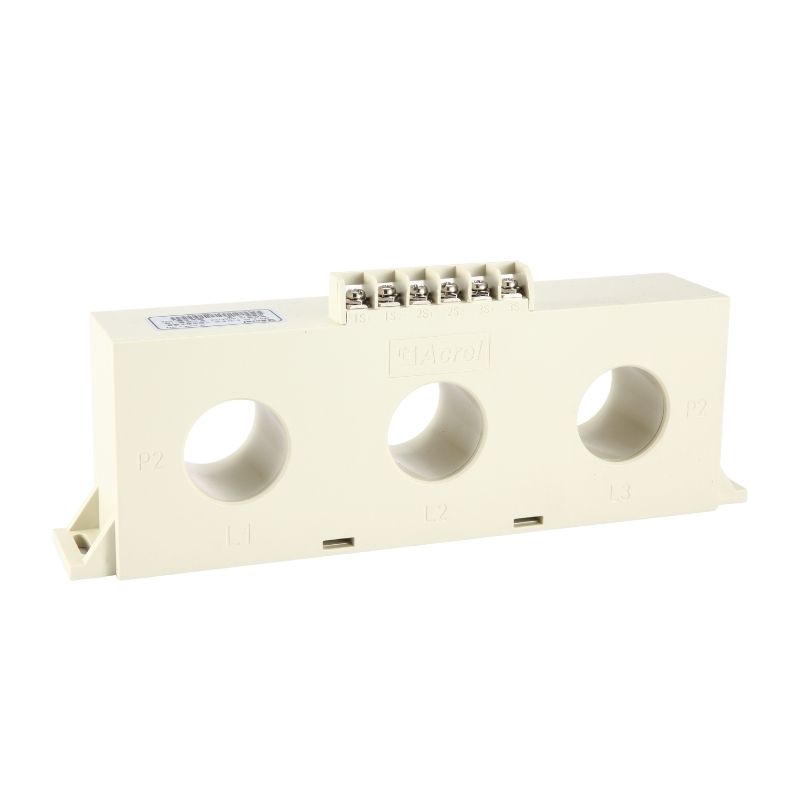

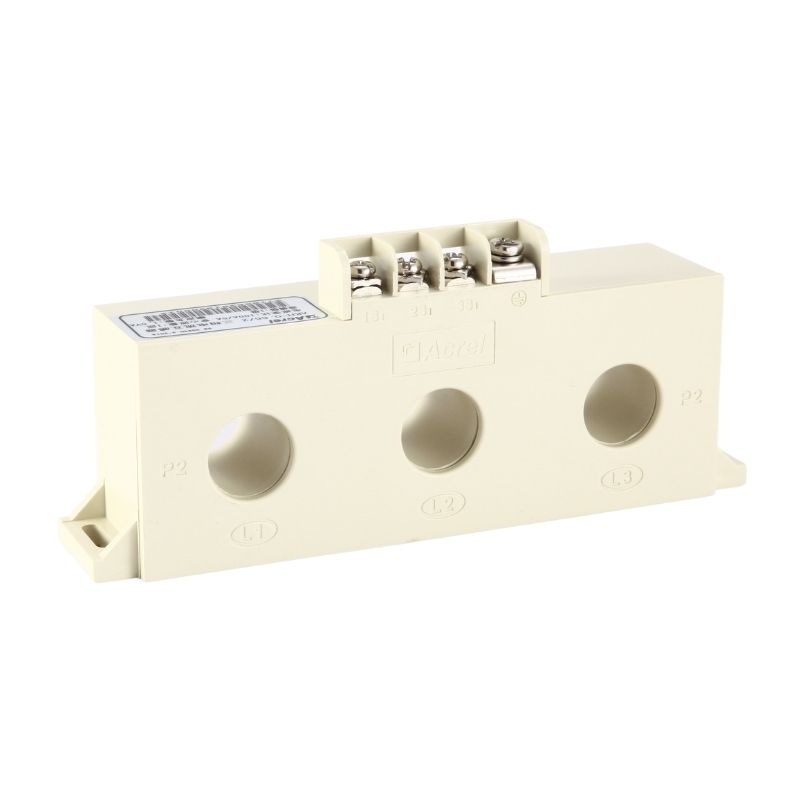

Specification AKH0.66-Z-3*Φ20 AKH0.66-Z-3*Φ35
Inner Size Φ20 mm Φ35 mm
Input Current 5-200 A 100-1250 A
Output Signal 5A, 1A, 20mA, 50mA 5A, 1A

Parameter

What’s the Parameter of the Summation Current Transformer?

Standard IEC/EN 61869-1, IEC/EN 61869-2
Accuracy 0.2, 0.5, 1.0 class
Rated Voltage AC 0.66 KV
Rated Frequency 50-60Hz
Continuous Overload 120% ln
Protection Level IP30
Temperature -30℃~55℃
Altitude ≤3000 m
Humidity ≤90%
Withstand 3000V/1min 50Hz
