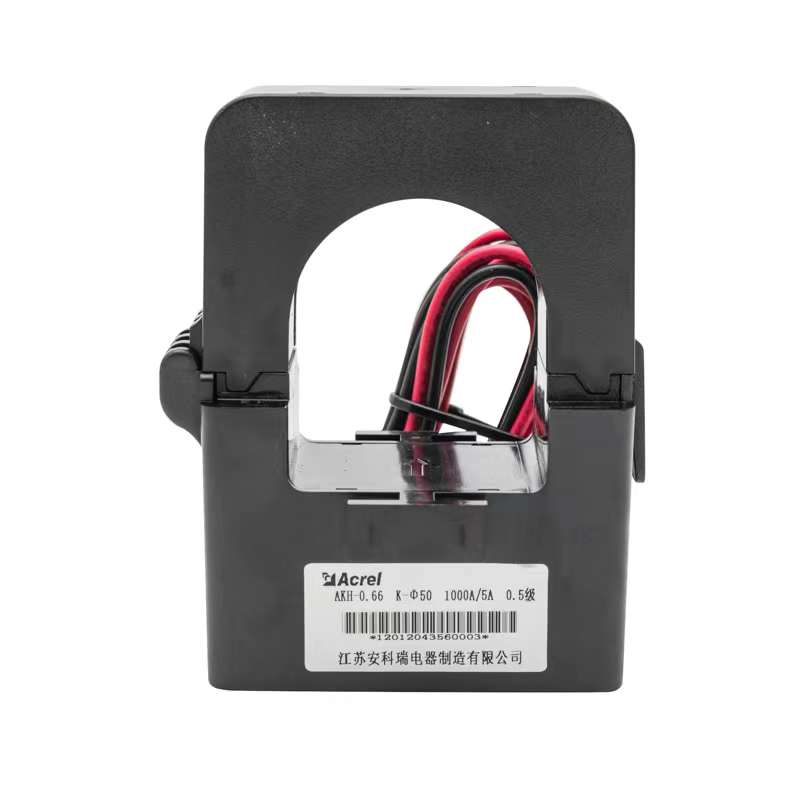

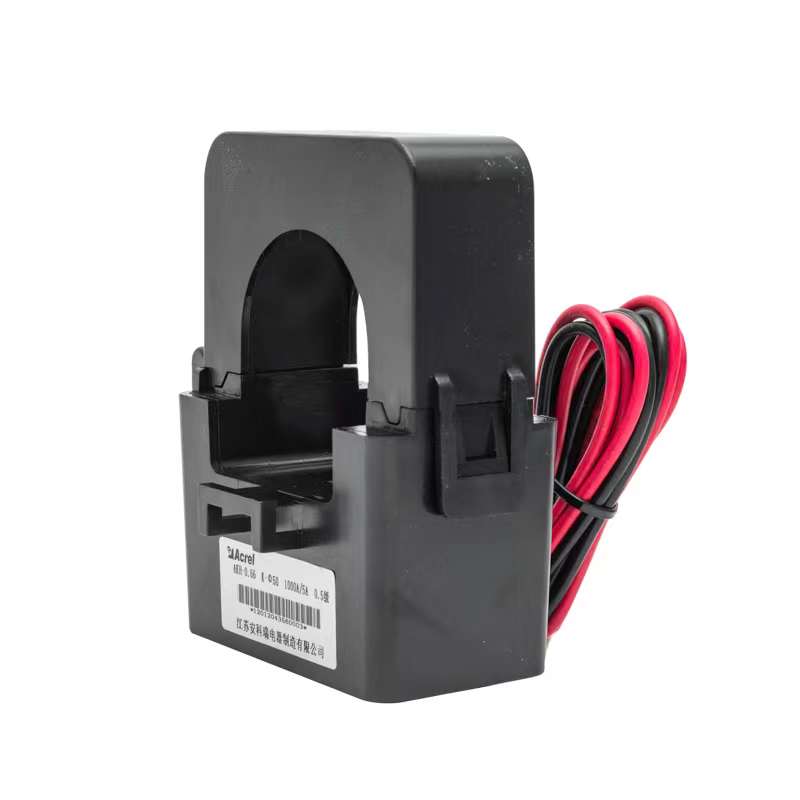

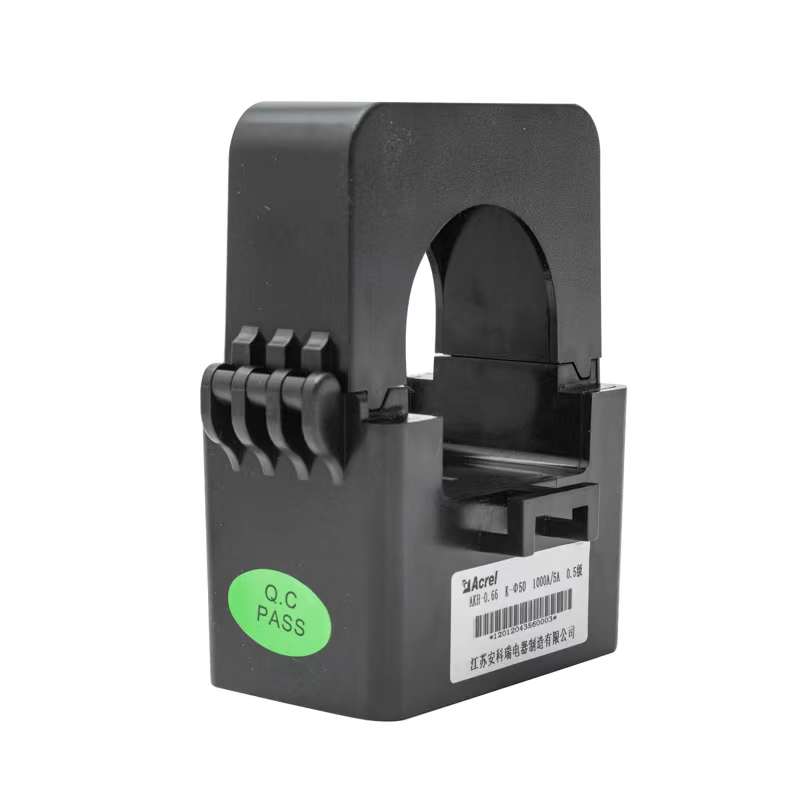

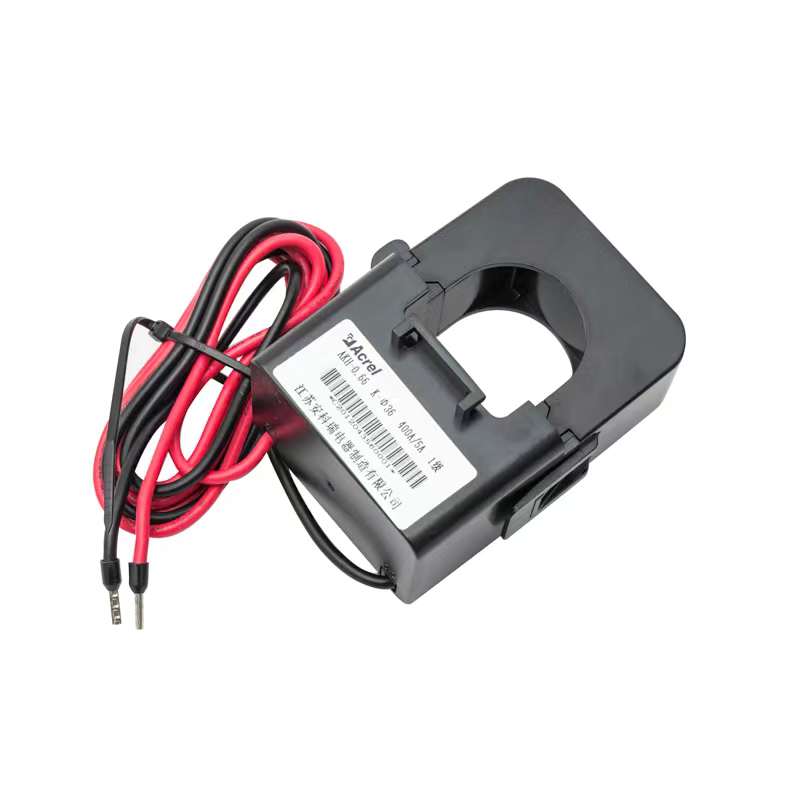

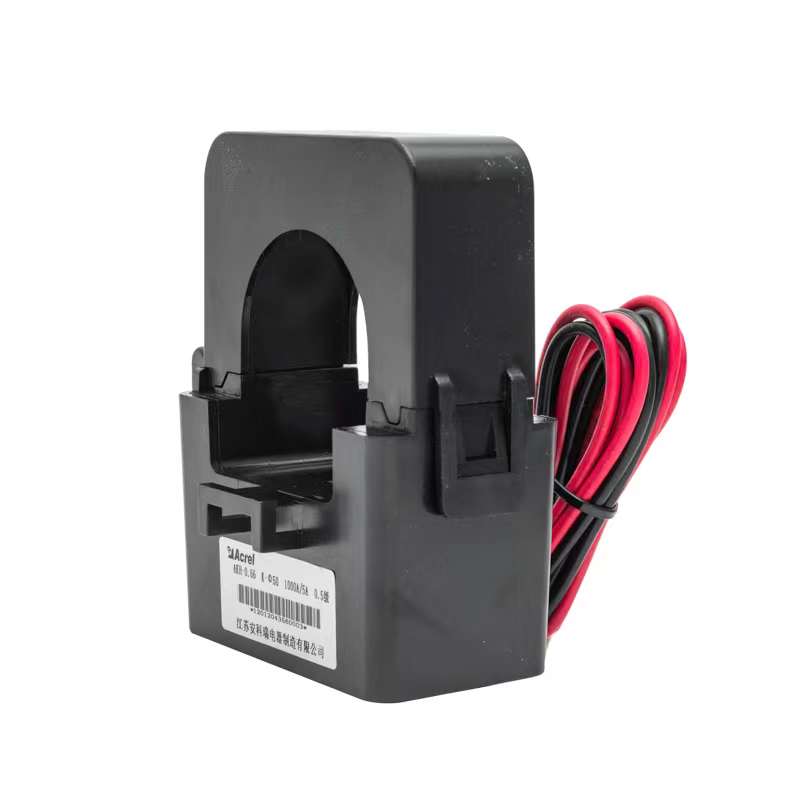

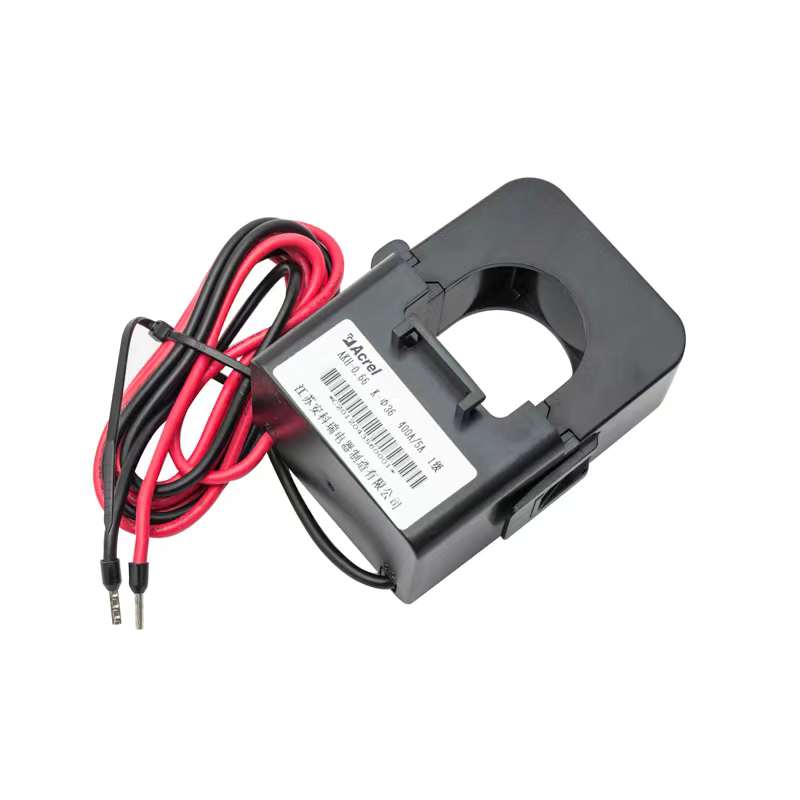

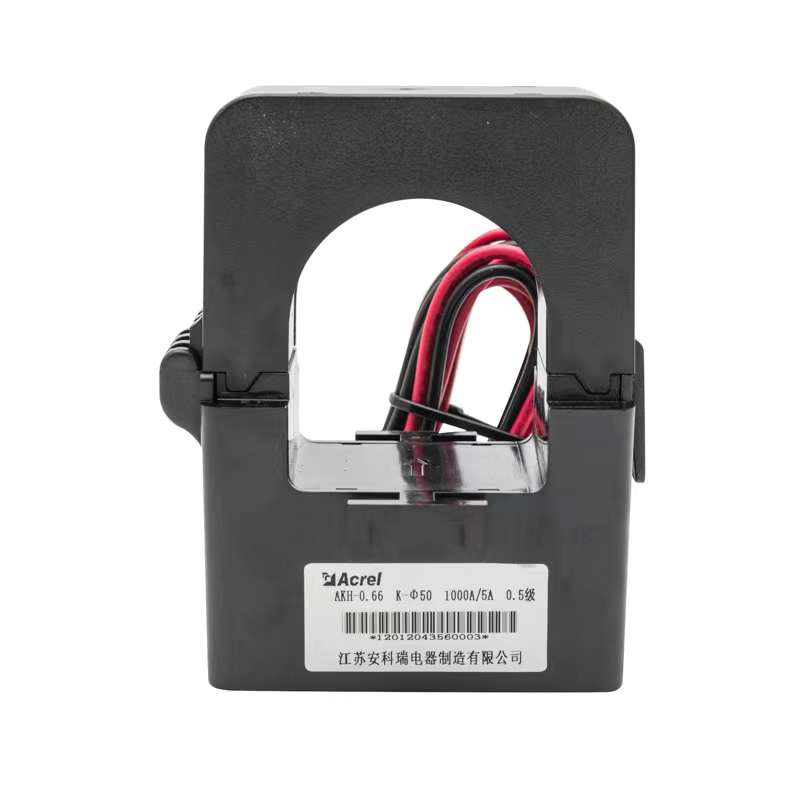

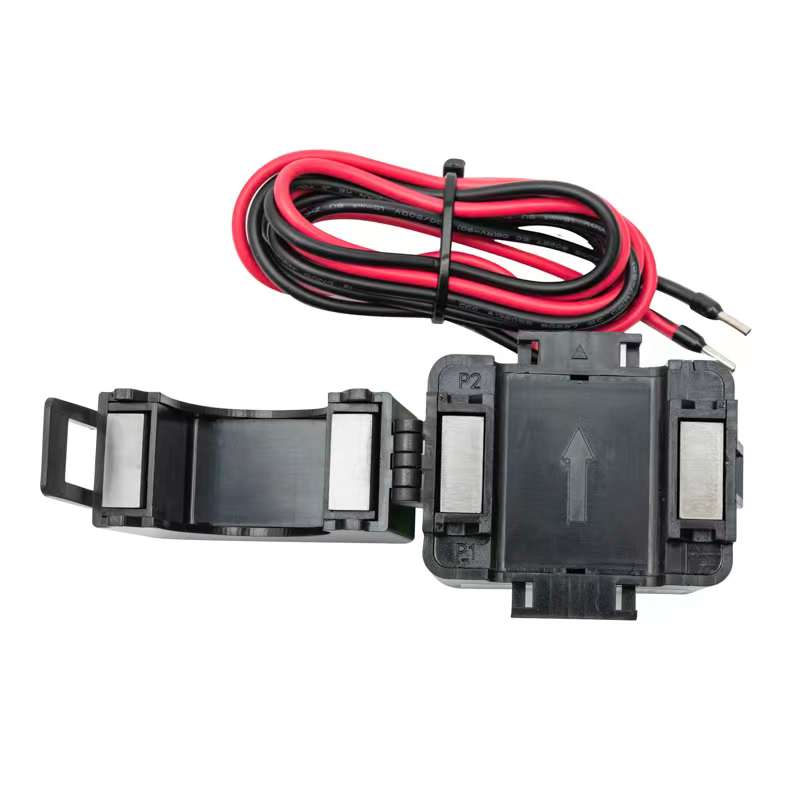

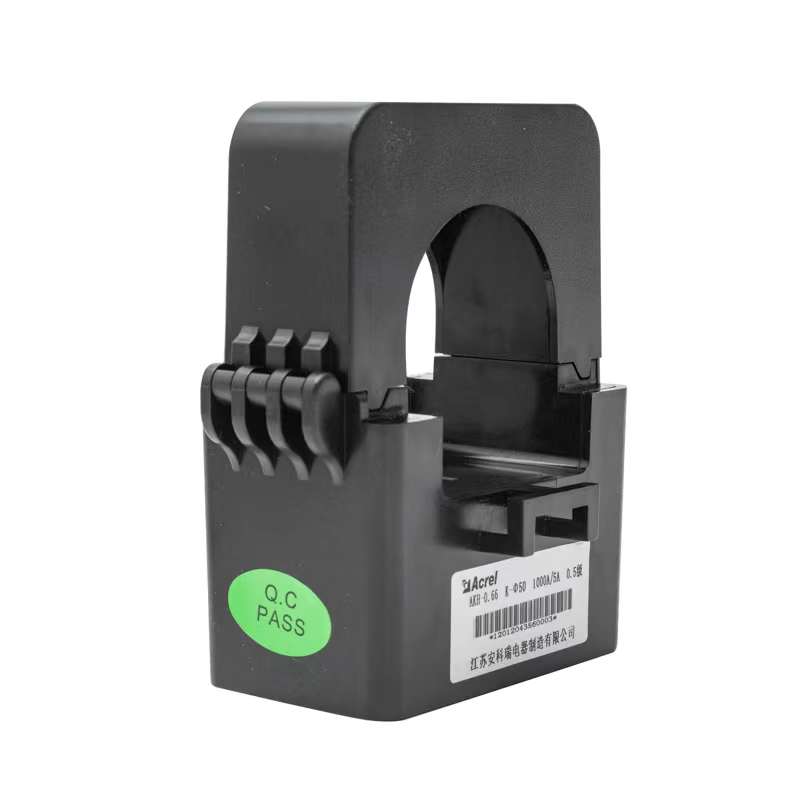

Split Core Current Transformer for Cable

AKH0.66-K-φ

  • Flame Retardant
  • Temp Resistance
  • Silicon Steel Core
  • IEC 61869

Feedback

What Do Our Customers Say?

  • “ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

    Arnold 

    Philippines

  • Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

    Tuan 

    Vietnam

Highlight

What’s the Function of Split Core Current Transformer?

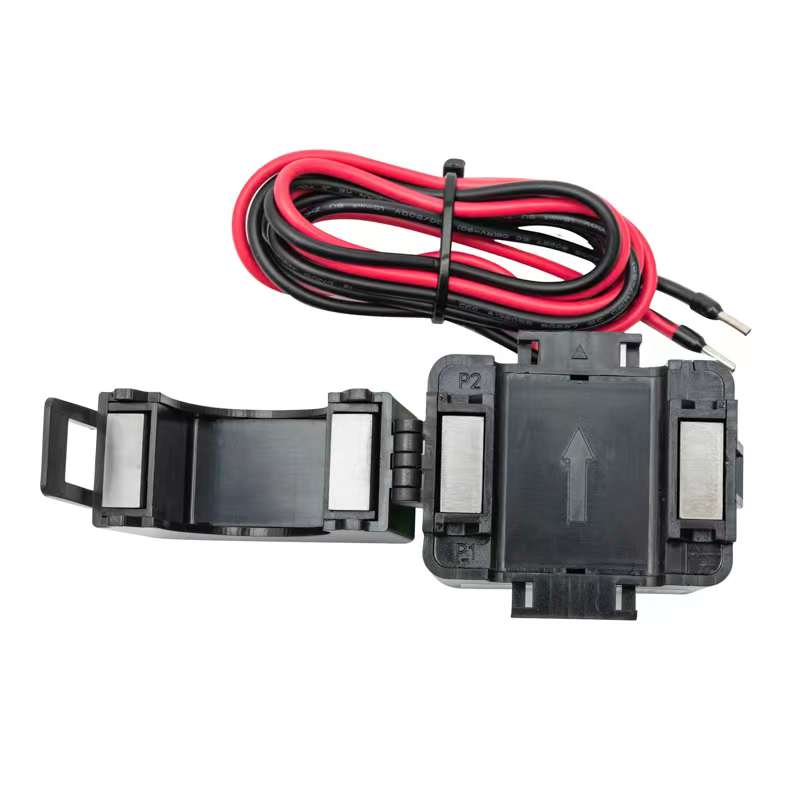

 Easy to install

  • Split-core Open design

Primary

  • 5-1000A

Secondary

  • 5A
  • 1A
  • 333mV
  • 1.25mA
  • 5mA
  • 20mA
  • 40mA
  • 100mA

Application

  • Reconstruction Project

Specification

What’s the Specification of Acrel AKH0.66-K-φseries Split Core Current Transformer for Cable?

Specification AKH0.66-K-φ
Inner Size Φ10,16,24,36,50 (±2) mm Φ24,36,50 (±2) mm
Input Current 5-800 A 150-1000 A
Output Signal 333mV,

1.25mA, 5mA, 20mA, 40mA, 100mA

1A, 5A

Parameter

What’s the Parameter of Split Core Current Transformer?

Standard IEC/EN 61869-1, IEC/EN 61869-2
Accuracy 0.5, 1.0 class
Rated Voltage AC 0.66 KV
Rated Frequency 50-60Hz, 400Hz
Continuous Overload 120% ln
Burden 0-30 VA
Protection Level IP30
Temperature -30℃~55℃
Altitude ≤3000 m
Humidity ≤90%
Withstand 3000V/1min 50Hz

Installation

How to Install the Split Core Current Transformer?
