Highlight

What’s the Highlight of Acrel 433MHz Passive & Battery-powered Thermal Sensor TH110 for Switchgear Continuous Thermal Monitoring?

Usage

470MHZ, 433MHZ
Transmission 150m in an open-air range
Critical Connection Points
Continuous Thermal Monitoring

Application

MV & LV Switchgear
MV Transformer
Circuit Breakers
Withdrawable
Busbar Connection

Function

Wireless Temperature Continuous Monitoring
Curve Analysis
Report Download
Web & APP Access

Display

1-5 Cabinets Local Display
Centralized Local Display
Cloud Platform Remote Display

Application

What’s the Application of Acrel 433MHz Passive & Battery-powered Thermal Sensor TH110 for Switchgear Continuous Thermal Monitoring?

Solution

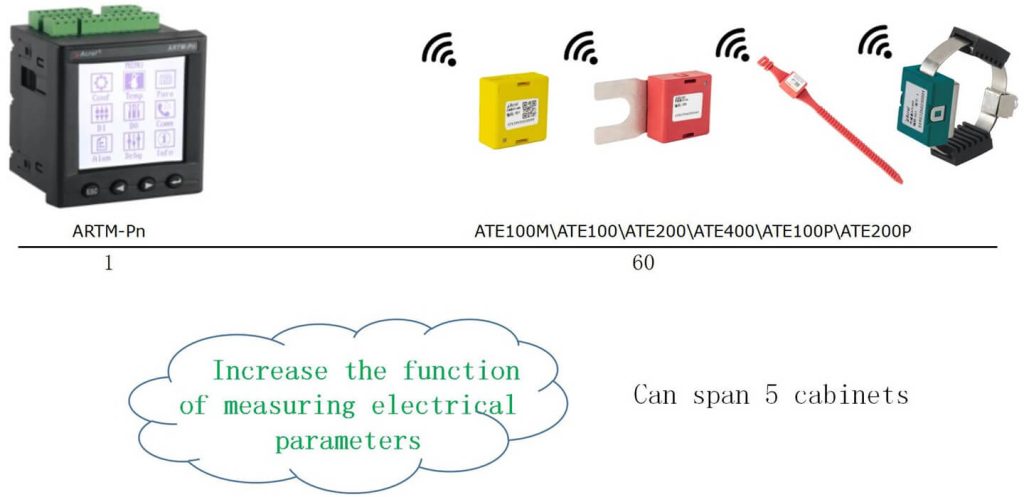

5 Cabinets Local Display with Electrical Parameters Measurement

(1) 60 PCS of ATE Wireless Temperature Sensor

(2) U I P Q E f Electrical Parameters Measurement

(3) 4DI/2DO

(4) RS485 Modbus Communication

(5) Power Supply: AC 85-265V; DC 100-300V

(6) Panel size: 96*96*17mm; Cut-out size: 92*92mm

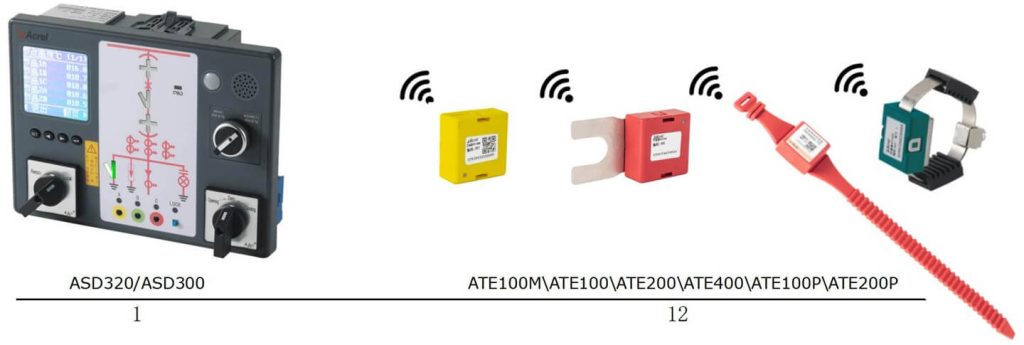

Single Cabinet Local Display with Operation and Control Device

(1) 12 PCS of ATE Wireless Temperature Sensor

(2) Single Line Diagram

(3) Voice Prompt

(4) Remote & Local Control

(5) Human body Induction

(6) Electrical Parameters Measurement

(7) RS485 Modbus Communication

(8) Power Supply: AC 90-270V; DC 100-300V

(9) Panel size: 238*178mm; Cut-out size: 220*165mm

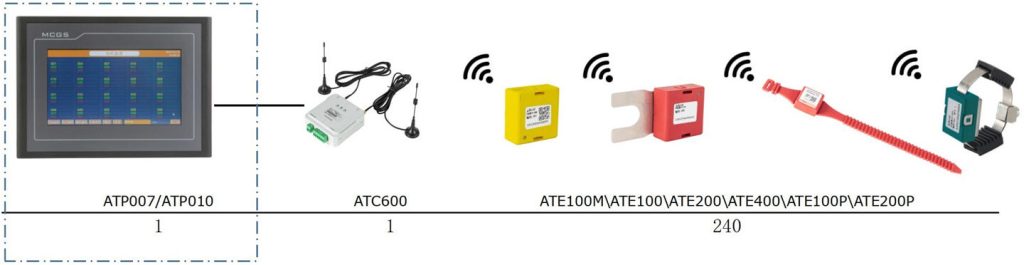

Centralized Display with Touch Screen

(1) 240 PCS of ATE Wireless Temperature Sensor

(2) Buzzer High Temperature Alarm

(3) RS485 Modbus Communication; Ethernet Interface

(4) Power Supply: DC 24V

(5) Panel size: 7 inch or 10 inch

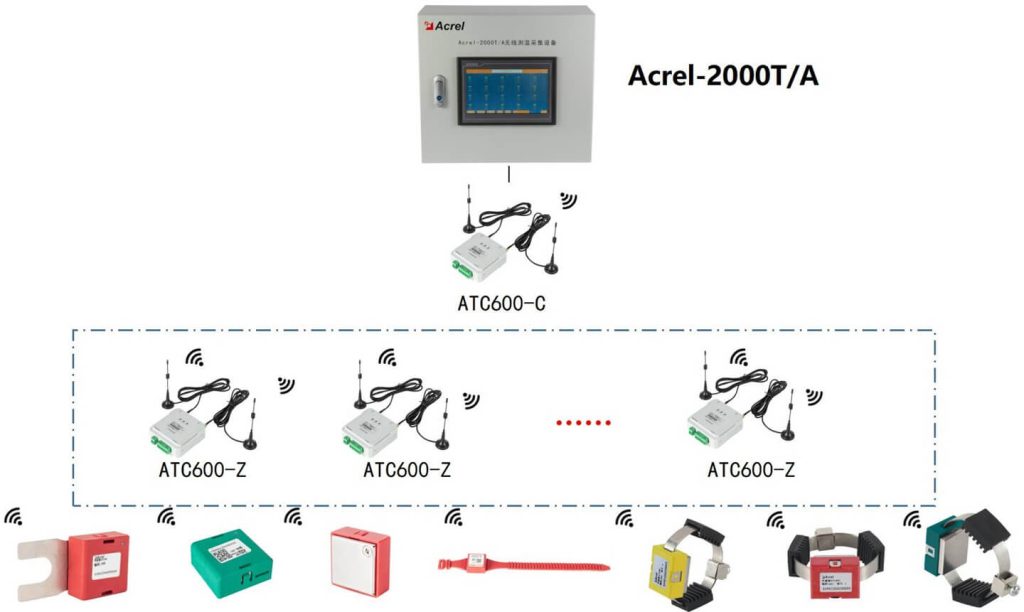

Wall-mounted Centralized Display with Touch Screen

(1) 240 PCS of ATE Wireless Temperature Sensor

(2) Buzzer High Temperature Alarm

(3) RS485 Modbus-RTU Communication; Ethernet Interface

(4) Power Supply: AC 85-265V; DC 100-300V

(5) Box size: 480*420*200mm; Touch Screen size: 274*193*42.7mm

Wall-mounted Centralized Display with Windows 7 Operation System

(1) 240 PCS of ATE Wireless Temperature Sensor

(2) Buzzer High Temperature Alarm

(3) RS485 Modbus-RTU Communication; Ethernet Interface

(4) Hardware: Memory 4G; Hard disk 1T

(5) Operation System: Windows 7

(6) Database System: Microsoft SQL Server 2008R2

(7) I/O Interface: GLAN*2; USB*4; COM*6

(8) Box size: 480*420*200mm; Screen size: 12 inch

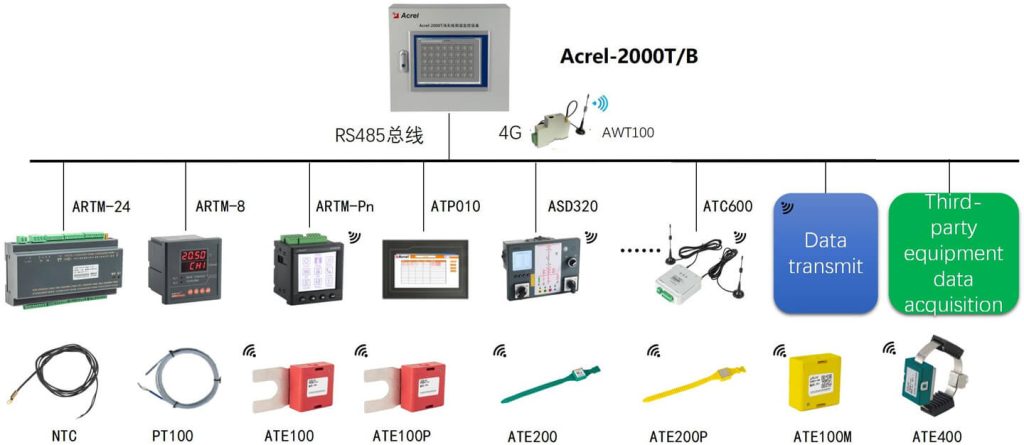

Cloud Platform for PC and Phone APP

(1) Wireless Temperature Monitoring

(2) Temperature Display

(3) Report

(4) Curve

(5) Web & APP
