Highlight

What’s the Function of Acrel ATE Series Wireless Temperature Sensor?

Usage

Critical Connection Points
Continuous Thermal Monitoring

Application

MV & LV Switchgear
MV Transformer
Circuit Breakers
Withdrawable
Busbar Connection

Wireless

470MHZ, 433MHZ
Transmission 150m in an open-air range

Power Supply

Battery Powered
CT Powered

Specification

What’s the Specification of Acrel ATE Series Wireless Temperature Sensor?

Specification	ATE100M	ATE200	ATE200P (IP68)	ATE400
Installation	Magnetic	Belt	Belt	Alloy Sheet
Working Power	Battery	Battery	Battery	CT
Transmission Frequency	470Mhz or 434Mhz
Sampling Interval	25s	25s	25s	15s
Transmission Interval	5min	5min	5min	15s
Measure Temperature Range	-50℃~125℃
Measure Temperature Accuracy	±1℃
Communication Distance	150m in an open-air range
Operation Life	>5years(battery life)			>10years

Parameter

What’s the Parameter of Acrel ATE Series Wireless Temperature Sensor?

GFSK Wireless Communication

● Wireless Frequency: 470MHz

● Communication Distance: 150m in an open area

Various Installation Methods

● Bolted Installation

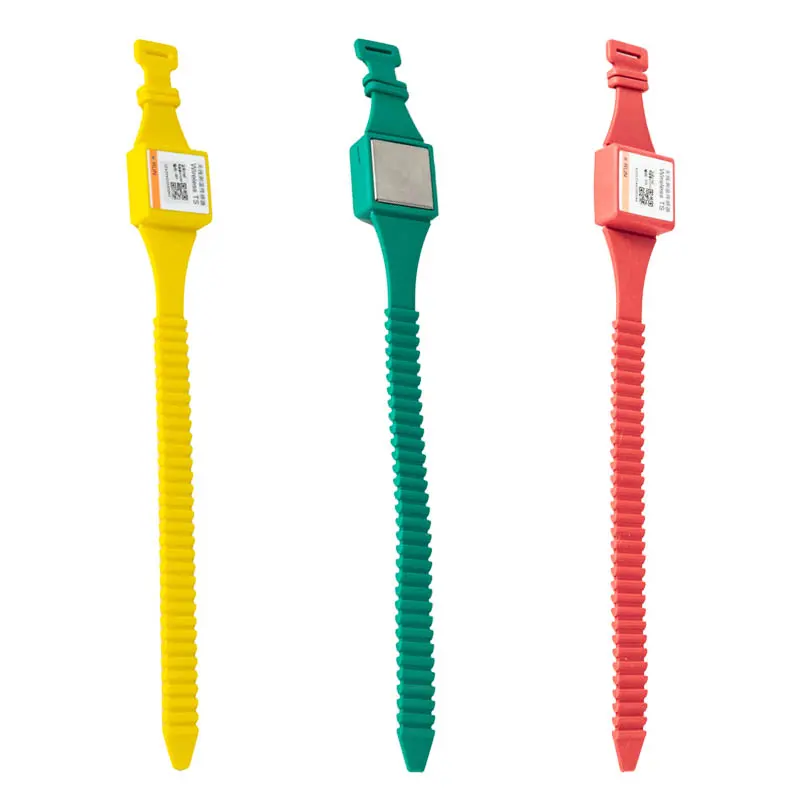

● Belt Installation

● Magnetic

● Fixed by alloy chips

Optional IP68 Protection Level

● Suitable Model: ATE100P, ATE200P

● Standard: IEC 60529

Battery or CT Sensing Power Supply

● Lifespan: ≥5 years (battery); ≥10 years (CT sensing)

● Battery Model: ATE100(P),ATE100M,ATE200(P),

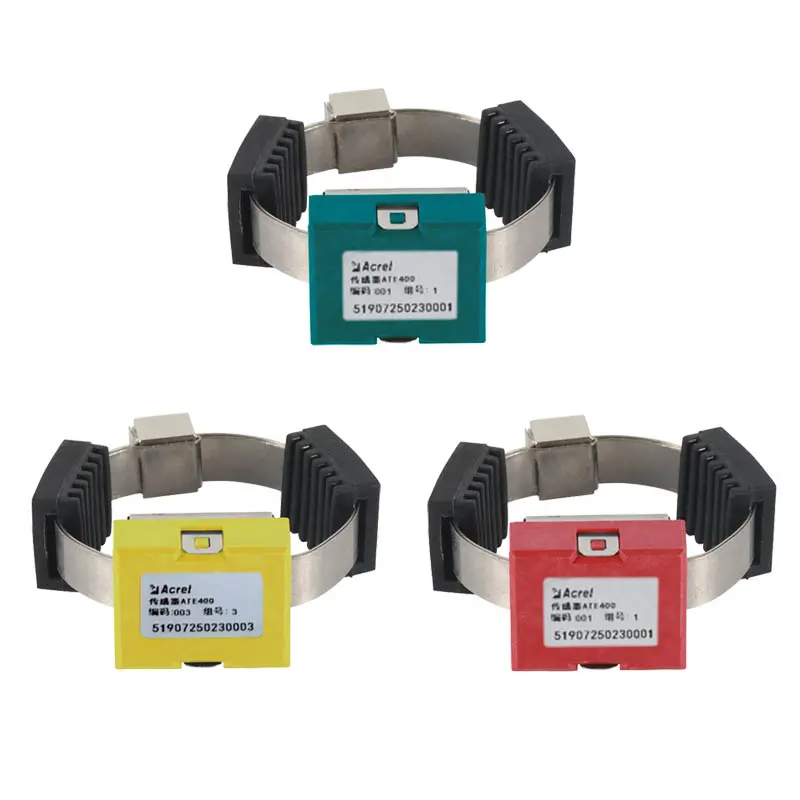

● CT Sensing Model: ATE400

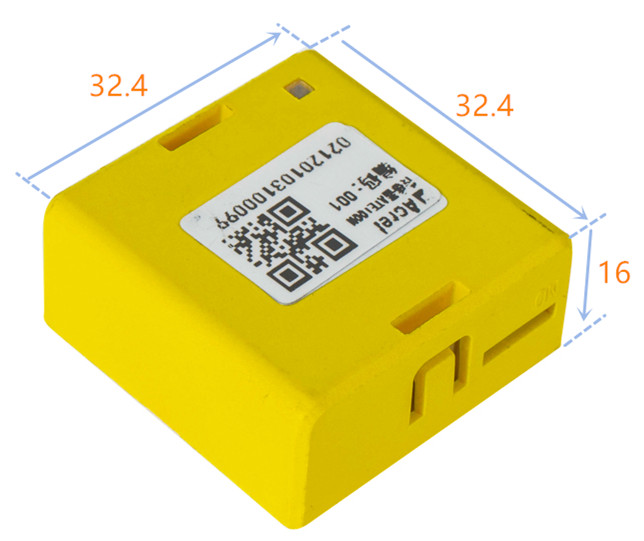

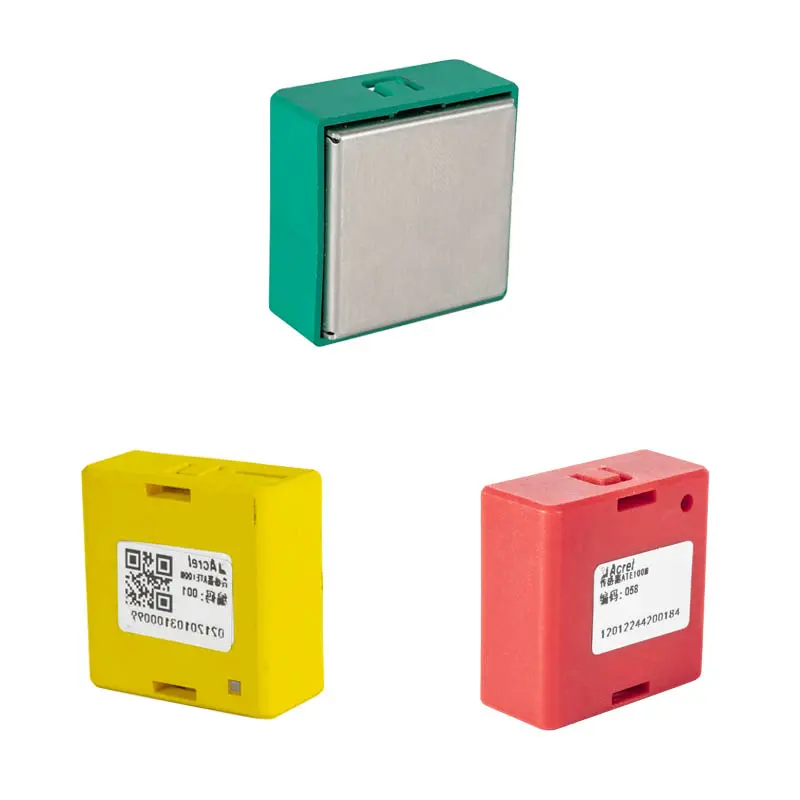

Appearance

What's the Appearance of the Acrel ATE Series Wireless Temperature Sensor?

Installation

How to Connect the Acrel ATE Series Wireless Temperature Sensor?

Typical Topology

How does Acrel ATE Series Wireless Temperature Sensor work?
