Highlight

What’s the Highlight of Acrel Wireless Temperature Monitoring System for Switchgear?

Usage

470MHZ, 433MHZ
Transmission 150m in an open-air range
Critical Connection Points
Continuous Thermal Monitoring

Application

MV & LV Switchgear
MV Transformer
Circuit Breakers
Withdrawable
Busbar Connection

Function

Wireless Temperature Continuous Monitoring
Curve Analysis
Report Download
Web & APP Access

Display

1-5 Cabinets Local Display
Centralized Local Display
Cloud Platform Remote Display

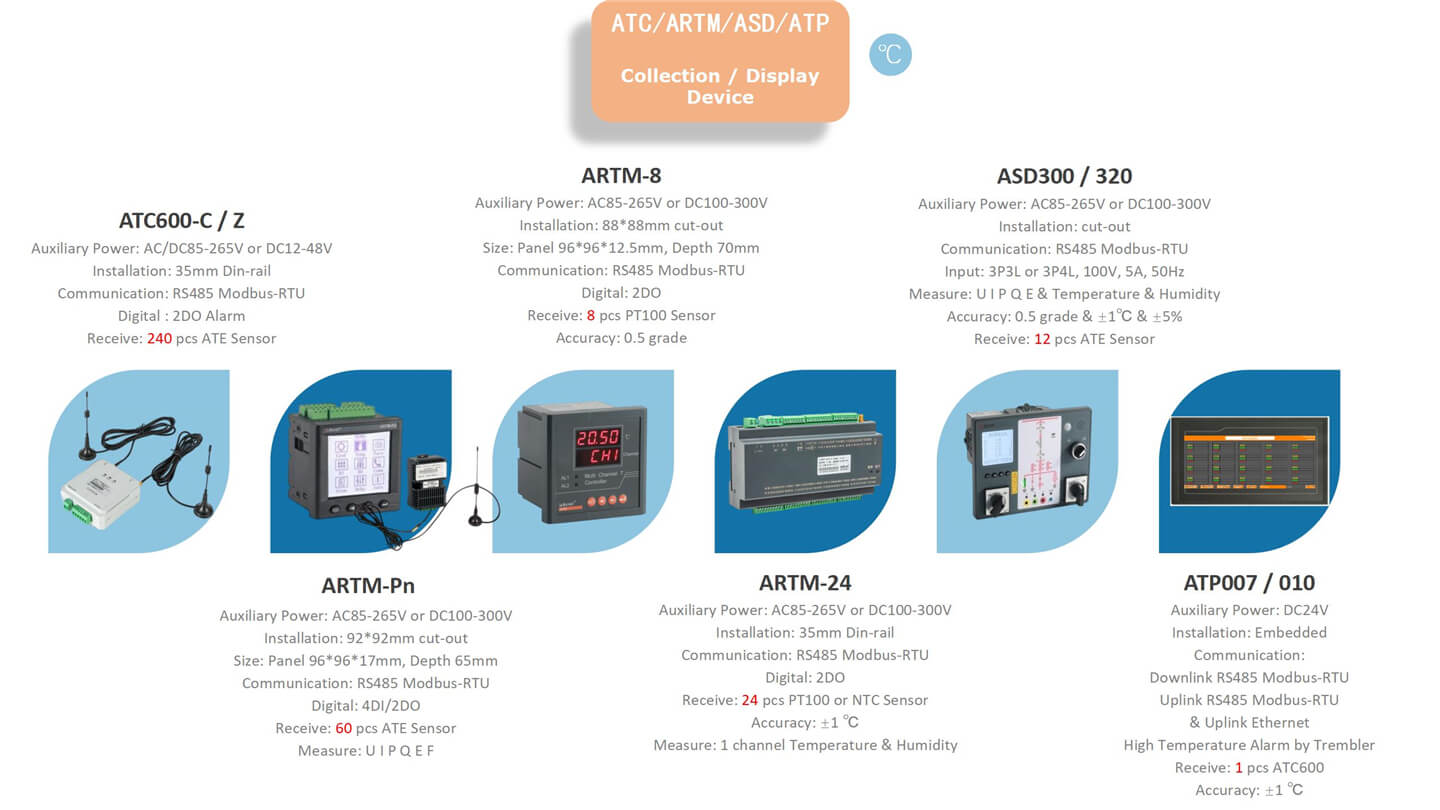

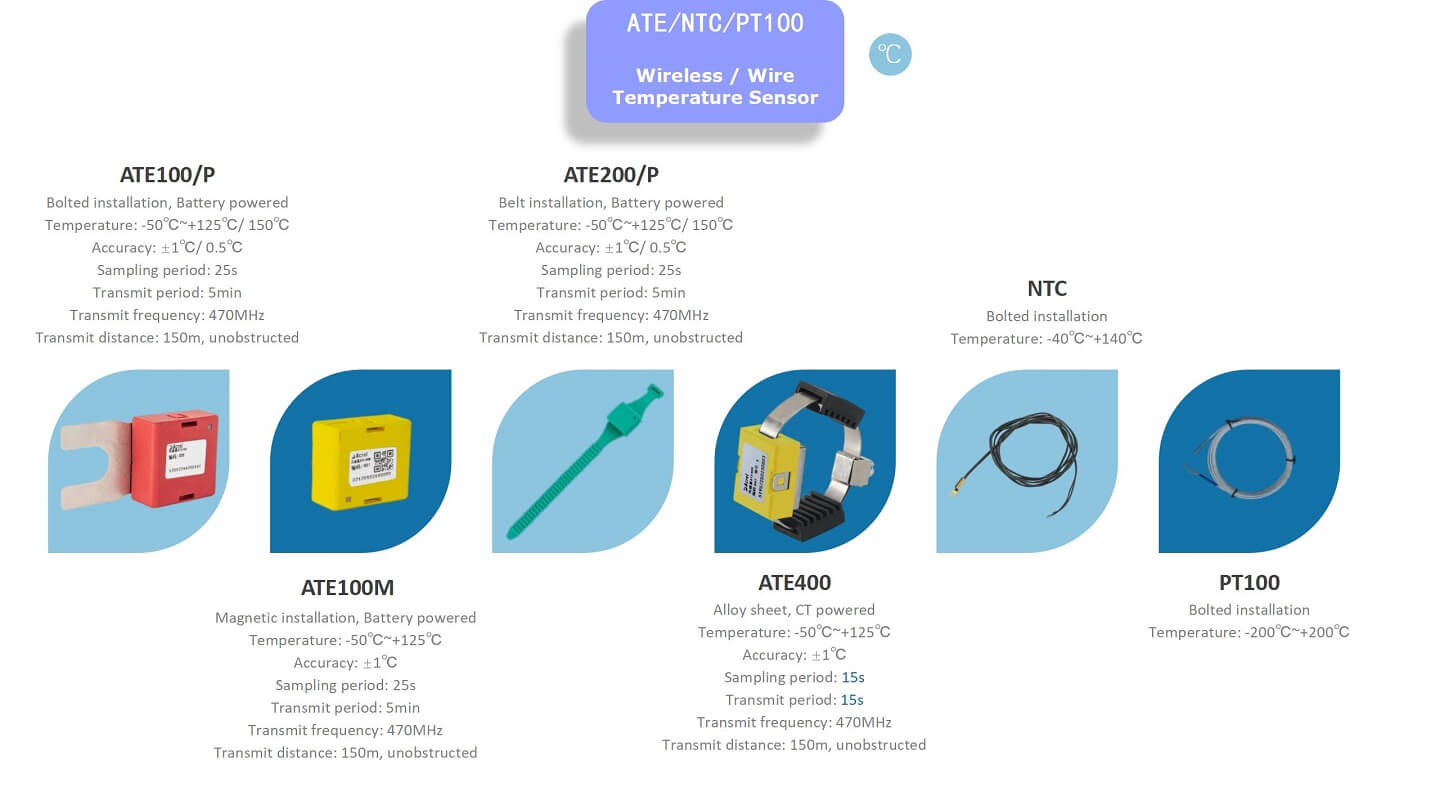

Devices

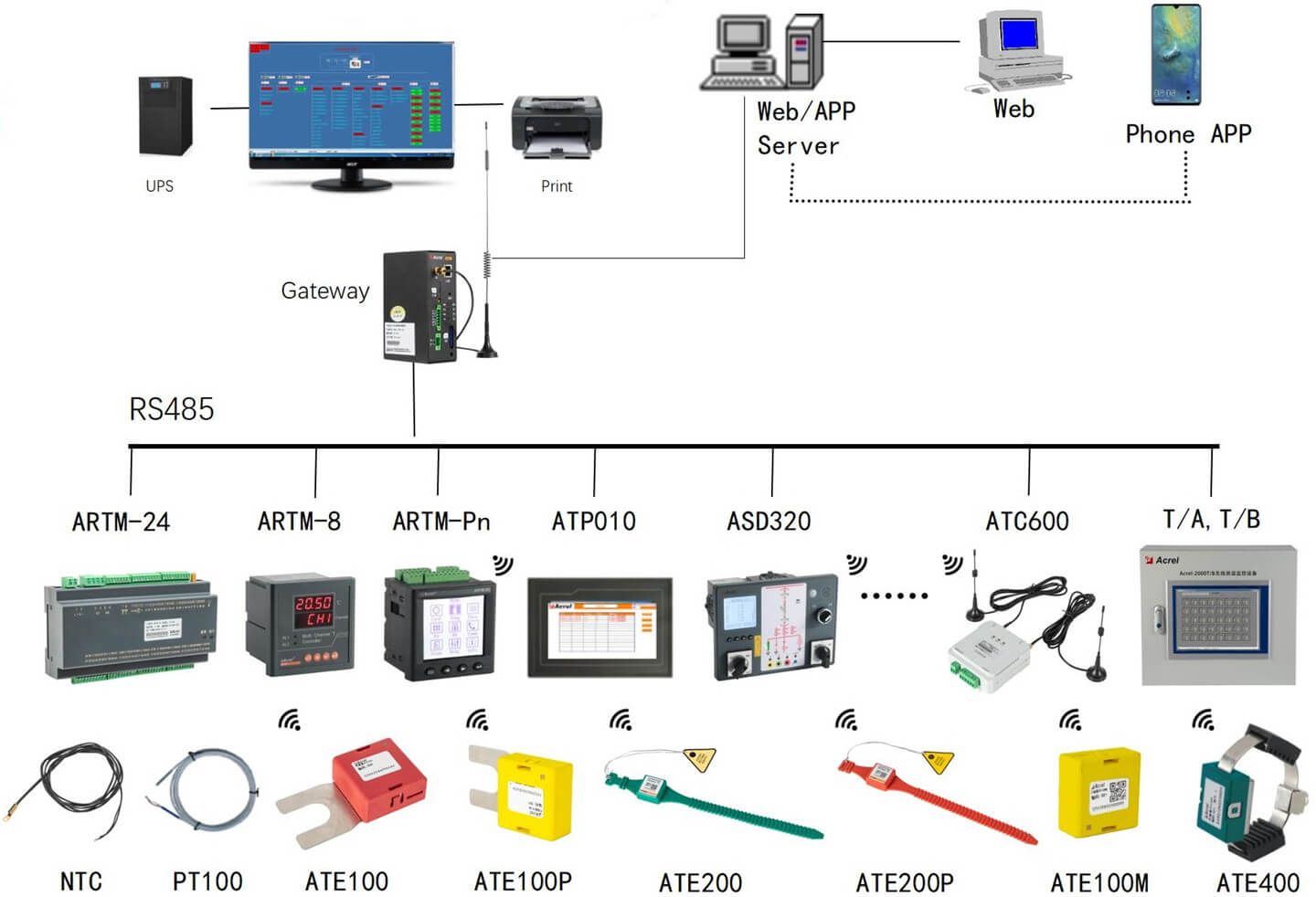

What’s the Related Devices for Acrel Wireless Temperature Monitoring System for Switchgear?

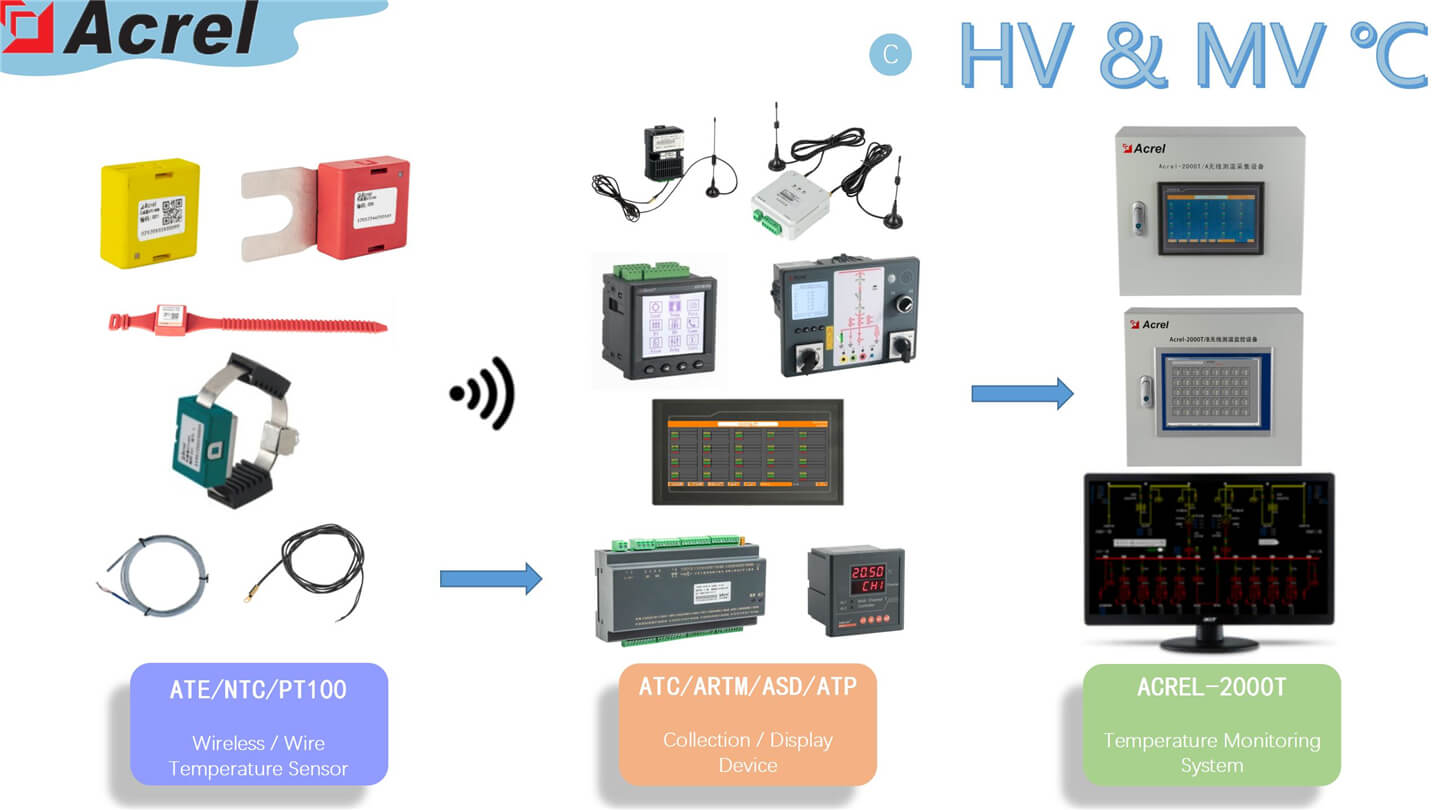

Application

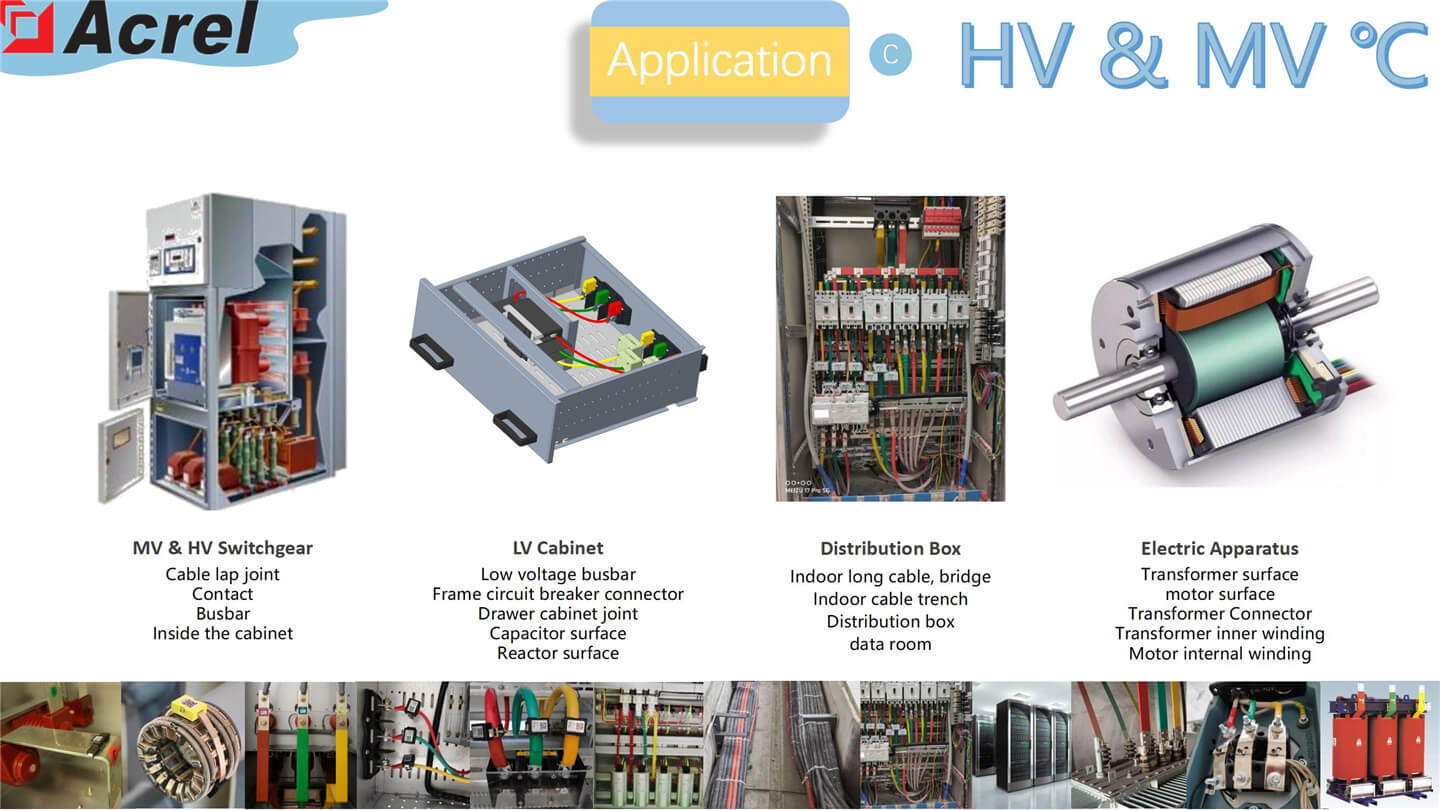

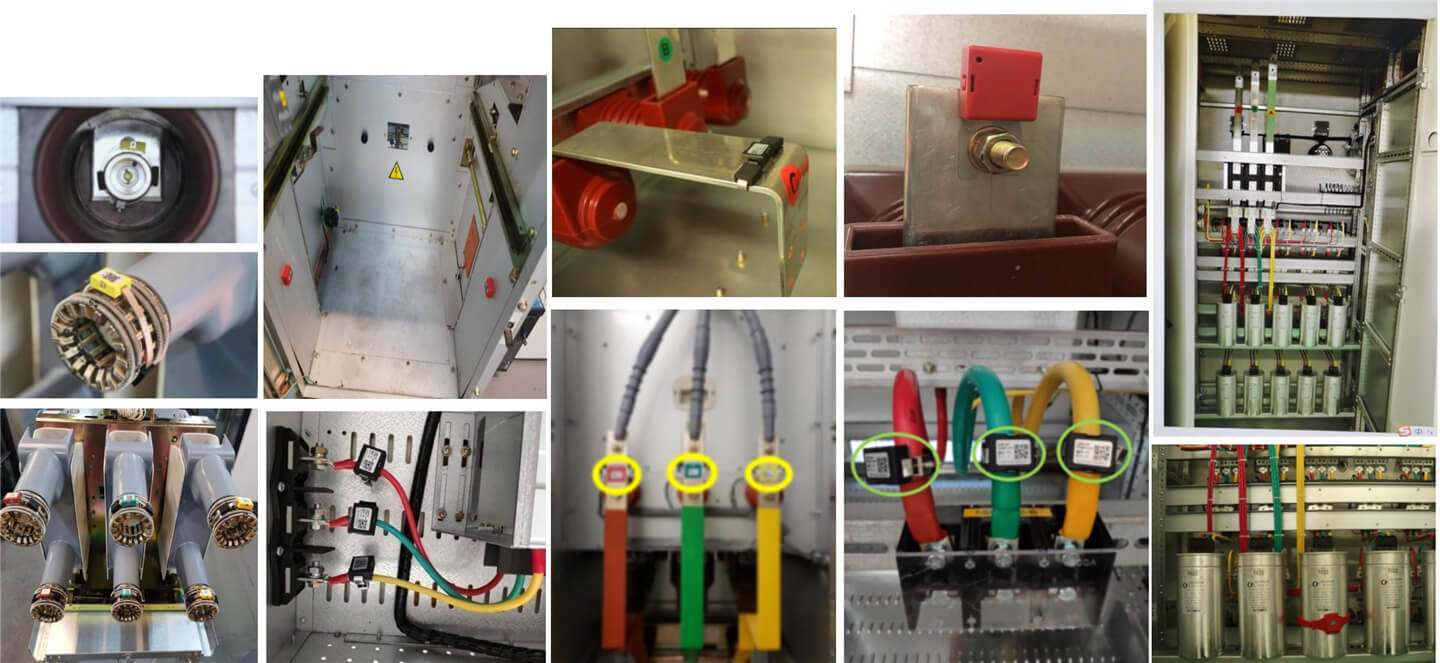

What’s the Application of Acrel Wireless Temperature Monitoring System for Switchgear?

Display

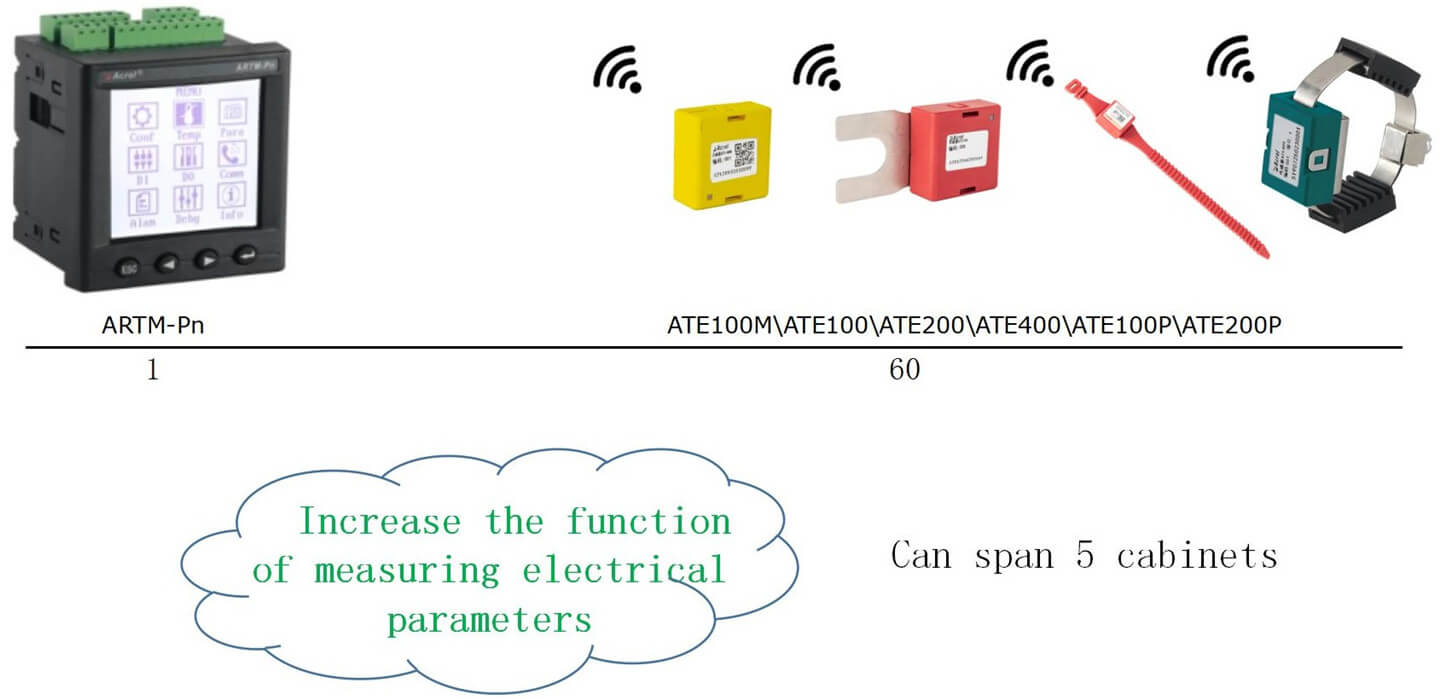

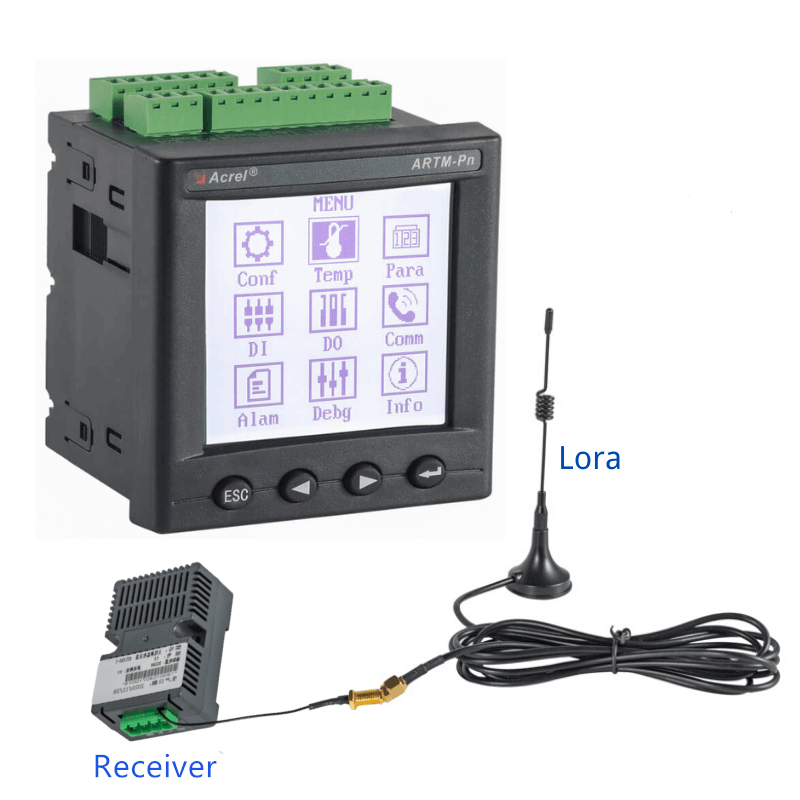

5 Cabinets Local Display with Electrical Parameters Measurement

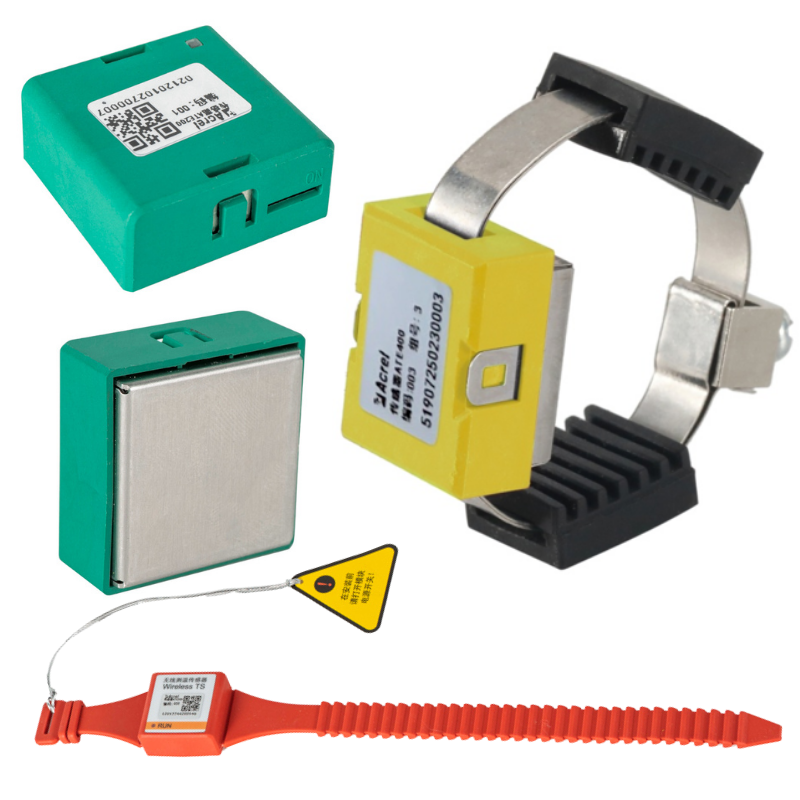

60 PCS of ATE Wireless Temperature Sensor
U I P Q E f Electrical Parameters Measurement
4DI/2DO
RS485 Modbus Communication
Power Supply: AC 85-265V; DC 100-300V
Panel size: 96*96*17mm; Cut-out size: 92*92mm

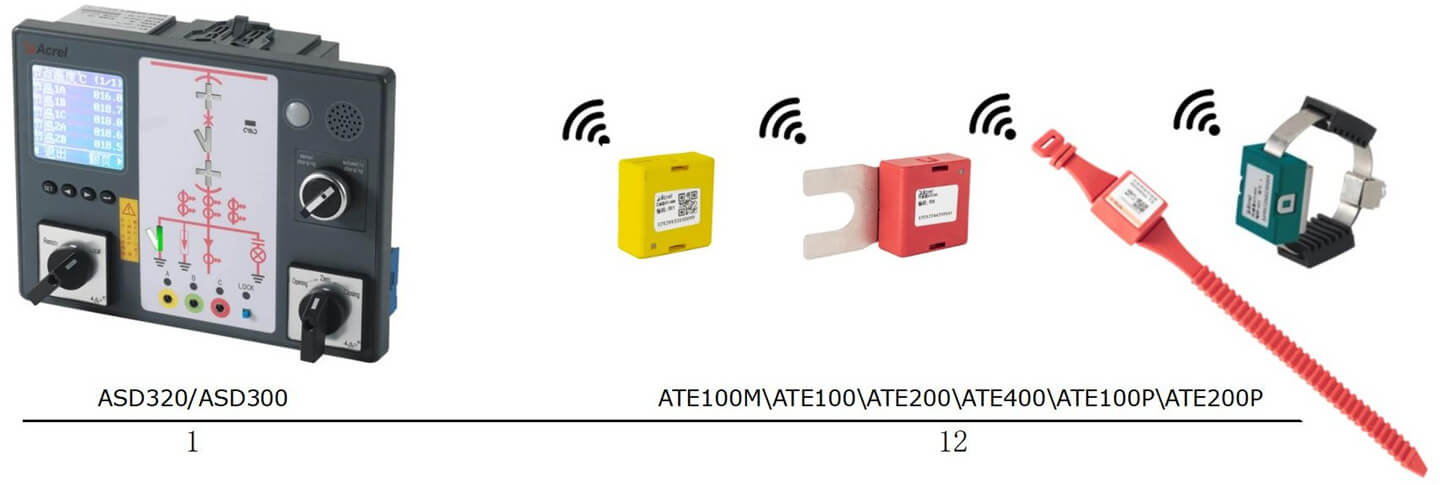

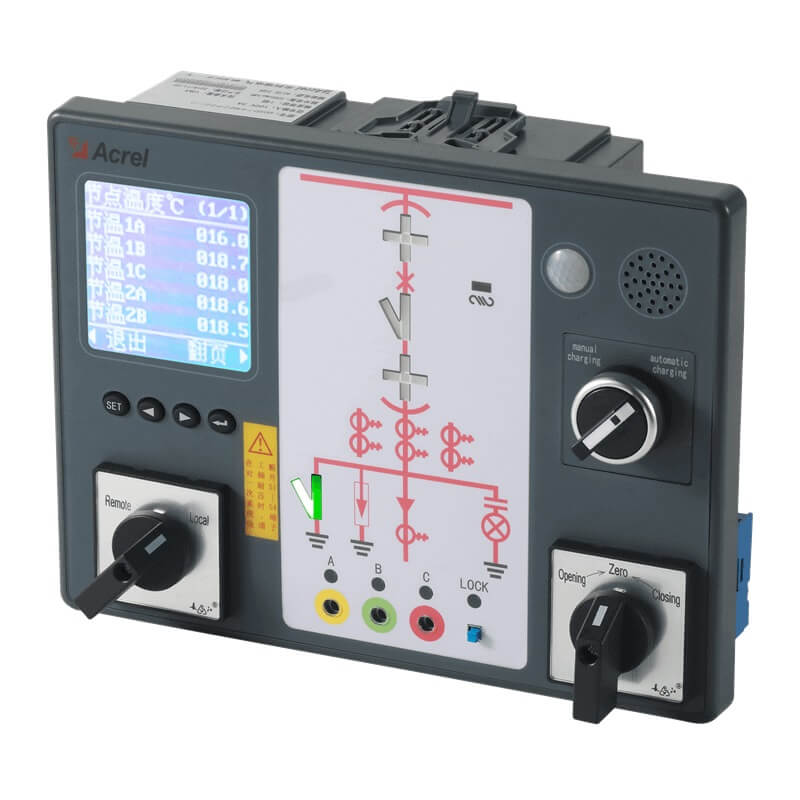

Single Cabinet Local Display with Operation and Control Device

12 PCS of ATE Wireless Temperature Sensor
Single Line Diagram
Voice Prompt
Remote & Local Control
Human body Induction
Electrical Parameters Measurement
RS485 Modbus Communication
Power Supply: AC 90-270V; DC 100-300V
Panel size: 238*178mm; Cut-out size: 220*165mm

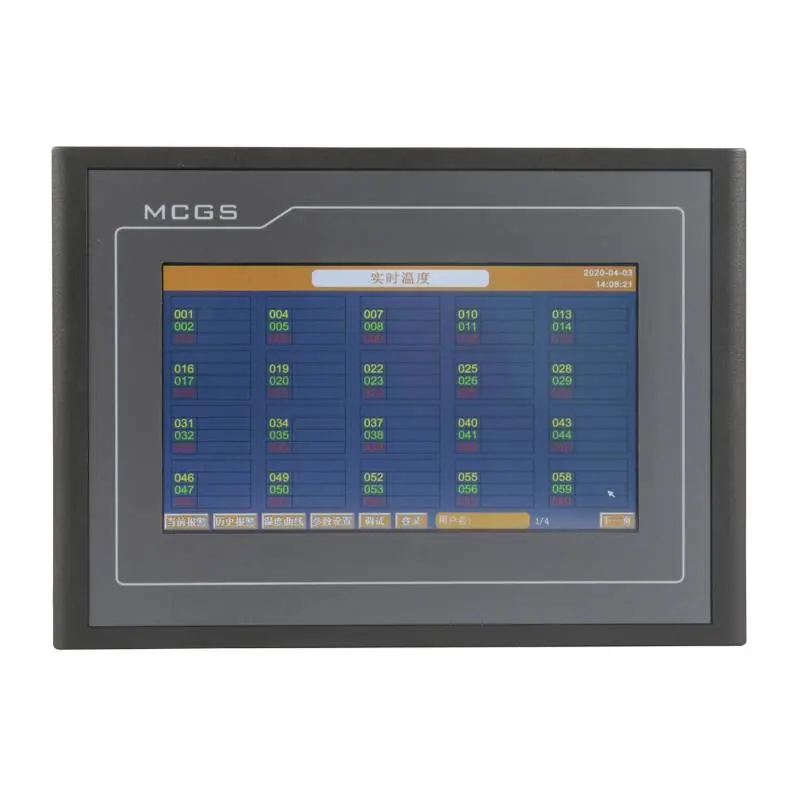

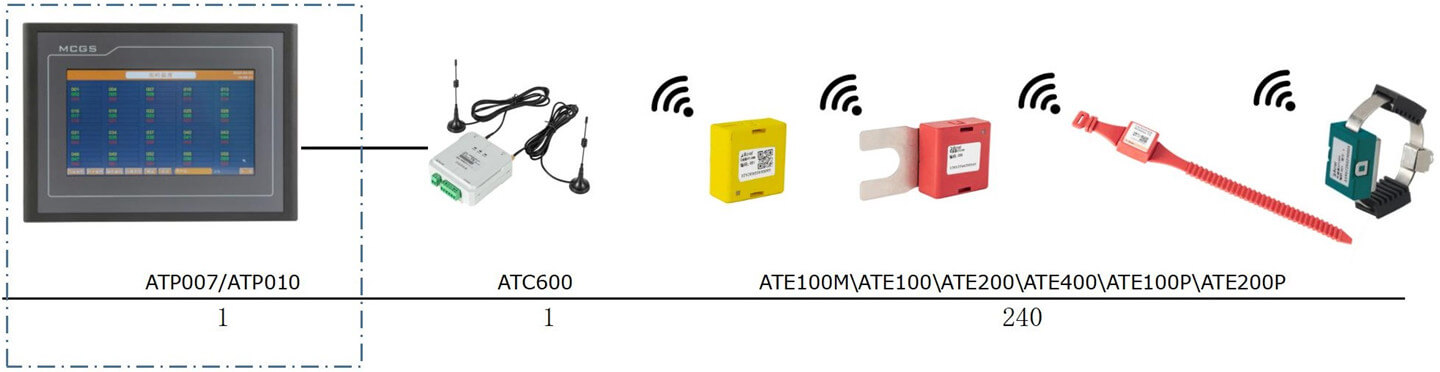

Centralized Display with Touch Screen

240 PCS of ATE Wireless Temperature Sensor
Buzzer High Temperature Alarm
RS485 Modbus Communication; Ethernet Interface
Power Supply: DC 24V
Panel size: 7 inch or 10 inch

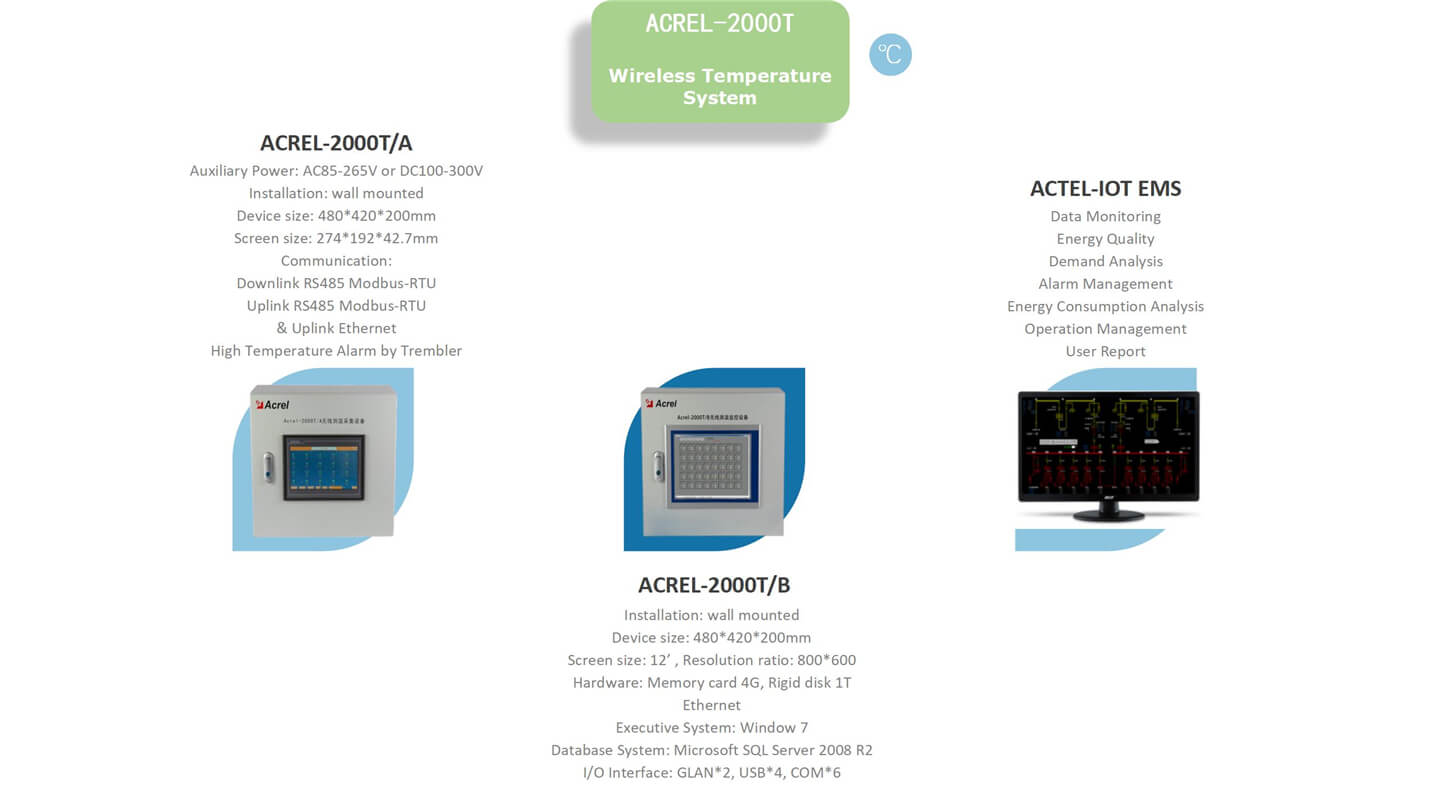

Wall-mounted Centralized Display with Touch Screen

240 PCS of ATE Wireless Temperature Sensor
Buzzer High Temperature Alarm
RS485 Modbus-RTU Communication; Ethernet Interface
Power Supply: AC 85-265V; DC 100-300V
Box size: 480*420*200mm; Touch Screen size: 274*193*42.7mm

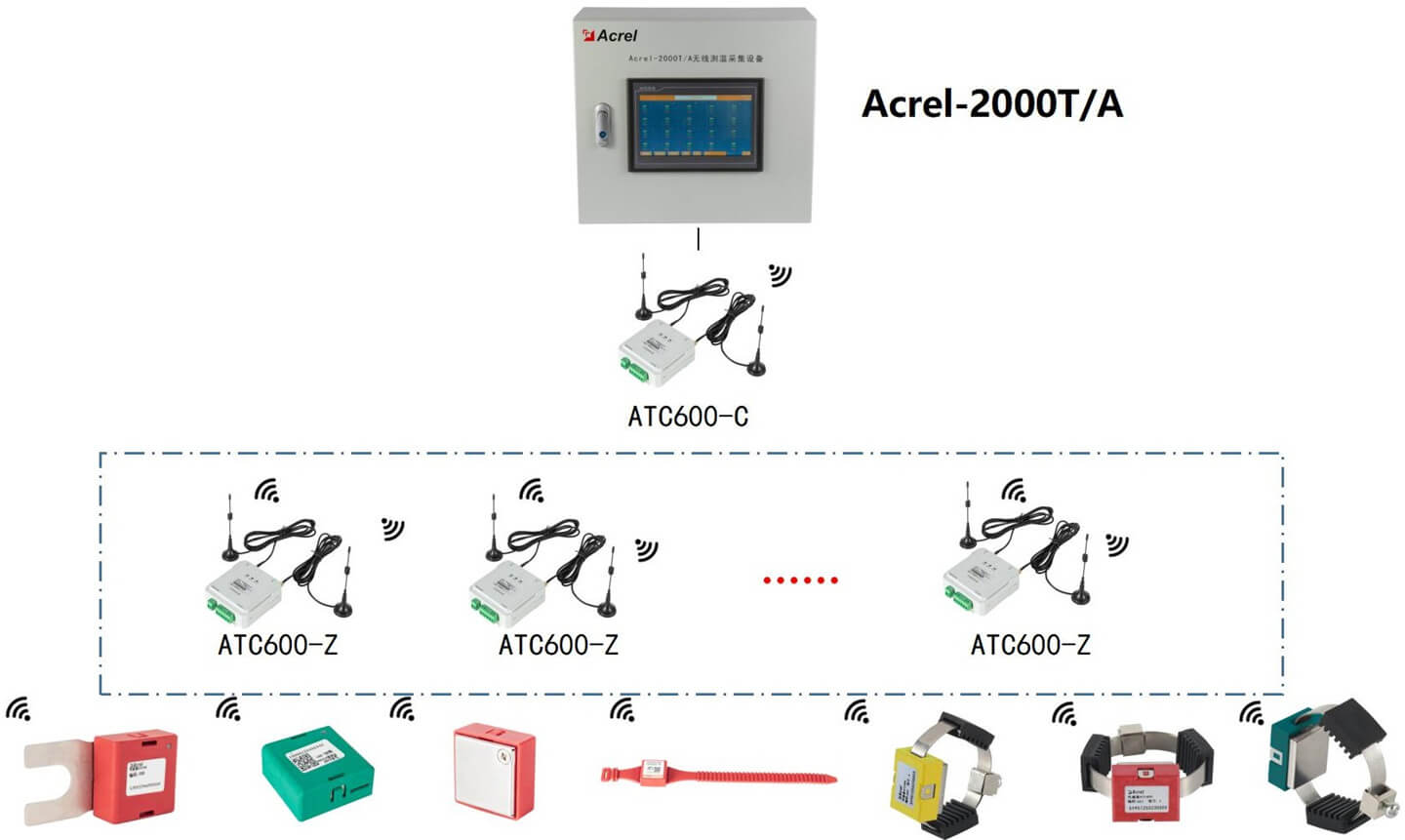

Wall-mounted Centralized Display with Windows 7 Operation System

240 PCS of ATE Wireless Temperature Sensor
Buzzer High Temperature Alarm
RS485 Modbus-RTU Communication; Ethernet Interface
Hardware: Memory 4G; Hard disk 1T
Operation System: Windows 7
Database System: Microsoft SQL Server 2008R2
I/O Interface: GLAN*2; USB*4; COM*6
Box size: 480*420*200mm; Screen size: 12 inch

Cloud Platform for PC and Phone APP

Wireless Temperature Monitoring
Temperature Display
Report
Curve
Web & APP
