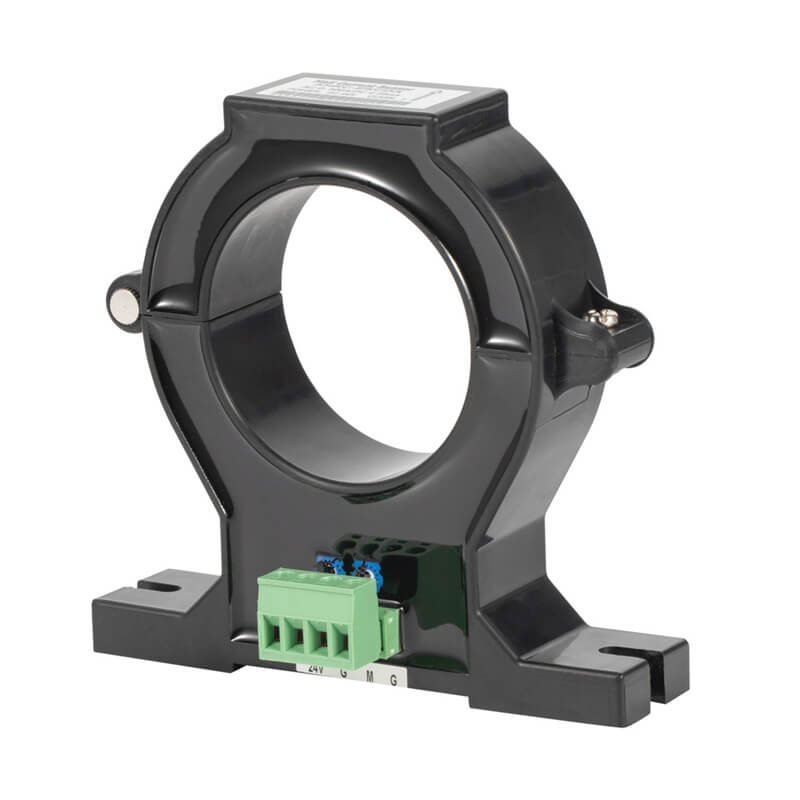

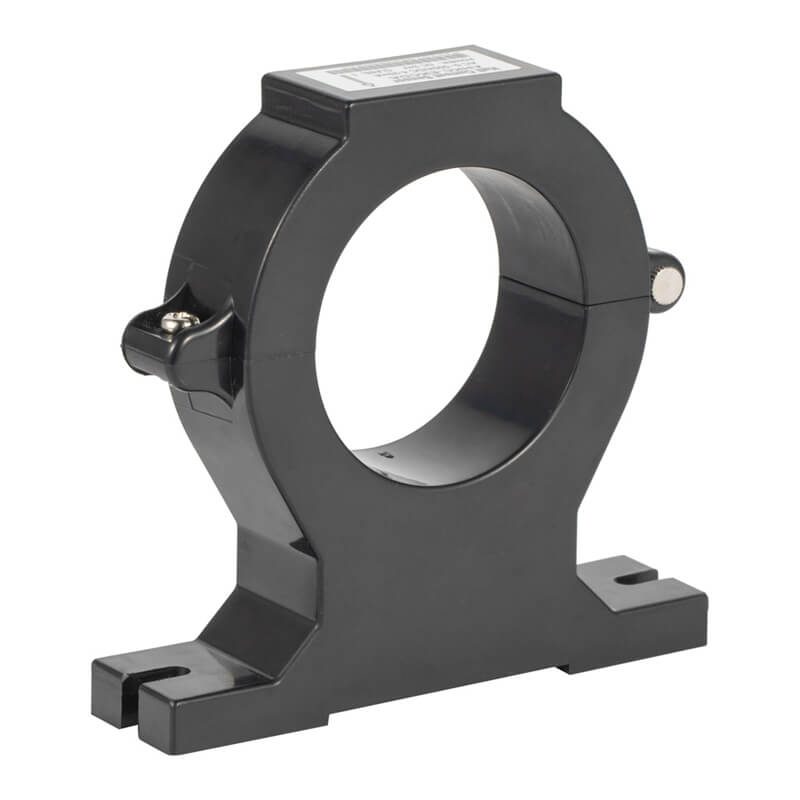

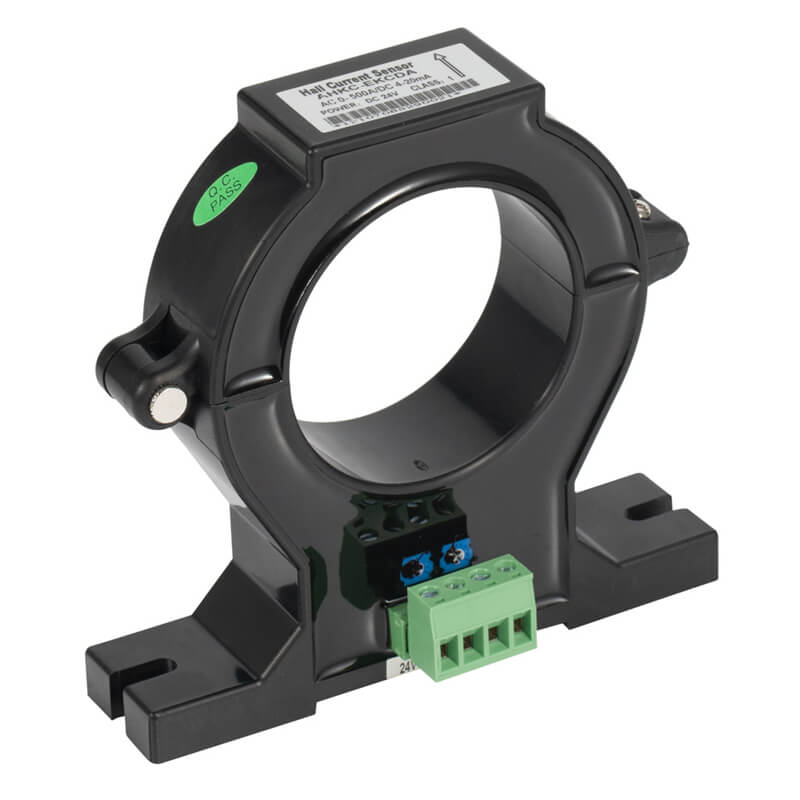

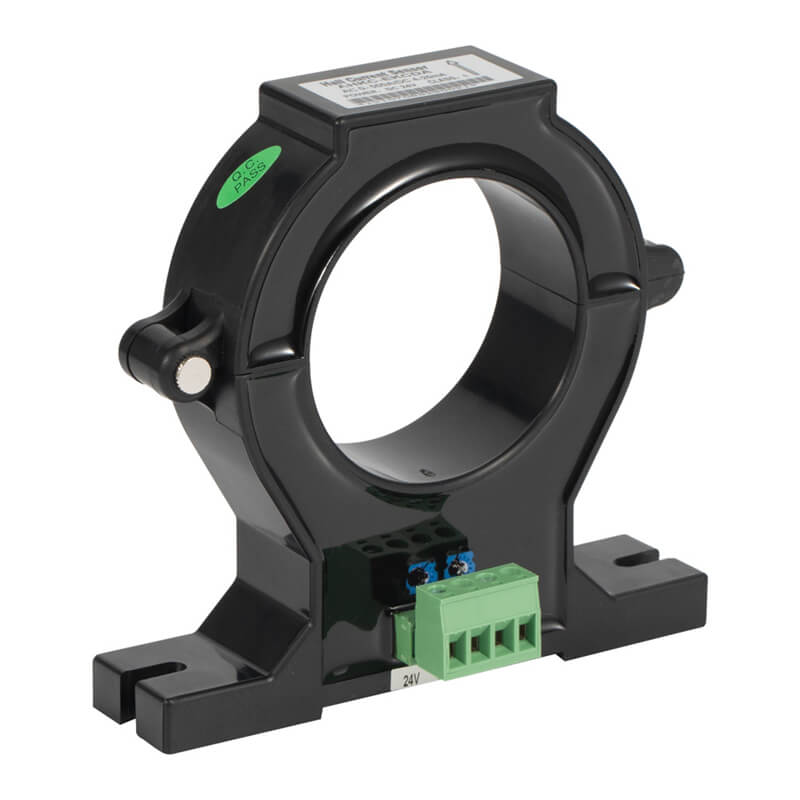

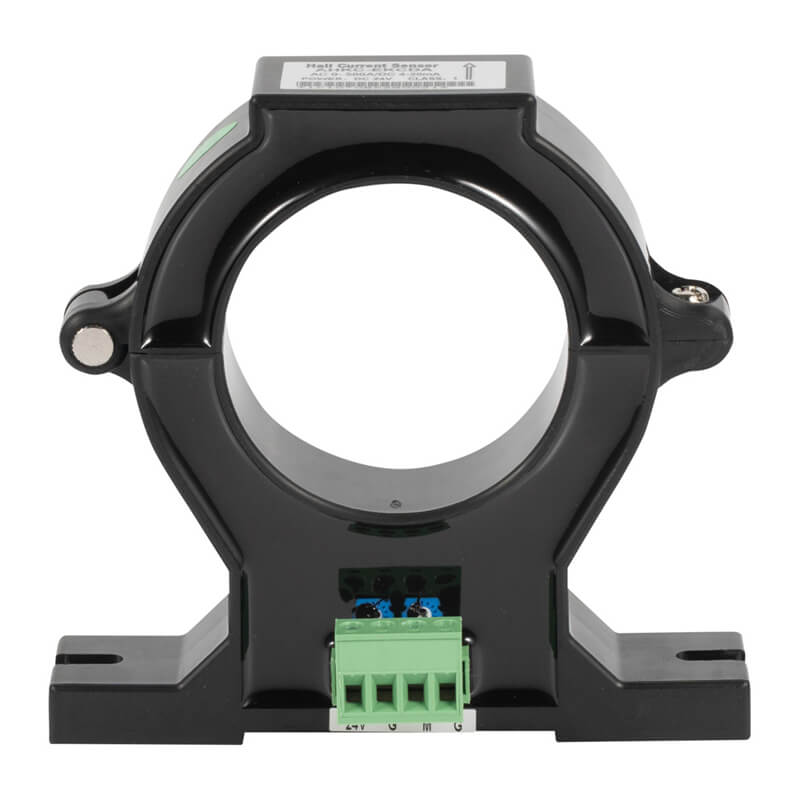

Split-core Open-loop Hall Sensor for Cable

AHKC-SC

  • Wide Measuring Range
  • High Overload
  • Good Linearity
  • Anti-interface
Chat Online Leave Message

Highlight

What’s the Function of Split-core Open-loop Hall Sensor?

Theory

  • Hall Effect

 Primary

  • AC or DC 0-1500A

Secondary

  • 5V/4V
  • 4~20mA

Application

  • Measuring end for Solar and Wind energy

Specification

What’s the Specification of Acrel AHKC series Split-core Open-loop Hall Sensor for Cable?

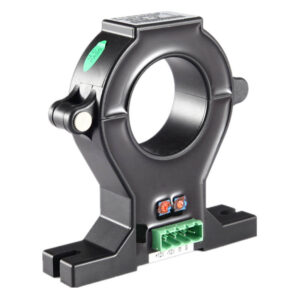

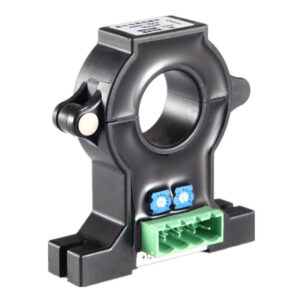

Specification AHKC-EKA AHKC-EKB AHKC-EKC
Inner Size Φ20 mm Φ40 mm Φ55 mm
Input Current AC/DC 0~(50-500) A AC/DC 0~(200-1000) A AC/DC 0~(500-1500) A
Output Signal 4-20mA, 0-20mA, 0-4V, 0-5V
Auxiliary Power 12V/24V, ±15V

Parameter

What’s the Parameter of Split-core Open-loop Hall Sensor?

Accuracy 1.0 class
Linearity ≤0.2% FS
Bandwidth 0-20 KHz
Response Time ≤5 μs
Withstand AC3500V
Temperature -40℃~85℃
Altitude ≤2000 m
Humidity ≤95%

Installation

How to Install the Split-core Open-loop Hall Sensor?
