What’s the Function of Acrel ARTM-Pn Series Temperature and Electric Meter?

Temperature

Real-time Temperature Monitoring Data Display
up to 60 ATE Series Temperature Sensors

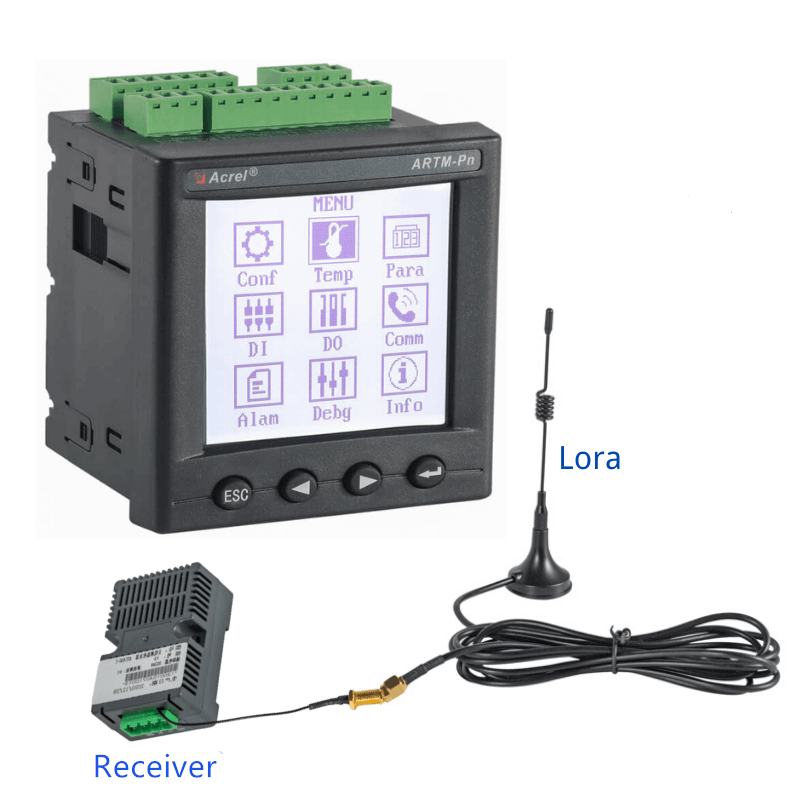

Paired with ATC450 built-in Transceiver

Electric Parameter

U (Voltage)
I (Current)
P (Power)
Q (Reactive power)
F (Frequency)
kWh (phase-positive Kilowatt-hours)
kVarh (Kilovar-hours)

DI/DO

2 DO
high-temperature alarm& over temperature alarm
4 DI
built-in 12V power source

Communication

Protocol: Modbus-RTU
Communication Distance: 400m

Specification

What’s the Specification of Acrel ARTM-Pn Series Temperature and Electric Meter?

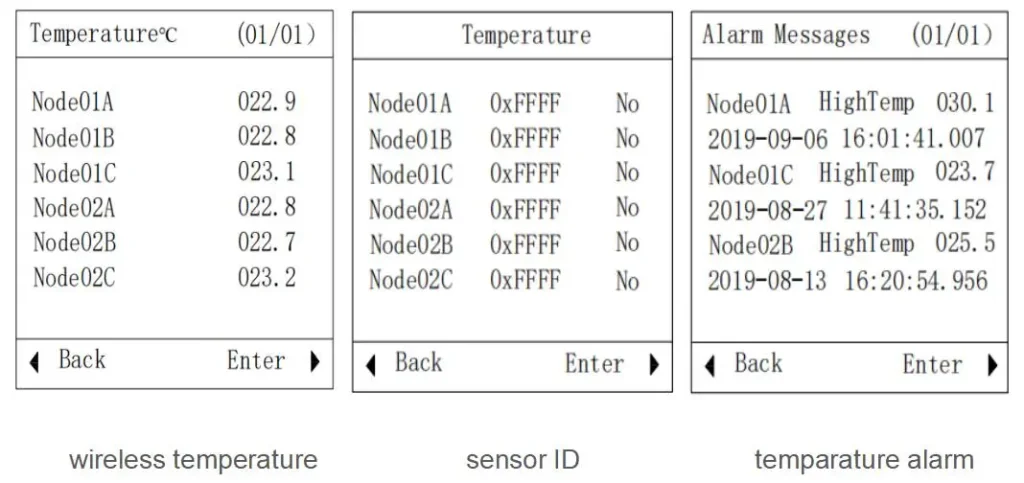

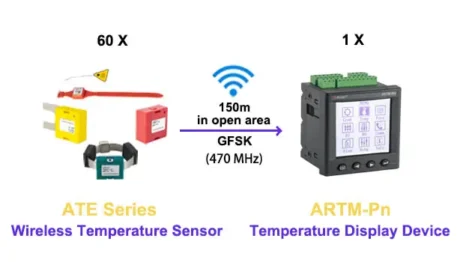

Real-time Temperature Monitoring Data Display

● Display Data of up to 60 ATE Series Temperature Sensors

● Paired with ATC450 built-in Transceiver

● Regionalized Temperature Data Display

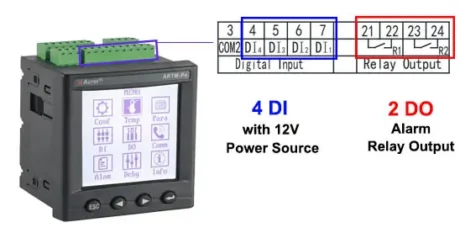

DO/DI Function

● 2 DO (high-temperature alarm& over temperature alarm)

● 4 DI (built-in 12V power source)

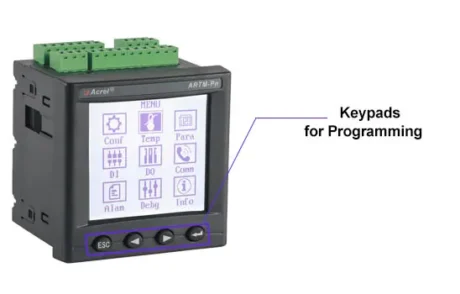

Keypads for Programming

●Temperature Monitoring Data Display

● Parameter Setting

● Temperature Sensors Binding Adjustment

● Alarm Display

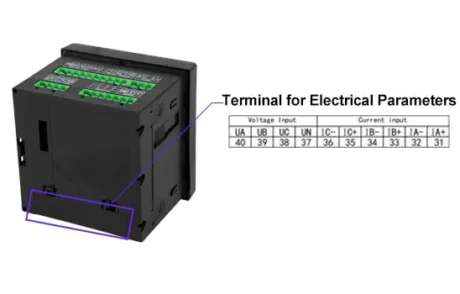

Optional Electric Parameters Measuring Function

● U (Voltage)

● I (Current)

● P (Power)

● Q (Reactive power)

● F (Frequency)

● kWh (phase-positive Kilowatt-hours)

● kVarh (Kilovar-hours)

Show More

Parameter

What’s the Parameter of Acrel ARTM-Pn Series Temperature and Electric Meter?

Functions	ARTM-PnARTM-Pn
Sensor	ATE100, ATE200, ATE300B, ATE300, ATE400
Temperature Precision	±2℃
Sensor number	60
Auxiliary Power Supply	ARTM-Pn
Auxiliary power supply	AC 85~265V,DC 100~300V
Power consumption	8W
Communication	ARTM-Pn
Protocol	Modbus-RTU
Rear port	RS485
Baud rate(bps)	2400,4800,9600,19200
Environmental requirement	ARTM-Pn
Operating temperature	-10℃~55℃
Relative humidity	≤95%
Atmospheric pressure	86kPa~106kPa
Average work time without stoppage	≥50000 hour

Show More

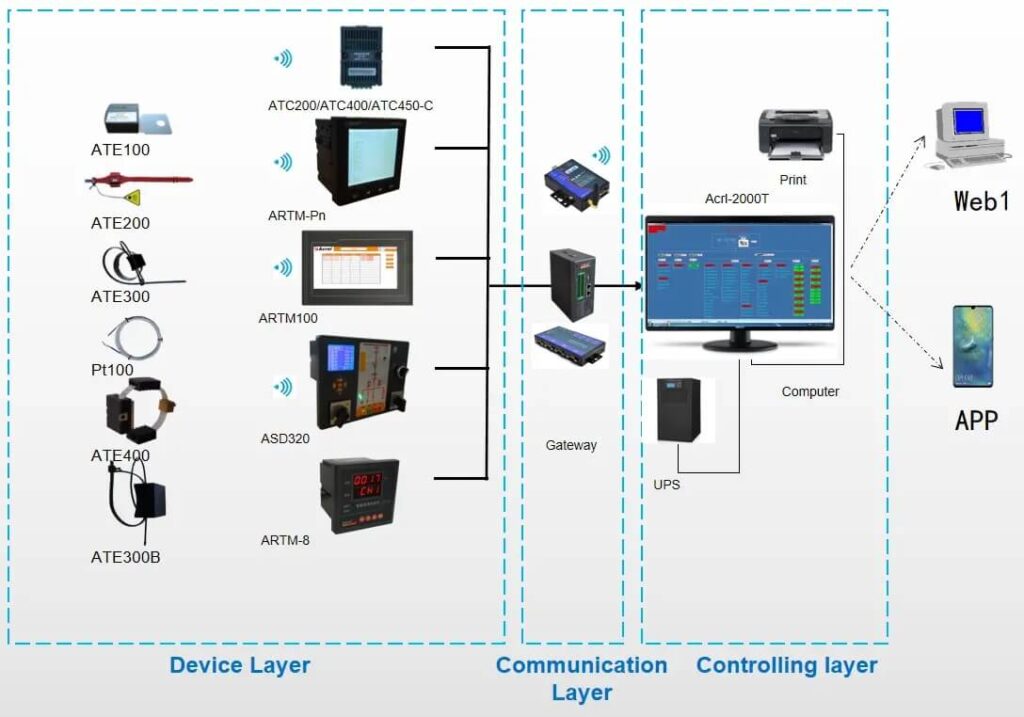

Networking

How does Acrel ARTM-Pn Series Temperature and Electric Meter work?

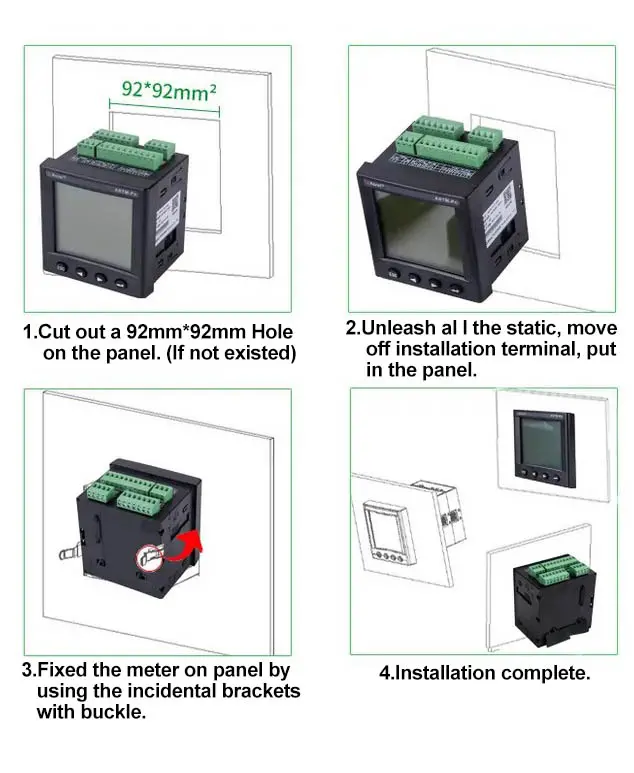

Installation

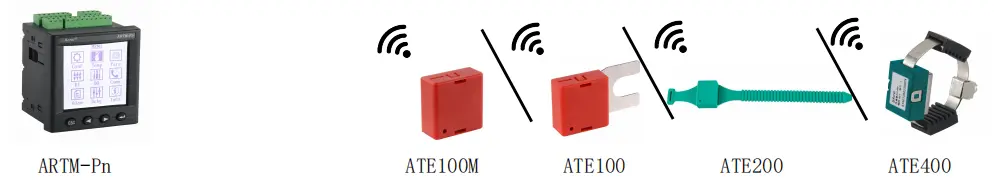

How to Connect the Acrel ARTM-Pn Series Temperature and Electric Meter?
