What’s the Function of Acrel ATC Series Wireless Temperature Transceiver?
What’s the Specification of Acrel ATC Series Wireless Temperature Transceiver?

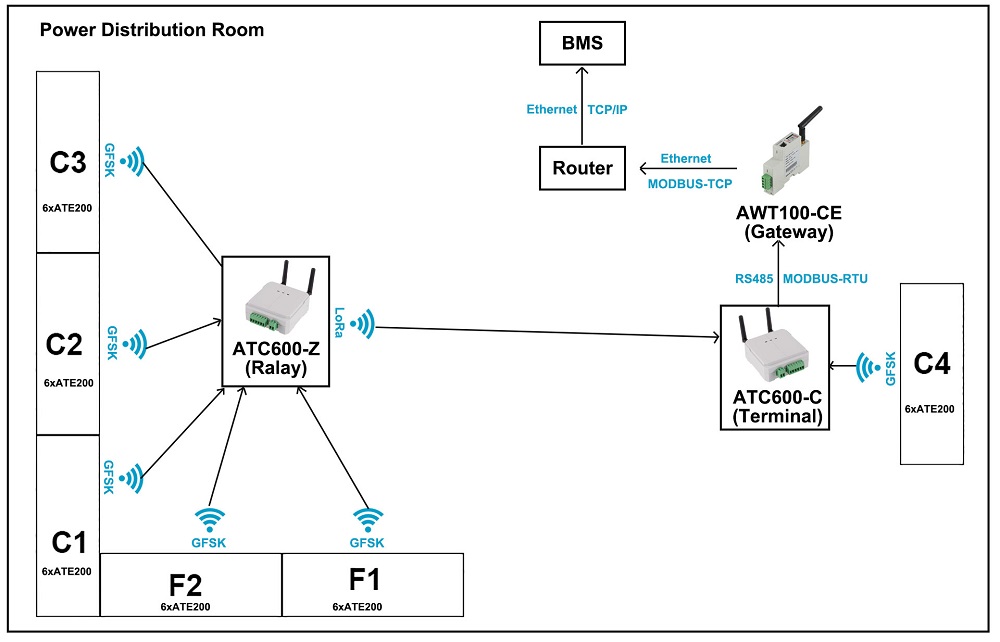

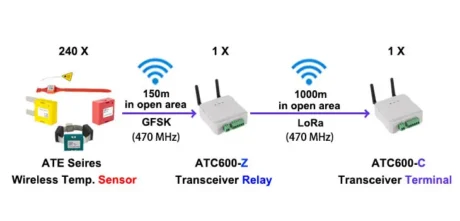

Remotely Receive Temp. Data from up to 240 ATE Series Wireless
● Communication Distance: 1000m in open area (with ATC600-Z relay) ● Communication Distance: 150m in open area (without ACT600-Z relay) ● Receive Temperature Measuring Data from: up to 240 ATE Series Temp. Sensors |
|

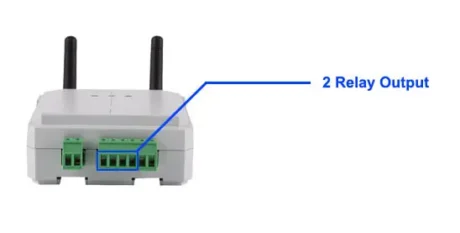

DO Function
● 2 Passive Relay Output ● Capacity: 5A/AC 250V, 5A/DC 30V |
|

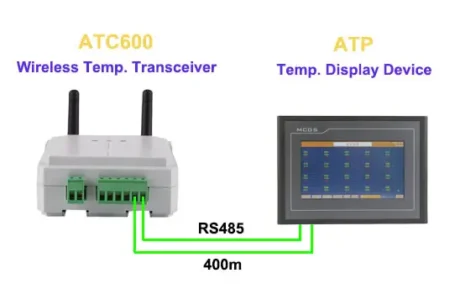

Extra RS485 Communication
● Can be connected with ATP Temp. Display Device ● Protocol: MODBUS-RTU ● Communication Distance: 400m (in practical) |
|

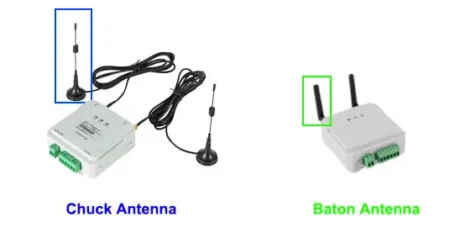

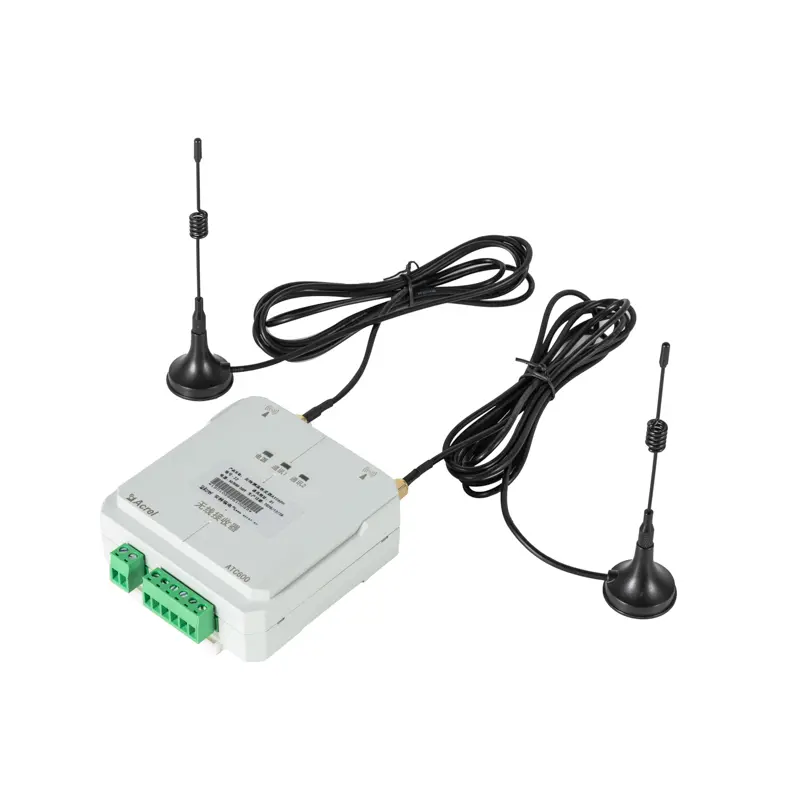

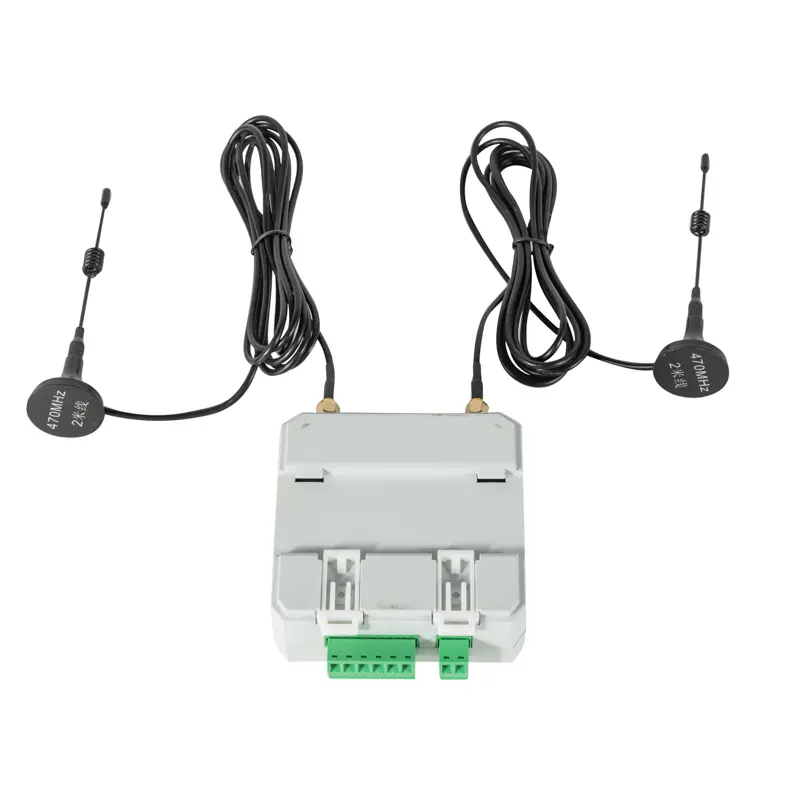

Optional Antenna Shape
● Chuck Antenna ● Baton Antenna |
|
Show More
What’s the Parameter of Acrel ATC Series Wireless Temperature Transceiver?
Items | Features | |
Transceiver
ATC600 |
Power | AC/DC100~265V
≤6VA ≤8VA |
Power consumption | ≤2W | |
Points | ≤240 points | |
Resolution | 0.1℃ | |
Range of temperature | -50℃~+125℃ | |
Accuracy | ±1℃ | |
Wireless frequency | 470M | |
Distance | Transceiver sensor 150 m( open), repeaters distance 1 km( open) | |
Communication port | RS485 | |
Protocol | MODBUS-RTU | |
Baud(bps) | 2400、4800、9600、19200 | |
Relay output | 2 passive exits ,5 A/AC250V,5A/DC30V capacity | |
Working environment | Temperature:-20 ℃~+55 ℃;Humidity≤95% |
Show More
How does Acrel ATC Series Wireless Temperature Transceiver?

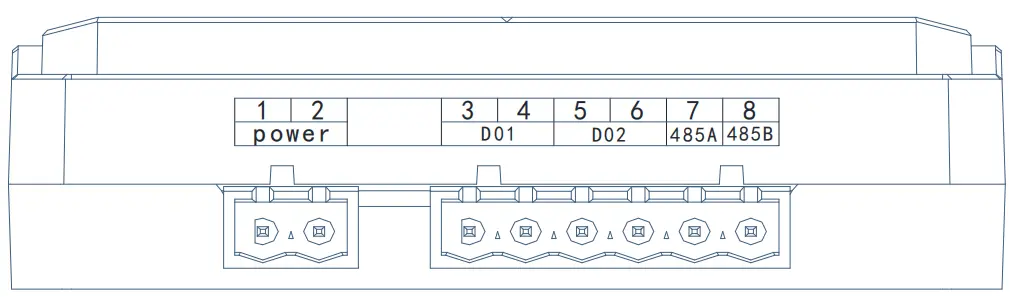

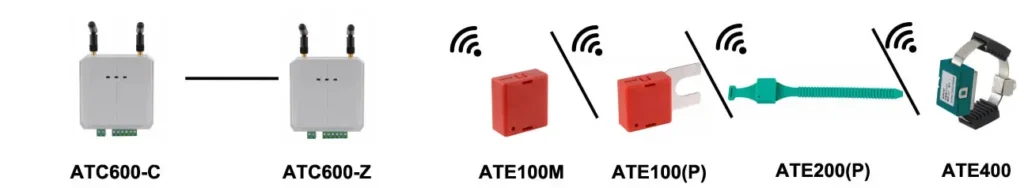

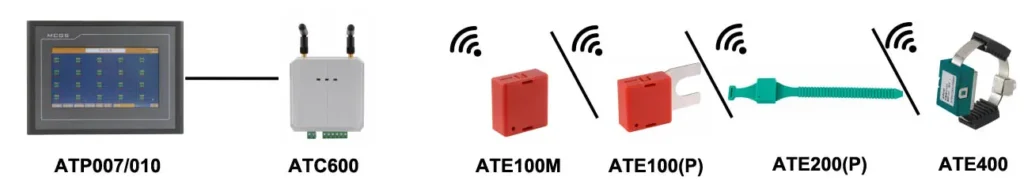

How to Connect the Acrel ATC Series Wireless Temperature Transceiver?
