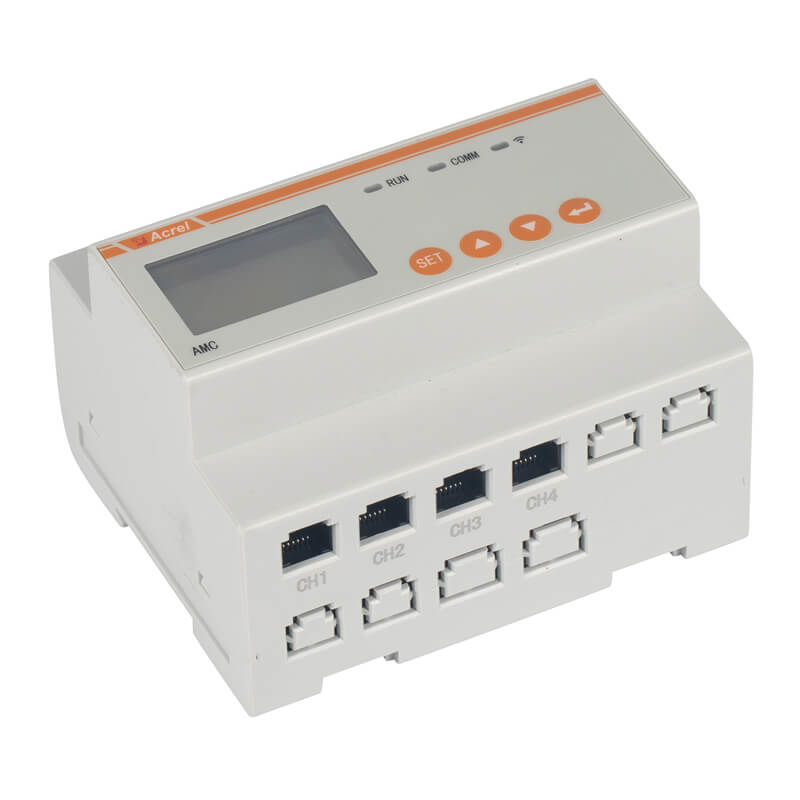

AMC200L-12DE DC Power Meter with 12 Circuits RJ12

Feedback

What Do Our Customers Say?

Acrel is one of the best supplier for me. They are so easy to communicate and very friendly. They even give an online tour of their factory. Looking forward for more business together in the future.

Liezel 

Philippines
My first contact with ACREL was through Mrs. Feeling Chang. He was extremely friendly, approachable and very helpful. It will be the beginning of a long partnership between Bikoelectronics and Acrel.

Vanessa 

Portugal
“ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

Arnold 

Philippines
Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

Tuan 

Vietnam

Highlight

What’s the Highlight of Acrel AMC200L DC Power Meter with 4 or 8 Circuits?

Function

Voltge, Current, Power
Active 2DI + Passive 4DI + 2DO
4 NTC Temperature
1 T&H

Circuit

-48V DC
12 channels of DC

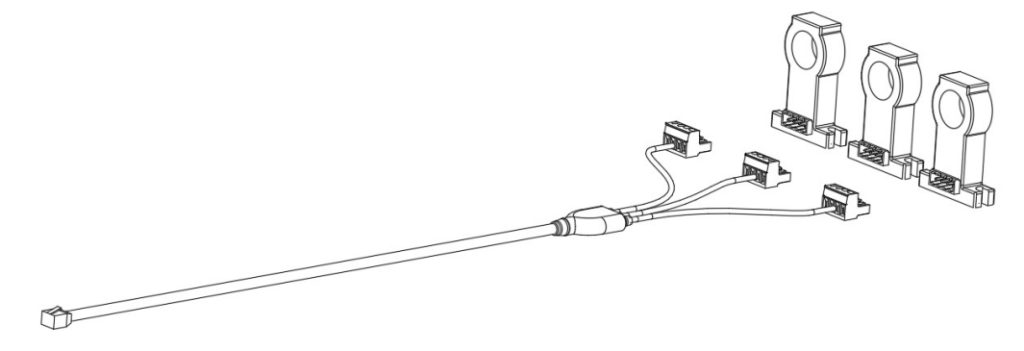

5V Hall Sensor
RJ12 interface

Power Supply

DC-40V~-60V

Communication

Protocol: Modbus-RTU
Interface: RS485
4G

Parameter

What’s the Parameter of Acrel AMC200L DC Power Meter with 4 or 8 Circuits?

Technical Parameter			Technical Indicator
Input	DC Voltage		One channel:DC -48V
	DC Current		12 Channels Hall Current Sensor:Hall sensor secondary side DC 5V access
	State Grid Monitoring		One channel:DC 0-5V
	Overload		Voltage: 1.2 times for 1 second, 2 times for 1 second; Current: 1.2 times for 1 second, 10 times for 1 second
Frequency
Resolution			The voltage output accuracy is 0.01V, the current output accuracy is 0.01A, the power output accuracy is 0.01kW, and the power output accuracy is 0.01kWh
Function	Basic Function		Monitoring equipment system time, total voltage, total output current, total power, total electrical energy, voltage of each sub channel, current of each sub channel, power of each sub channel, electrical energy of each sub channel; RS485 communication
	Alarm Function		DC voltage output too low alarm, DC voltage output too high alarm, one-time power-off alarm, module voltage loss alarm, metering sub channel error alarm, internal program error alarm, clock error alarm, memory unit failure alarm, AC input power failure alarm
	Timing function		Support broadcast timing, remote timing calibration of metering module can be carried out through RS485 communication interface
	Communication
	Hall power supply		A set of ±12V power output
	Humidity And Temperature		4 Channels NTC Temperature Monitoring:Temperature:-20-100℃（Accuracy±2℃） Humidity:20-90%RH（Accuracy ±5%RH）
Auxiliary power	Voltage Range		DC -40V～-60V
	Power consumption		The whole device≤2W (without Hall power supply output)
Storage			It has the storage function of historical energy data and historical alarm information
Insulation resistance			≥40MΩ
Environment		Temperature	Working Temperature:-20℃～+60℃；Storage Temperature:-40℃～+70℃
		Humidity	≤98% no condensation, no corrosive gas place
		Altitude	≤4000m

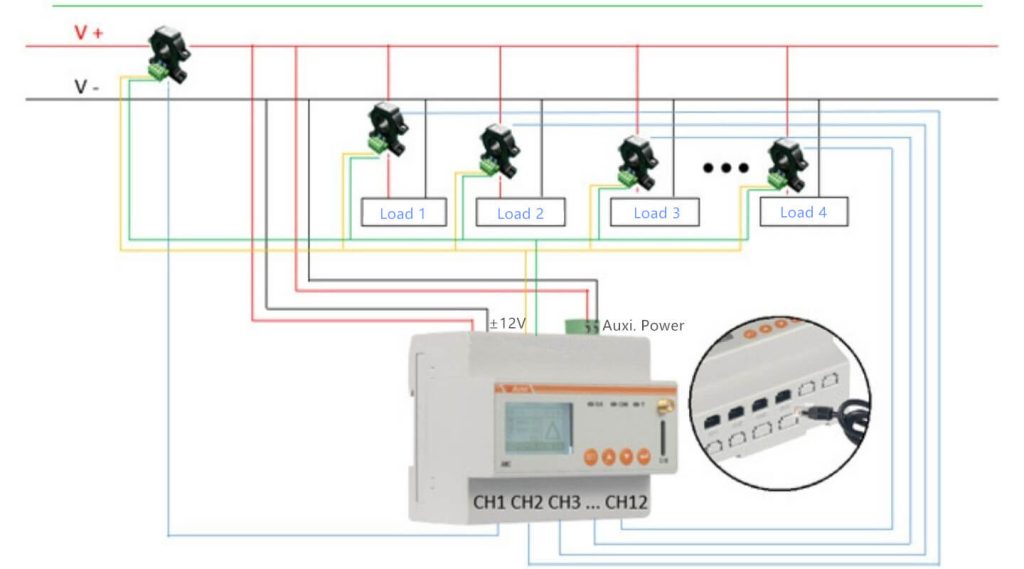

Network

How does the Acrel AMC200L DC Power Meter with 4 or 8 Circuits for Cell Site?

Diamension

Installation

How to Install the Acrel AMC200L DC Power Meter with 4 or 8 Circuits?
