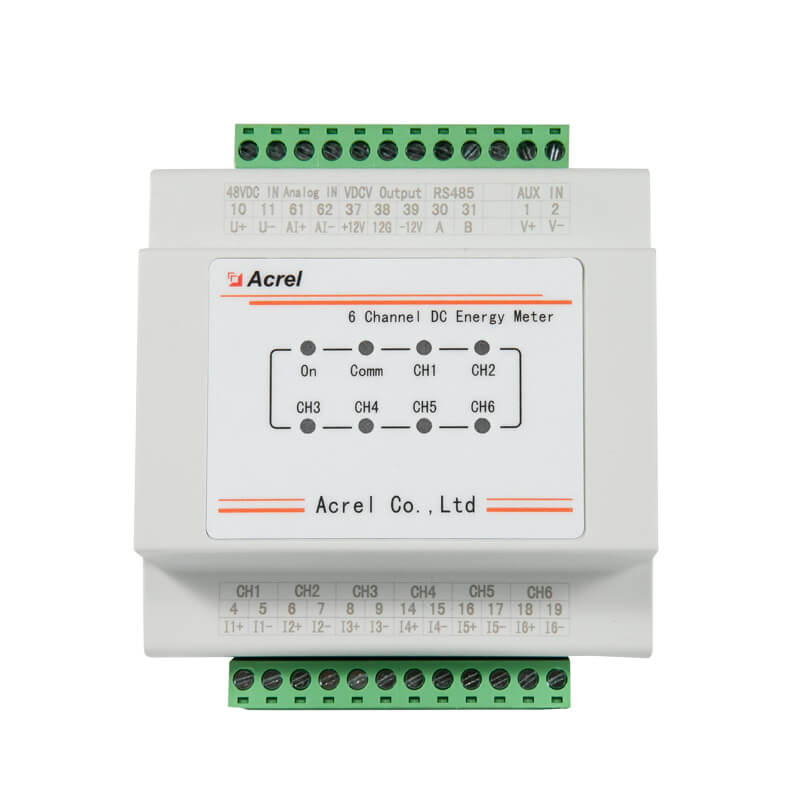

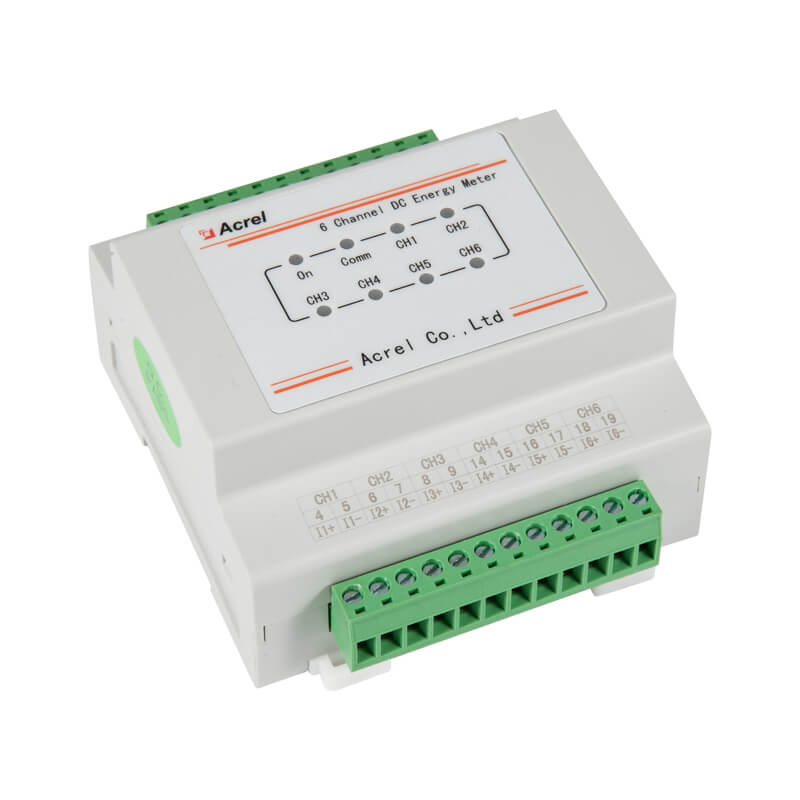

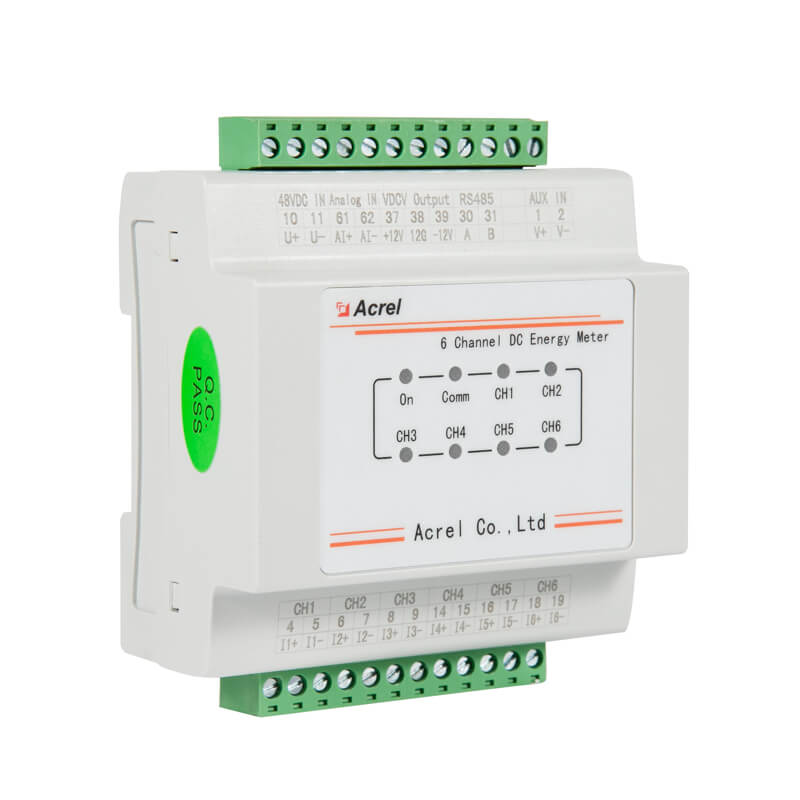

AMC16-DETT DC Energy Meter with 6 Circuits

AMC16-DETT

  • Rated -48V DC
  • 6 channels DC
  • Utility Monitor
  • Power for Hall

Feedback

What Do Our Customers Say?

  • “ During the time I have worked with Acrel on this project, I have found Acrel and its team to be highly knowledgeable and results-driven. Based on preliminary pilot testing and a strong understanding of subsurface. ”

    Derek AuCoin

    Derek AuCoin 

    Defence Construction Canada

  • Acrel is one of the best supplier for me. They are so easy to communicate and very friendly. They even give an online tour of their factory. Looking forward for more business together in the future.

    Liezel 

    Philippines

  • My first contact with ACREL was through Mrs. Feeling Chang. He was extremely friendly, approachable and very helpful. It will be the beginning of a long partnership between Bikoelectronics and Acrel.

    Vanessa 

    Portugal

  • “ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

    Arnold 

    Philippines

  • Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

    Tuan 

    Vietnam

NERHighlight

What’s the Highlight of AMC16-DETT -48V DC Energy Meter for American Tower?

Function

  • Monitor device of Multipile Communication Operators

Circuit

  • Up to 6 channels of DC Current
  • Connect Hall Sensor 0-5V

Power Supply

  • DC -48V
  • ±12V Power Supply for Hall Sensor

 Communication

  • Protocol: Modbus-RTU
  • Interface: RS485

Parameter

What’s the Parameter of AMC16-DETT -48V DC Energy Meter for American Tower?

Technical parameter Index
input DC rated voltage 1 channel: -48VDC
DC current 6  channels hall sensors: total 200A/5V, China Telecom, China Mobile, China Unicom and the 1st channel reserve 50A/5V, 2nd
channel reserve 100A/5V.
Commercial power monitoring 1 channel: 0-5VDC
Overload capacity Voltage:1.2times continued,2 times continued 1s;
Current: 1.2 times continued,10 times continued 1s.
Accuracy (superposition hall sensors) 1%In≤I≤10%In    error±2.5%; I>10%In error±2%
Measurement resolution Voltage output accuracy 0.01V;    current output accuracy 0.01A;
power output accuracy 0.01kw; energy output accuracy 0.01kwh
functions Basic function Monitor device system time, total voltage, output total current, power, energy, each channel voltage, current, power, energy; LED
indicator display;485 communication
Metering function Start current: under rated voltage, when the load current value of the meter doesn’t exceed  1%  of the max.  current, the meter starts.
Shunt running  current: when there is no current  in  the  current circuit of the meter, and 85%-125%of the rated voltage is applied on the voltage circuit, the calculator  hall not have more than one digital change
Alarm function DC  voltage  output  low  alarm, DC  voltage  output  high  alarm, one power down alarm, module voltage loss alarm, metering branch error  alarm,  internal  program  error  alarm,  clock  error  alarm, memory failure alarm, AC input power failure alarm
Timing function support broadcast timing, could remote timing to the meter through RS485 communication.
Communication Single channel RS485, baudrate 9600bps, can be set to 1200BPS, 2400bps, 4800bps.Communication protocol: standard or custmized
Hall sensor power
supply
Power supply output:+12V/100Ma, -12V/50mA
Clock accuracy ≤0.5S/d(23℃),  ≤1S/d(-20℃-60℃),
Auxiliary power supply Voltage range -40V~-60VDC
Power consumption Whole device≤2W( no hall power supply output)
Storage It has the storage function of historical power data and historical
alarm information and the memory is 2MB
Insulation resistance ≥40MΩ
environment Temperature Working: -20℃~+60℃; storage:-40℃~+70℃
Humidity ≤98% no condensation, no corrosive gas place
Altitude ≤4000m
Protection level IP20
Material flame retardent Terminal glow wire temperature 960℃±10℃, shell glow wire temperature 6500℃±15℃

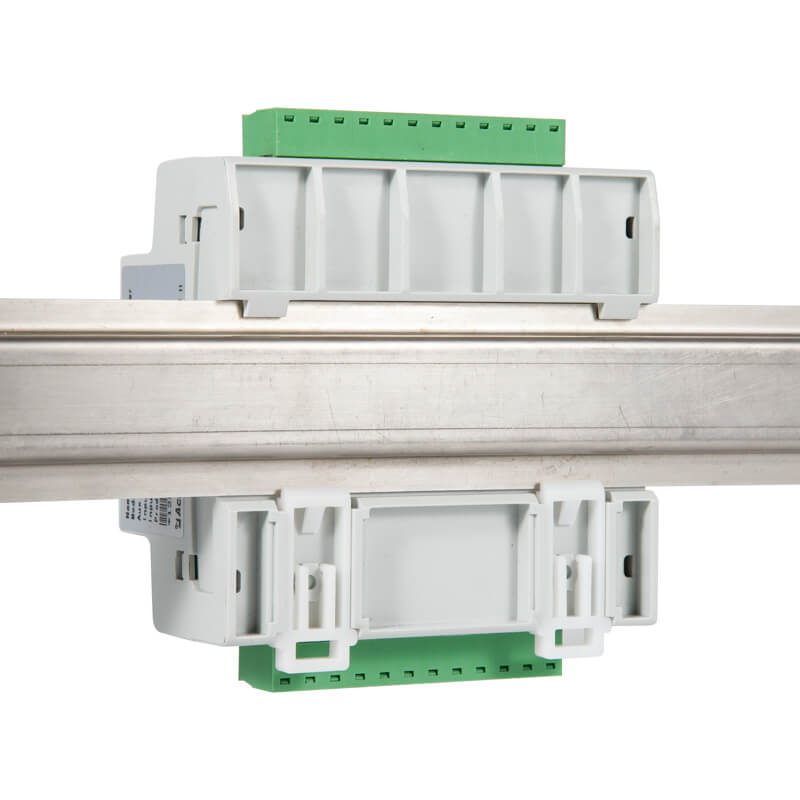

installation Standard 35mm din rail
Lightning protection Voltage input
(deferential mode)
Peak value 5kA
Auxiliary power supply
(deferential mode)
Peak value 5kA

Network
