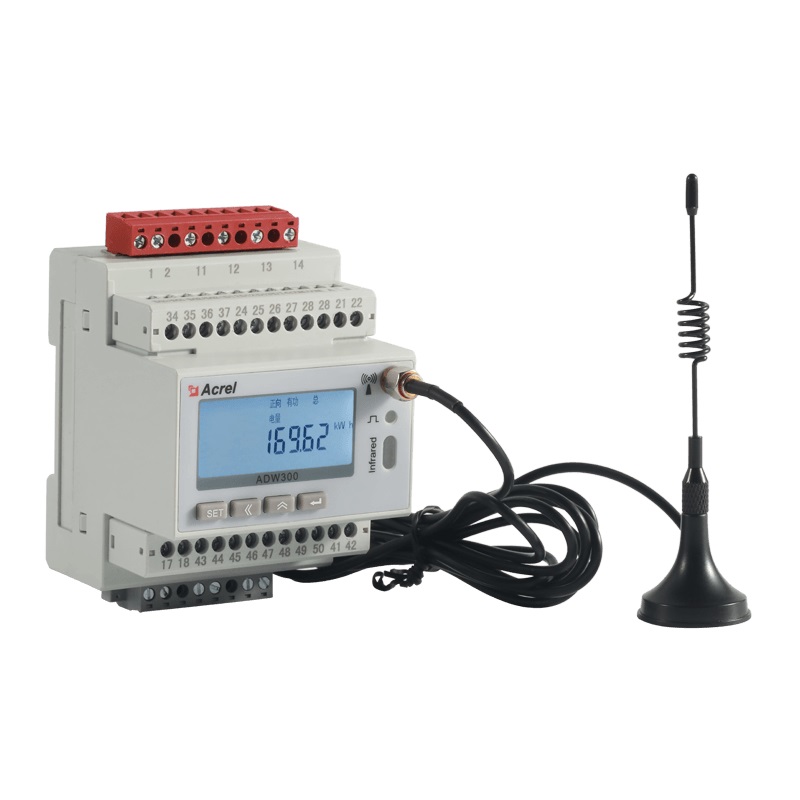

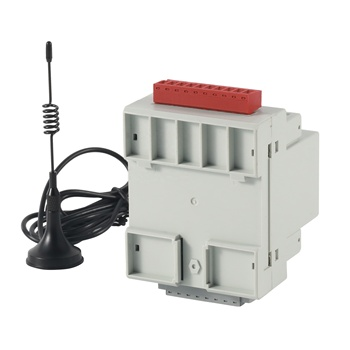

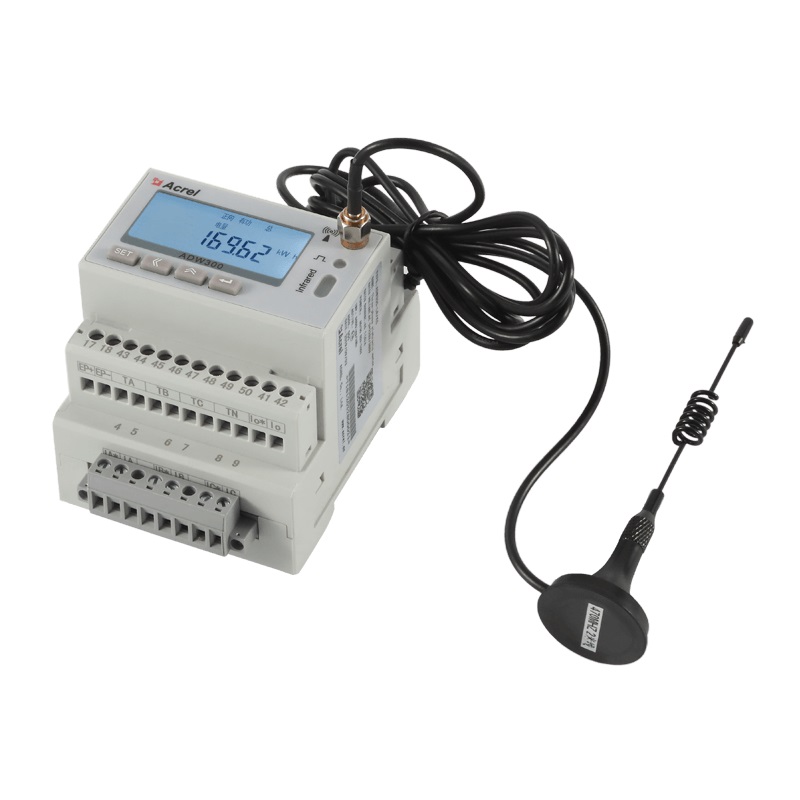

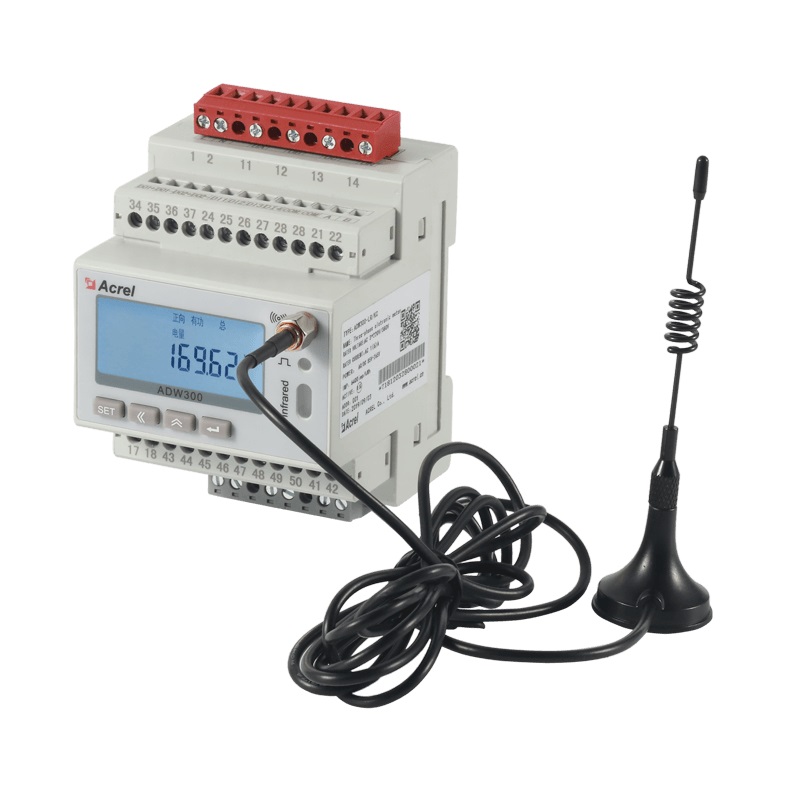

DC12V Auxi. Power RS485 Modbus-RTU AC Energy Meter

ADW300-DC12V

Standard Lead Time:
Sample: 2 days
Bulk: 1 month

  • DC12V
  • DC24V
  • 1 Channel of Residual Current
  • RS485 MODBUS-RTU

Feedback

What Do Our Customers Say?

  • “ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

    Arnold 

    Philippines

  • Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

    Tuan 

    Vietnam

Highlight

What’s the Function of Acrel ADW300 Series DC12V RS485 Modbus-RTU Meter for Cell Tower?

Monitor

  • Electrical Parameters
  • U I P Q S PF, 2-31st Harmonic, Max Demand, etc

Optional Function

  • 4DI/2DO, 4 NTC Temperature, 2 Residual Current, 2 RS485, Power Outage Alarm

  Communication

  • WiFi 4G MQTT
  • Lora Lorawan
  • RS485 Modbus-RTU

Power Supply

  • DC12V
  • DC24V
  • AC85-265V
  • AC380V
  • AC690V

Specification

What’s the Specification of Acrel ADW300 Series DC12V RS485 Modbus-RTU Meter for Cell Tower?

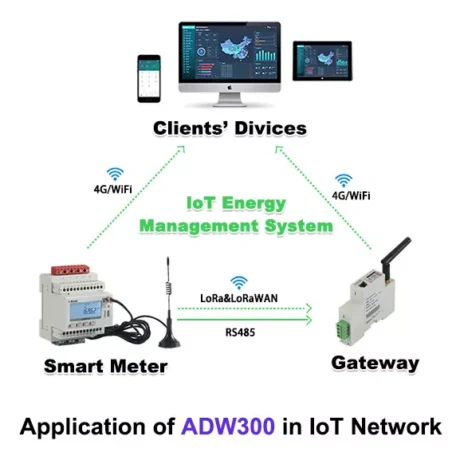

Multiple Communication Methods

● 4G LTE

● NB-IoT

● WiFi (2.4GHz&5GHz)

● LoRa

● RS485 (MODBUS-RTU)

● Paired with IoT Energy Monitoring System

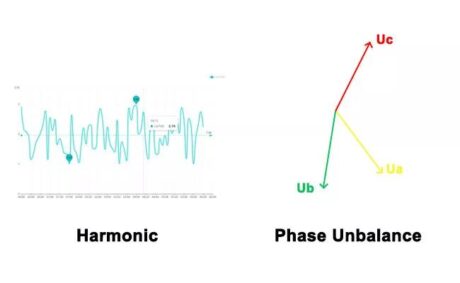

 Power Quality Analysis

● Total Harmonic

● 2nd~31st Harmonic

● Voltage Unbalance

● Current Unbalance

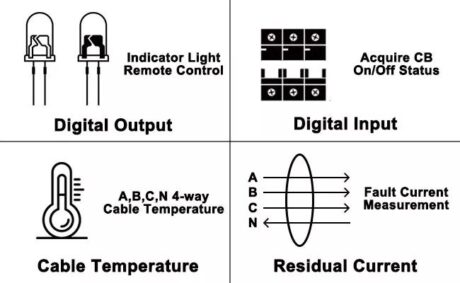

 Expanded Function

● 2-channel DO (Digital Ouput)

● 4-channel DI (Digital Input)

● 4-channel Cable Temperature Monitoring

● 1-channel Residual Current Measurement

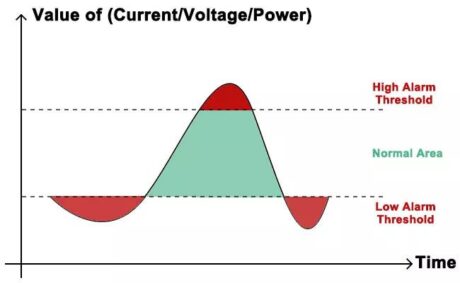

 Alarm Function

● Over/Under Current

● Over/Under Voltage

● Over/Under Power

● Phase Loss

Parameter

What’s the Parameter of the Acrel ADW300 Series DC12V RS485 Modbus-RTU Meter for Cell Tower?

Parameter Description & Value
Voltage

Input

Rated Voltage 3×380~456Vac L-L or 3×660~792Vac L-L (via direct connection)

3×100~120Vac L-L (via PTs)

Reference Frequency 45~65Hz
Power Consumption <0.5VA (each Phase)
Current

Input

Rated Current 3×1(6)A AC (via CTs)
Starting Current 1% Ib (Class 0.5); 4% Ib(Class 1)
Power Consumption <1VA (each Phase)
Phase

Wiring

3P4W 3-phase 4-wire
3P3W 3-phase 3-wire
Auxiliary

Power

Supply

Voltage Range 85~265Vac
Power Consumption <2W
Measurement

Performance

Standard IEC 62053-22:2003;  IEC 62053-21:2003
kWh Accuracy Class 0.5S
Pulse Width of Pulse 80±20ms
Pulse Constant 6400imp/kWh; 400imp/kWh

Installation

How to Install the Acrel ADW300 Series DC12V RS485 Modbus-RTU Meter for Cell Tower?

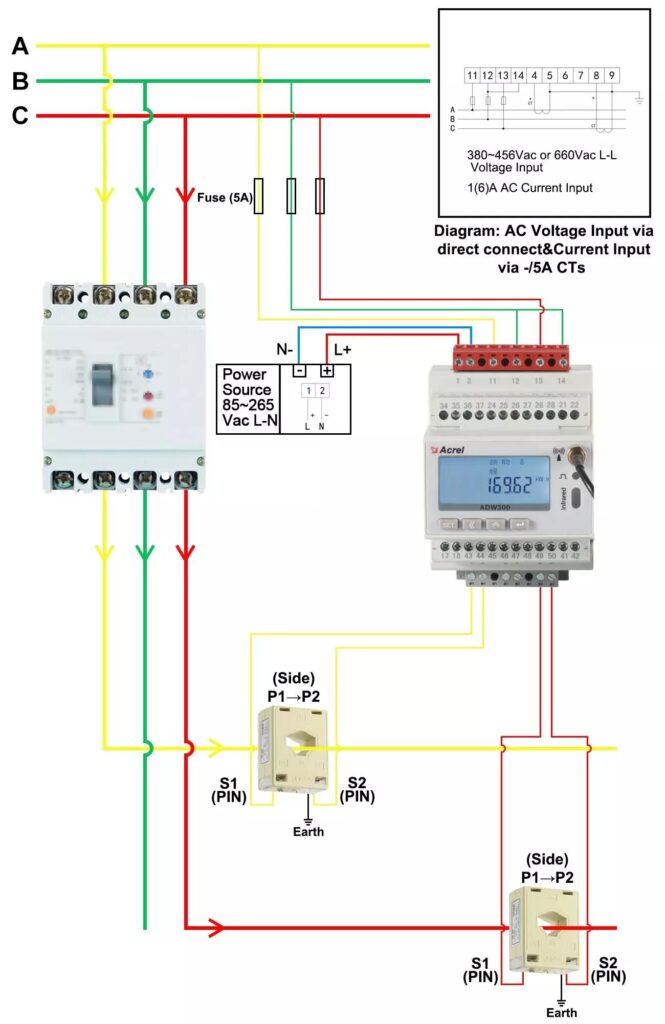

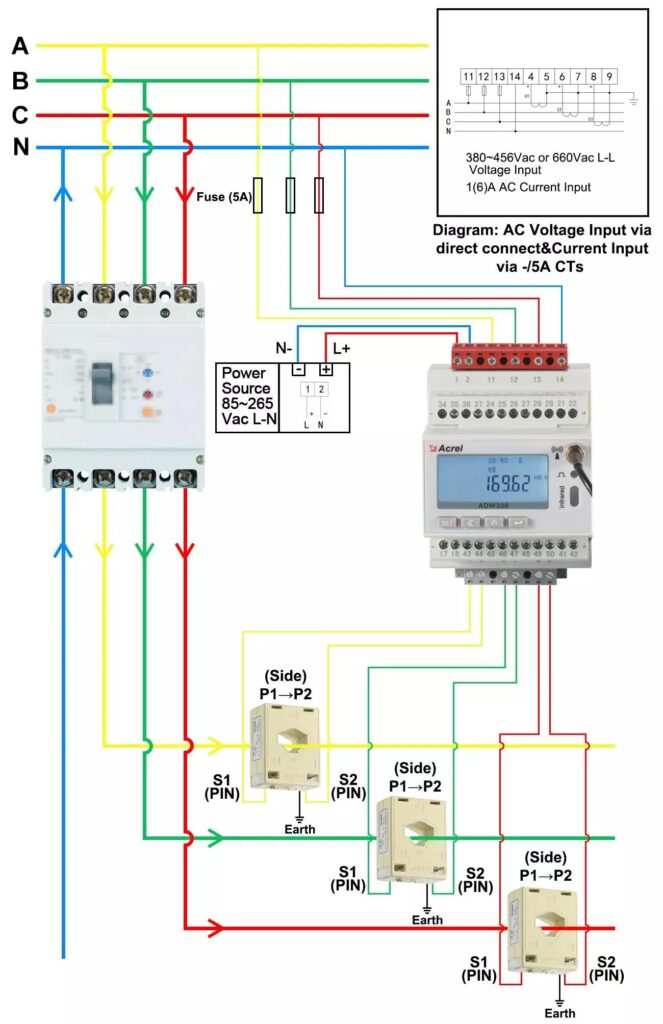

3-phase 4-wire CT operated 3-phase 3-wire CT operated
