Power & Energy Meter for Commercial & Residential Building

  • 4G WIFI LORA LORAWAN
  • Multi Circuits of Single & Three phase
  • Pre-paid & Post-paid
  • Din-rail & Flush-mount

Highlight

What’s the Highlight of Acrel Multi Circuit Power Meter for Telecom Tower Data Center Building?

Phase

  • Single phase
  • Three phase

  Wireless

  • 4G
  • WIFI
  • LORA
  • LORAWAN

Paid

  • Pre-paid
  • Post-paid

Cicuit

  • 1 circuit
  • 4 circuits
  • 12CH Three-phase max
  • 36CH Single-phase max

Function

Real-Time Monitoring

Voltage- Va, Vb, Vc
Current- la, Ib, lc
Active power - Pa, Pb, Pc, ∑P
Reactive power - Qa, Qb, Qc, ∑Q
Apparent power - Sa, Sb, Sc, ∑S
Power Factor- PFa, PFb, PFc, ∑PF
Active energy - each phase kWh, total kWh
Reactive energy - each phase kvarh, total kvarh

Solution

Single-Phase & Three-phase

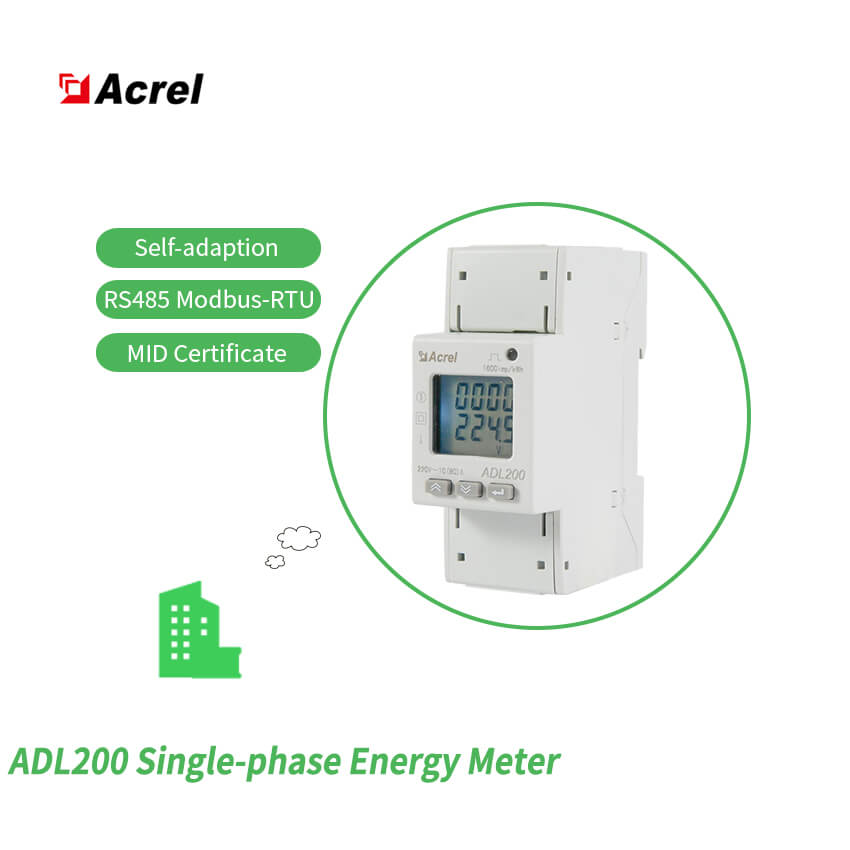

ADL200

Single phase
10(80)A
1 Class
Modbus-RTU RS485

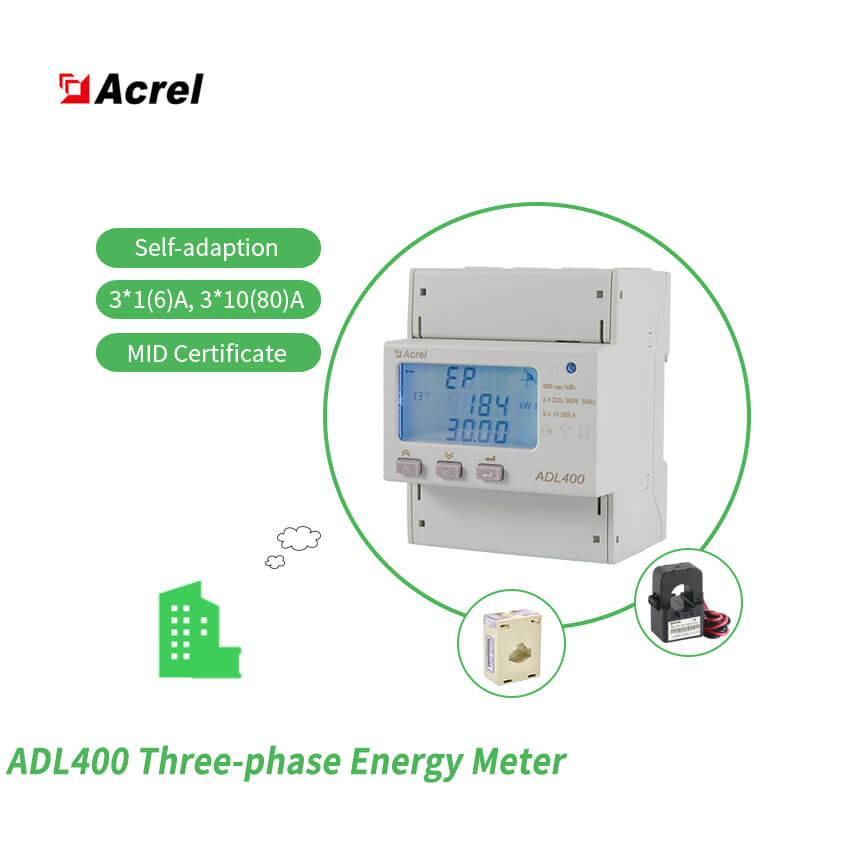

ADL400

Three phase
3*1(6)A, 3*10(80)A
0.5S Class
Modbus-RTU RS485

Wireless @ 4G WiFi Lora LoRaWan

ADW310

Single phase
10(80)A
1 Class
Modbus-RTU RS485, Modbus-TCP Ethernet
4G WiFi Lora LoRaWan

ADW300

Three phase
3*1(6)A, 3*10(80)A
0.5S Class
Modbus-RTU RS485, Modbus-TCP Ethernet
4G WiFi Lora LoRaWan

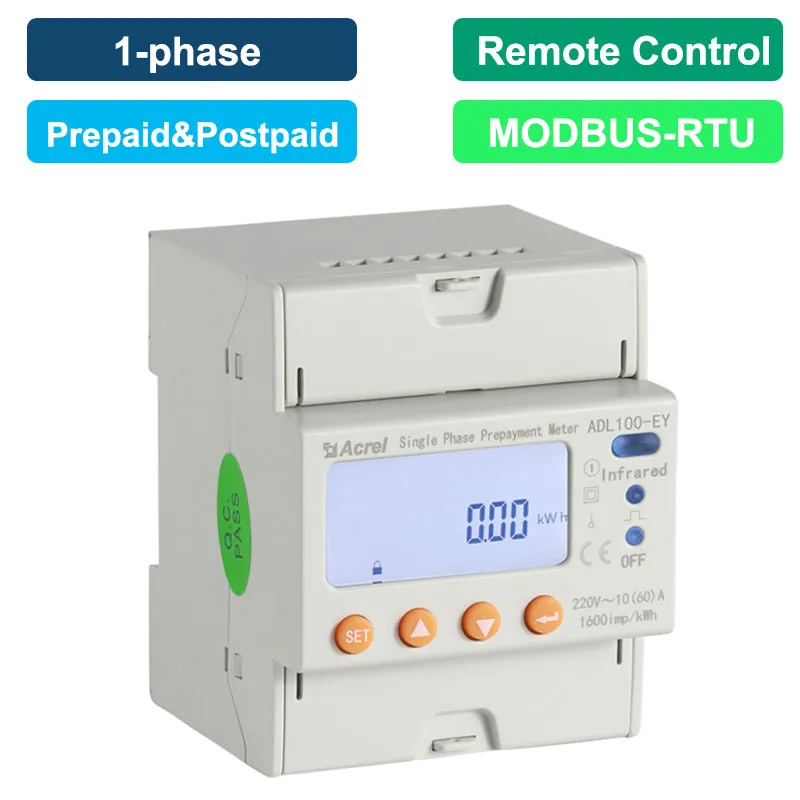

ADL100

Single phase
10(60)A
1 Class
Modbus-RTU RS485
Built-in magnetic latching Relay or Circuit Breaker to achieve on/off

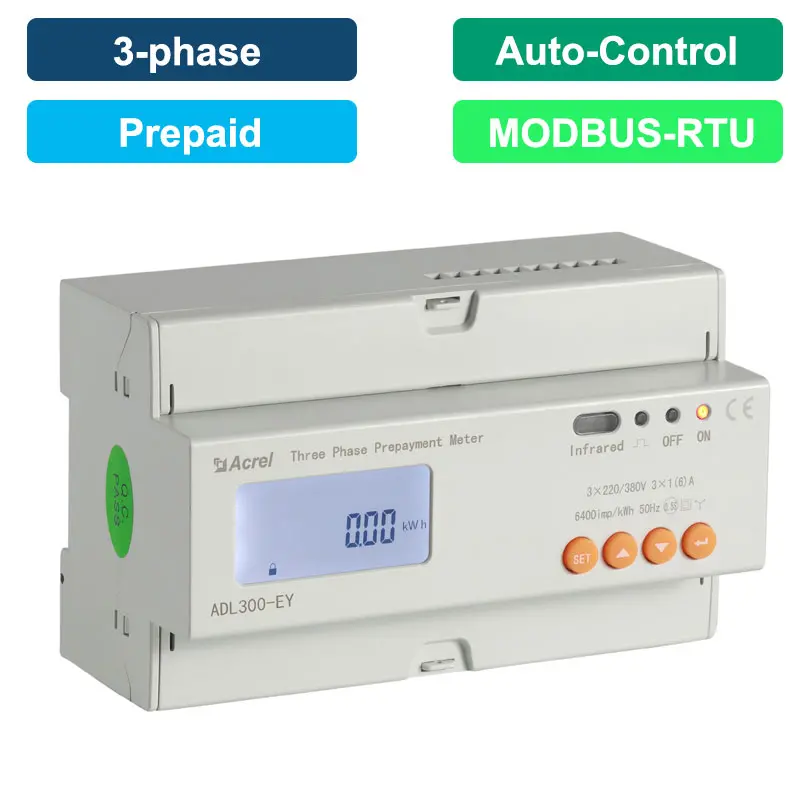

ADL300

Three phase
3*1(6)A, 3*10(80)A
0.5S Class
Modbus-RTU RS485
Built-in magnetic latching Relay or Circuit Breaker to achieve on/off

Circuit

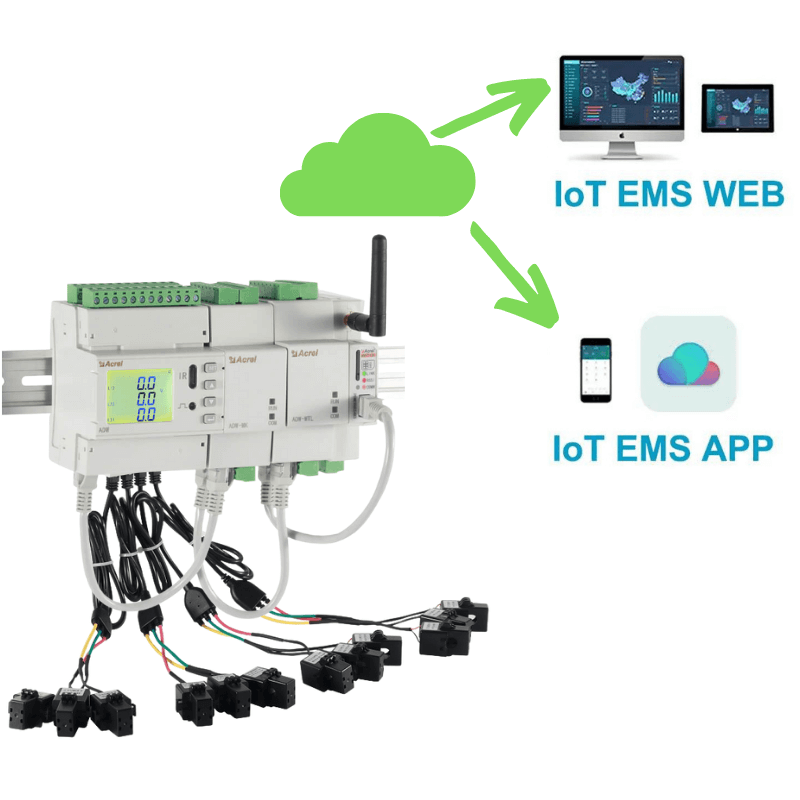

ADW210

12CH Single phase
4CH Three phase
Modular Expansion
5A, 100A, 400A, 600A
1 Class
Modbus-RTU RS485
Split-core Current Sensor with RJ12 interface

ADF400L

36CH Single phase
12CH Three phase
Modular Expansion
3*1(6)A, 3*10(80)A
0.5S Class
Modbus-RTU RS485 & Modbus-TCP Ethernet

Flush-mount

AMC

Single phase & Three phase
690V max
1A, 5A
AC/DC85-265V, DC24V,48V Auxiliary Power
1 Class
Modbus-RTU RS485
SOE, Harmonic, DI/DO,
Analog Output: 4~20mA DC or 1~5V DC

APM

Three phase
Modular Expansion
690V max
1A, 5A
AC85-265V, DC100-350V, AC100-415V, DC125-500V
0.2S Class max
Modbus-RTU RS485 & Modbus-TCP Ethernet & Profibus-TC
DI/DO, AI/AOP

Request Information & Quotation

Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]

If you have more detailed requirements, Please go to the relevant product page to submit the form.

Why choose Acrel?

  • 2003 Established
  • SZ.300286 Listed Company
  • 1200+ People
  • 25000+㎡ Plant
  • Factory Direct-sale

FAQ

Got a Question? Get your Answer

What are the Main Advantages of Acrel?

We have our own Factory and R&D Center

What are the Difference between Acrel and other Brands?

Rich product series: Cloud Platform, Gateway, Protection Device, Power Meter, Transformer

What Certificates does the Company have?

CNAS, ISO14001, ISO27001, ISO9001

What Certificates do the Products have?

CE, IEC, MID, UL, EAC, ROHS, REACH

How Expensive is Acrel Products?

Competitive Price with High Quality

How long is the product Warranty Period?

2 Years

What is the MOQ?

Purchasing according to your needs, no MOQ limit

How long is the Lead Time?

Sample takes 3 days; Bulk purchase takes 1 month

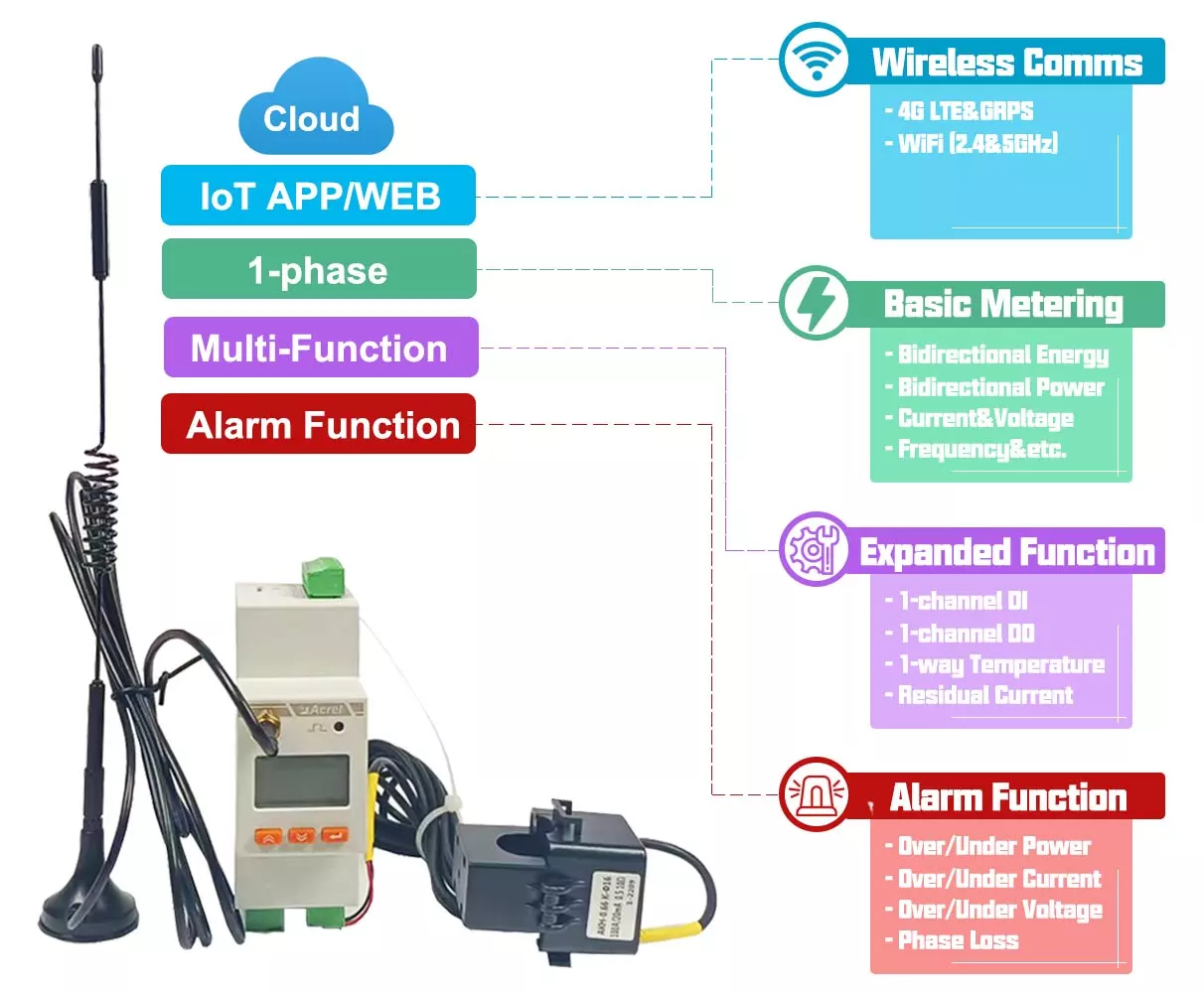

ADW310 Wireless Single phase Power Meter

Certificate:

Standard Lead Time:
Sample: 2 days
Bulk: 1 month

Feature:
  • Wireless Comms.:4G, WiFi (MQTT, MODBUS-TCP)
  • Wired Comms.:RS485 (MODBUS-RTU)
  • I/O Function:1-way DI & 1-way DO
  • Temperature:2-way Cable Temperature Measurement
  • Pulse Output:Active Pulse Output

Multi Function Economy 7 Meter

Standard:

2014/35/EU

2014/30/EU

Certificate:

Feature:
  • Quality Analysis
  • Multi-Communication
  • High Precious 0.2s
  • 32G SD Card

ADL400 MID 3 phase Energy Meter

Standard:

2014/30/EU

2014/32/EU

2014/35/EU

IEC62052-11, IEC62053-22

EN61010-1, EN61000-3

Certificate:

Feature:
  • 3P3L & 3P4L
  • Direct load 80A or via CT
  • Multi-Tariffs
  • Cost-effective

Single-phase Prepaid KWH Meter

Standard:

2014/35/EU

2014/30/EU

Certificate:

Feature:
  • High Accuracy 0.5S
  • Multi-Tariffs
  • Built-in Relay
  • Switch Control

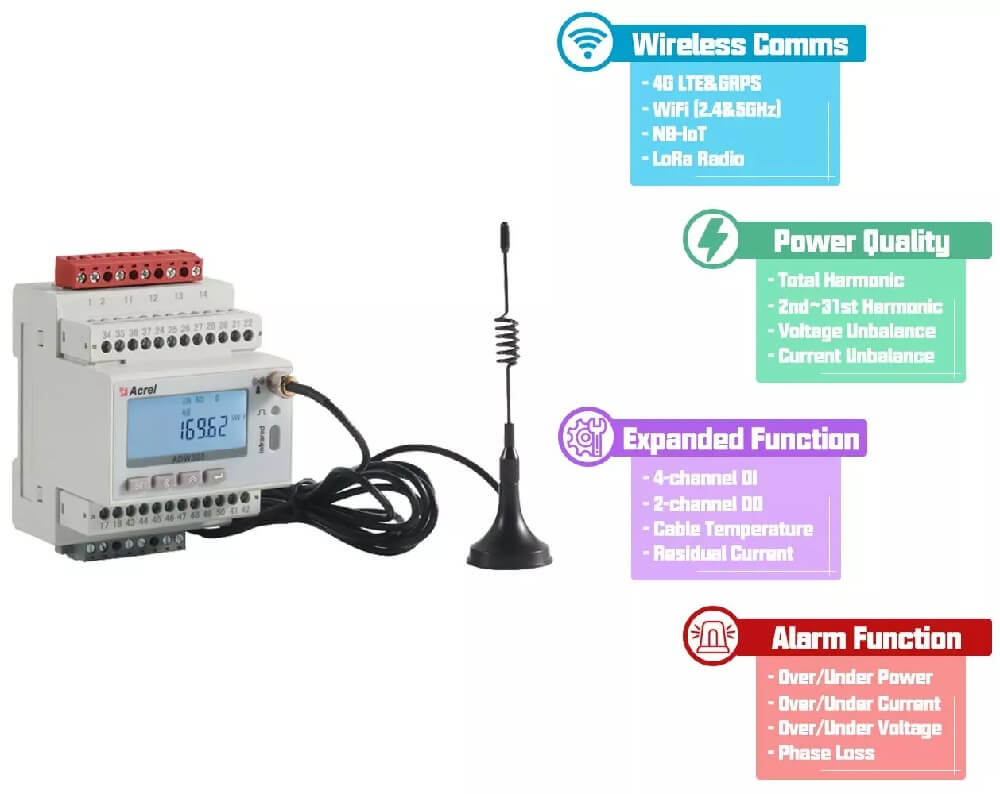

ADW300 Wireless 3 phase Energy Meter

Standard:

2014/30/EU

EN IEC 61000

IEC 62052

IEC 62053

Certificate:

Standard Lead Time:
Sample: 2 days
Bulk: 1 month

Feature:
  • WIFI
  • 4G
  • LORA
  • LORAWAN

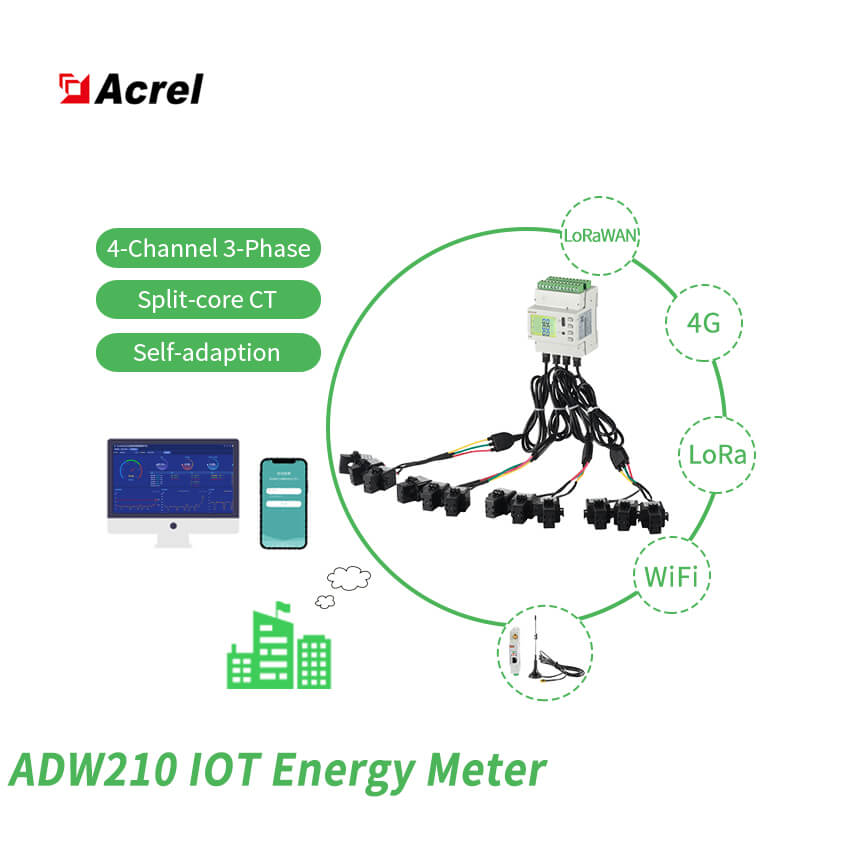

ADW210 Multi Circuits 3 phase Energy Meter

Standard:

2014/30/EU

EN IEC 61000

2014/35/EU

EN 61010

Certificate:

Standard Lead Time:
Sample: 2 days
Bulk: 1 month

Feature:
  • Split-core Current Transformer with RJ12 Interface
  • 4 Channels of Three-phase
  • Communication RS485 Modbus-RTU
  • Optional Function: 12DI/4DO, 12 Temperature, 4 Leakage Current

Din-rail Three-phase KWH Meter

Certificate:

Feature:
  • Voltage: 3P3L, 3P4L
  • Current: 3×10(80)A; 3×1(6)A
  • Communication: RS485
  • Optional: Multi-tariff, DI/DO, Temperature

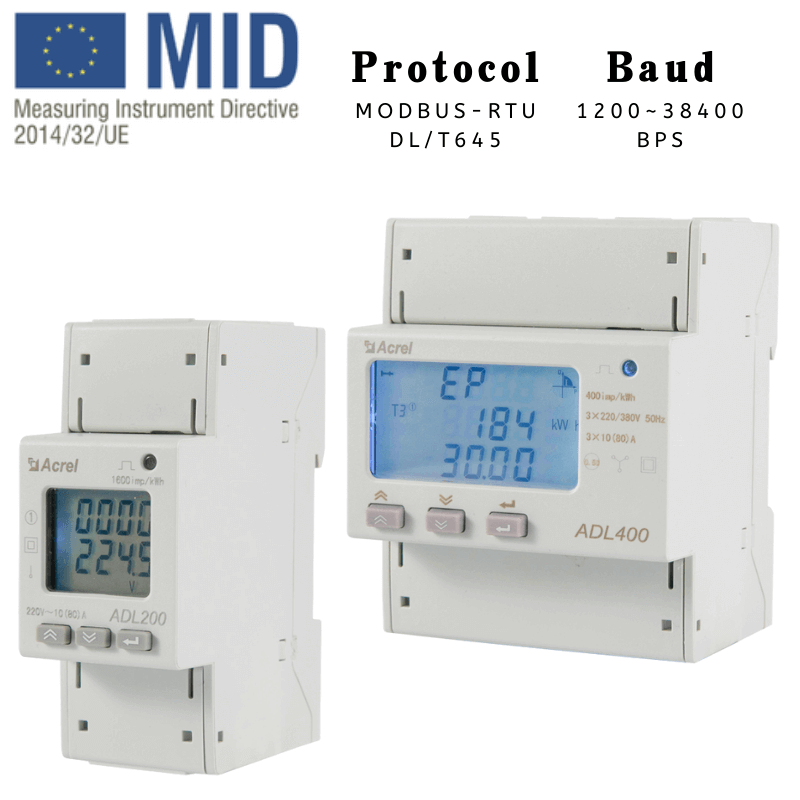

ADL200 MID Single phase Power Meter

Standard:

2014/30/EU

2014/32/EU

2014/35/EU

IEC62052-11, IEC62053-22

EN61010-1, EN61000-3



Certificate:

Feature:
  • 1-Phase 2-Wire
  • Direct load 80A
  • Multi-Tariffs
  • Cost-effective

ADF400L Multi Channels 3 phase Energy Meter

Standard:

IEC 62052

IEC 62053

2014/30/EU

EN IEC 61000

2014/35/EU

EN IEC 61000

EN61010

Certificate:

Standard Lead Time:
Sample: 2 days
Bulk: 1 month

Feature:
  • Modular Design
  • Max 12 Channels of Three-phase
  • High Accuracy 0.5s Class
  • Communication RS485, CE
