Power & Energy Meter from Acrel Manufacturer

Highlight

What’s the Highlight of Acrel Power & Energy Meter?

System

DC System
AC System
Single phase
Three phase

Interface

RS485
Ethernet
4G
WIFI
LORA
LORAWAN

Protocol

Modbus-RTU
Modbus-TCP
MQTT
HTTP

Cicuits

1 CH
4 CH
12 CH Three-phase max
36 CH Single-phase max

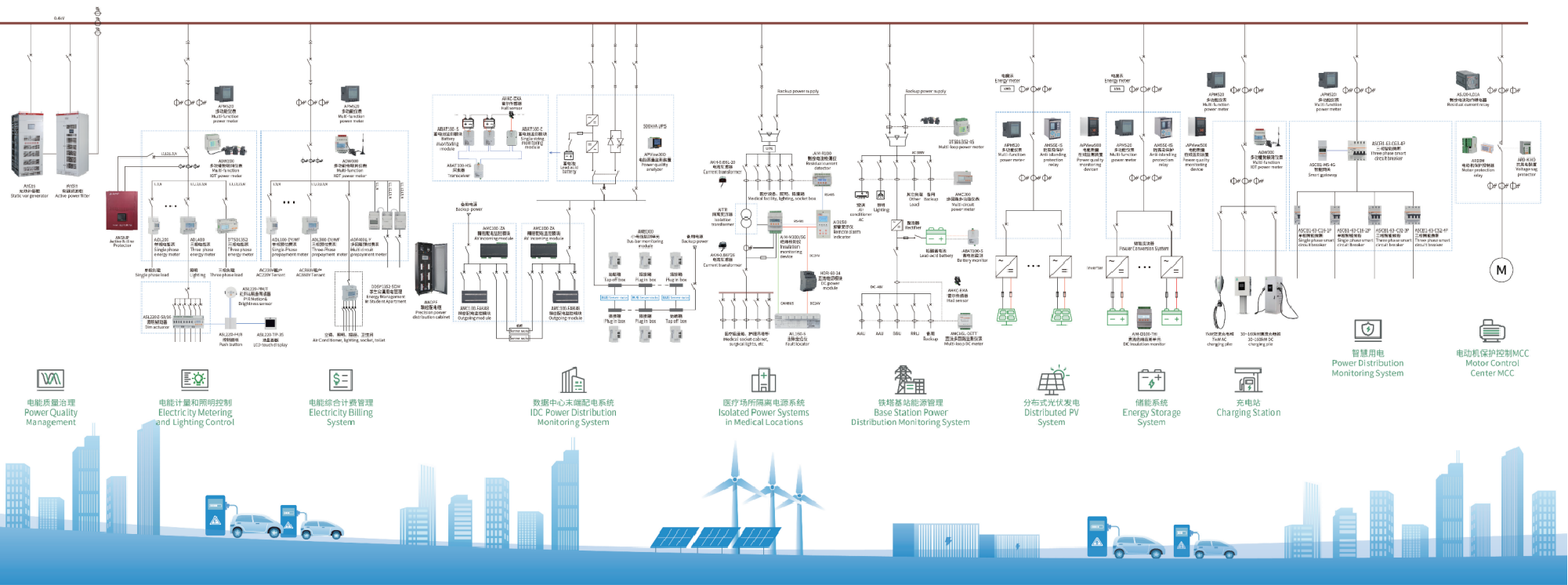

Acrel Solution

Real-Time Monitoring
Voltage- Va, Vb, Vc
Current- la, Ib, lc
Active power - Pa, Pb, Pc, ∑P
Reactive power - Qa, Qb, Qc, ∑Q
Apparent power - Sa, Sb, Sc, ∑S
Power Factor- PFa, PFb, PFc, ∑PF
Active energy - each phase kWh, total kWh
Reactive energy - each phase kvarh, total kvarh

Application

Multi-Circuit Power Meter for Telecom Tower

DTSD1352-4S

12 CH Single phase
4 CH Three phase
Modbus-RTU RS485, Modbus-TCP Ethernet
input Current Transformer or Rogowski with RJ12 Interface

AMC16-DETT

6CH DC Current
input Hall Sensor
LCD or w/o LCD
Modbus-RTU RS485

Wireless Power Meter @ 4G WiFi Lora LoRaWan

ADW310

Single phase
10(80)A
1 Class
Modbus-RTU RS485, Modbus-TCP Ethernet
4G WiFi Lora LoRaWan

ADW300

Three phase
3*1(6)A, 3*10(80)A
0.5S Class
Modbus-RTU RS485, Modbus-TCP Ethernet
4G WiFi Lora LoRaWan

Single-Phase & Three-phase Power Meter

ADL200

Single phase
10(80)A
1 Class
Modbus-RTU RS485
MID Certificate

ADL400

Three phase
3*1(6)A, 3*10(80)A
0.5S Class
Modbus-RTU RS485
MID Certificate

Multi-Circuit Power Meter

ADW210

12CH Single phase
4CH Three phase
Modular Expansion
5A, 100A, 400A, 600A
1 Class
Modbus-RTU RS485
Split-core Current Sensor with RJ12 interface

ADF400L

36CH Single phase
12CH Three phase
Modular Expansion
3*1(6)A, 3*10(80)A
0.5S Class
Modbus-RTU RS485 & Modbus-TCP Ethernet

Request Information & Quotation

Kindly Fill out the Form below and tell us more about your Requirements,
We would like to provide Suitable Solution for You.
or Send us Email directly, [email protected]

Pre-Paid & Post-Paid Power Meter

ADL100

Single phase
10(60)A
1 Class
Modbus-RTU RS485
Built-in magnetic latching Relay or Circuit Breaker to achieve on/off

ADL300

Three phase
3*1(6)A, 3*10(80)A
0.5S Class
Modbus-RTU RS485
Built-in magnetic latching Relay or Circuit Breaker to achieve on/off

Flush-mount Energy Meter

AMC

Single phase & Three phase
690V max
1A, 5A
AC/DC85-265V, DC24V,48V Auxiliary Power
1 Class
Modbus-RTU RS485
SOE, Harmonic, DI/DO,
Analog Output: 4~20mA DC or 1~5V DC

APM

Three phase
Modular Expansion
690V max
1A, 5A
AC85-265V, DC100-350V, AC100-415V, DC125-500V
0.2S Class max
Modbus-RTU RS485 & Modbus-TCP Ethernet & Profibus-TC
DI/DO, AI/AOP

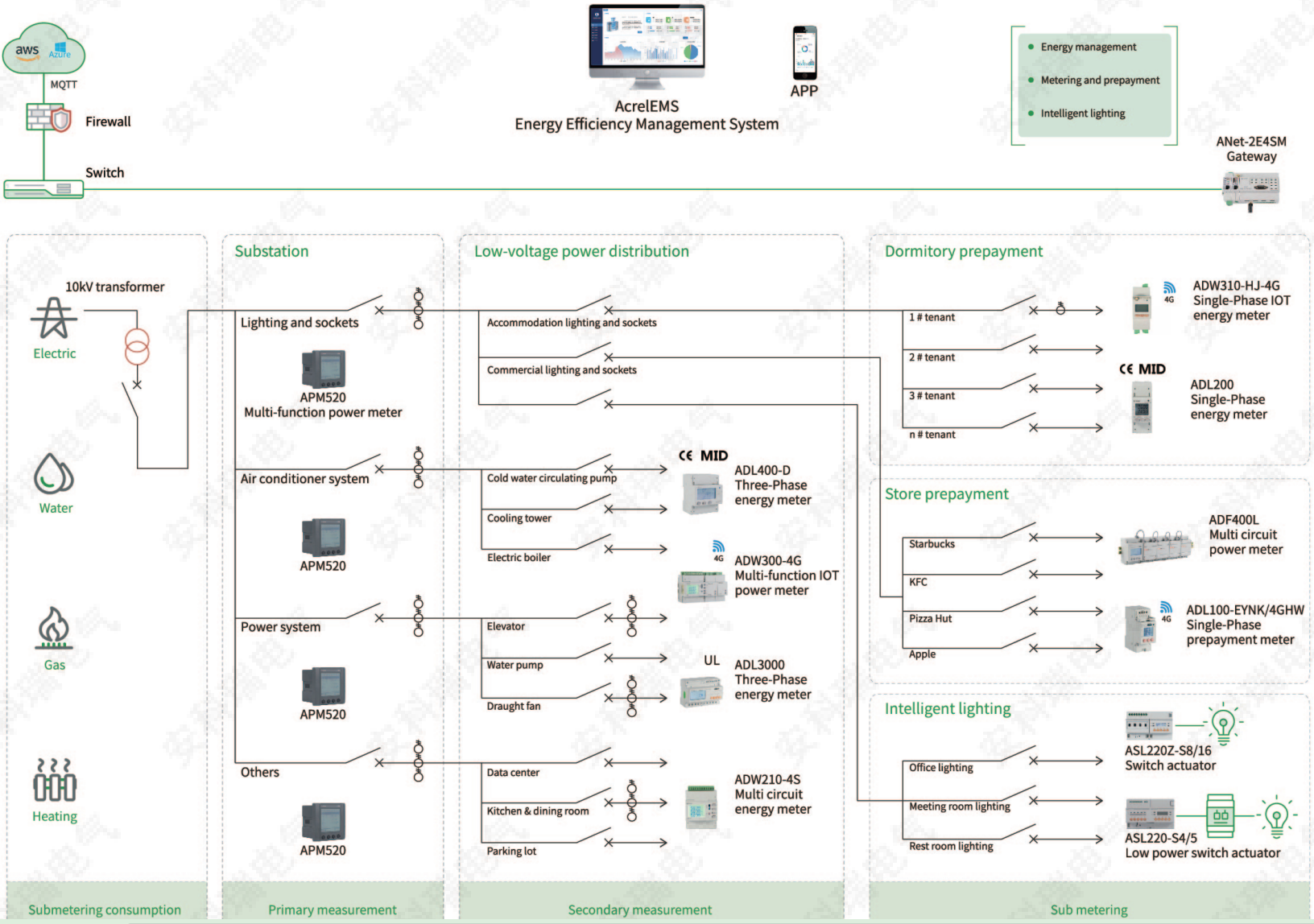

Remote Monitoring System @Acrel IoT

IoT based Wireless AC Energy & Power Meter
Phase: Single-phase, Three-phase
Communication: WIFI, 4G, LORA, LORAWAN; RS485
Real-time monitoring full Electricity Parameters for Remote Control and Monitoring
Function: Power Monitoring, Energy Quality, Demand Analysis, Operation Management, Alarm

Send us your detailed Requirements, We will open a 3-months Free trial account for you
