December 13, 2022
The user end consumes 80% of the electric energy of the entire grid, and the intelligent power consumption management of the user end is of great significance to the user's reliability, safety, and power saving.
Construct a smart electricity service system, promote user-side smart multi-function meters, smart power management terminals and other equipment power management solutions, and realize two-way benign interaction between the power grid and users.
The research content that needs to be solved urgently on the client side mainly includes: advanced meters, smart buildings, smart appliances, value-added services, customer power consumption management systems, demand side management and other topics.
Acrel smart power meter cooperates with smart power consumption management system to help customers realize real-time monitoring, high-precision electric parameter collection, and easy installation.
It is suitable for sub-item measurement of electric energy in government agencies and large public buildings.
An Irish customer uses ADL200 for electricity measurement in their project, installing Acrel ADL200 single-phase energy meters in distribution cabinets.
The instrument is connected to the gateway through RS485 communication mode, and connected to the server through 4G, and feeds back the collected electrical parameter information to the management platform in real time, and cooperates with users to effectively monitor and manage the power consumption of the factory.
| Input voltage
|
Reference voltage | AC220V |
| Reference frequency | 50Hz | |
| Power consumption | <10VA | |
| Input current
|
Basic current | 10A |
| Maximum current | 80A | |
| Starting current | 4‰Ib | |
| Measurement performance |
Accuracy | 1 class |
| Range of measuring | 000000.00~999999.99kWh | |
| Clock accuracy | Error≤0.5s/d | |
| Active pulse | Pulse width | 80±20ms |
| Pulse constant | 1000imp/kWh | |

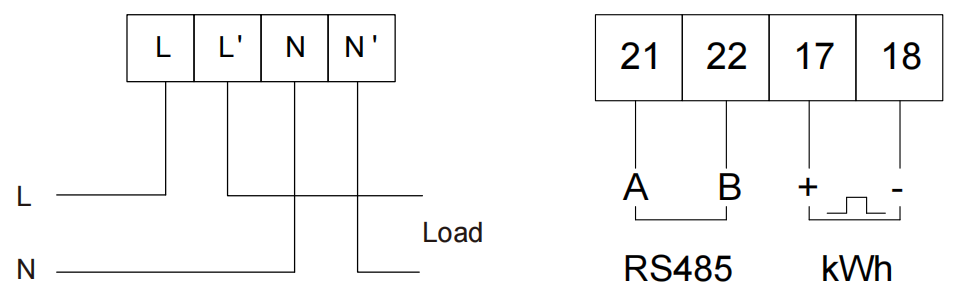

| Communication | Interface | RS485(A+、 B-) |
| Connection mode | Shielded twisted pair conductors | |
| Protocol | MODBUS-RTU | |
| Measurement of kWh | Single-phase active kWh (positive and negative)
3 months historical energy data frozen storage |
|
| Measurement of electrical parameters |
Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency |
|
| LCD Display | 8 bits section LCD display | |
| Key programming | 3 keys to set parameters like code, address, baud rate, multi-tariff and communication protocol | |
| Pulse output | Active energy pulse output | |
| Function | With RS485 MODBUS-RTU protocol | |
| Optional function | Multi-tariff | |
| Net weight | 0.05kg | |
| Dimension | 90mm×36mm×65mm | |

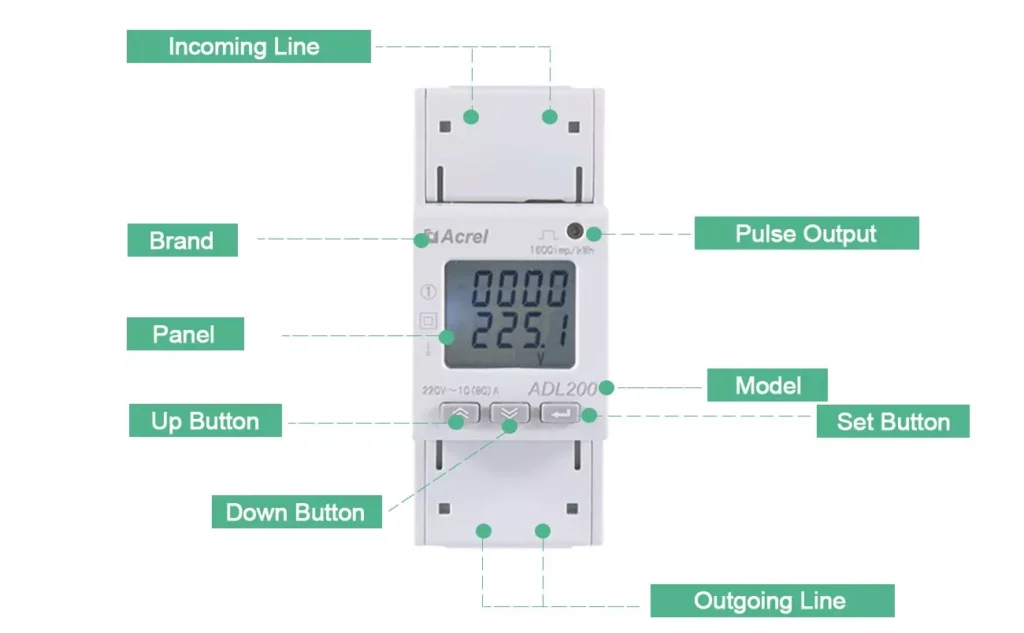

DL200 series multifunctional electric energy meter adopts DIN35mm guide rail installation structure, small in size, and can measure electric energy and other electrical parameters. Through RS485 communication, cooperate with the gateway to help customers effectively monitor the energy consumption of the factory in real-time.
