Three-phase Multi Circuit Meter

Feedback

What Do Our Customers Say?

“ For over 4 years working with Acrel, they have continuously demonstrated excellent technical ability while ensuring superior customer service. Their collaborative approach and real time flexibility in adapting to changing conditions has contributed to the success of many project goals. "

Arnold 

Philippines
Cloud Platform for Power IoT is a synchronous integrated solution from energy meter installation to web interactive interface that can see the benefits of features with the first click mouse. Very convenient and fast. I will be with this product for a long time.

Tuan 

Vietnam

Highlight

What’s the Function of Acrel ADF400L Series Three-phase Multi-Circuit Meter?

Monitor

Electrical Parameters;
U I P Q S PF etc.

Tariff

1~4 kinds of Tariffs
Peak
Standard
Off-peak

Modular

12 Three-phase Circuits
Current Input Directly, 3*10(80)A, 12modules
Current Input via Current Transformer, 3*1(6)A, 6modules

Extendible

12 modules at most;
Din-rail installation
Connected IoT Solution

Specification

What’s the Specification of Acrel ADF400L series Multi-Circuit Meter?

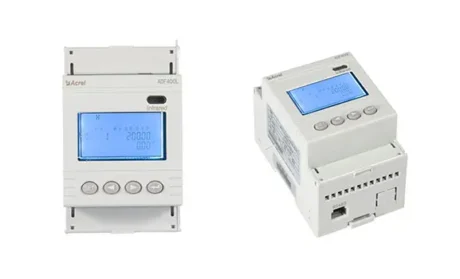

Main Body

● Max 36 Circuits 1-phase or 12 Circuits 3-phase

● Max 12 Modules (1-phase) or 6 Modules (3-phase)

● RS485 (MODBUS-RTU); Ethernet

● LCD&Keypads HMI

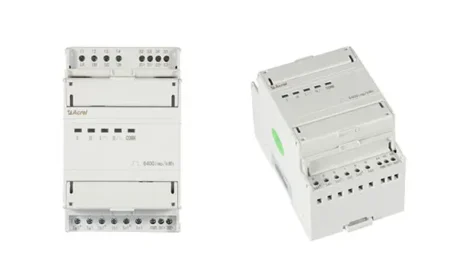

Sub Module (Connection via CTs)

● Monitor Max 2 Circuits 3-phsae

● 3×1(6)A AC (CT Operated Connection)

● 4DO&4DI (220V AC Wet Contact DI)

● LED Indicator

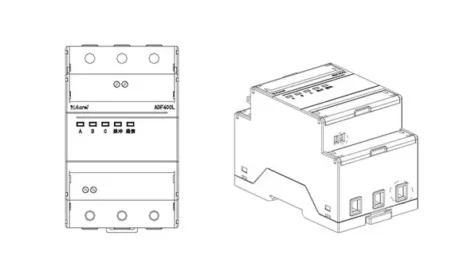

Sub Module (Direct Connection)

● Monitor Max 3 Circuits 1-phase or 1 Circuits 3-phase

● Max 80A AC Direct Load Current

● LED Indicator

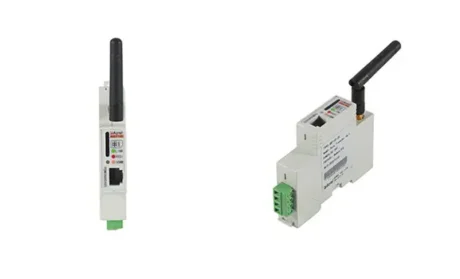

Expanded Communication Module

● Upstream: 4G/WiFi/LoRa/LoRaWAN/NB-IoT

● Downstream: RS485 (MODBUS-RTU)

● RJ45 Interface (connected with Main Body)

● Power Supply: 24V/12V DC or 220V AC/DC

Parameter

What’s the Parameter of Three-phase Multi-Circuit Meter?

Parameter	Description&Value
Auxiliary Power Supply	Voltage	3*220V/380V (for 3-phase sub modules)
	Power Consumption	≤10W
Input Voltage	Rated Voltage	3x 220/380V AC (3-phase)
	Frequency	50Hz
Input Current	Rated Current	Max 80A Load Current (for 1-phase&3-phase sub module with direct connection); 3×1(6)A(for 3-phase sub module via CTs)
	Starting Current	1‰ Ib (Class 0.5S)
Accuracy	Measurement	Class 0.5
	Clock	≤0.5s/d
Pulse	Pulse Output	1 Active Energy Pulse for each 3-phase Sub Module
	Pulse Width	80ms±20ms
	Pulse Constant	6400imp/kWh (3-phase)
Communication	RS485	MODBUS-RTU
	Infrared	For Prepaid Card Scanning
	Ethernet	MODBUS-TCP
Environment	Operating Temperature	-20℃~+60℃
	Storage Temperature	-30℃~+70℃
	Humidity	≤95% (No condensation)
	Altitude	＜2000m

Installation

How to Install the Three-phase Multi-Circuit Meter?



Main Body	Sub Module (Direct Connect)		Sub Module (Via CTs)

Direct Connect (1-phase&3-phase)		Connect via CTs (3-phase)
